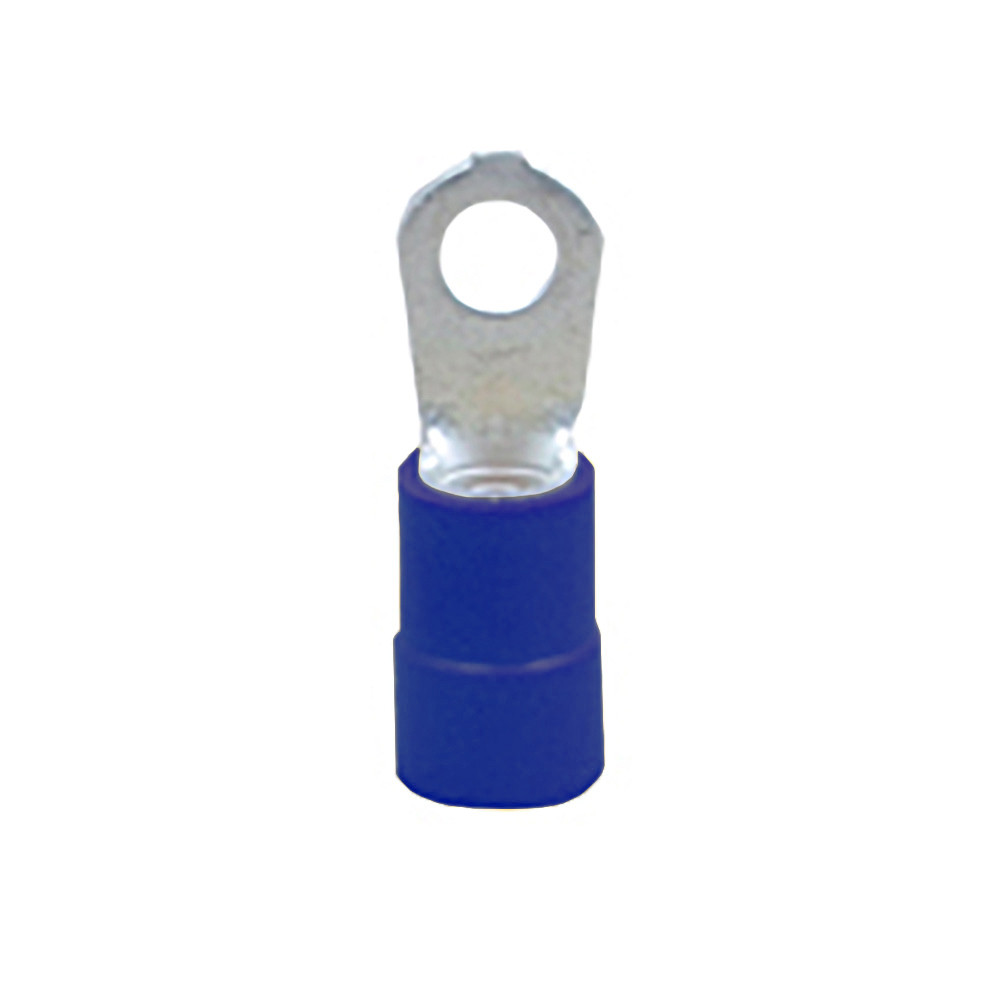

Insulated Ring Terminal 1.5 - 2.5 mm² HR3M4, blue (100 pcs.)

• Details
• Data
• Reviews

Details

Insulated Ring Terminal 1.5 - 2.5 mm2HR3M4, blue (100 pcs.) The main characteristics Conforms to DIN 46237 Material: Cu-ETP according to DIN EN 13600 Surface: galvanised For nontension connections Insulation PA (polyamide, nylon) Halogen free Temperature resistance: -60 °C to +105 °C Easy Entry ensures quick and easy conductor insertion Delivery content Insulated Ring Terminal 1.5 - 2.5 mm 2 HR3M4 (Packing unit 100 pcs.)

Technical Data

Parameter	Value
Cross section	1.5 - 2.5 mm2
Connecting bolt	4 mm
Halogen free	Yes
Surface	Galvanised
Insulation	Polyamide, Nylon
Temperature range	-60 °C to +105 °C
DIN-Norm	DIN 46237
Material	Cu-ETP according to DIN EN 13600
Colour	Blue
Weight	100 g/100 pcs.

Data

Brand:

IVT

Weight:

100 g/100 db

Technical Specifications:

Keresztmetszet: 1,5 - 2,5 mm²; Csatlakozó csavar: 4 mm; Halogénmentes: Igen; Felület: Galvanizált; Szigetelés: Poliamid, nejlon; Hőmérséklet tartomány: -60 °C - +105 °C; DIN-norma: DIN 46237; Anyag: Cu-ETP a DIN EN 13600 szerint; Szín: Kék; Súly: 100 g/100 db

Warranty:

1 year manufacturer warranty

Weight:

100 g/db
