Xiaomi Outdoor Camera CW300 outdoor IP camera 2.5K 4 MP IP66 Wi-Fi
Technical specifications
| Antenna type | Internal |
| Audio system | Two-way |
| Bluetooth | No |
| Built-in HDD | No |
| Built-in lighting | Yes |
| Built-in siren | Yes |
| Built-in speaker | Yes |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Built-in card reader | Yes |
| Cloud managed | Yes |
| Compatible memory cards | MicroSD TransFlash |
| Connection technology | Wired and wireless |
| DC input connector | Yes |
| Depth | 123 mm |
| Drilling template included | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN RJ-45 ports | 1 |
| Design | Turret |
| Height | 168 mm |
| Infrared wavelength | 850 nm |
| Protection class | IP66 |
| LED type | IR White |
| User manual | Yes |
| Maximum aperture | F1.6 |
| Maximum memory card size | 256 GB |
| Maximum resolution | 2560 x 1440 |
| Memory card included | No |
| Installation kit | Yes |
| Mounting type | Ceiling |
| Network standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Night vision | Yes |
| Number of cameras | 1 |
| Illuminating LEDs | 4 |
| Number of lenses | 1 |
| Operating temperature | -30 – 60 °C |
| Placement | Indoor and outdoor |
| Power supply type | DC |
| Product color | White |
| PTZ control | Yes |
| Remote control | Yes |
| Screws included | Yes |
| Smartphone and tablet remote support | Yes |
| Total megapixels | 4 MP |
| Type | IP security camera |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 802.11n |
| Width | 100 mm |
| Zoom function | Yes |
Ultra-sharp image quality
The Xiaomi Outdoor Camera CW300 offers 2.5K resolution image quality thanks to the 4 MP camera and the large f/1.6 aperture lens. This provides an extremely detailed and clear image, allowing for the recognition of even the smallest details when zoomed in.
Intelligent night vision
The camera is equipped with 4 LEDs for full-color night vision. When the camera detects a person's presence, it automatically turns on the white light, capturing color images even in dark environments.
Pan and tilt for better visibility
The camera features a dual-motor pan-tilt zoom system that allows the lens to be rotated in any direction using a smartphone. This solution provides a wider field of view and more flexible, secure protection. You can monitor a larger area and adjust the viewing angle according to your needs.
Weather resistance
The professional IP66 rated design makes the camera water and dust resistant. This guarantees stable operation even in adverse weather conditions, ensuring the camera operates reliably all year round.
Advanced detection and alerts
The Xiaomi Outdoor Camera CW300 uses a local AI algorithm for more accurate and faster person detection. The camera automatically records alert events and sends notifications to your smartphone. Upon detecting motion, it activates an audible alarm and flashing light to deter unauthorized intruders, as well as sending a notification to the Mi Home Xiaomi Home app.
Top-level security
Each built-in MJA1 security chip has a unique key and credentials, effectively protecting data communication and user privacy, similar to financial-level security. The camera supports AES-128 encryption, offers configurable sleep mode, and provides flexible installation options: ceiling, side, and pole mounting.
Easy installation and use

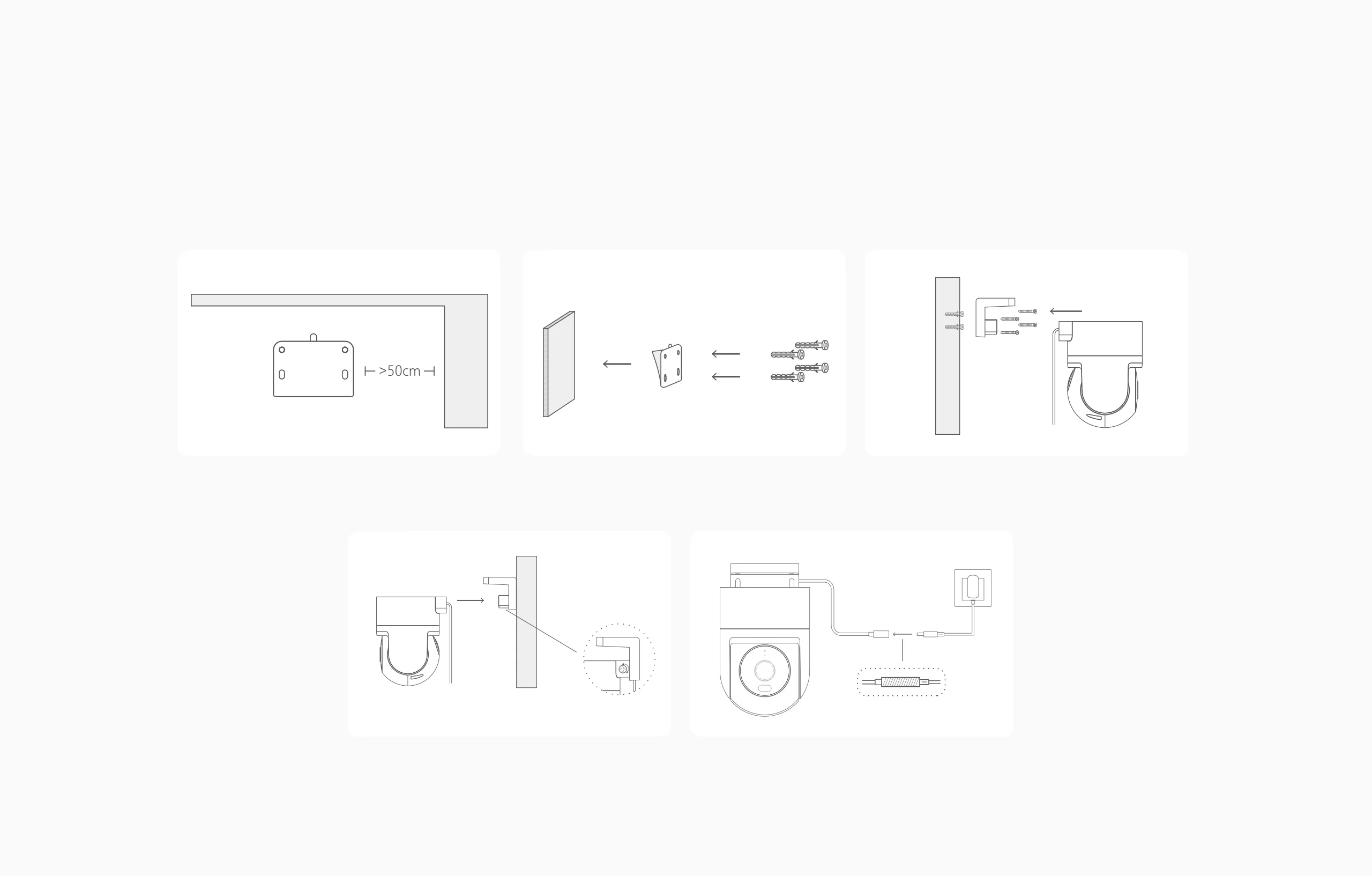

Installing the Xiaomi Outdoor Camera CW300 is simple with the included mounting template. Follow the instructions: mark the mounting point, drill holes, secure the mounting bracket, screw in the camera, and then seal it with waterproof tape. The camera uses H.265 encoding technology, which saves storage space and bandwidth for continuous and seamless video playback.
