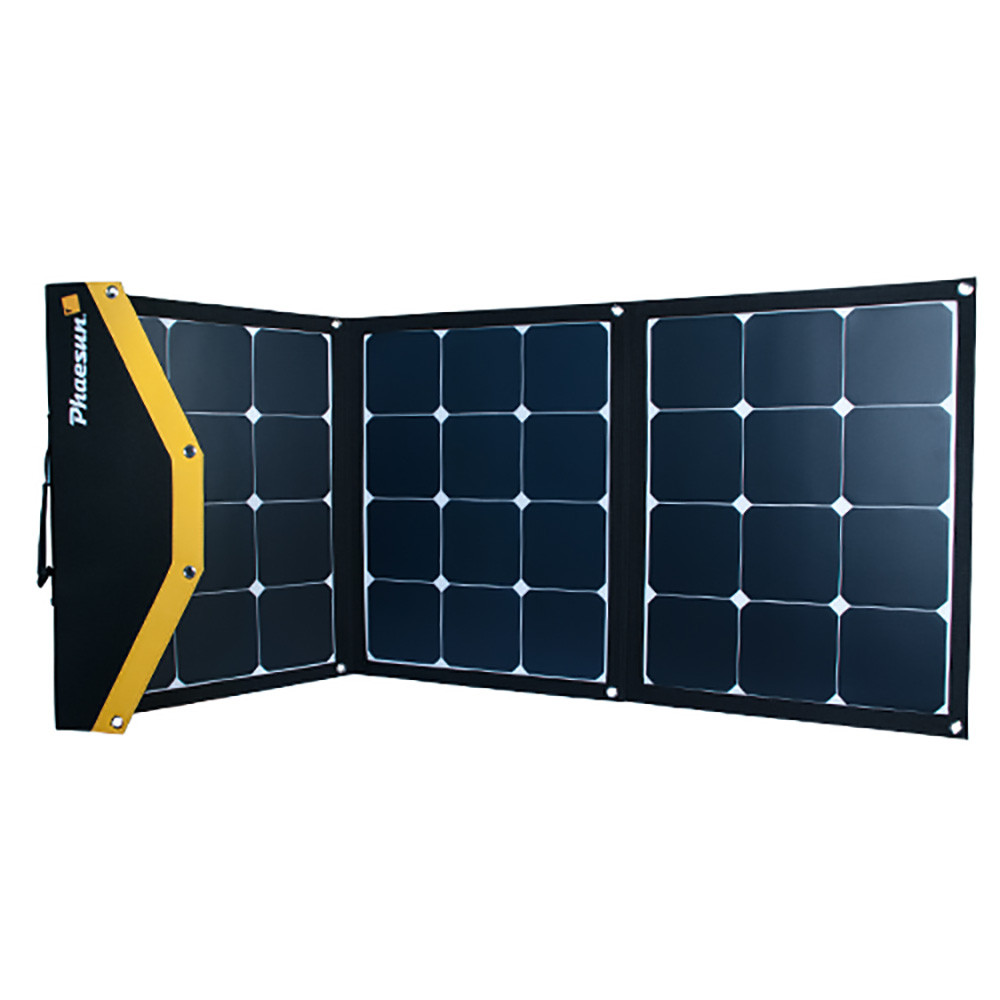

Solar Module Phaesun® Fly Weight 135/3, 3 x 45 W monocrystal

Name: Solar Module Phaesun® Fly Weight 135/3, 3 x 45 W monocrystalline 135 Wp
Brand: IVT
SKU: 200068
Price: 550.36 EUR
Availability: InStock

Solar Module Phaesun® Fly Weight 135/3, 3 x 45 W monocrystalline 135 Wp

Item number:

200068

German Quality

Solar Module Phaesun® Fly Weight 135/3, 3 x 45 W monocrystalline 135 Wp

Item number:

200068

Integrated, fold-in legs allow any elevation; Module can be tensioned with integrated eyelets; Including various connection cables; Even less sensitive to bending due to the reinforced backing foil; ETFE laminate is extremely translucent and is characterized by its durability and resistance

RRP: Online price: 653.86 €

Online price: 550.36 €

Savings 103.50 €

Details

Fly Weight solar module – high energy yield in the smallest space The most important features Integrated, fold-in legs allow any elevation Module can be tensioned with integrated eyelets Including various connection cables Even less sensitive to bending due to the reinforced backing foil ETFE laminate is extremely translucent and is characterized by its durability and resistance Delivery content Solar module Phaesun ® Fly Weight 135/3 monocrystalline Several connection cables

Technical Data

Parameter	Value
System voltage	12 V DC
Power	135 Wp
Voltage (max.)	22.6 V
Current (max.)	6.0 A
Open circuit voltage	26.0 V
Short circuit current	6.4 A
Cells	3 x 12 mono
Efficiency cells	23.9 %
Efficiency module	15.8 %
System voltage (max.)	45 V
Operating temperature	-10 °C to +60 °C
Temperature coefficient	Power - 0.270 % \|Voc - 0.236 % \| Isc 0.058 %
Front	Foil, ETFE
Frame	Textile
Module type	Monocrystalline
Module cable	Ø 2,5 mm2\| Length 4000 mm \|SAE plug to wire and ferrule
Certificates	CE, RoHs
Dimensions (L x W x H)	Unfolded 1525 x 560 x 10 mm,folded 440 x 560 x 20 mm
Weight	3.6 kg

Data

Brand:

IVT

Weight:

3,6 kg

EAN:

4250730202434

Technical Specifications:

Rendszerfeszültség: 12 V DC; Teljesítmény: 135 Wp; Maximális feszültség: 22,6 V; Maximális áram: 6,0 A; Nyitott áramköri feszültség: 26,0 V; Rövidzárási áram: 6,4 A; Cellák: 3 x 12 mono; Cellák hatásfoka: 23,9 %; Modul hatásfoka: 15,8 %; Maximális rendszerfeszültség: 45 V; Működési hőmérséklet: -10 °C-tól +60 °C-ig; Hőmérsékleti együttható: Teljesítmény - 0,270 % - Voc - 0,236 % - Isc 0,058 %; Előlap: Fólia, ETFE; Keret: Textil; Modul típus: Monokristályos; Modul kábel: Ø 2,5 mm² - Hossz 4000 mm - SAE csatlakozó kábel és hüvely; Tanúsítványok: CE, RoHs; Méretek: Kihajtva 1525 x 560 x 10 mm, összecsukva 440 x 560 x 20 mm; Súly: 3,6 kg

Warranty:

2 year manufacturer warranty

Weight:

3.6 kg/db
