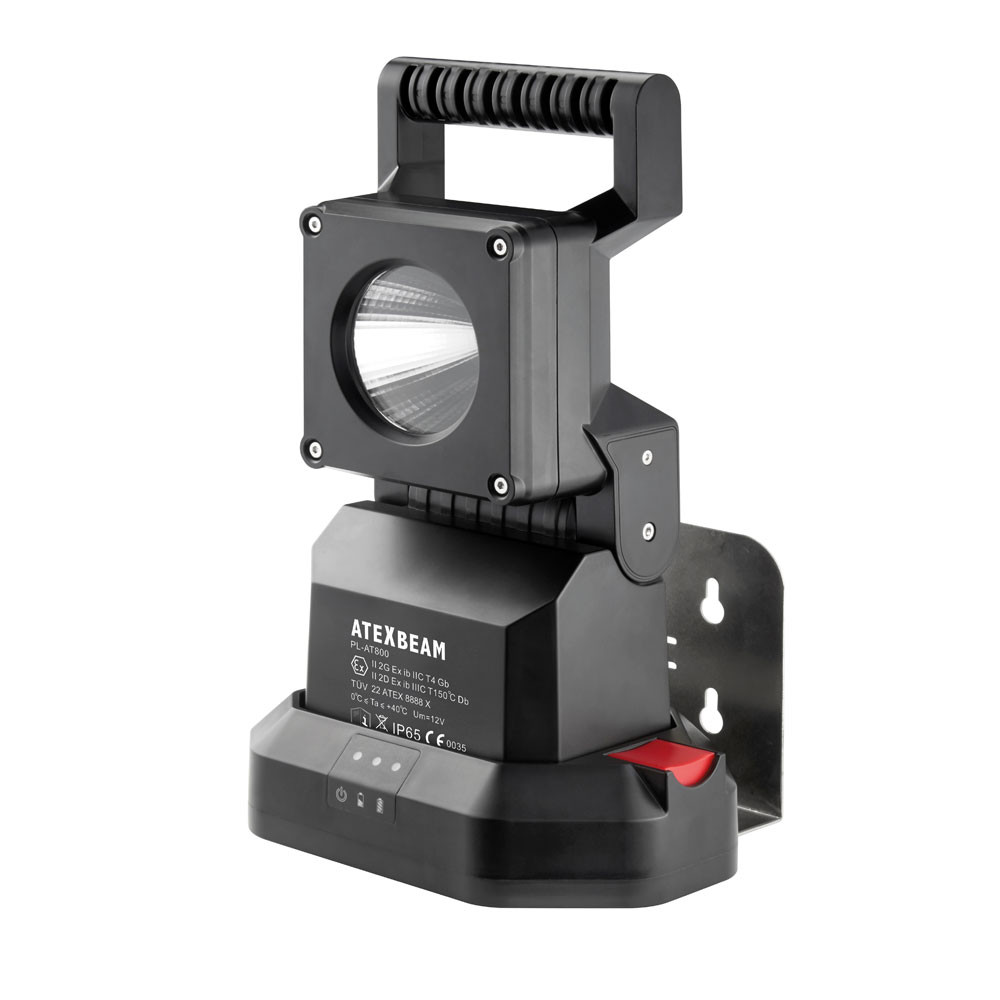

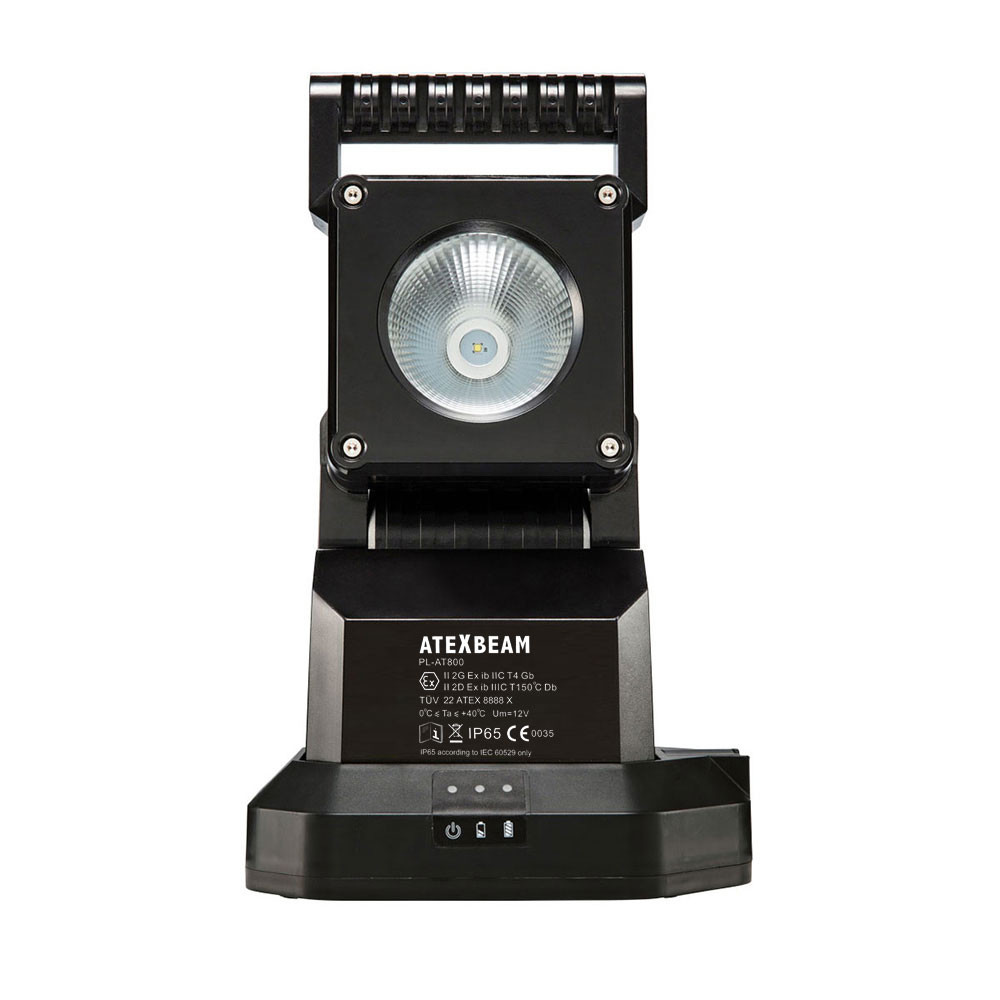

Ex-protected LED work lamp ATEXBEAM PL-AT800, 3 W, Li-Ion battery

Ex-certified lamp –Safe use under the most adverse conditions

Features & Functions

Explosion protection Danger Zone 1, 2, 21, 22

The robust PL-828 work lamp convinces with optimal illumination of the working area Craftsmen appreciate the wide beam angle (70°), the powerful 5 W Cree LED and the highly efficient Li-Ion battery for numerous applications in trade and industry. At maximum brightness level, the light lasts for 4 hours. In dimmed mode, the PL-828 work lamp reliably provides glare-free working light for a whole working day. Mode Function 1 | Flood light Beam angle 70° Luminosity 100 % Runtime 30 h 2 | Flood light Beam angle 70° Luminosity 100 % Runtime 30 h 3| Flashing mode Beam angle 70° Luminosity 100 % Runtime 30 h

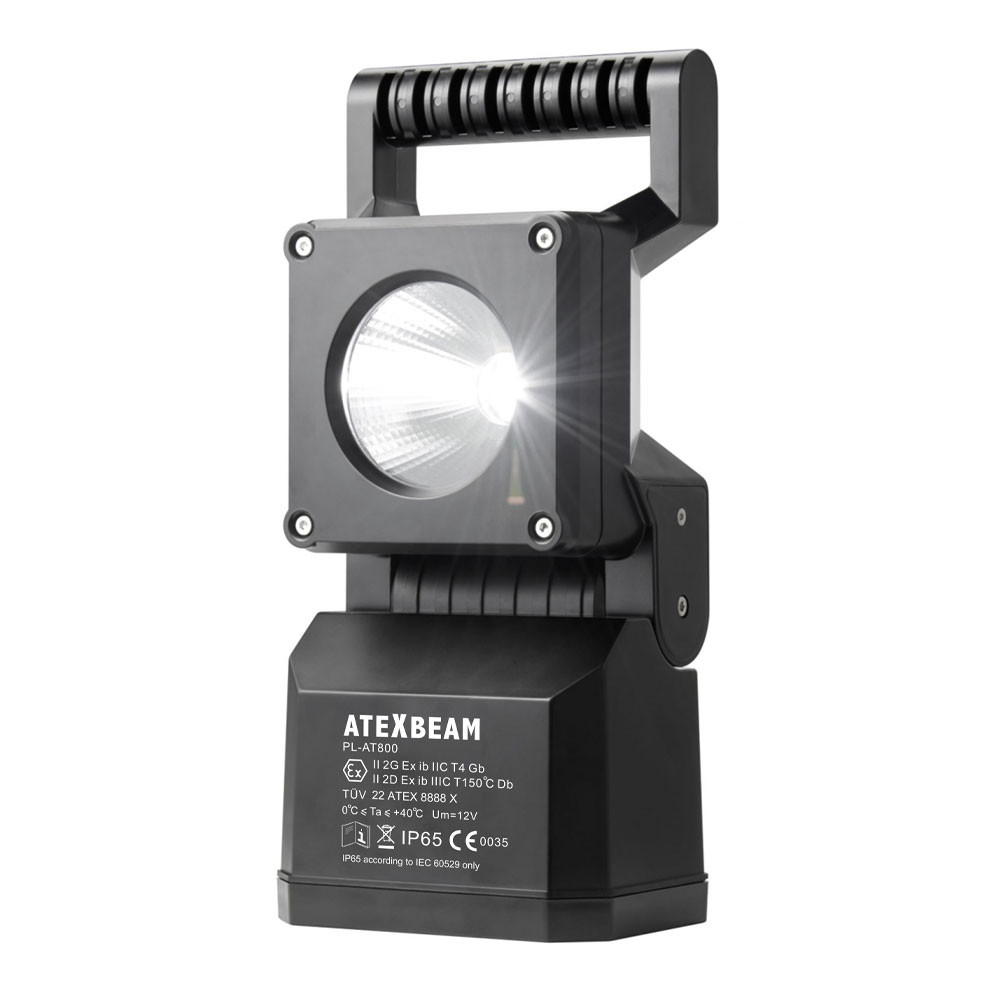

3 W high-power LED with a long life time

Equipped with a powerful 3 W Luxeon LED, the Ex-light guarantees best visibility for up to 20 hours. Depending on the brightness requirement, two light modes are available. In the maximum brightness level, the luminaire reliably emits neutral white for 9 hours, and in energy-efficient dimmed mode, up to 20 hours of glare-free work light. Mode Function 1 | Max. Luminosity Luminosity 100% Runtime 9 h 2 | Dimmed mode Luminosity 50 % Runtime 20 h

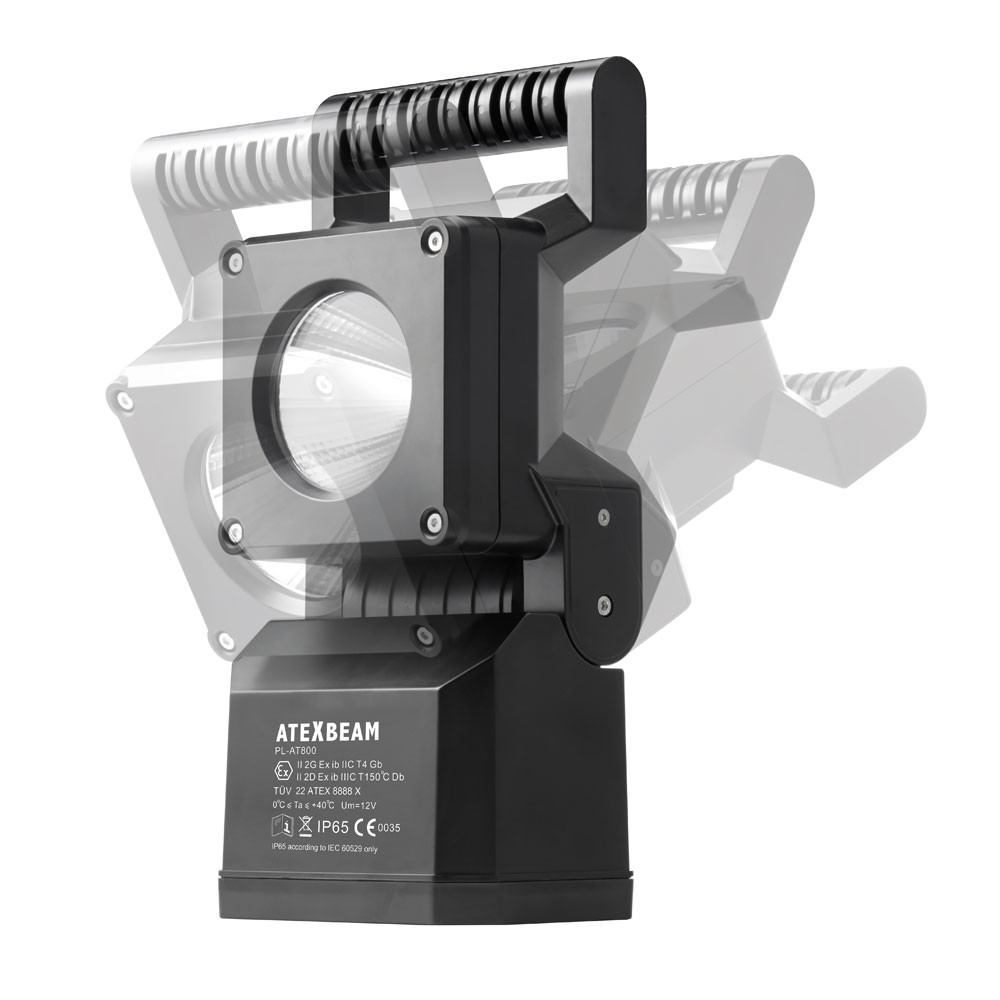

120° swiveling lamp head

In case the LED lamp is used in the workshop or as portable working light its light beam can be aligned individually to the working area thanks to the 120° continuously swiveling lamp head.

Emergency light function included

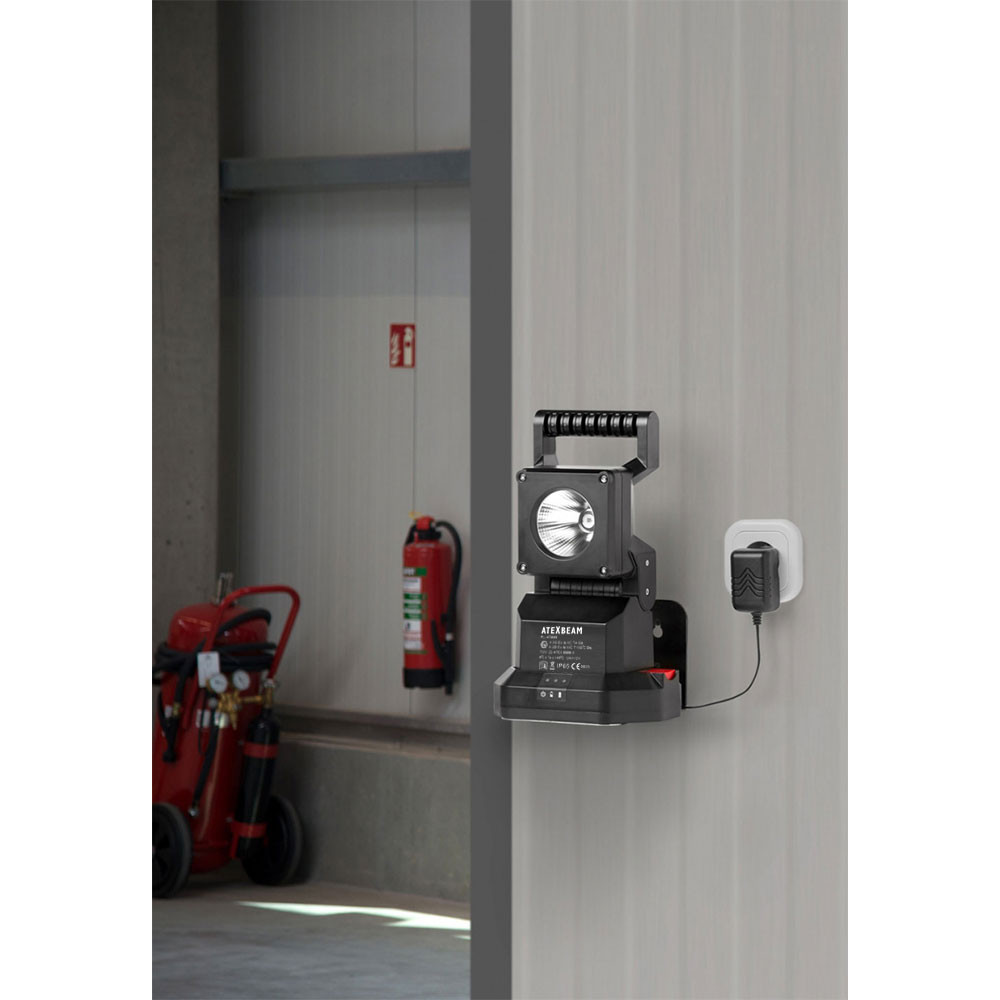

Outside the Ex area, the luminaire can also be used as emergency lighting. Functionality: If the PL-AT800 is in the charging cradle during a power failure and is connected to the mains, it will automatically switch on because to the integrated emergency lighting function. When power is restored, the lamp automatically turns off. In the event of a power failure, the Ex lamp thus becomes a reliable light source, e.g. in industrial and production halls, machine rooms or other rooms without windows or in the dark.

Li-ion battery – High quality, light, powerful

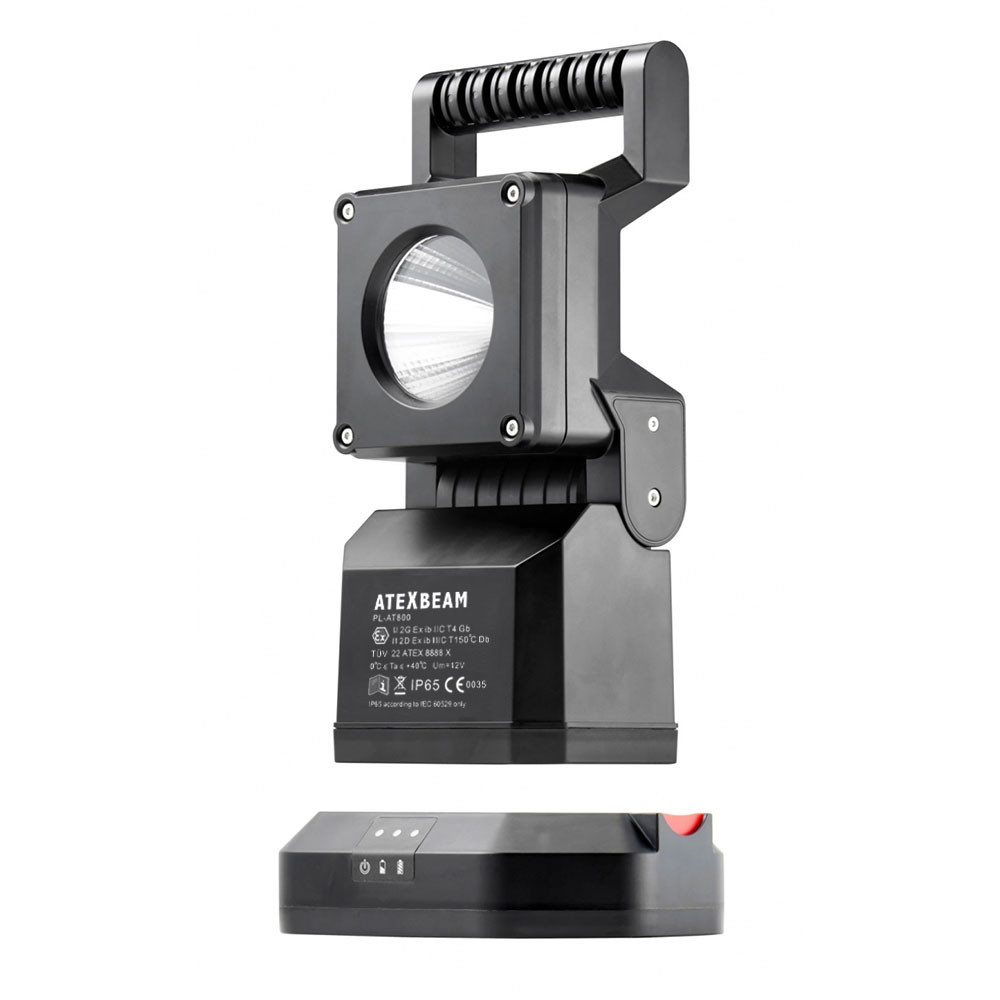

The versatile Ex-light has a very efficient, against overheating, over-and over-discharge protected Li-Ion battery. The maintenance-free Li-Ion battery with its high energy density guarantees a long service life and also minimizes the weight of the lamp considerably. In the practical charging cradle, the Ex-lamp can be securely fixed and charged at the same time. During charging, the current state of charge of the battery can be read on the basis of 3 LEDs on the charging station. During operation, a threatening deep discharge of the battery is indicated by a flashing LED on the back of the battery Ex-lamp is displayed. Thanks to low self-discharge, the Ex work light remains always ready for use. The 230 V power supply and the charger are included. Please note: The charging station is not ex-protected and must therefore not be installed and operated in an explosive atmosphere.

Easy to use – highly visible charge status indicators

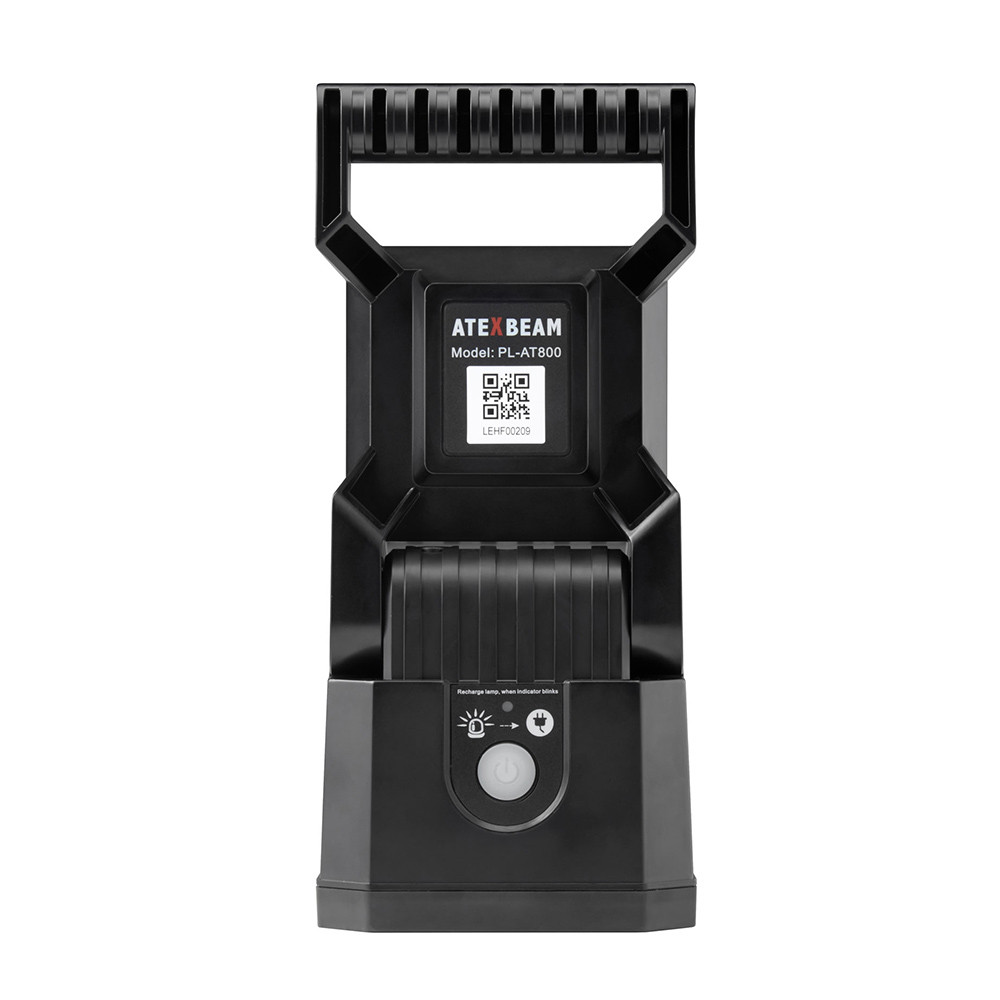

Easy to use The rubberized push button switch allows easy operation even with work gloves. The switch can be used to turn the light on or off and select the desired light mode. Highly visible charge status indicators During operation, a threatening deep discharge of the battery is indicated by a flashing LED above the push-button switch.

Indestructible dust and waterproof housing – IP 65 to IEC 60529

Antistatic, shock- and impact-resistant housing The housing of the PL-AT800 is antistatic, extremely robust and made of shock- and impact-resistant heat-resistant plastic with additional glass fiber reinforcement. The high-quality LED module is protected from possible damage by a hardened clear glass. Dust and waterproof – suitable for indoor and outdoor use Thanks to the dust and waterproof housing (IP 65 according to IEC 60529), the Ex light can be used both indoors and outdoors.

Construction and equimpent of the Ex-certified lamp

Equipment Comfortable carrying handle Robust, shock- and impact-resistant housing made of antistatic plastic, dust- and waterproof to IP 65 according to IEC 60529 Tempered transparent glass 3 W high power LED (275 lm) 120° swiveling lamp head Li-Ion battery 7.4 V, 5800 mAh Rear side Large rubberized push-button switch for selecting the light modes Visual low battery warning indicator Charging cradle Safety catch for locking the light Charge control indicator (LED) Charging socket at the side Included accessories Charging cradle 230 V plug-in power supply

Optional accessories – sturdy wall bracket

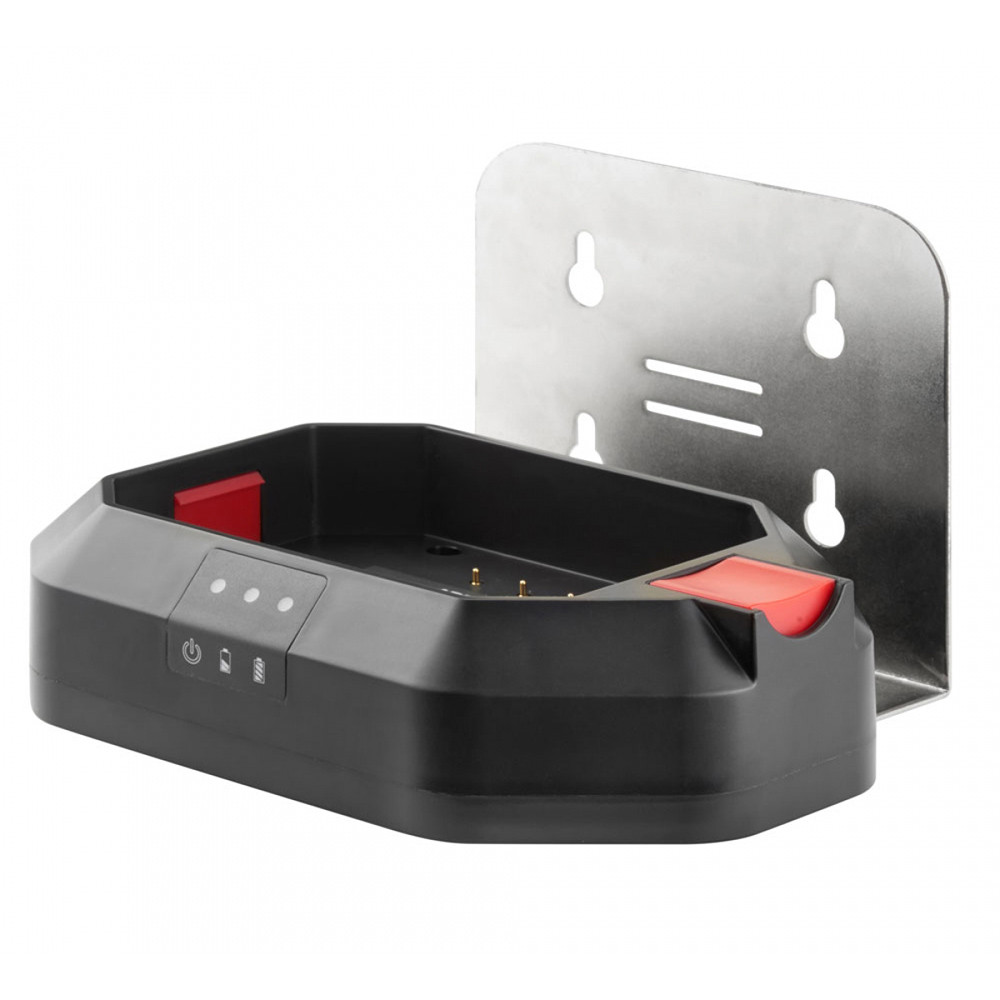

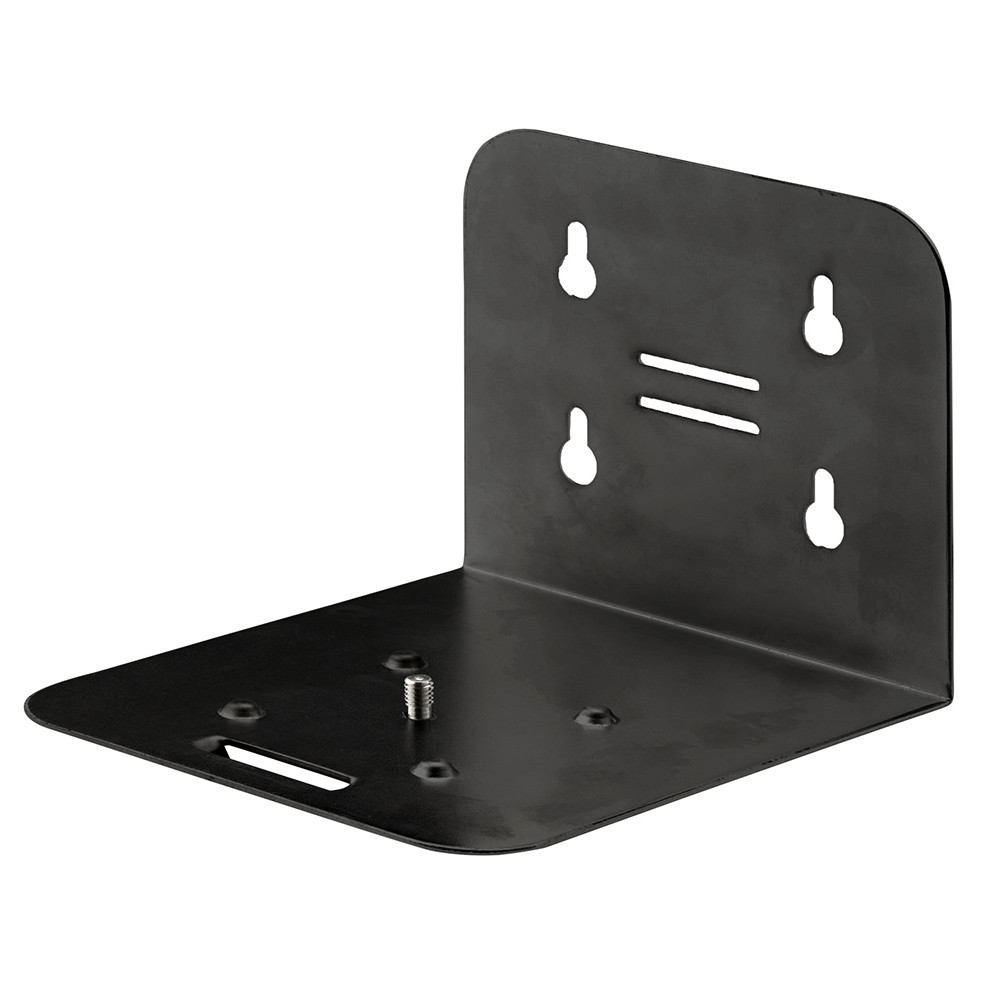

Metal wall bracket With this sturdy metal wall mount, the LED work lamp and its charging cradle can be fixed securely and always within reach. If you want to use the Work Lamp as an emergency light, the Wall mount commends itself as the ideal mounting device. Item no. 559010 To the product >

3 year manufacturer warranty

The ATEXBEAM AT-800 distributed by IVT is manufactured to a high standard and in accordance with strict quality guidelines. We are so convinced of the durability of this Ex light that we are also extending the statutory manufacturer's warranty for this product by an additional year free of charge.

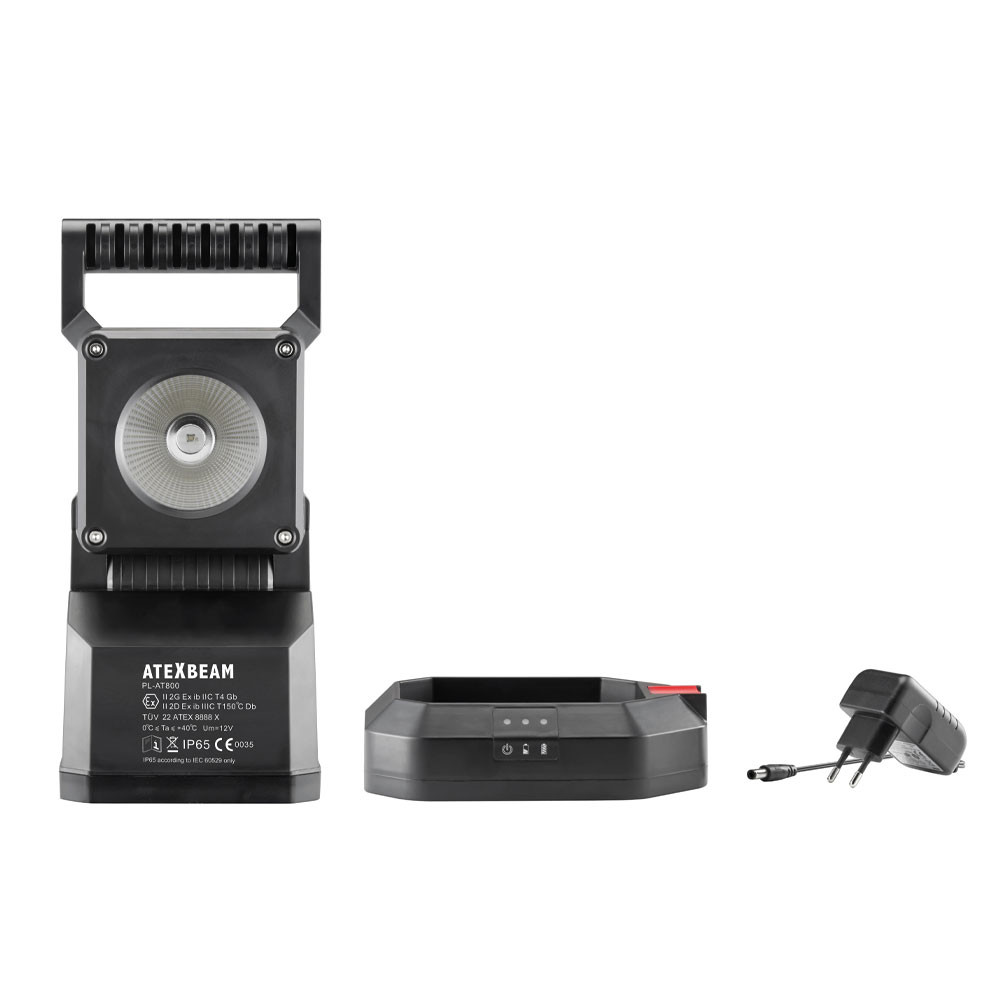

Delivery content

Ex-protected LED work lamp PL-AT800 Charging cradle 230 V power supply Operating instructions in DE, GB, FR
