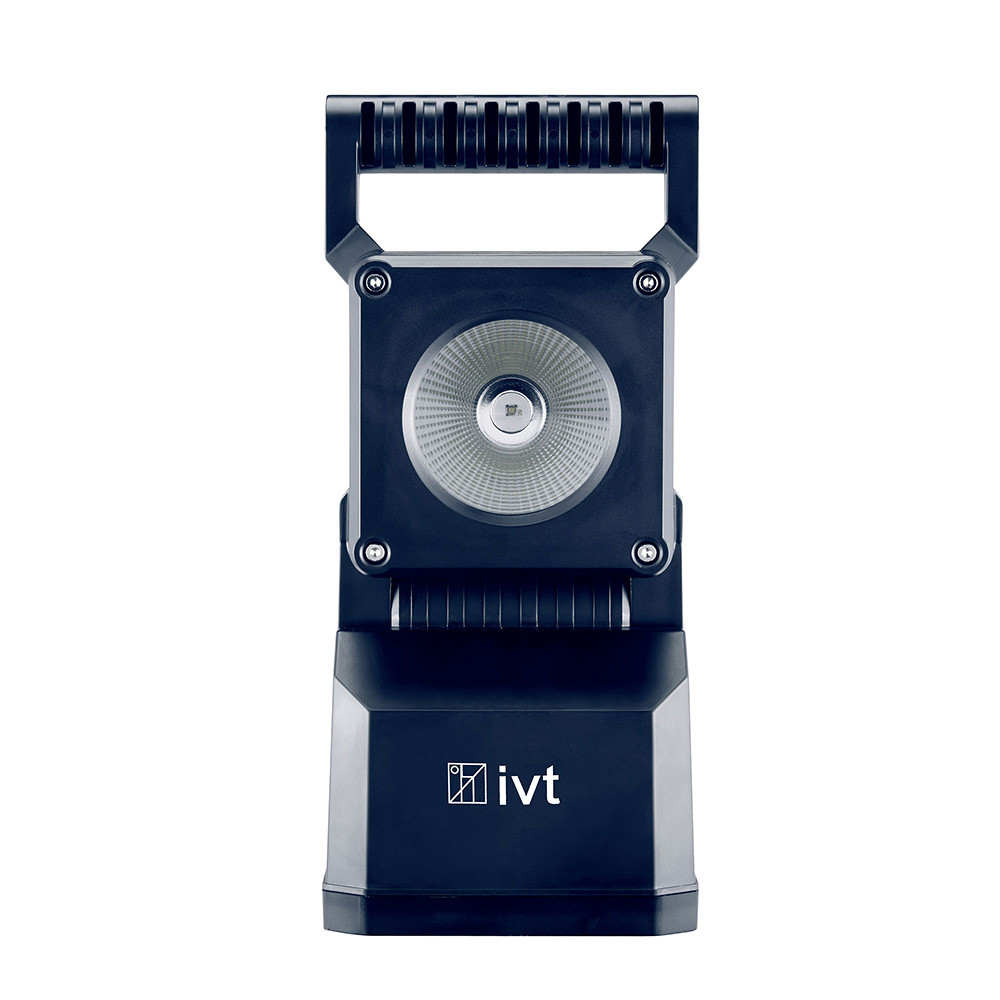

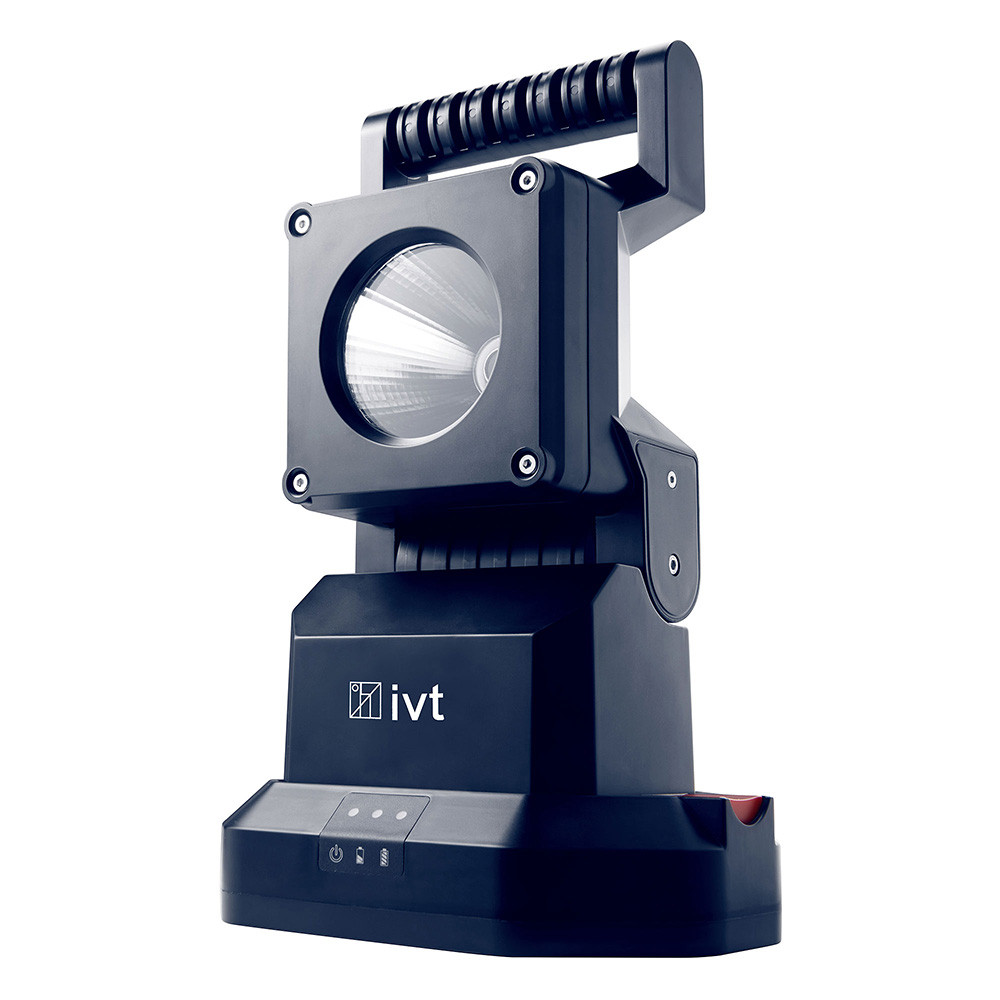

Sturdy Work Lamp with efficient Li-Ion battery and powerful 5 W LED
Features & Functions
Optimum illumination of the working area
The robust PL-828 work lamp convinces with optimal illumination of the working area Craftsmen appreciate the wide beam angle (70°), the powerful 5 W Cree LED and the highly efficient Li-Ion battery for numerous applications in trade and industry. At maximum brightness level, the light lasts for 4 hours. In dimmed mode, the PL-828 work lamp reliably provides glare-free working light for a whole working day. Mode Function 1 | Flood light Beam angle 70° Luminosity 100 % Runtime 30 h 2 | Flood light Beam angle 70° Luminosity 100 % Runtime 30 h 3| Flashing mode Beam angle 70° Luminosity 100 % Runtime 30 h

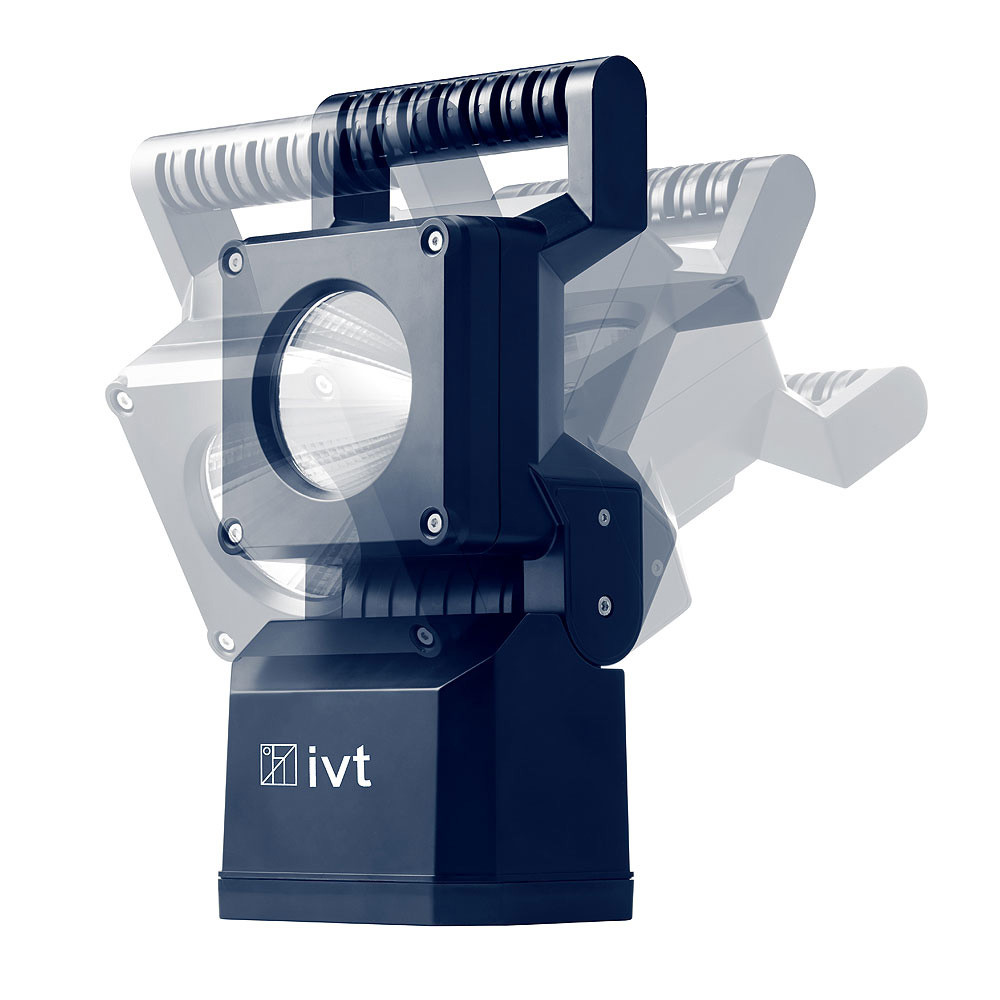

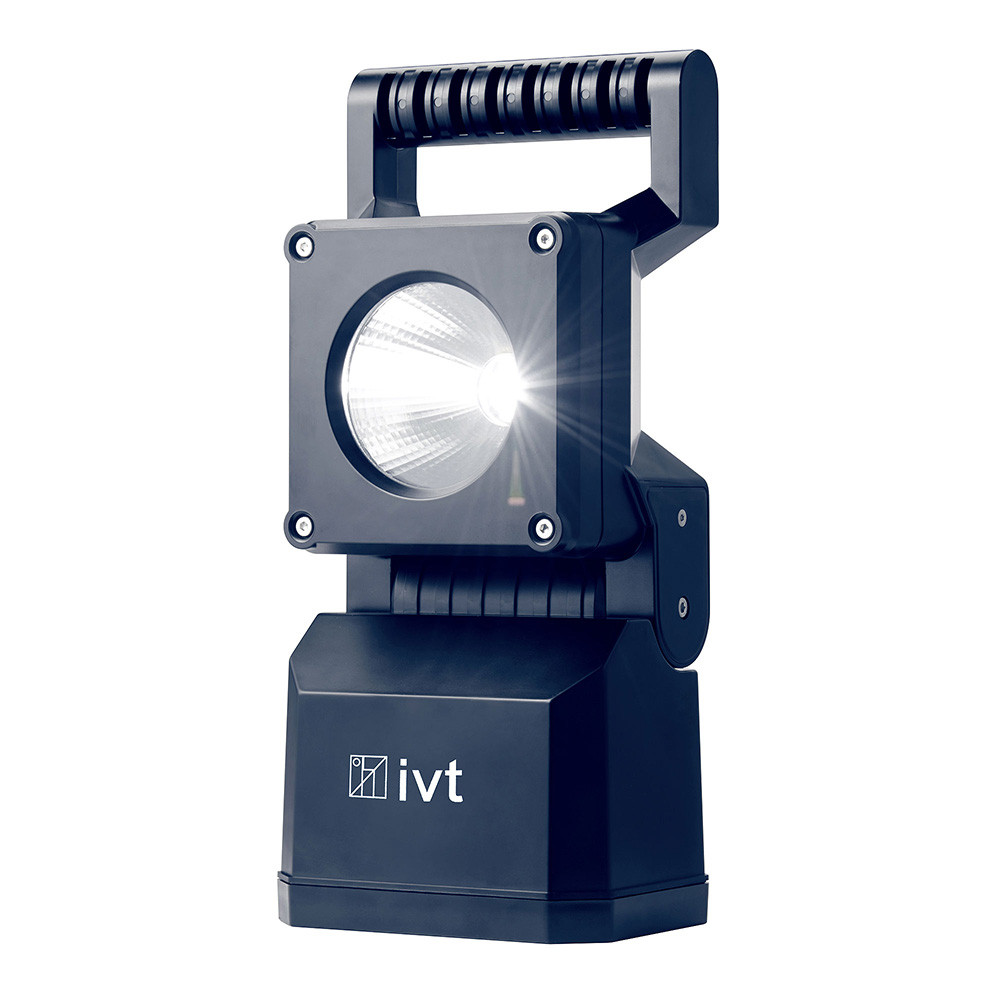

120° swiveling lamp head
In case the LED lamp is used in the workshop or as portable working light its light beam can be aligned individually to the working area thanks to the 120° continuously swiveling lamp head.
Reliable emergency light in the case of power outage
The integrated emergency light function ensures reliable emergency lighting in the event of a power failure, e.g. in public buildings, halls, stables, in the basement, in rooms and corridors without daylight or in darkness. Functionality: In case of a power outage, the rechargeable lamp becomes an emergency light thanks to its emergency light function. It has to be connected to the mains net, however. If the mains power cuts off the lamp automatically turns on. If the mains power is restored the lamp switches off again.
Warning light for securing danger zones and accident scenes
The flashing mode, in combination with the optionally available yellow diffuser, allows for the use as a warning light. Thus, with the PL-828, 5 W you can warn of danger or accident scenes in the road traffic, for example.
Note on charging the work lamp
In order to guarantee the IP 54 protection, the work lamp can only be charged in the charging cradle. The lamp can be charged either via the 230 V plug-in power supply included in the delivery content or via the optionally available 12/24 V car charging adapter at the vehicle's on-board socket. Optional accessories: 12 V/24 V car charging adapter Item no. 559030 To the product >>
Easy to use rotary knob – clear LED display
The large rubberised push-button switch makes it easy to select the desired light mode or switch the light on/off, even when wearing work gloves. When the battery capacity is low, the control LED flashes. The battery must be recharged.
Sturdy housing for extreme working conditions – IP 54
The sturdy housing is protected against foreign objects and splash water in accordance with IP 54 and is made of impact-proof plastic. The light source is protected against possible damage by a solid ring of hard rubber. All this, turns the PL-828, 5 W into the perfect companion for tasks under extreme condition.
Construction and equipment of the work lamp

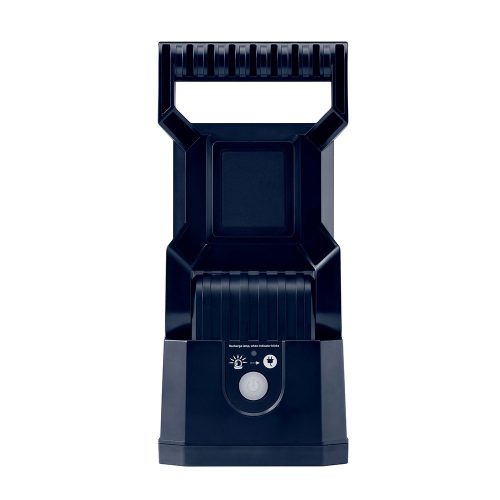

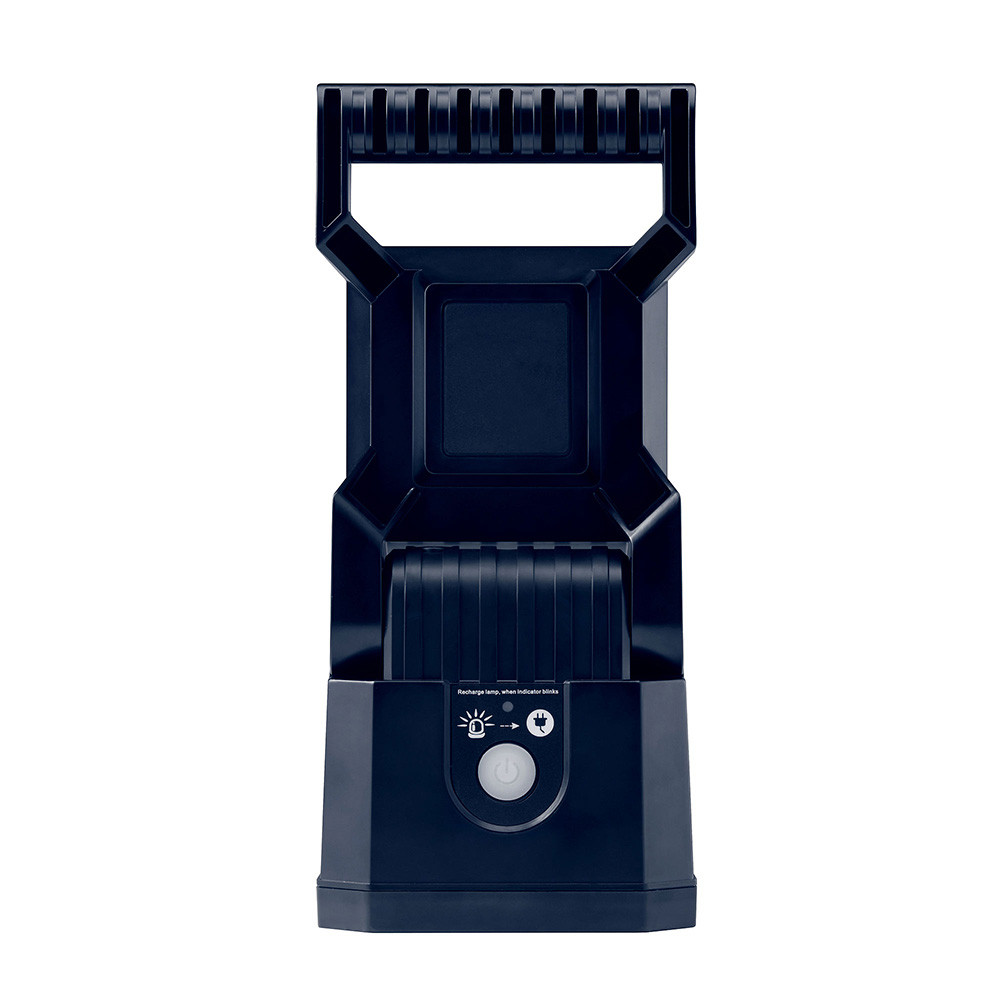

Equipment Large stable carrying handle 5 W Cree LED with 2 brightness levels Beam angle 70° 120° swiveling lamp head Sturdy, splash water-protected housing (IP 54) made of impact-proof plastic Maintenance-free Li-Ion battery 7.4 V, 4400 mAh Rear side Easy to use push button for selection of the lighting modes Optical battery indicator Charging cradle Stable charging cradle with lock Charging control display
Optional accessories

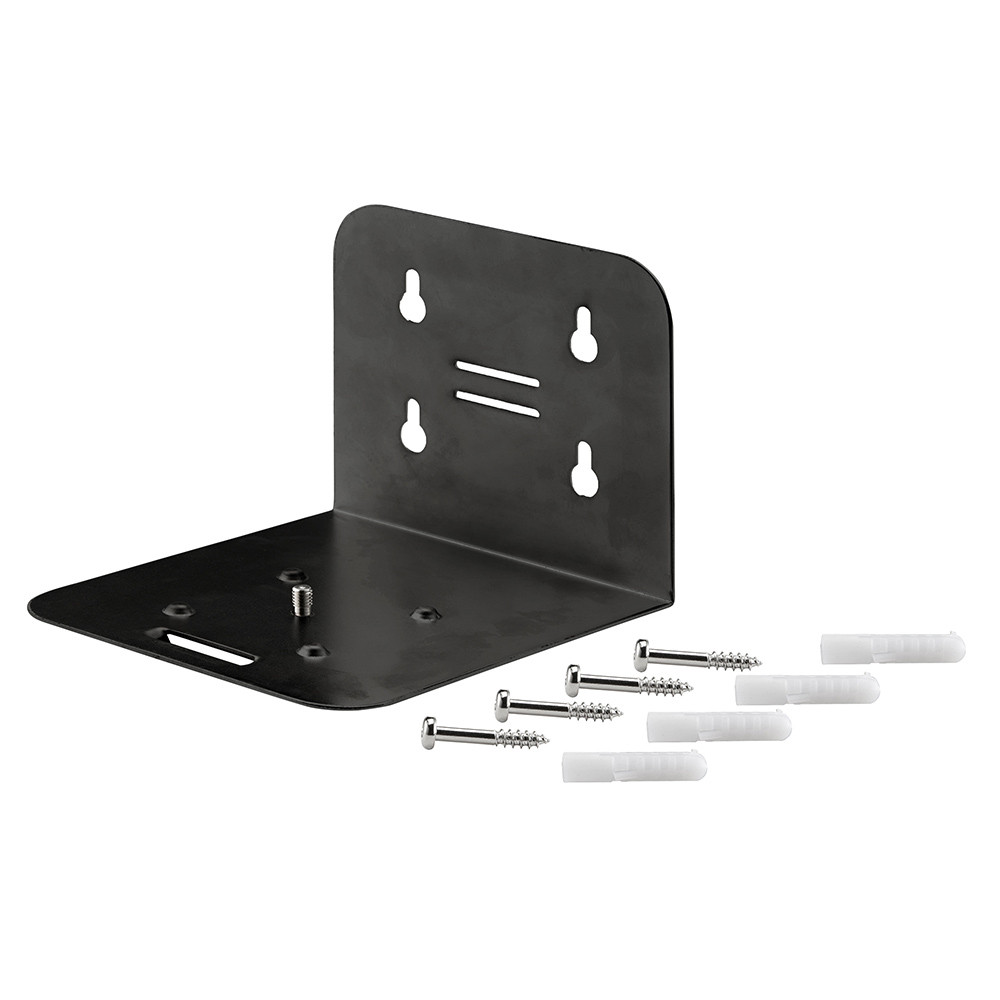

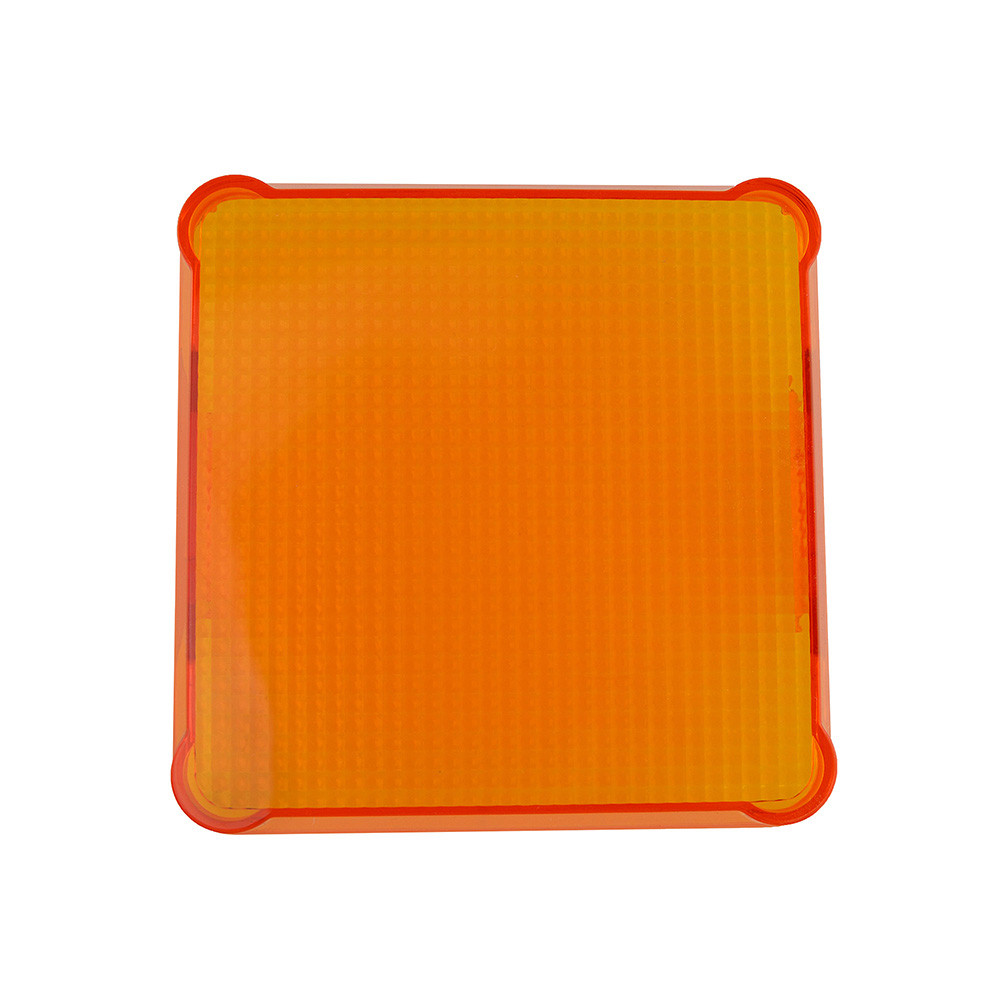

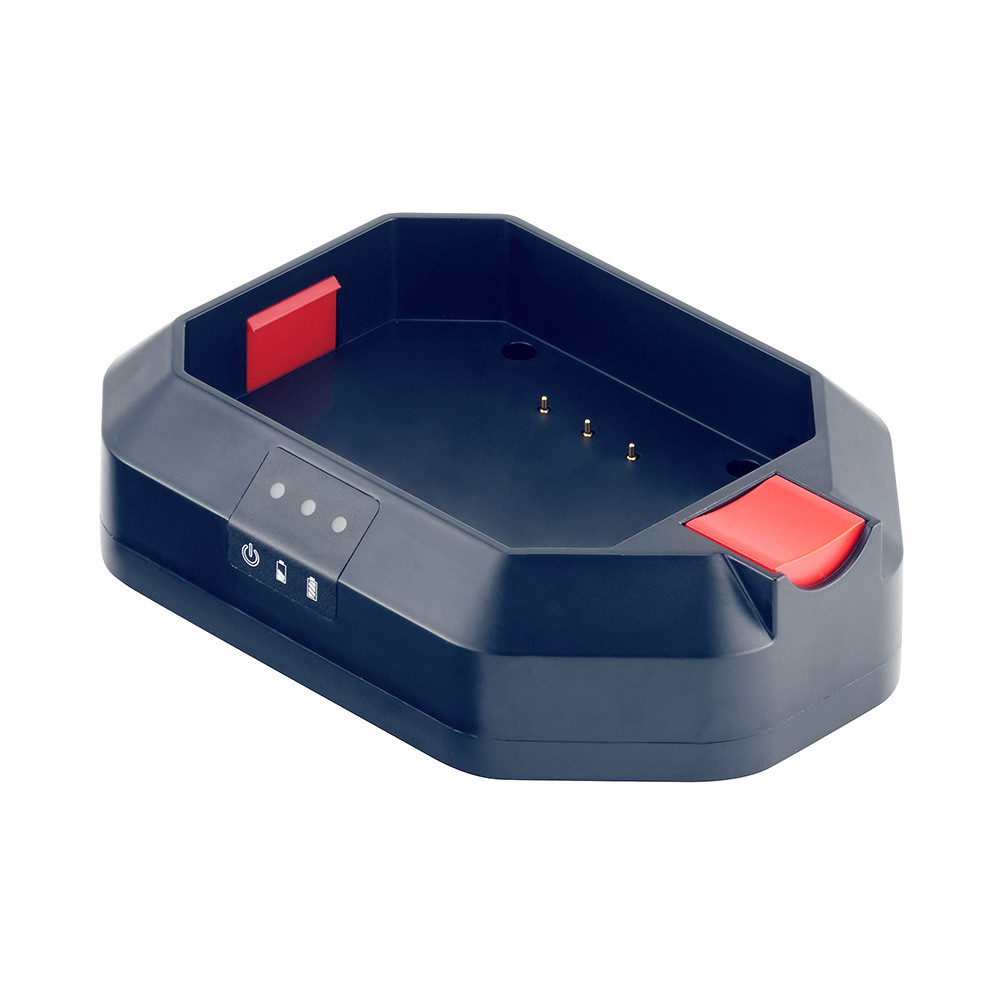

Wall/Car Mount With this sturdy metal wall mount, the LED work lamp and its charging cradle can be fixed securely and always within reach. Item no. 559010 To the product >> Diffuser (yellow) The yellow diffusion plate in conjunction with the flashing function allows the work lamp to be used as a signal light. Item no. 312225 To the product >> 12/24 V Car charging adapter Matching charging adapter for safe charging in vehicles with 12 V or 24 V on-board voltage. Item no. 559030 To the product >> Charging at different places of use If the IVT LED work lamp PL-828 is to be used and charged at different locations, it is recommended to purchase additional charging cradle and power supply units. Charging cradle for PL-828, 5 W Item no. 312226 To the product >> 230 V Plug-in power unit 12 V/1000 mA Item no. 559050 To the product >>
3 year manufacturer warranty
IVT products are manufactured to a high quality and following strict quality guidelines. We are certain about the longevity so that we add another year to the statutory manufacturer warranty free of charge. Rechargeable batteries and batteries are excluded from this warranty.

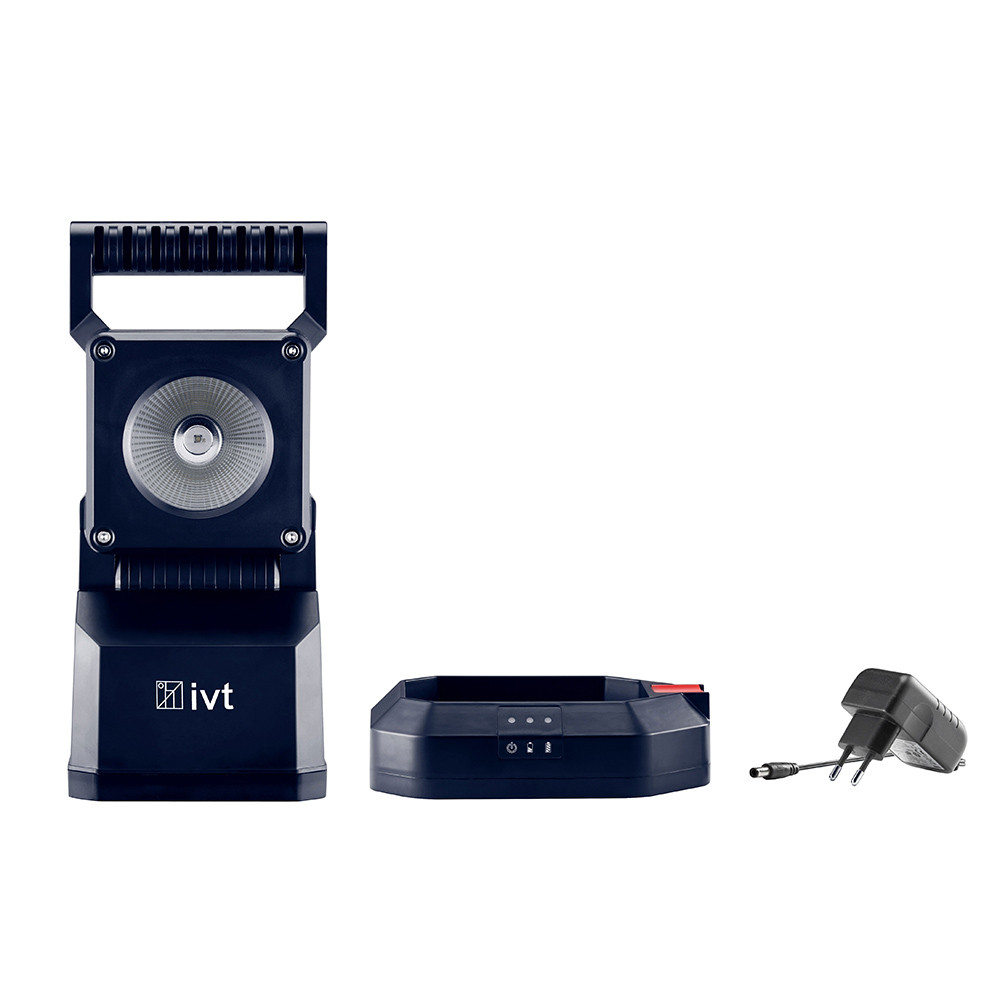

Delivery content
LED Work lamp PL-828, 5 W Charging cradle 230 V plug-in power supply Instruction manual in DE, GB Note: The accessories can also be ordered separately.
Technical Data
| Parameter | Value |
|---|
| Current supply | Lithium-ion battery7.4 V, 4400 mAh |
| Light sources | Cree LED |
| Power consumption (max.) | 5 W |
| Luminous flux (max.) | 350 lm |
| Efficiency | 70 lm/W |
| Color temperature | 6500 Kdaylight white |
| Service life of light source | 50,000 h |
| Lighting modes | 1: Brightness level 1 (100 %)2: Brightness level 2 (50 %)3: Flashing mode |
| Lighting range (max.) | 150 m |
| Operation time (max.) | 16 h |
| Beam angle | 70° |
| Inclination of lamp head | 120° |
| Emergency light function | Yes |
| Charging adapterPlug-in power unit | Input: 100 - 240 V AC, 50/60 HzOutput: 12 V DC, max. 1000 mA |
| Car Charging adapter | 12/24 V DC |
| Charging time | 10 h |
| Charging control display | Yes |
| Deep discharge protection | Yes |
| Overcharge protection | Yes |
| Protection class | lll |
| Type of protection | IP 54 (lamp)IP 20 (charging cradle) |
| Temperature range | -10 °C bis +40 °C |
| Material | Plastic |
| Color | Blue |
| Dimensions (L x W x H) | 95 x 122 x 272 mm (lamp)45 x 130 x 173 mm (charging cradle) |
| Weight | 1.10 kg (lamp)0.25 kg (charging cradle) |
