USB Charging Adapter & voltage tester Staudte Hirsch SH-3.180, 5 V, 2.1 A

USB charging adapter SH-3.180 – Handy charging and diagnosis option for on the go

Features & Functions

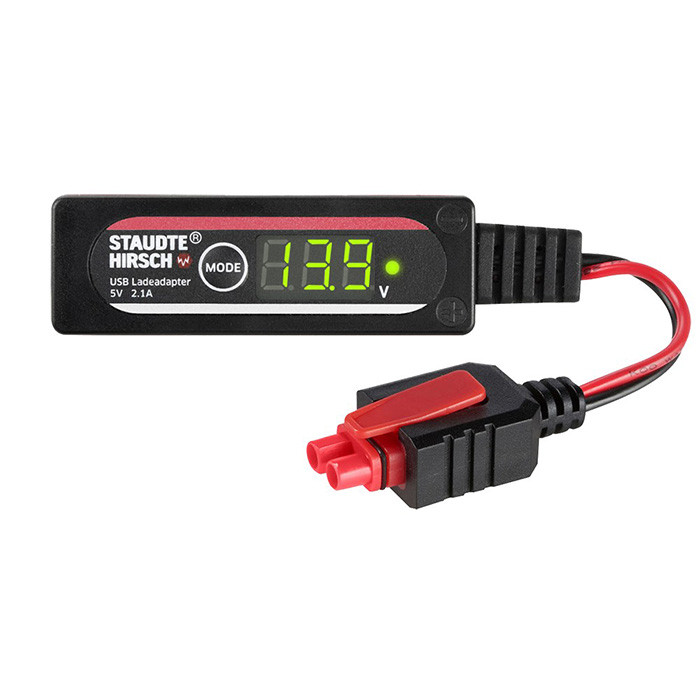

Clear LED display

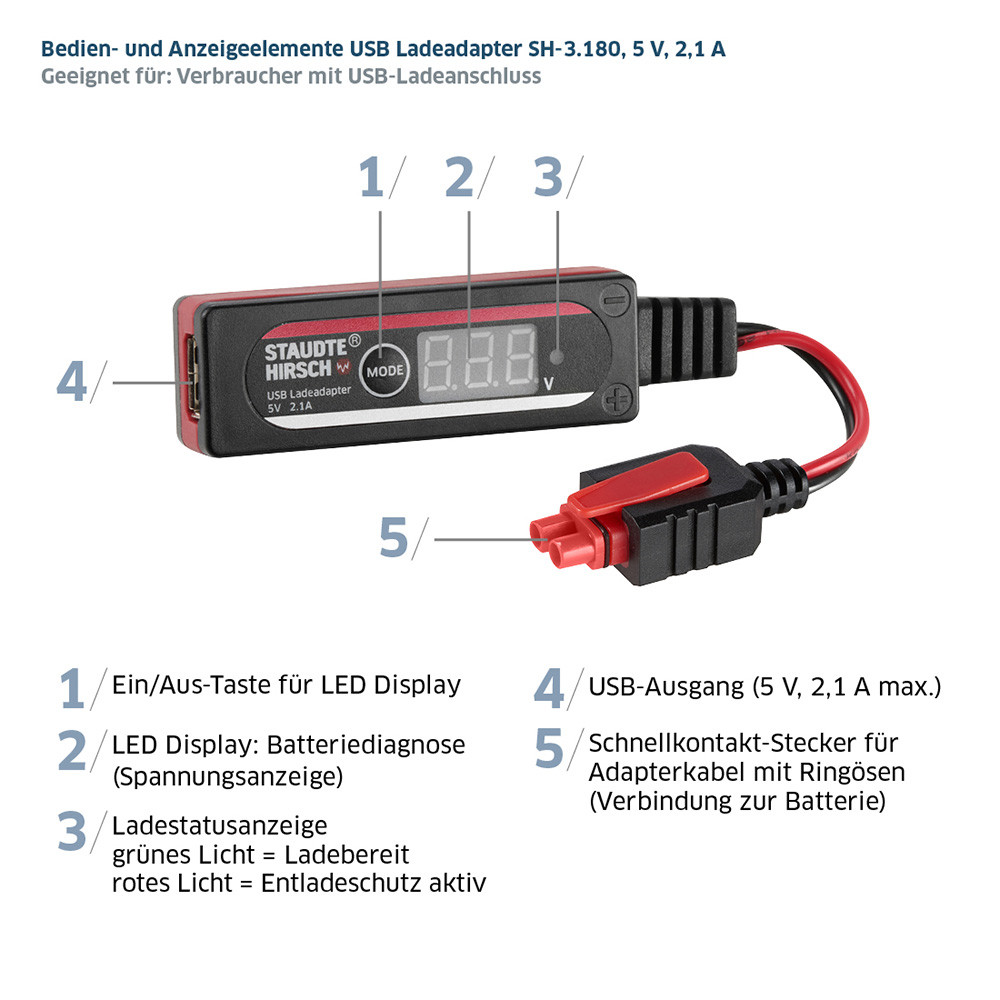

Clear LED display 1 On/off button for LED display 2 LED display: battery diagnosis (voltage display) 3 Charging status display: green light = ready to charge red light = discharge protection active 4 USB output 5 Quick-contact plug for adapter cable with ring lugs (connection to the battery) The clearly arranged LED display gives you information about the operating status and the charging status of the battery at any time. Possible errors are indicated visually.

Robust housing (IP 20)

Thanks to its robust housing (IP 20), the USB charging adapter can be used safely and reliably.

Included charging adapters – Conveniently connect and exchange

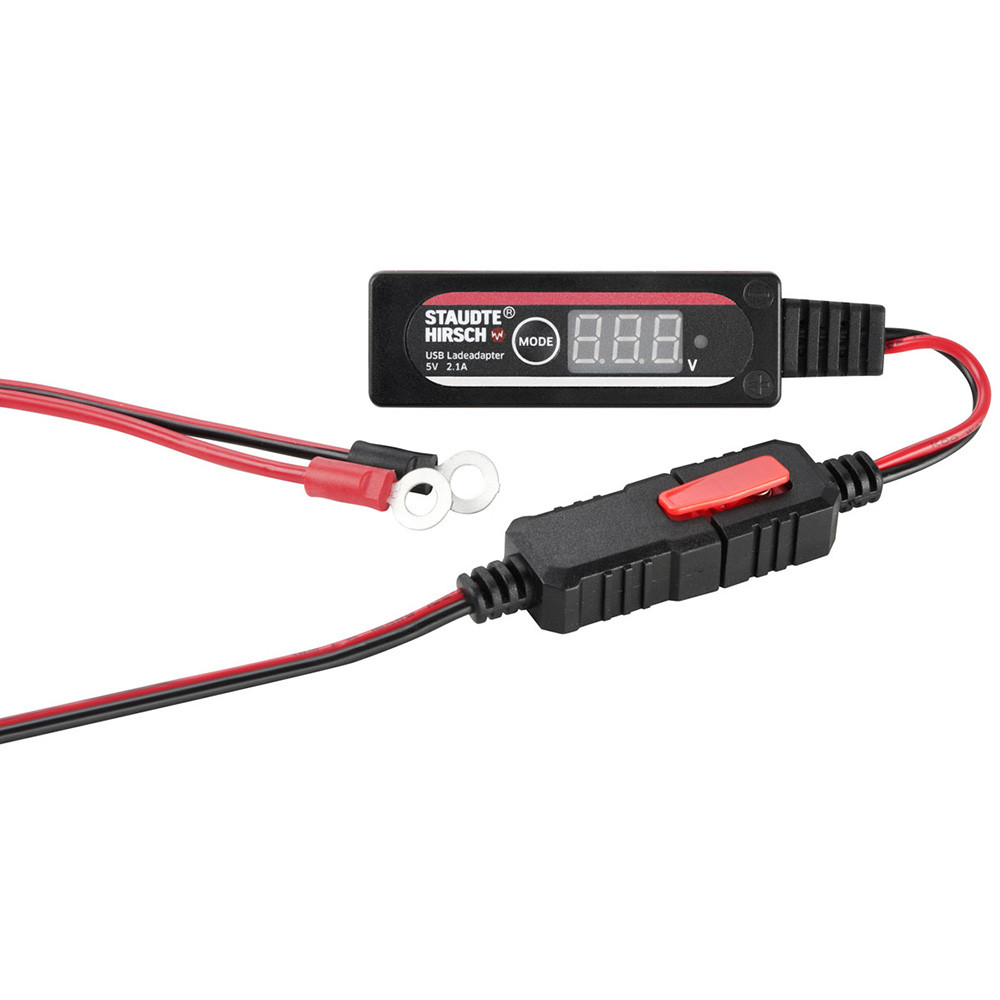

The 2-piece, water-protected (IP 44) adapter cable set, which is included in the delivery content, allows for a versatile and flexible use Simply connect and exchange Thanks to the quick-contact plug, the required adapter cable can simply be connected to the charger cable and, if necessary, replaced with another one. Adapter cable with battery clamps By means of the completely isolated batteryclamps, the charger can be quickly and safely connected to or disconnected from the battery. Product no. 911000.K To the product > Adapter cable with eyelet rings It can be permanently connected to hard-to-reach batteries. Advantage: The eyelets only have to be fixed to the battery once. After that, the charger can be connected to e.g. the motorcycle with little effort using the quick-contact plug. (Diameter eyelet rings outside 12 mm, inside 6.5 mm). Product no. 911000.O To the product > These and other adapter cables can also be ordered separately 3-piece adapter cable set Item no. 911000.A To the set > Adapter cable with battery clamps Item no. 911000.K To the product > Adapter cable with eyelet rings Item no. 911000.O To the product > Adapter cable with 12 V plug Item no. 911000.Z To the product > Adapter cable with open ends for retrofitting Item no. 911000.S To the product >

3 year manufacturer warranty

Products of IVT and Staudte Hirsch are manufactured to a high quality and following strict quality guidelines. We are certain about the longevity so that we add another year to the statutory manufacturer warranty free of charge (rechargeable batteries excluded).

Delivery content

USB Charging Adapter Staudte Hirsch SH-3.180, 5 V, 2.1 A Adapter cable with eyelet rings Operating instructions DE, GB

Technical Data
