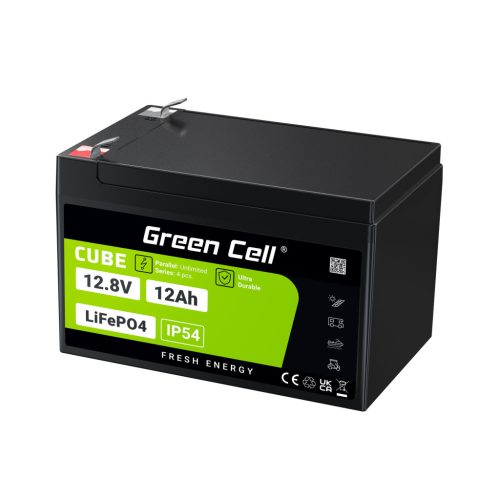

Voltage: 12.8V | Capacity: 12Ah | Warranty: 36 months | Product code: LFPGC12V12AH | Manufacturer: Green Cell | Type: LiFePO | Connection: Faston 250 (F2) | Weight: 2kg | Dimensions: 155x100x100mm | Operating temperature: -20°C - 60°C | Storage temperature: 0°C - 45°C (60-80% SOC) | Operating temperature during charging: 0°C - 45°C | Total energy: 153.6Wh | Max discharge current: 30A | Continuous discharge current: 20A | Continuous charge current: 7A | Voltage range: 9.2-14.6V | Charging characteristics: CCCV / IU | Battery management system (BMS): Integrated
Green Cell LiFePO4 batteries are characterized by a 1C discharge current. This means that the maximum current that can be safely drawn from the battery in one hour equals its nominal capacity (Ah).
The device has low self-discharge and higher charging power allows for shorter charging times.
Lithium iron phosphate (LiFePO4) battery – a reliable energy source for years of use. Made with one of the safest lithium technologies available on the market, providing chemical and thermal stability. This allows it to be used over a wide temperature range (-20°C–60°C).
BMS intelligent system
Charging protection < 0°C
IP54 protection
36 months warranty
Excellent lifespan: retains 70% of initial capacity even after 3000+ full charge cycles (DoD 100%). Up to 5500 cycles at 60% DoD. Over 10 years of excellent performance!
The GC Cube LFP series offers 12.8V batteries ranging from 7 Ah to 200 Ah. Up to three times lighter than other types of lead-acid batteries.
Safe operation even in harsh conditions! Thanks to the IP54 protection class, the battery is resistant to splashing water and dust, making it an ideal solution for a wide range of applications.
It works excellently, for example, on yachts, motorboats, RVs, or in emergency systems.
The intelligent BMS cell protection system protects the battery from excessive discharge, overheating, and overcharging. The latest LiFePO4 technology also includes special frost protection that protects the device from damage caused by charging at negative temperatures.
Intelligent BMS system
-20°C – +60°C
With series connection, you can achieve higher voltage. The GC Cube LFP series models can be connected in series up to 4 units, allowing you to create a 48V system. Parallel connection is possible with an unlimited number of units.
Important: Identical capacity, brand new batteries, max. 0.3V voltage difference, installed by qualified personnel.
With the intelligent Passthrough function, you can charge the battery while powering your devices.
Motorhomes
Boats
E-vehicles
Camping
Golf carts
Sailboats
Photovoltaics
Wheelchairs
Wind turbines
UPS systems
Lawn Mowers
Off-grid
Solar
