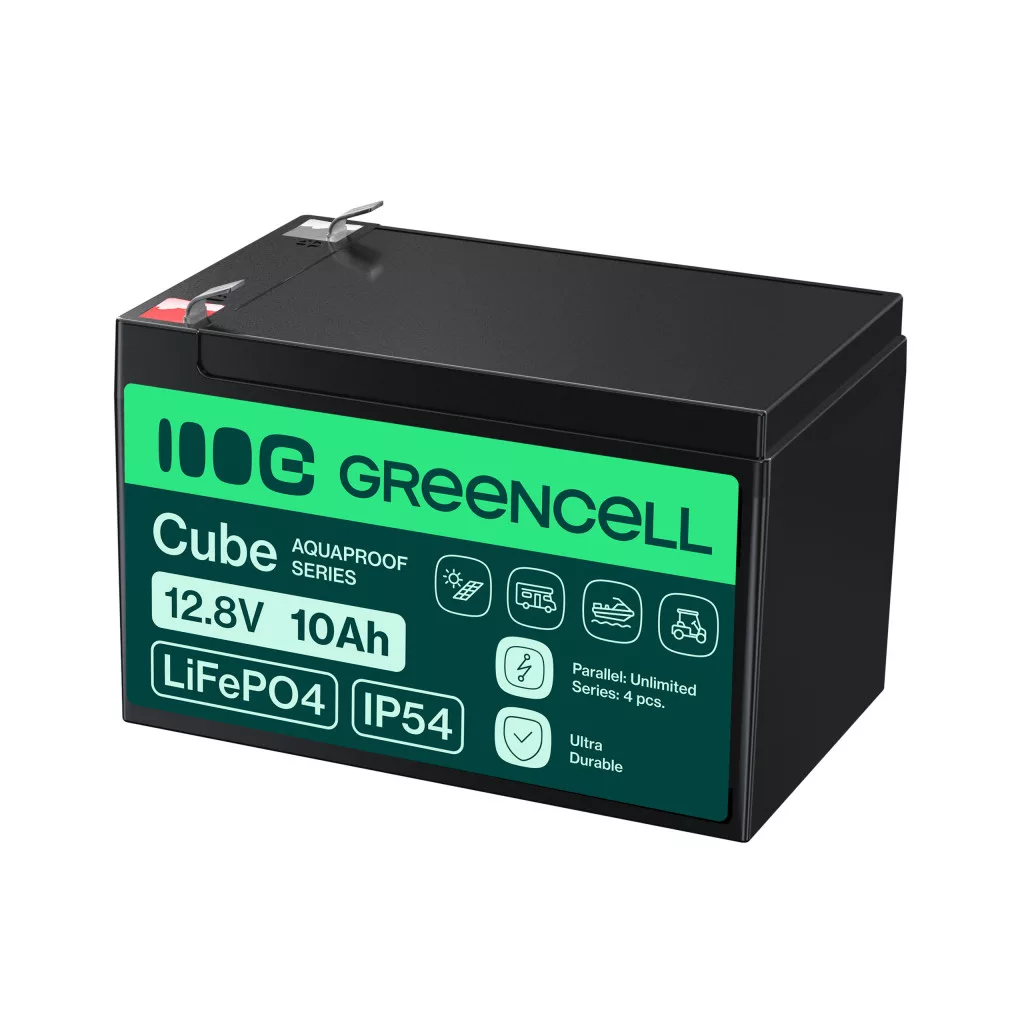

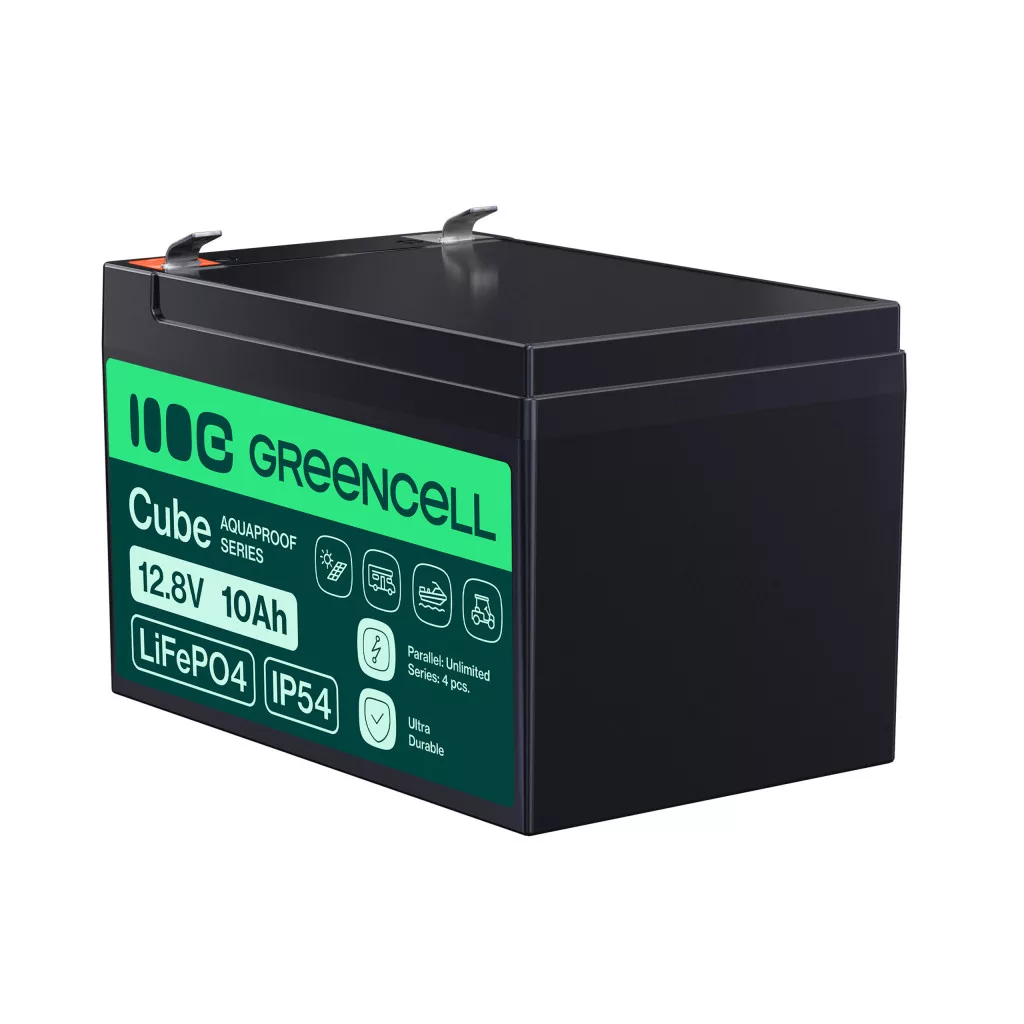

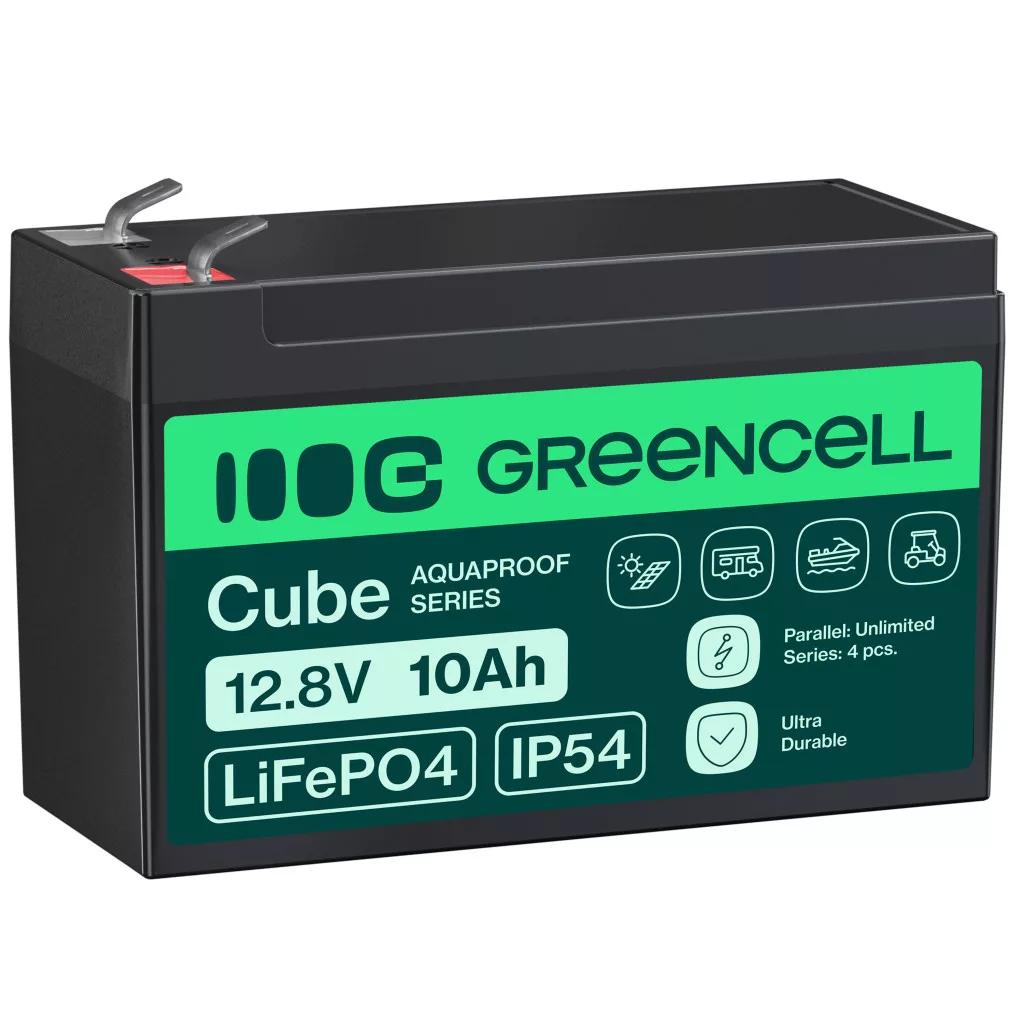

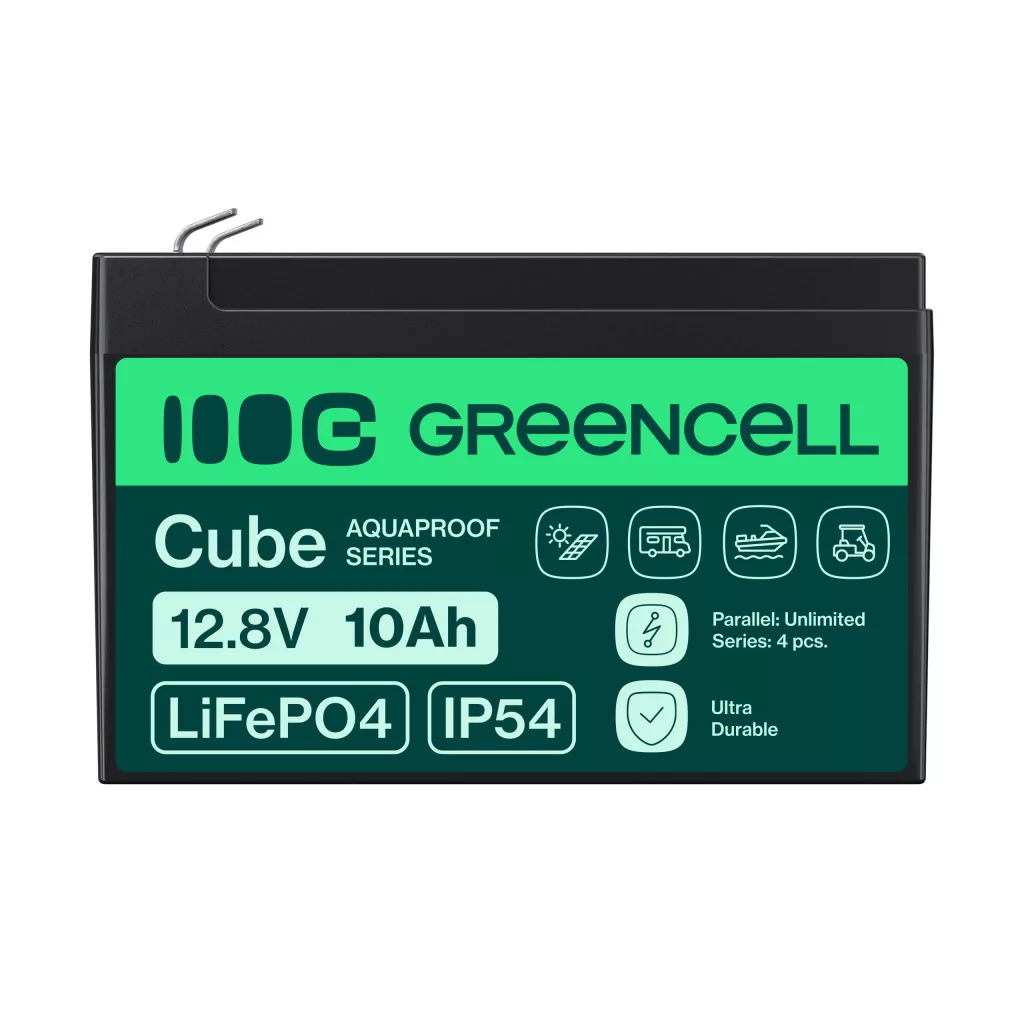

Green Cell CUBE LiFePO4 battery 10Ah 12.8V 128Wh, for power supply and emergency lighting, control panels LFPGC12V10AH
Voltage: 12.8V | Capacity: 10Ah | Warranty: 36 months | Product code: LFPGC12V10AH | Manufacturer: Green Cell | Type: LiFePO4 | Connection: Faston 250 (F2) | Weight: 2 kg | Dimensions: 155x100x100mm | Operating temperature -20-60 °C | Storage temperature: 0°C - 45°C (60-80% SOC) | Operating temperature during charging: 0°C-45°C | Total energy: 128Wh | Max discharge current: 12A | Continuous discharge current: 20A | Charging characteristics: CCCV / IU | Battery management system (BMS): Integrated
Reliable power source from Green Cell
Cube LFP battery
Lithium iron phosphate battery (LiFePO4) – a durable and reliable power source for many years. The use of one of the safest available lithium technologies guarantees chemical and thermal stability. As a result, the battery can be discharged over a wide temperature range, from -20°C to 60°C.
Green Cell LiFePO4 batteries have exceptional durability. Even after more than 3000 full charge cycles (at 100% depth of discharge), they retain more than 70% of their original capacity. This allows you to enjoy their excellent performance for over 10 years.
The GC Cube LFP series includes 12.8 V batteries with capacities ranging from 7 Ah to 200 Ah. Importantly, these batteries are three times lighter than traditional lead-acid batteries and offer a wide range of application possibilities thanks to their compact sizes, perfectly adapting to your various needs.
You have the power!
Continuous discharge current of 1C and fast charging
Green Cell LiFePO4 batteries have a 1C discharge current. This means that the maximum current that can be safely drawn from the battery in one hour equals its nominal capacity (Ah).
Additionally, the device has a low self-discharge level, and the higher charging power shortens the charging time. This allows you to spend more time on what really matters.
Always ready for action
IP54 protection class
Safe operation even in the toughest conditions! The Green Cell battery has an IP54 protection class, which is resistant to splashing water and dust. Ideal for use on yachts, motorboats, RVs, and emergency systems.
Safety and durability
BMS and protection against charging in freezing temperatures
Safety and durability always come first! The intelligent BMS (Battery Management System) protects the battery from excessive discharge, overheating, and overcharging. Additionally, the latest LiFePO4 battery is equipped with special protection that prevents charging at negative temperatures.
More fresh energy
Create your own systems
Enjoy complete freedom and flexibility in designing your own battery systems. The GC Cube LFP series models allow for the series connection of up to 4 units, enabling you to create a 48 V system.
Unlimited parallel connection allows you to adjust the capacity of the batteries to your specific needs, providing full control over the energy sources.
Remember, that for both series and parallel connections, the following conditions must be strictly met:
- the batteries must have the same capacity,
- the batteries must be brand new,
- they must provide the same voltage (maximum difference < 0.3 V),
- the installation must be performed by qualified personnel.
Countless applications
and complete comfort during use
Choose lighter and longer-lasting LiFePO4 batteries instead of heavy lead-acid batteries. Due to their higher energy density, they are ideal for a variety of applications, such as:
Discover new possibilities with the durable, sealed, and safe GC Cube LFP battery. Experience the benefits of Green Cell's versatile and pioneering products — smarter everyday.
| Termékkód | LFPGC12V10AH |
|---|---|
| EAN-kód | 5904326374898 |
| Gyártó | Greencell |
| Kapacitás | 10Ah |
| Feszültség | 12.8V |
| Cellatechnológia | Új; A osztályú |
| Méretek | 155x100x100mm |
| Típus | LiFePO4 |
| Tárolási hőmérséklet | 0°C és 45°C között (60-80% SOC mellett) |
| Élettartam | Akár 3000 ciklus (DoD 100% mellett), akár 5500 ciklus (DoD 60% mellett) |
| Csatlakozó | Faston 250 (F2) |
| Teljes energiatartalom | 128Wh |
| Csúcskisütési áram | 15A |
| Soros kapcsolás | Igen, legfeljebb 4 egység |
| Párhuzamos kapcsolás | Igen, korlátlan számú egység |
| Üzemi hőmérséklet kisütés közben | -20℃ és 60℃ között |
| A termék legnagyobb tömege | 2kg |
| Feszültségtartomány | 9,2-14,6 V |
| Töltési karakterisztika | CCCV / IU |
| Jótállás | 36 hónap |
| Állapot | Új |
| Folyamatos kisütési áram | 10A |
| Üzemi hőmérséklet töltés közben | 0℃ és 45℃ között |
| Akkumulátorkezelő rendszer (BMS) | Beépített |
| Folyamatos töltőáram | 6A |
