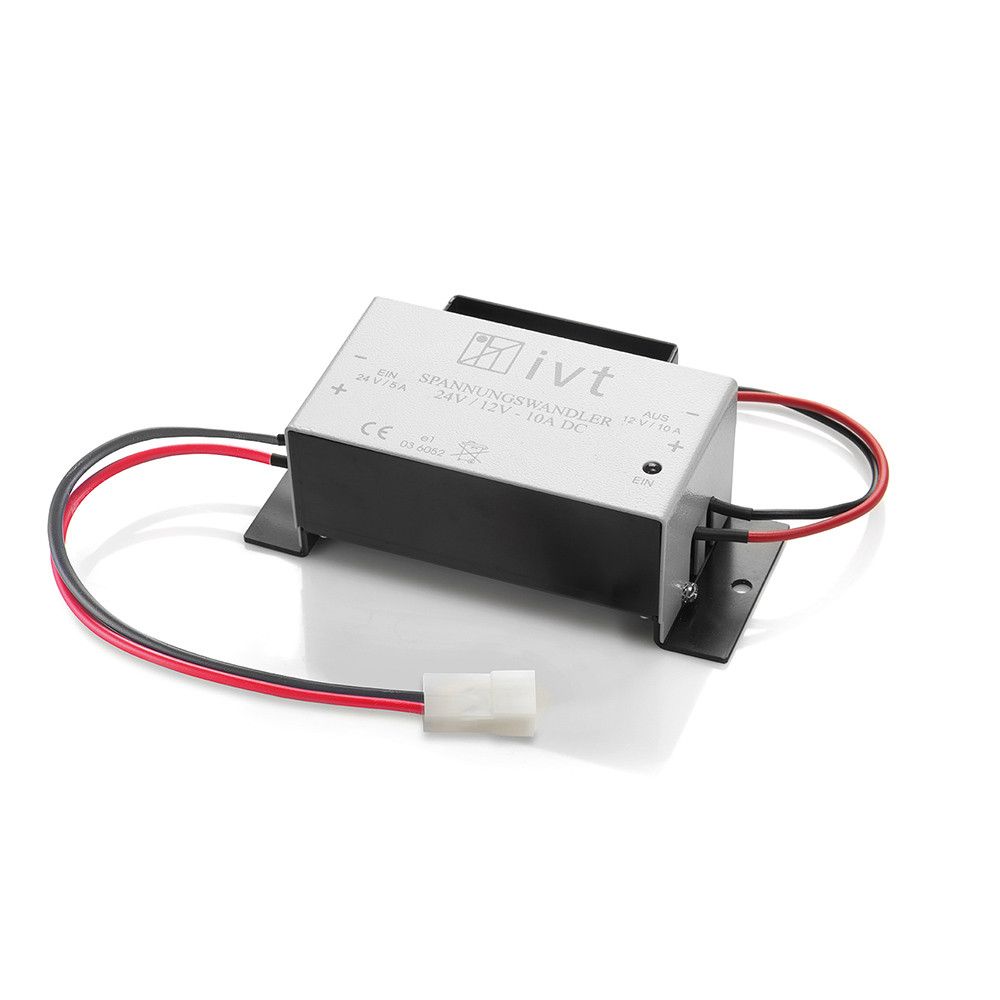

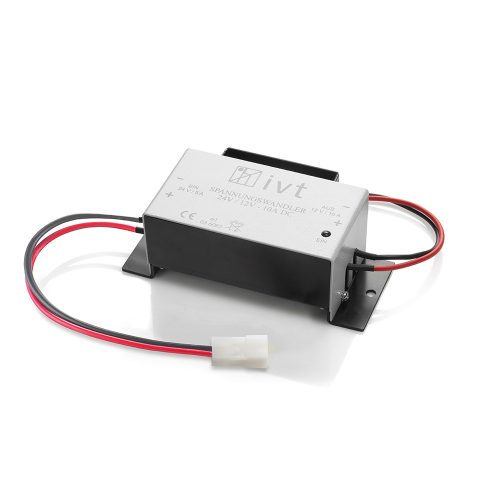

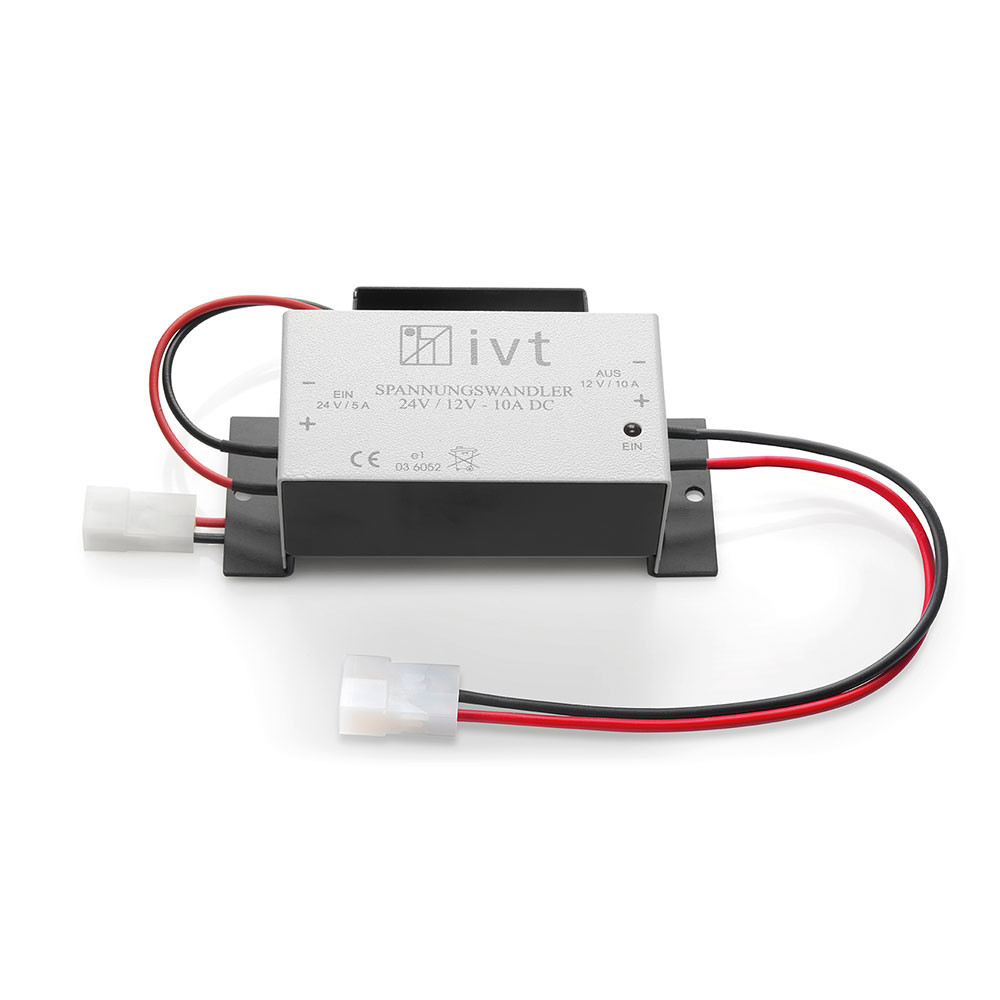

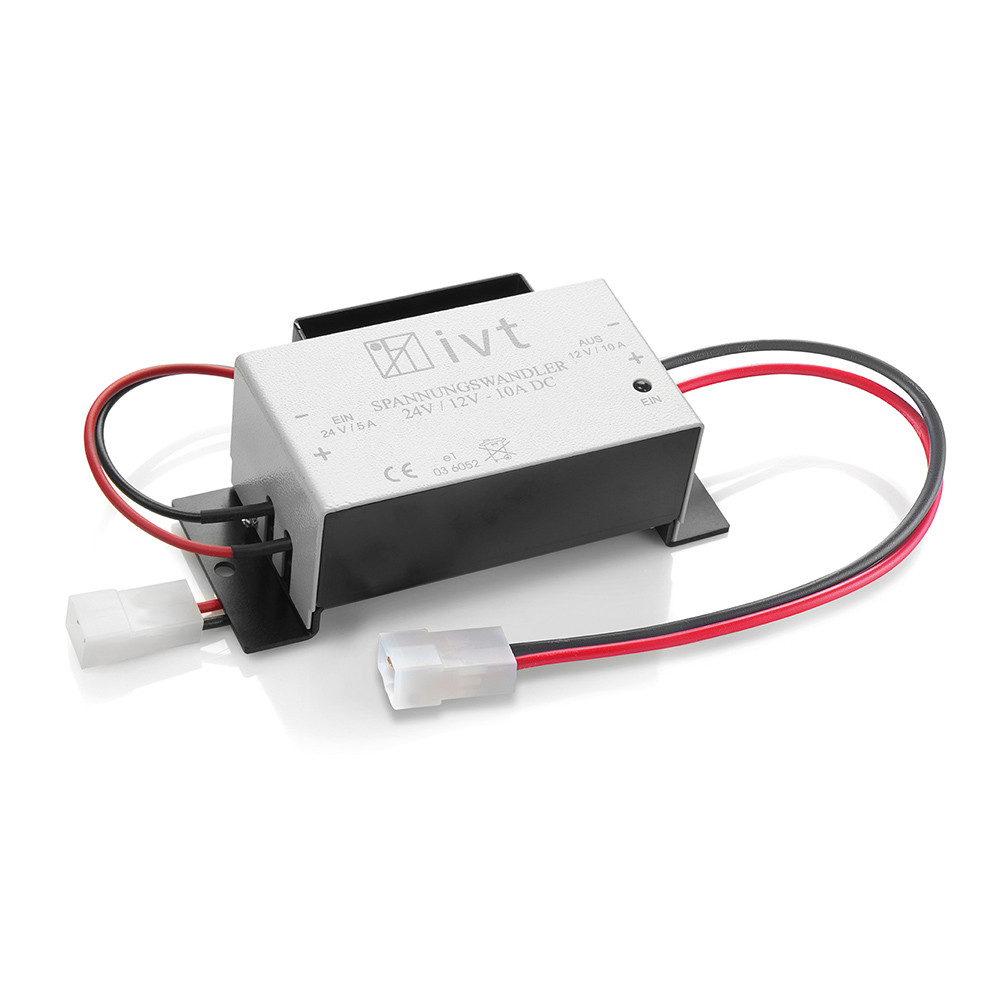

DC/DC Voltage Converter IVT 24 V/12 V, 10 A

Efficient voltage converters for demanding applications – Safe, constant, shock resistant

Features & Functions

Stable and constant output voltage

Input voltage range from 18 V DC to 32 V DC, the IVT voltage converter reliably delivers a stabilized and constant output voltage of 13.8 V. This output voltage can be used as a power supply for various 12 V consumers, e.g. entertainment electronics, navigation systems or cooling boxes.

Shock-resistant

The encapsulated electronics guarantee long-term operation under the most adverse conditions. Even with constant shocks and vibrations, e.g. in large construction machines, the voltage transformer works absolutely reliably and safely. The DC/DC voltage transformer has been tested to EN 60068-2-6/14/64/27.

High efficiency – low own power consumption

Due to the efficient technical design, an efficiency of 85 % can be achieved with the 10 A version. The own power consumption is 100 mA. Furthermore, this converter is characterized by its low heating.

Robust and compact metal housing

Thanks to the ingenious design, the converter is particularly compact. The robust aluminum housing also provides optimum protection against impacts and damage from the outside. Stable mounting is possible thanks to the holes in the bottom plate.

Standard protection circuits

This voltage converter is equipped with all common protection circuits naturally integrated as standard. The device is protected against polarity reversal short circuit protected at input and output. In case of an overload, the output voltage is automatically reset at constant current. Should nevertheless the vehicle fuse is triggered, it can be exchanged quickly and easily in case of need.

E-certification – suitable for permanent installation in the vehicle

Thanks to the E-certification, this converter is suitable for permanent installation in a wide range of vehicles with 24 V vehicle voltage. The scope of application therefore ranges from construction site vehicles, forklift trucks, touring busses, snowmobiles to trucks and motor homes and boats.

Application in 24 V off-grid solar systems

Even with an existing 24 V off-grid solar system, the use of an IVT voltage transformer is recommended to reduce the voltage to 12 V. This means that existing or inexpensive 12 V devices can be used without any problems.

3 year manufacturer warranty

IVT products are manufactured to a high quality and following strict quality guidelines. We are certain about the longevity so that we add another year to the statutory manufacturer warranty free of charge. Rechargeable batteries and batteries are excluded from this warranty.

Delivery content

DC/DC Voltage Converter IVT 24 V/12 V, 10 A Instruction manual DE, EN, FR, NL

Technical Data
