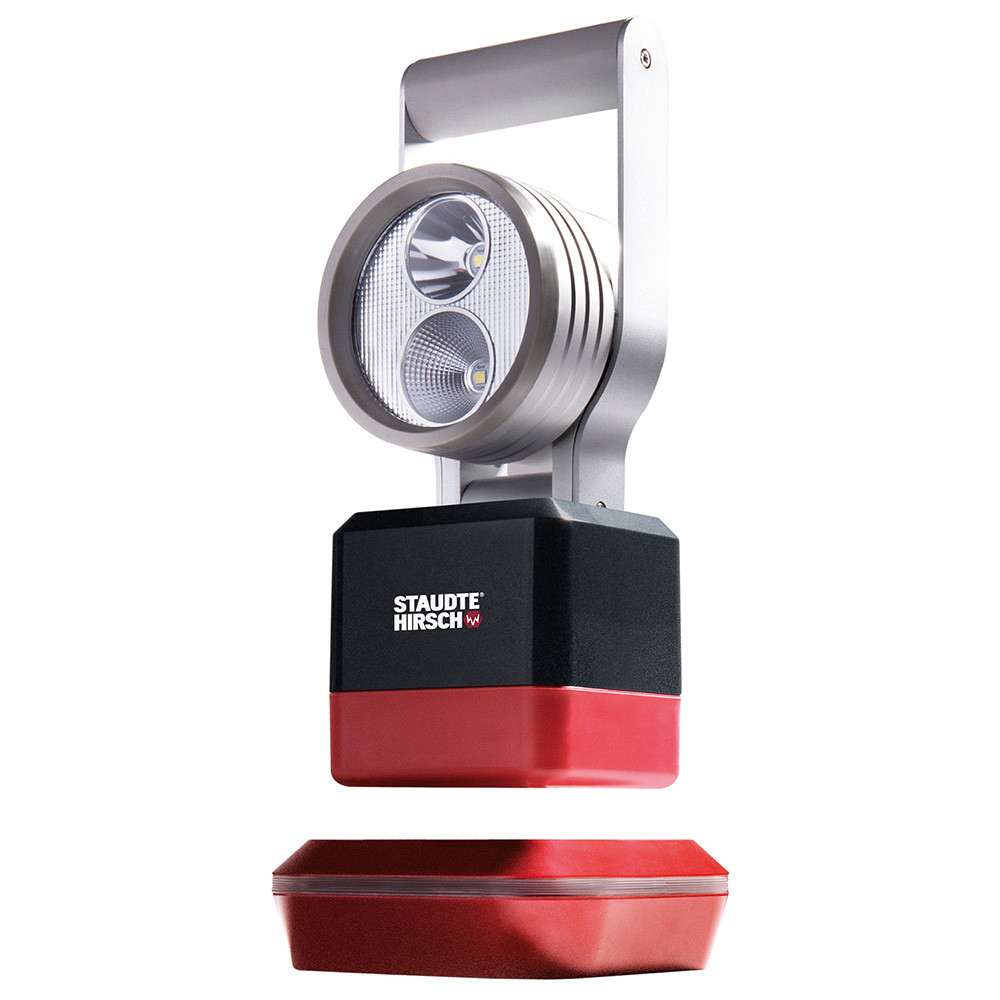

Excellent in functionality and luminance –LED work light for crafts and industry By virtue of the materials used and the first-class manufacture, the Staudte Hirsch Work Lamp SH-5.100 is of a quality that pays for itself under the harshest conditions.
Features & Functions

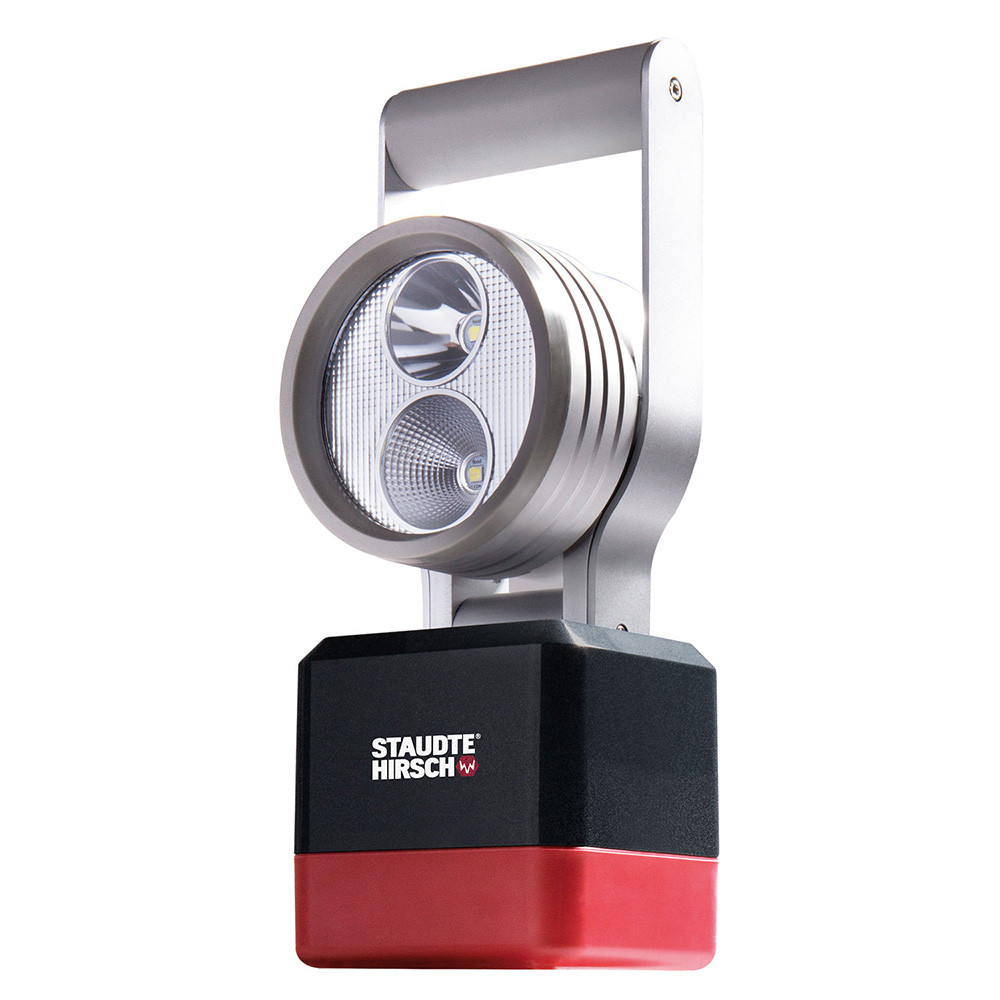

Double beam technology – You see better with two eyes
With its double-beam principle, the SH-5.100 Work Lamp always provides the perfect light. This is because the double beam technology (2 x 8 W XHP50 LEDs from Cree) combines several lighting options within one Work Lamp: A precision focus light and a wide-area flood light. Double beam technology 2 x 8 W (1040 lm each) Upper LED: precision focus light Lower LED: wide-area flood light Focus light | smooth reflector for focused lighting Flood light | ribbed reflector for broad illumination
Cree-XHP50 – 8 W LEDs of the latest generation
Equipped with the latest LED technology, the SH-5.100 guarantees extremely bright light. The 2 daylight-white (6500 K) high-performance LEDs from Cree, with a peak light output of 130 lm/W, provide unique power. When the Cree Extreme High Power LED is operated at the maximum approved current, it emits a light quantity that is twice that of the brightest comparable LED on the market to date! At full brightness, its luminosity is 1040 lm. This extreme brightness is achieved through optimization of light conversion and thermal resistance. This increases both the lumen rating and the service life of an LED. The two XHP50 LEDs in the SH-5.100 thus each achieve a service life of around 50,000 hours, even with high currents and high temperatures. Good to know The light output (lm/W = lumen per Watt) indicates the economy of a lamp. The more lumen (light) per Watt (energy expended), the better the efficiency.

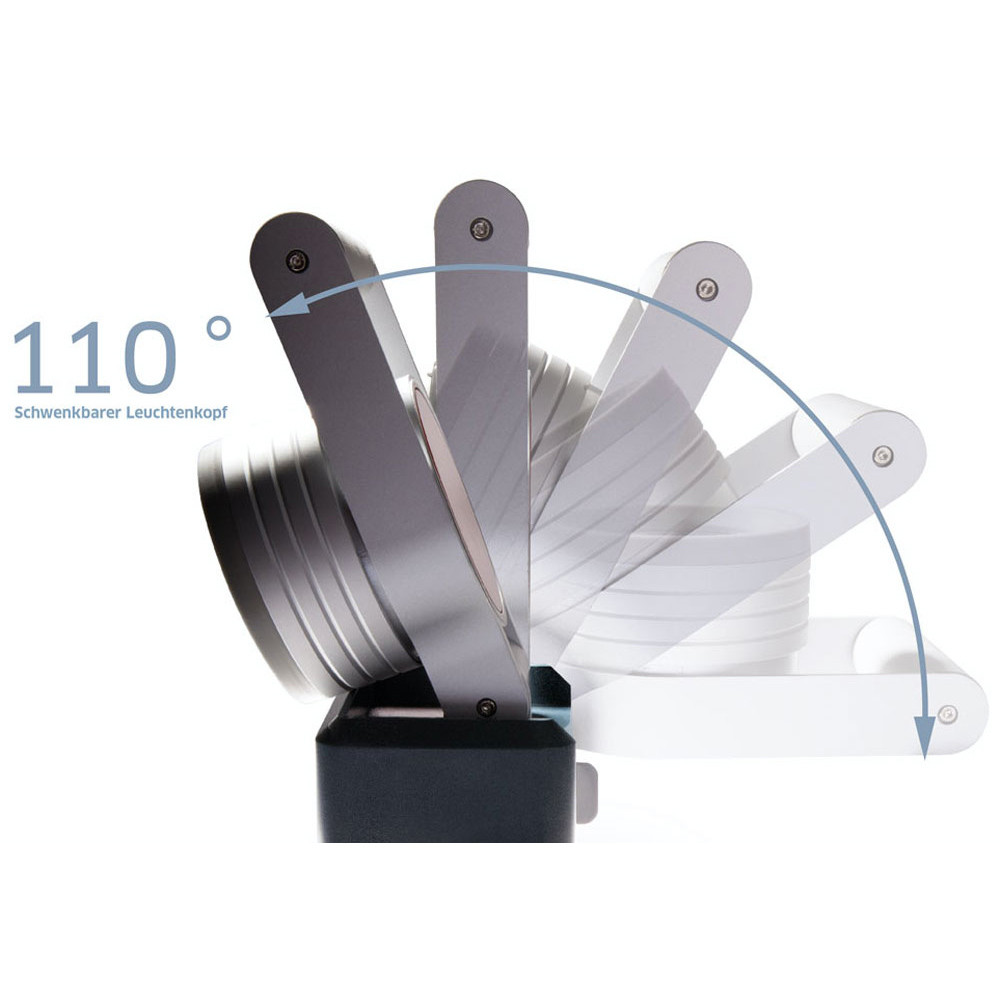

110° swivelable lamp head
With the swiveling lamp head, you can direct the beam of the SH-5.100 individually – for example, directly focused on your field of work, or over a wide area to illuminate a space. The angle of inclination is 110°
Lighting modes – Versatile application possibilities
5 different lighting modes guarantee you the best possible illumination Mode Function 1 | Flood light Beam angle 90° Luminosity 100 % Runtime 6 h Lighting range 75 m 2 | Flood light Beam angle 90° Luminosity 50 % Runtime 11 h Lighting range 50 m 3 | Focus light Beam angle 10° Luminosity 100 % Runtime 6 h Lighting range 250 m 4 | Focus light Beam angle 10° Luminosity 50 % Runtime 11 h Lighting range 5 |Flashing mode Beam angle 90° Luminosity 50 % Runtime 16 h Lighting range 50 m
Emergency light function – Safety in power cuts
If the SH-5.100 is in the charging cradle when the power supply fails, thanks to the integrated emergency light function it automatically switches on. This is on condition that the charging cradle is connected to the mains and the lamp is switched on in the desired mode. In the event of a power failure, the work lamp thus becomes a reliable source of light, for example in rooms and corridors without windows and emergency power supply.

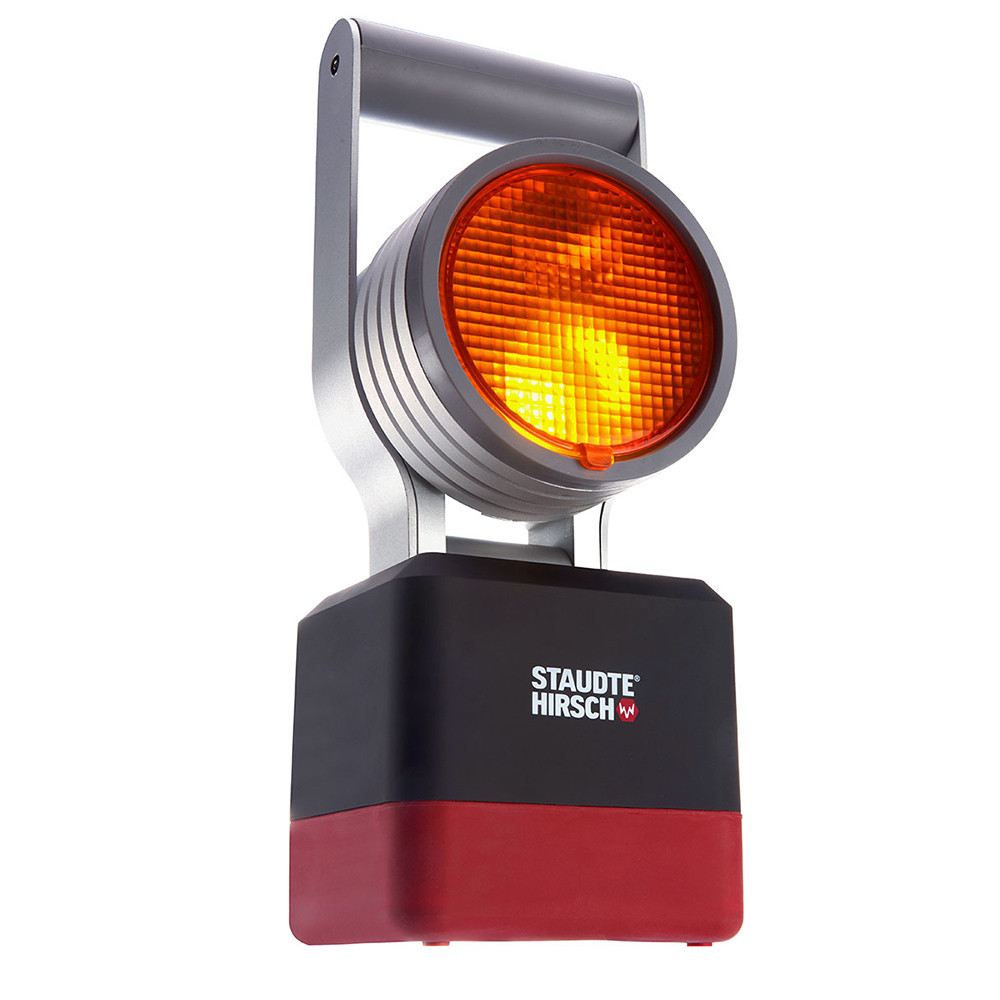

Reliable warning light in road traffic – to secure hazards
With the flashing light function and the orange diffusing plate that is included in the scope of delivery, the SH-5.100 is also ideally suitable for use as a warning light, for example to give warning of hazards or to secure construction sites.
Lightweight lithium-ion battery with 8000 mAh
Due to its high-quality 8000 mAh lithium-ion battery, the SH-5.100 Work Lamp is your reliable companion. With a run time of 11 h at half power and 6 h at full power, you can cover almost a full working day with just one battery charge. The battery can be charged by means of a 100 - 240 V AC plug-in power unit or a 12/24 V DC car charging adapter. Thanks to the battery’s low self-discharge, the SH-5.100 remains always ready for use, even if used only sporadically. Protection against overcharging and deep discharge ensures that the battery has a long service life. Benefits of Li-ion battery technology ▪ High energy density ▪ Maintenance-free ▪ No loss of performance through memory effect ▪ Low self-discharge ▪ Lightweight ▪ High-performance ▪ Long-life
Robust housing made of shock-resistant plastic with IP 54
The housing, which conforms to protection category IP 54, is protected from dust and plashed water, and is extraordinarily robust. The SH-5.100 can thus be used even under extreme conditions. The body is manufactured from high-quality, shock-resistant plastic. The lamp head has been reinforced with a solid aluminum ring. A wide, solid rubber ring and the scratchproof glass protect the lens from possible damage. It is perfectly adapted to the everyday world of professional work.
Rubber-coated carrying handle – magnetic storage tray
The robust, rubber-coated carrying handle has been developed for convenient carrying. The magnetic storage tray below the lamp head will keep even the smallest screw safe.

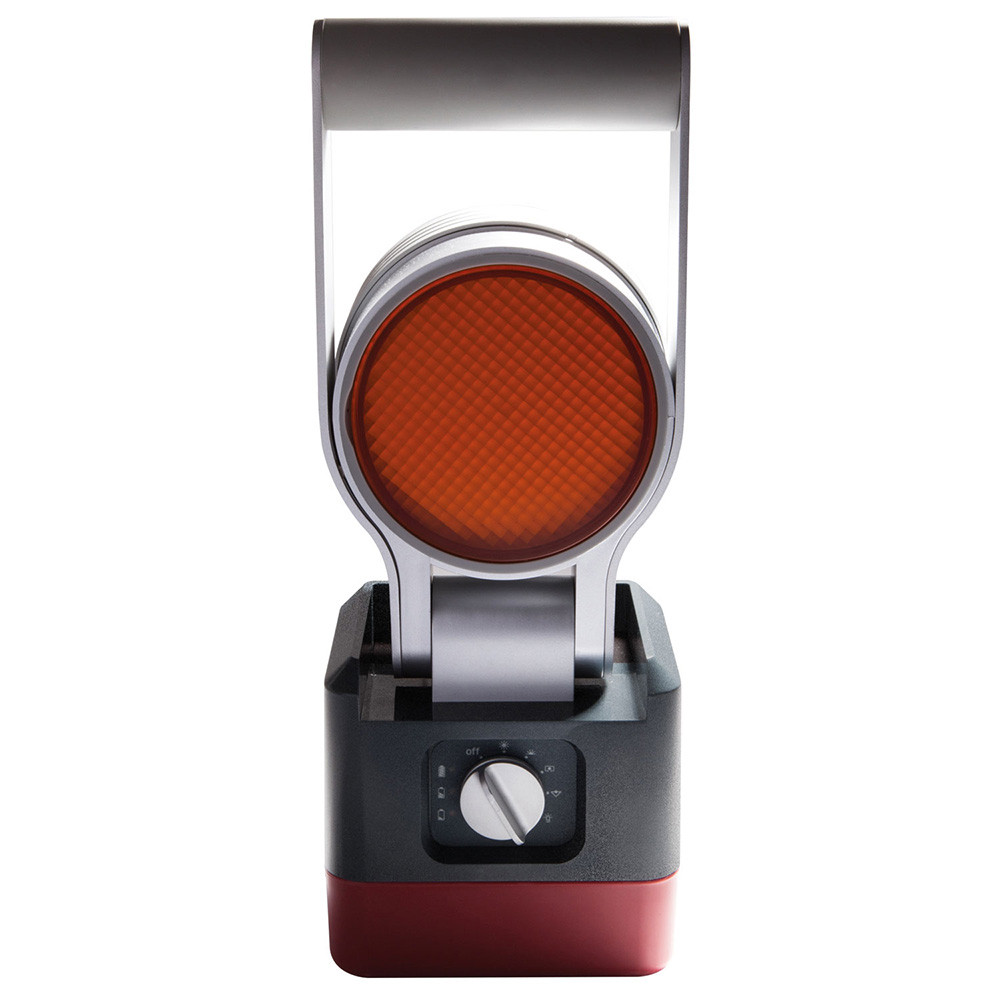

Easy-to-use rotary switch
It is perfectly adapted to the everyday world of professional work. With the easy-to-use rotary switch, it is easy and safe to operate even when wearing gloves. The current charge status of the battery can be read at any time, via three 3 LEDs which are fitted to the rear.
Slip-proof base – thanks to rubber footing
The portable lamp stands stable and secure, even on smooth or sloping surfaces – thanks to the balanced distribution of weight and the rubber-footed base.
Charging cradle with charge control indicator
The SH-5.100 can be safely stored and charged in the charging cradle. A 230 V plug-in power supply and a 12 V/24 V car charger adapter are included in the scope of delivery. During the charging process, the LEDs of the charging cradle light up red. A fully charged battery is indicated by green LEDs.
Construction and equipment of the work lamp
Equipment Solid aluminum ring Rubber lens protector Scratch-proof glass 2 x 8 W Cree LEDs (1040 lm each) Upper LED: precision focus light with full and half luminosity Lower LED: wide-area flood light with full and half luminosity, Warning light with flashing function 110° swivelable lamp head Magnetic storage tray below the lamp head Robust housing made of shock-resistant plastic with IP 54 8000 mAh lithium-ion battery Slip-proof base thanks to rubber footing Charging cradle with charge control indicator Rear Storage space for diffusing plate at the back of the lamp Easy-to-use rotary switch to select the lighting modes Visual charging status indicator Included accessories Charging Cradle with charging status indicator Plug-in power unit Car charging adapter Diffusing plate (orange)

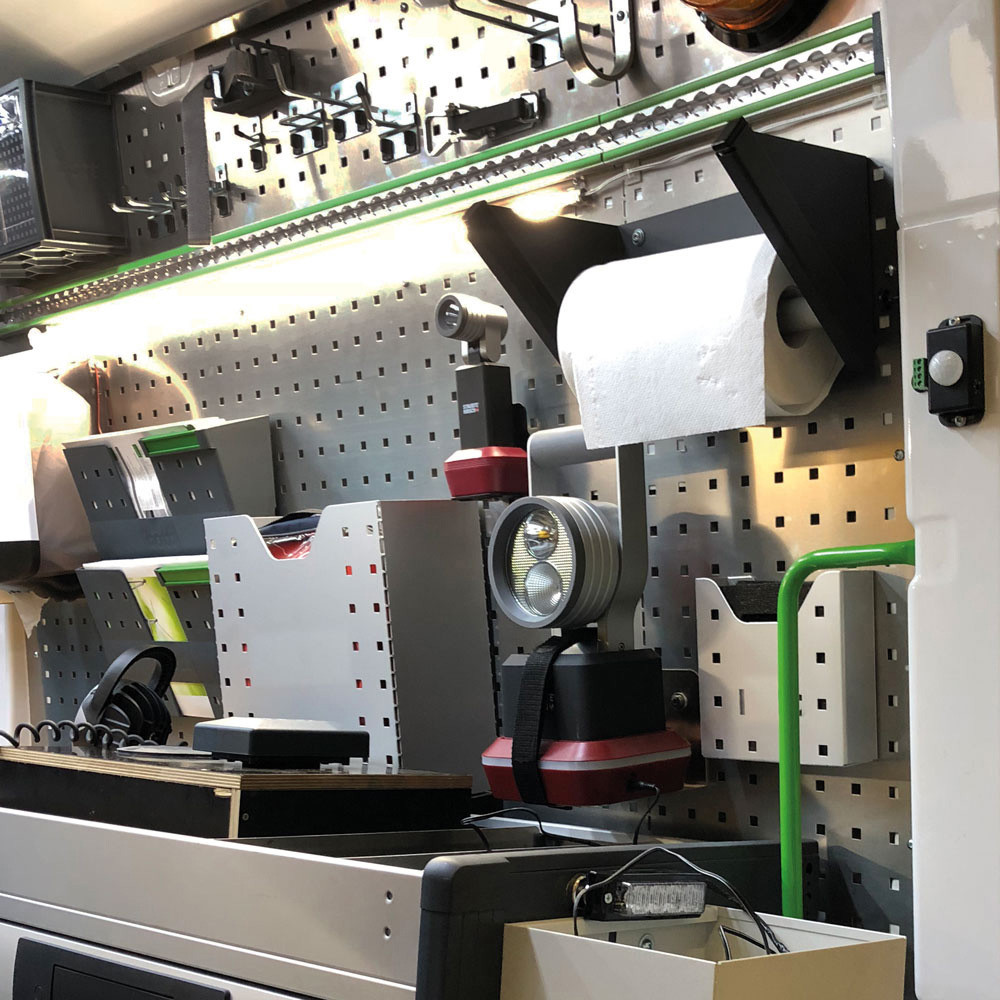

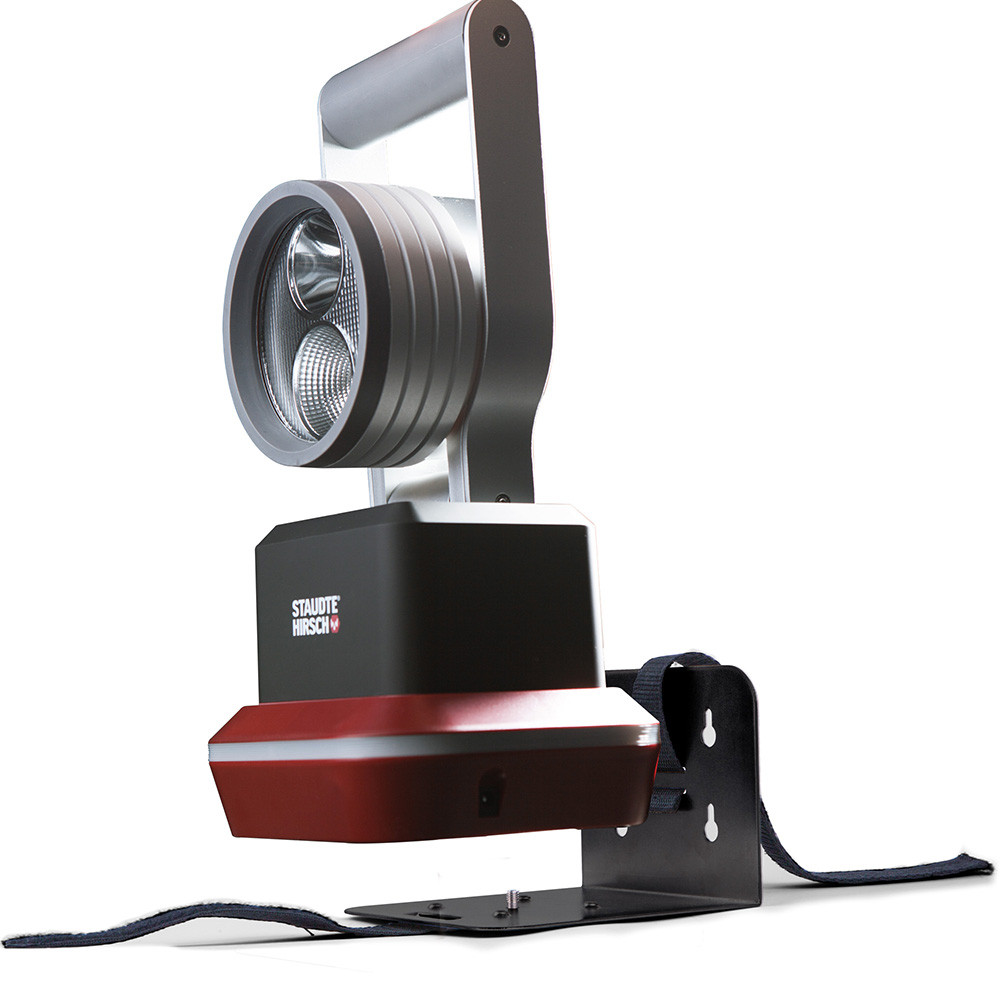

Useful accessory: Wall/Car Mount
With the metal holder, the work lamp and charging cradle can be securely fixed in buildings or vehicles. The Charging Cradle SH-5.900 is firmly fixed onto the mount by a locking screw. The lamp itself can be quickly secured and removed with aid of the durable mounting strap. For a guaranteed judder-proof hold and a straight fit, the Wall/Car Mount’s bearing surface is equipped with 4 guide stubs. If you want to use the Work Lamp as an emergency light in public buildings like hospitals, the SH-5.901 commends itself as the ideal mounting device. Wall/Car Mount SH-5.901 Item no. 559010 To the product >
3 year manufacturer warranty
Products of IVT and Staudte Hirsch are manufactured to a high quality and following strict quality guidelines. We are certain about the longevity so that we add another year to the statutory manufacturer warranty free of charge (rechargeable batteries excluded).

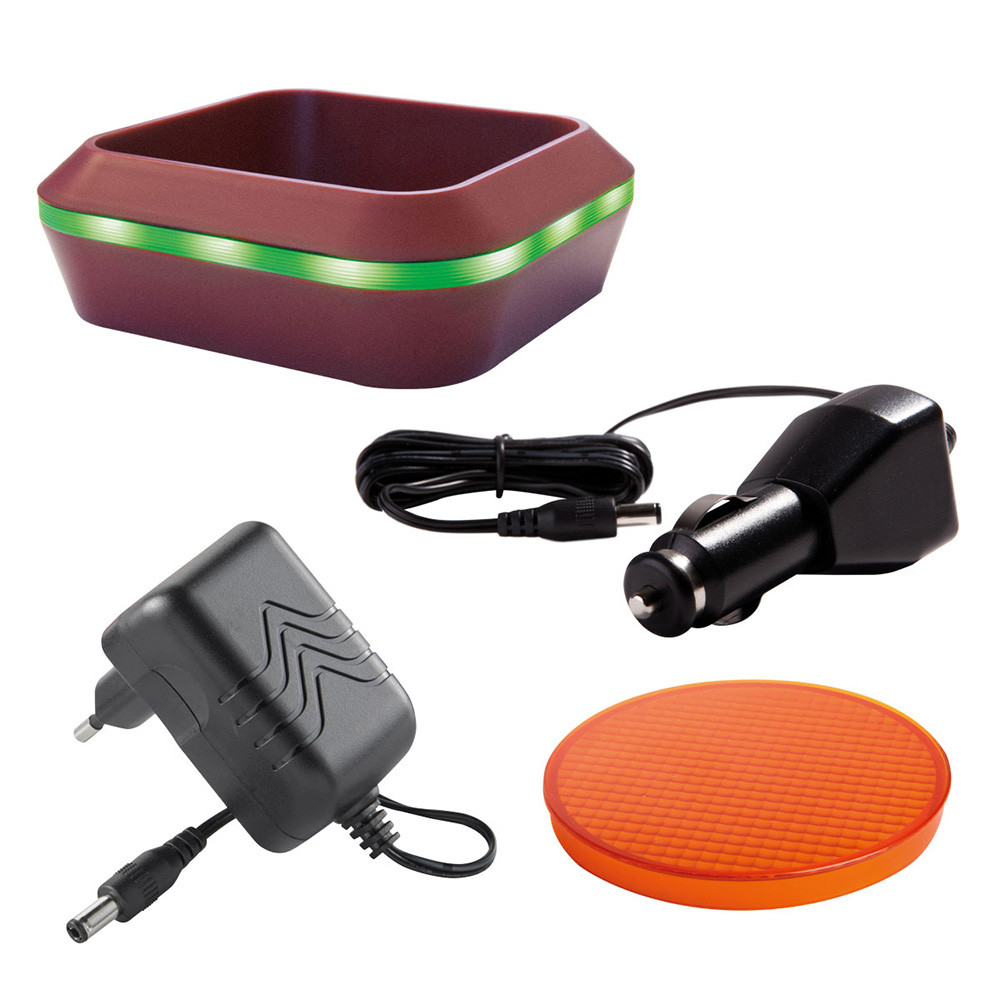

Delivery content
LED Work Lamp SH-5.100 Charging Cradle Diffusing plate (orange) Plug-in power unit Car charging adapter Instruction manual in DE, GB, FR, NL, ES, PL Note: The accessories can also be ordered separately.
Technical Data
| Parameter | Value |
|---|
| Current supply | Li-Ion battery7.4 V, 8000 mAh |
| Light sources | 2 x Cree XHP50 LED |
| Power consumption (max.) | 8 W |
| Luminous flux (max.) | 1040 lm |
| Efficiency | 130 lm/W |
| Color temperature | 6500 Kdaylight white |
| Working life LED | 50,000 h |
| Lighting modes | 1: Flood light 100 %2: Flood light 50 %3: Focus light 100 %4: Focus light 50 %5: Flash light |
| Lighting range (max.) | 250 m |
| Operation time (max.) | 16 h |
| Beam angle | 90° (Flood light)10° (Focus light) |
| Inclination of lamp head | 110° |
| Emergency light function | Yes |
| Charging adapterPlug-in power unit | 100 - 240 V AC, 50/60 Hz |
| Car Charging adapter | 12/24 V DC |
| Charging time | 8 h |
| Charging control display | Yes |
| Deep discharge protection | Yes(6.2 V ± 0.1 V) |
| Overcharge protection | Yes(8.4 V ± 0.1 V) |
| Protection class | lll |
| Type of protection | IP 54 |
| Temperature range | -25 °C to +50 °C |
| Material | ABS, PC, TPE plastic, aluminum |
| Color | Black, red, silver |
| Dimensions (L x W x H) | 121 x 119 x 319 mm (lamp)150 x 164 x 55 mm (charging cradle) |
| Weight | 1.46 kg (lamp)0.33 kg (charging cradle) |
