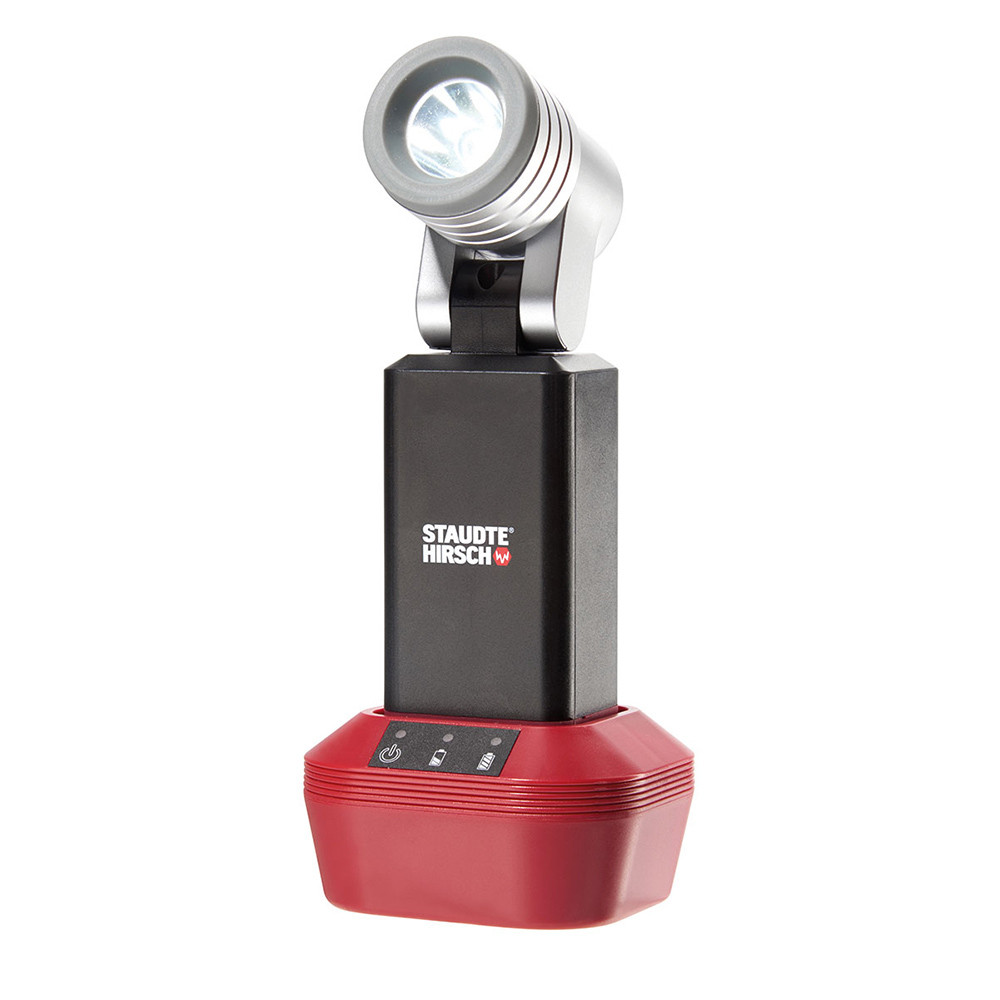

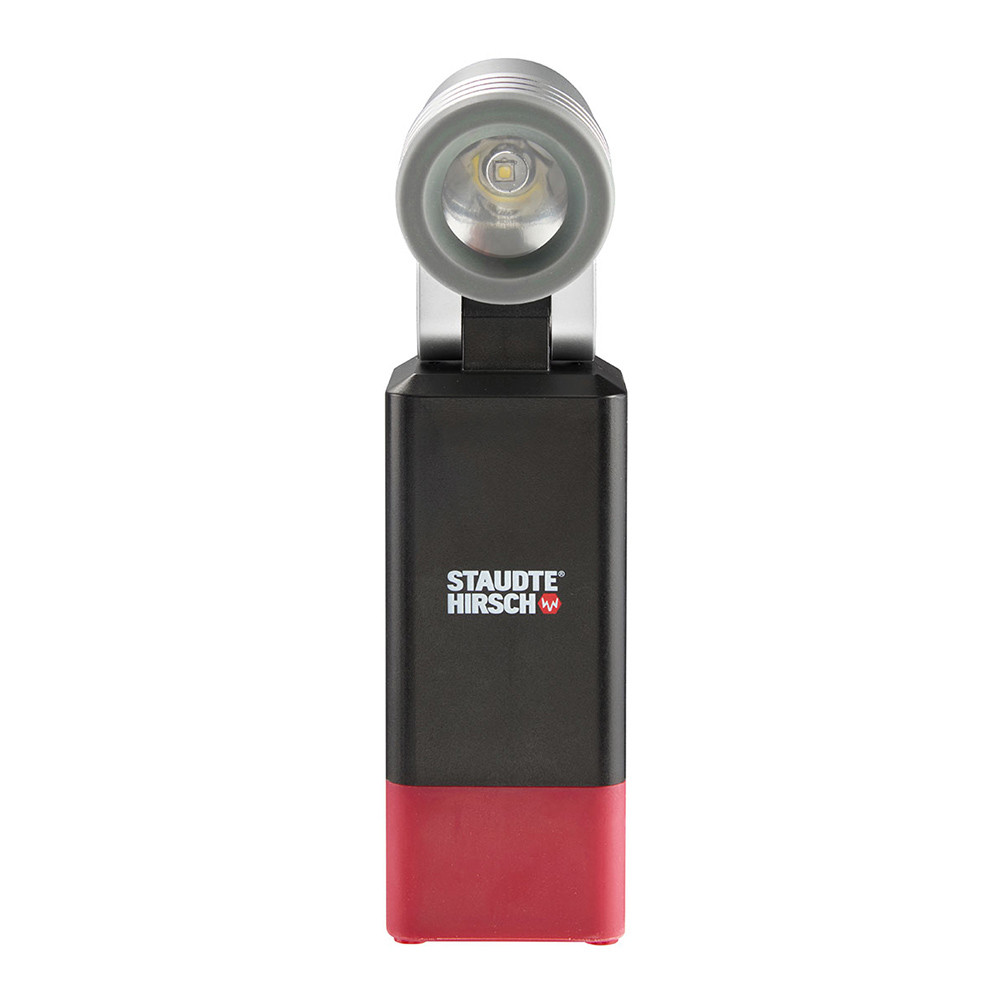

Versatile battery light for workshop, construction site and industry –Handy, robust and bright, with magnet and sturdy fastening clip Whether in public buildings, hospitals, care facilities and nursing homes, in private or commercial use – this compact LED hand lamp convinces with its sophisticated design and numerous technical details: Due to its versatility, this handy battery lamp has the potential to become your favorite lamp. Product video LED Hand Lamp Staudte Hirsch SH-5.300
Features & Functions
High-performance LED with 225 lm – 2 levels of brightness
The hand lamp is equipped with a powerful 3 W Cree high-power LED. In the maximum brightness level, the luminaire provides 4.5 hours of daylight white (6,500 K) light. The luminous flux in this mode is 225 lm. In dimmed mode, a peak duration of 9 hours is achieved. Mode Function 1 | Focus light Beam angle 15° Luminosity 100 % Runtime 4.5 h Lighting range 150 m 2 | Focus light Beam angle 15° Luminosity 50 % Runtime 9.0 h Lighting range 75 m

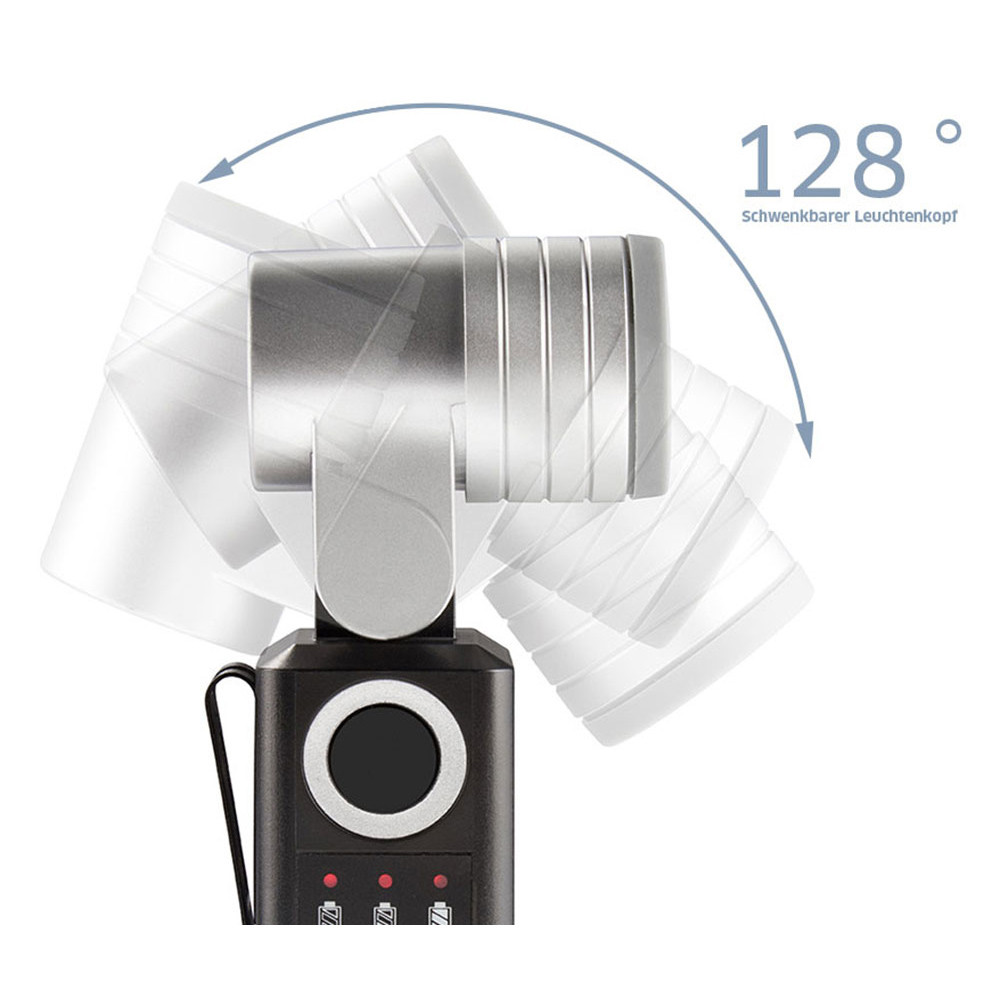

128° swiveling lamp head
Thanks to the swiveling lamp head one can precisely direct the light beam of the SH-5.300 at the desired work area. The angle of inclination ads up to 128°: 60° forwards, 68° backwards.
Magnetic lamp base
The magnetic base holds reliably on magnetic surfaces – ideal if you need both hands to work in a confined space. The swiveling lamp head allows the alignment of the light cone on the desired work surface. With only 276 g, a height of only 176 mm and its numerous application possibilities, this battery lamp is the ideal companion for many uses.
Stable metal fastening clip

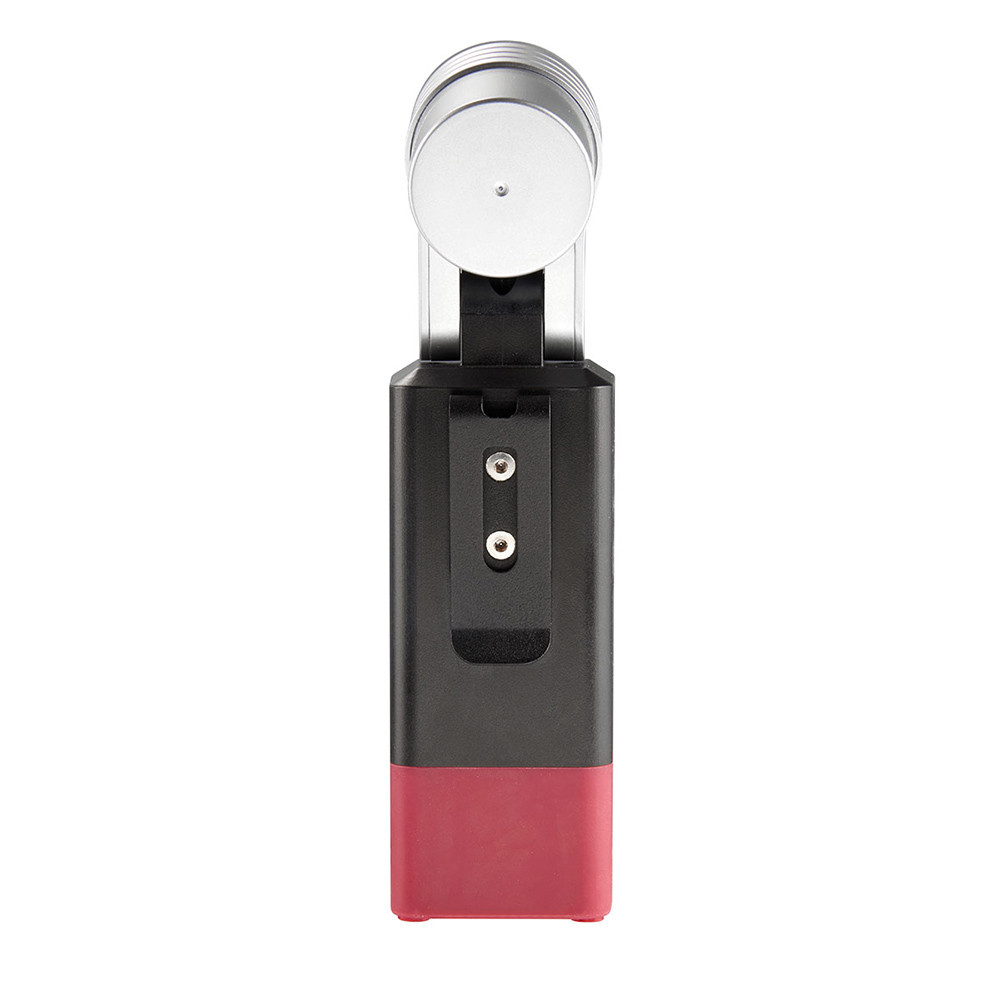

On the back of the lamp is a sturdy metal clip for attaching to work clothing, tool belts or equipment. Thanks to this, the clip lamp can be carried around comfortably – so you always have both hands free for your work. With the help of the swivelling lamp head, the light beam of the emergency light can be directed exactly in the direction of view or to the area you want. In addition, the fastening clip also helps to securely fix the hand lamp in the wall/car mount.

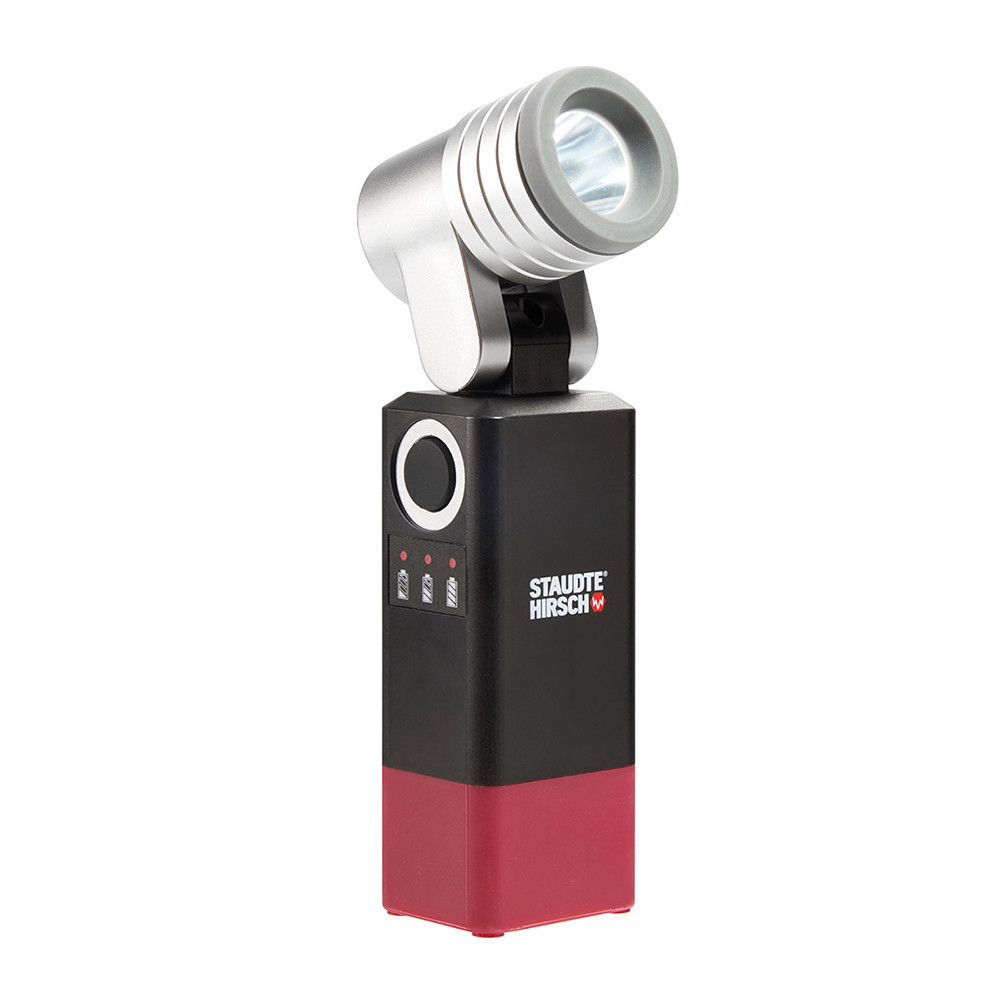

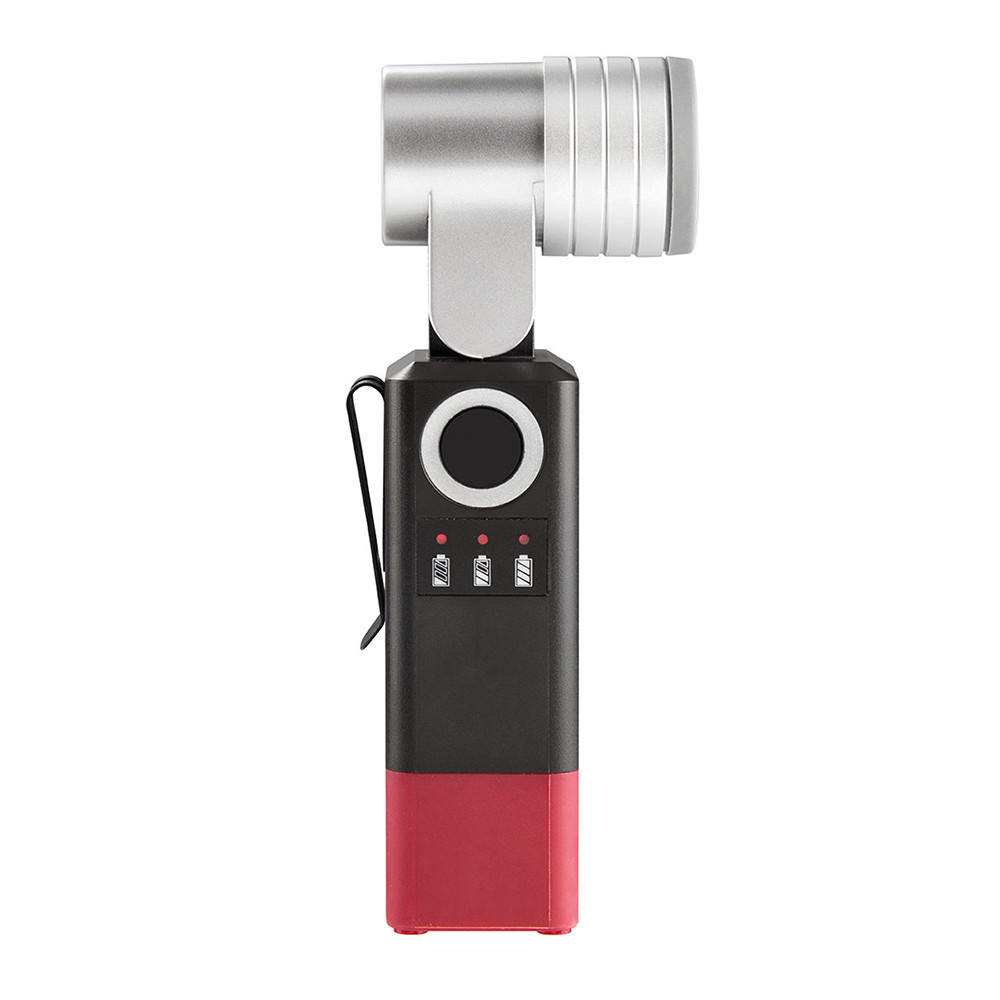

Large push-button switch – with charging status indicators
The SH-5.300 is perfectly matched to the professional work routine. The rubberized push-button switch can be safely and easily operated even with gloves. In addition, 3 LEDs below the switch provide you with information about the charging state of the battery at any time.

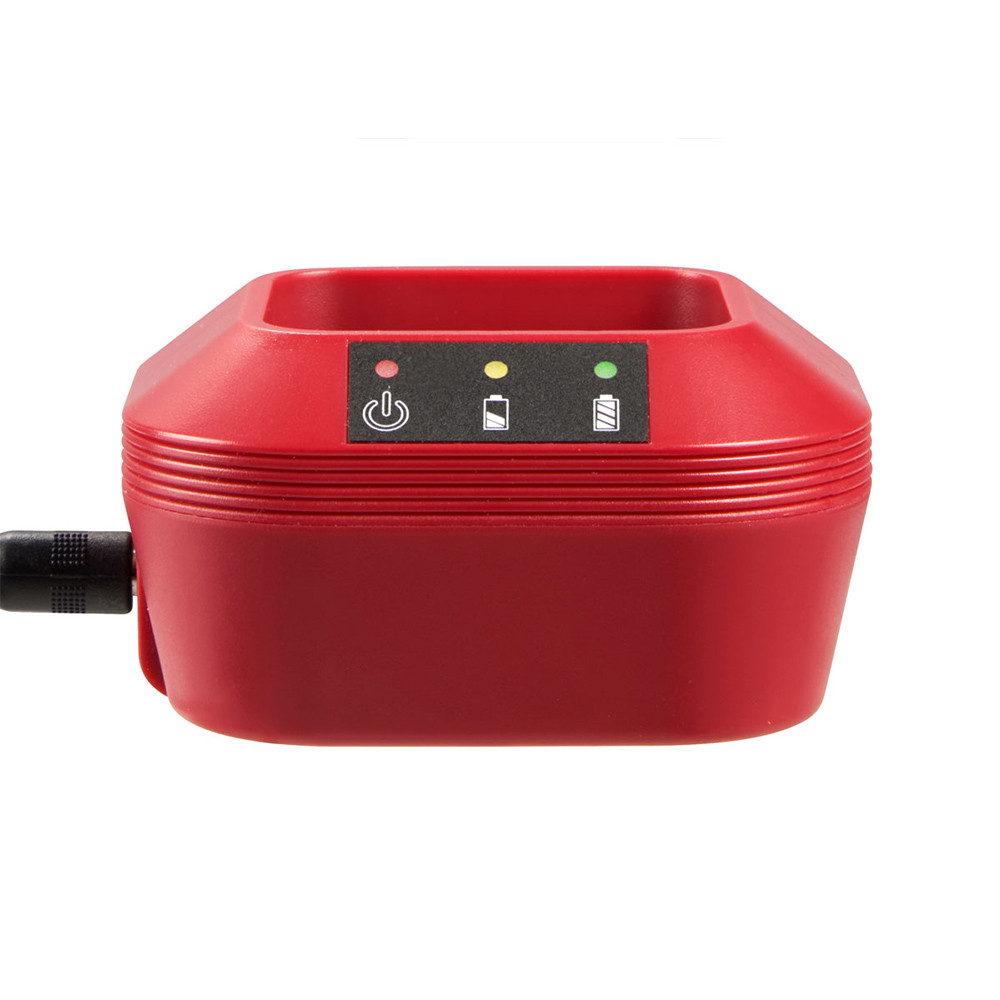

Charging cradle with visual charge control indicator
The SH-5.300 can be safely stored and charged in the charging cradle. A 230 V plug-in power unit and a 12/24 V car charging adapter are included. During charging, depending on the charging state of the battery, the red, yellow and/or green LED lights up. Once the battery is fully charged, all three LEDs will light up. Because of overcharge protection, the luminaire can remain permanently connected to the mains.
Powerful Li-ion battery with 2200 mAh
The hand lamp SH-5.300 is equipped with a high quality 2,200 mAh Li-ion battery. With a runtime of 9 h at half power and 4.5 h at full power, you can cover almost a full working day with just one battery charge. The high-quality 2200 mAh Li-Ion battery can be recharged via a 100 - 240 V AC plug-in power supply or with a 12/24 V DC car charger adapter. Thanks to the low self-discharge of the battery, the SH-5.300 always remains ready for use even with sporadic use. Over- and deep-discharge protection ensure a long battery life. The current charge status of the battery can be read at any time via 3 LEDs below the pushbutton switch. Benefits of Li-ion battery technology ▪ High energy density ▪ Maintenance-free ▪ No loss of performance through memory effect ▪ Low self-discharge ▪ Lightweight ▪ High-performance ▪ Long-life
Robust housing made of shock-resistant plastic with IP 54
The housing is dust and splash-proof and extremely robust. The body is made of high quality, impact resistant and flame retardant plastic. The lamp head was reinforced with a massive aluminum ring. A wide solid rubber ring protects the lens from possible damage. As a result, the mobile light can also be used under extreme conditions.
Emergency light function – safety in case of power failure
If the Hand Lamp SH-5.300 is in the charging cradle while the power supply fails, it will switch on automatically because of the integrated emergency lighting function. This is on condition that the charging cradle is connected to the power supply and the lamp is switched on in the desired mode. In the event of a power failure, the battery light becomes a reliable light source, e.g. in public buildings, manufacturing plants, production sites and workplaces, in medical facilities, meeting places, hotels, restaurants, underground garages or in the private sector.

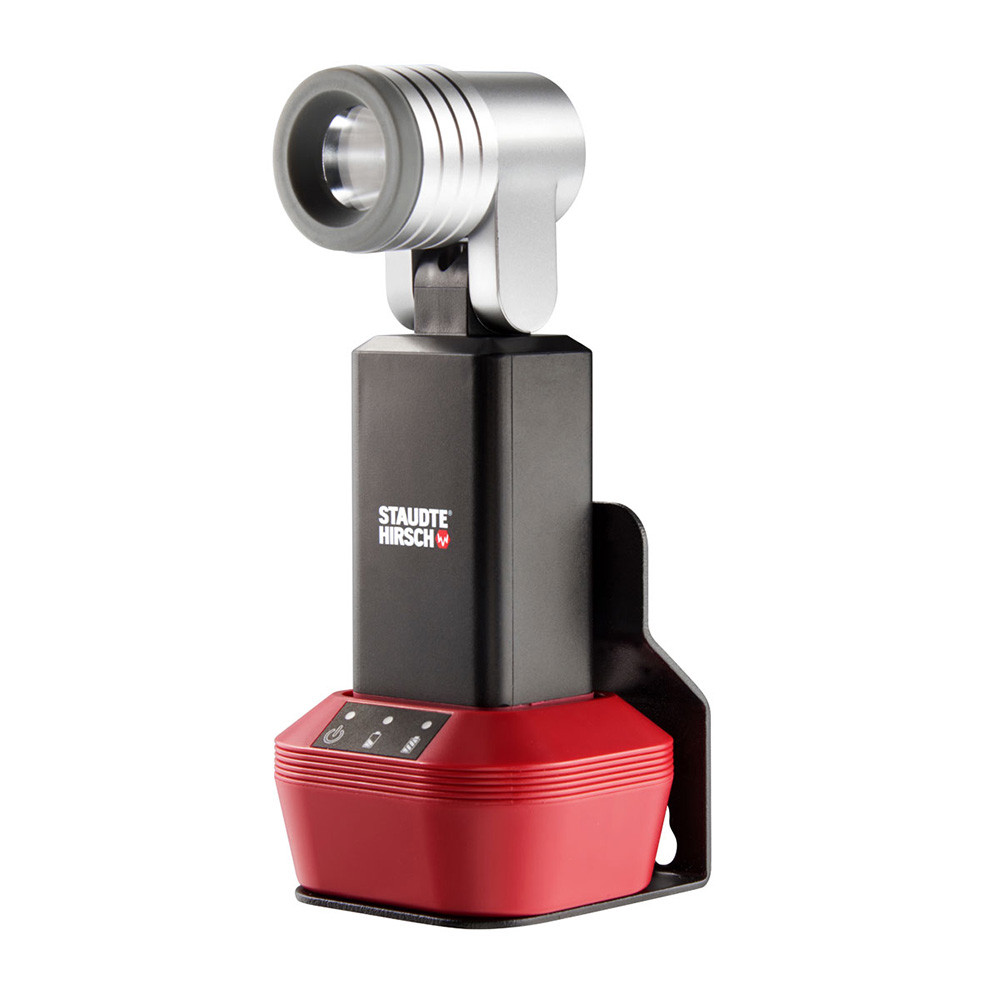

Wall/Car Mount available as an accessory

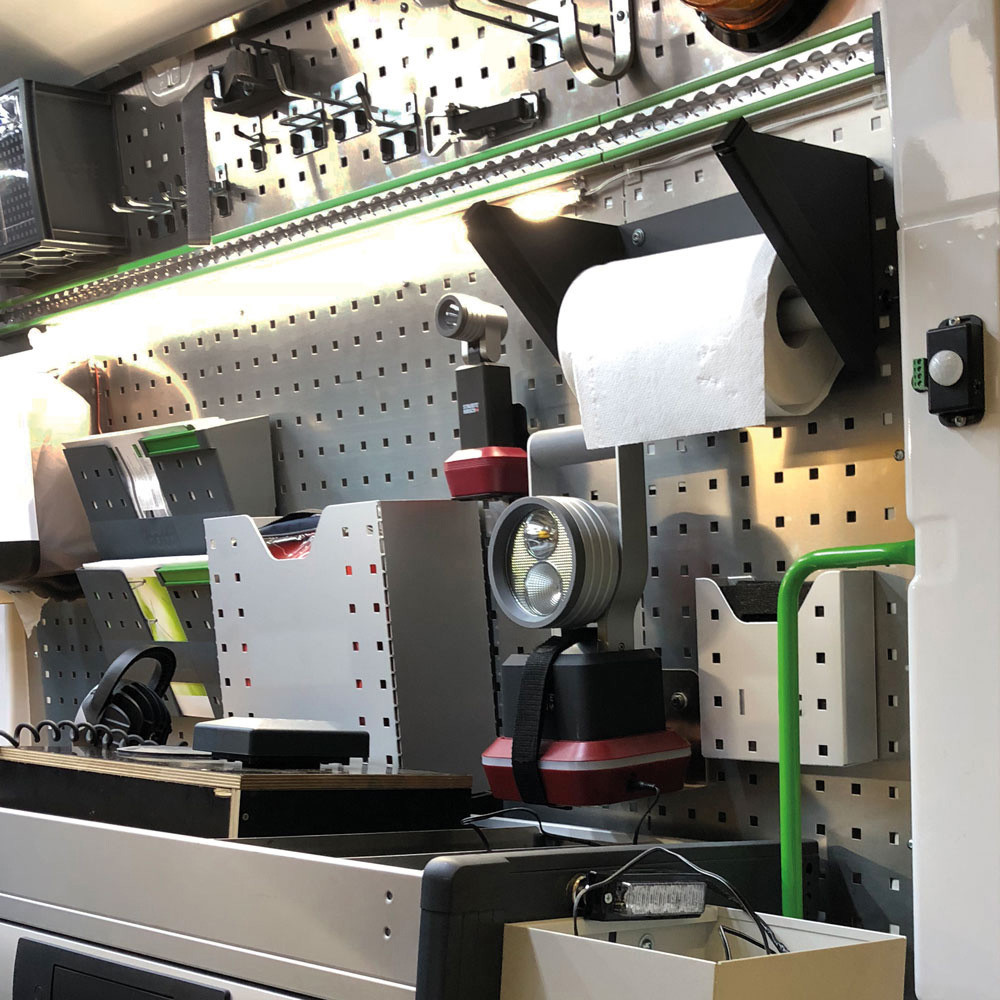

Well kept on the wall or always at hand in the vehicle – with the high-quality wall and car mount SH-5.931 the LED Hand Lamp SH-5.300 is always safely stowed away. If the lamp serves as emergency and safety lighting, e.g. in private, commercial or public buildings, the SH-5.931 commends itself as an ideal wall mount. By means of the locking screw, the charging cradle is fixed on the holder, the lamp is securely locked in the bracket by means of the deep-drawn snap of the fixing clip. Wall/Car Mount SH-5.931 Item no. 559061 To the product >
Setup and features of the hand lamp
Features Rubber lens protector 3 W high-performance LED from Cree 128° swivelable lamp head Robust housing made of shock-resistant, flame-retardant plastic with IP 54 High-performance Li-ion battery 7.4 V, 2200 mAh Runtime: 4.5 h at full, 9 h at half luminosity Big, rubber-coated push-button switch: ON/OFF, luminosity: 100 % / 50 % Optical charging status indicators Magnet, integrated in the lamp base Rear Mounting clip made of metal for attachment to equipment or clothing and for securely fixing the lamp in the wall mount Included accessories Charging cradle with charge control indicator 230 V plug-in power unit 12/24 V car charging adapter
3 year manufacturer warranty
Products of IVT and Staudte Hirsch are manufactured to a high quality and following strict quality guidelines. We are certain about the longevity so that we add another year to the statutory manufacturer warranty free of charge (rechargeable batteries excluded).

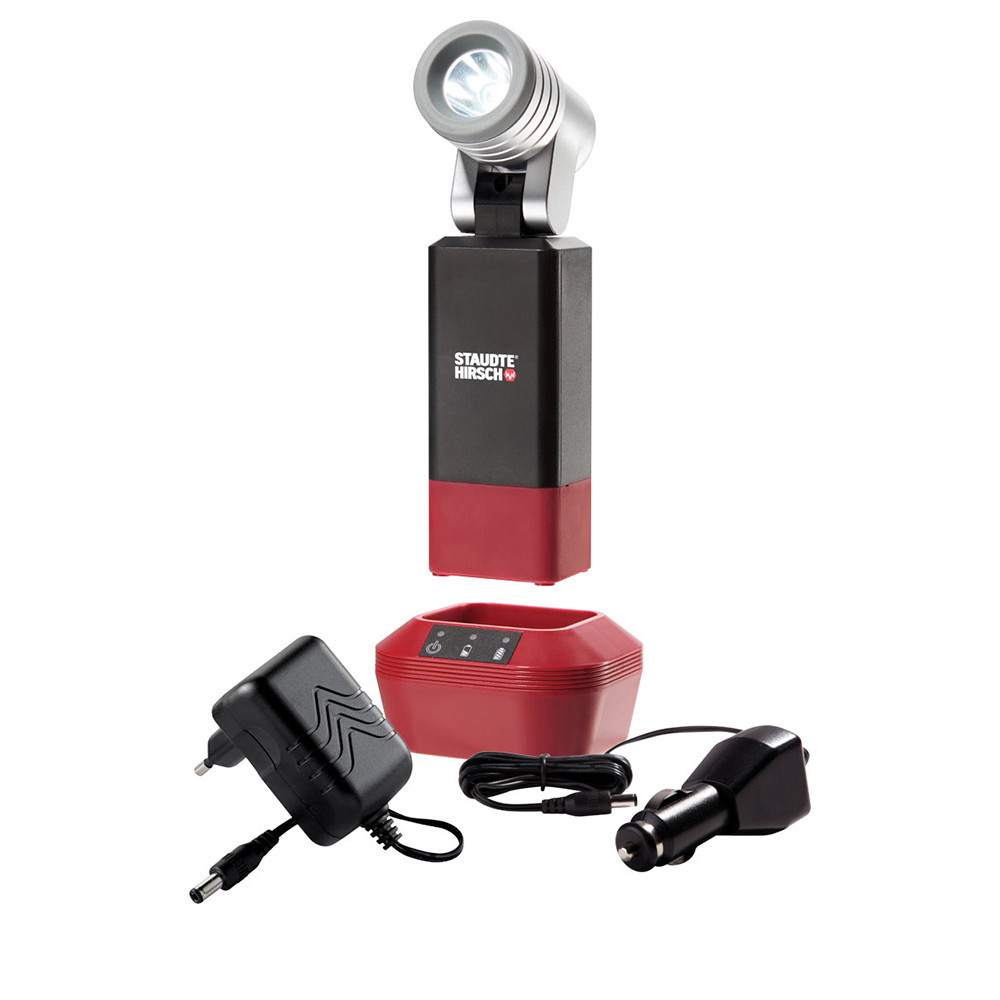

Delivery content
LED Hand Lamp SH-5.300 Charging Cradle Plug-in power unit Car charging adapter Instruction manual DE, GB, FR, NL, ES, IT Note: The accessories can also be ordered separately.
Technical Data
| Parameter | Value |
|---|
| Current supply | Li-ion battery7.4 V, 2200 mAh |
| Light sources | Cree LED |
| Power consumption (max.) | 3 W |
| Luminous flux (max.) | 225 lm |
| Efficiency | 75 lm/W |
| Color temperature | 6500 Kdaylight white |
| Working life LED | 50,000 h |
| Lighting modes | 1: Brightness level 100 %2: Brightness level 50 % |
| Lighting range (max.) | 150 m |
| Operation time (max.) | 9 h |
| Beam angle | 15° | Focus light |
| Inclination of lamp head | 128° |60° forwards, 68° backwards |
| Emergency light function | Yes |
| Charging adapterPlug-in power unit | 100 - 240 V AC, 50/60 Hz |
| Car Charging adapter | 12/24 V DC |
| Charging time | 5 h |
| Charging control display | Yes |
| Deep discharge protection | Yes |
| Overcharge protection | Yes |
| Protection class | lll |
| Type of protection | IP 54 |
| Temperature range | -10 °C to +50 °C |
| Material | ABS, PC, TPE plastic, aluminum |
| Color | Black, red, silver |
| Dimensions (L x W x H) | 70 x 47 x 176 mm (lamp)83 x 75 x 47 mm (charging cradle) |
| Weight | 276 g (lamp)83 g (charging cradle) |
