Versatile LED Interior Light – Minimal dimensions, easy mounting Moreover, the Staudte Hirsch LED Interior Light convinces with the following benefits Quick mounting thanks to firmly gripping magnets (no drilling or adhering required) The integrated on/off push-button switch spares you the installation of an additional switch Easy mounting thanks to the 1 m connection cable with pre-tinned ends
Features & Functions
Powerful OSRAM LEDs guarantee long-term use
Embedded in a sturdy aluminum profile, 66 high-quality Osram LEDs offer a wide area and bright illumination. Despite its low power consumption of 6,6 W, the 605 mm version achieves a luminous flux of 550 lm. The color temperature is 4500 K (neutral white). The service life of the LEDs amounts to at least 35,000 h.

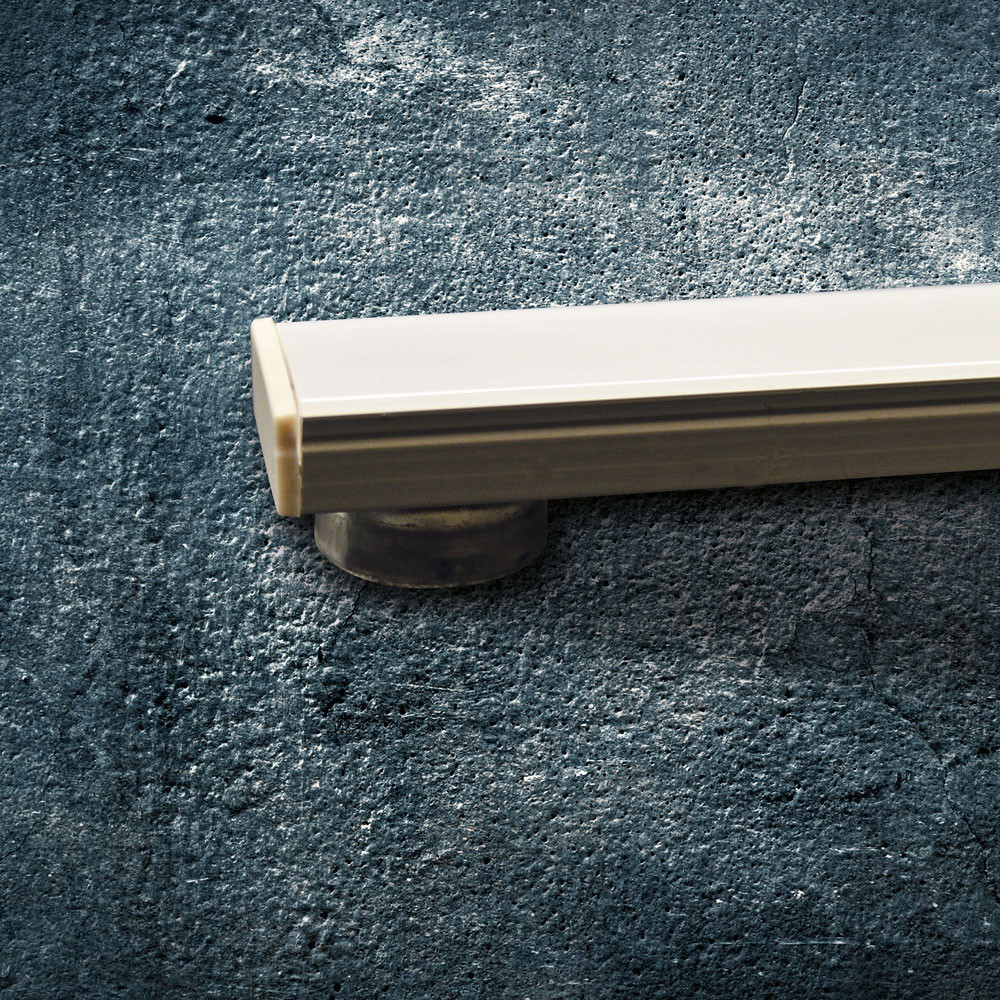

Mounting by means of firmly gripping magnets
The compact LED Interior Light is equipped with a magnet on each end respectively. They adhere reliably on all magnetic surfaces.

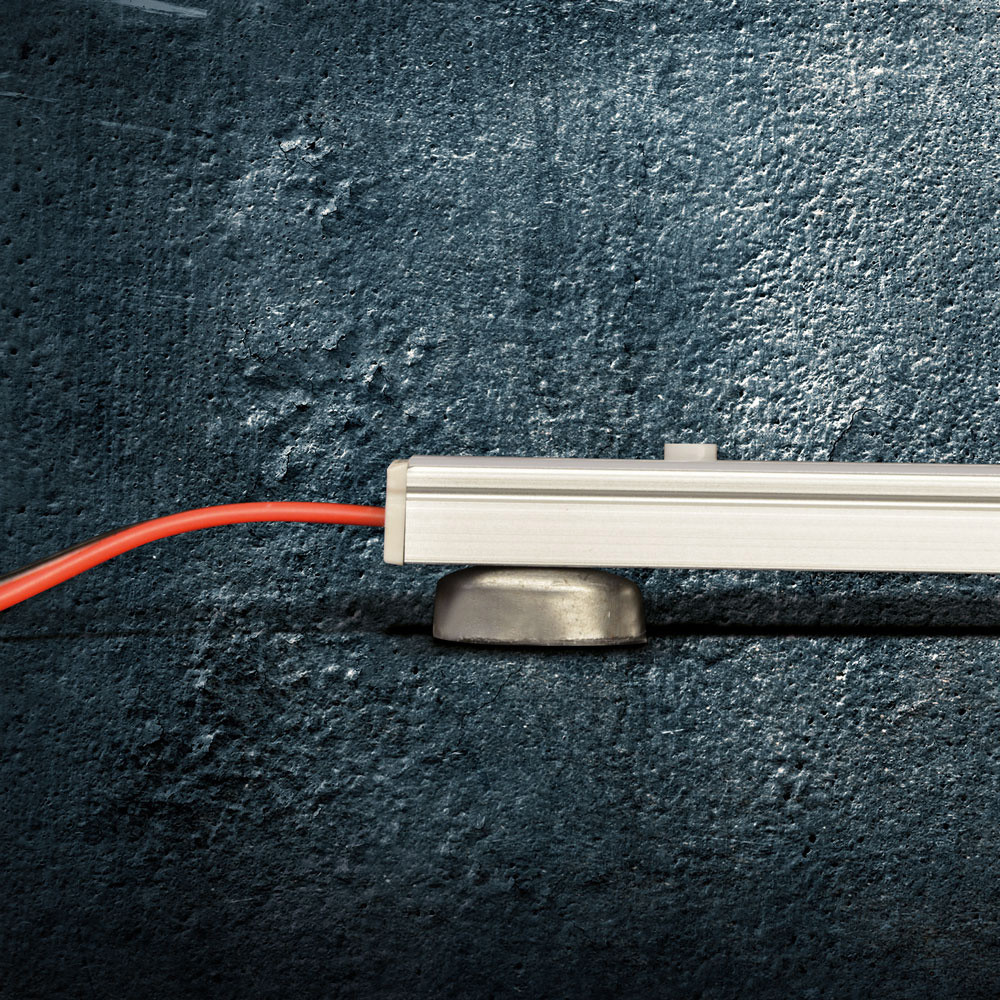

Pre-assembled with 1 m connection cable
Being pre-assembled with a 1 m twin wire, an uncomplicated connection is possible. The cable ends are already bared and pre-tinned.
Integrated On/Off Push-button switch
With the unobtrusive and easy to use switch you can turn the LED Interior light on and off. The cumbersome task of installing an additional switch is no longer necessary.
Can be used reliably with significant temperature fluctuations

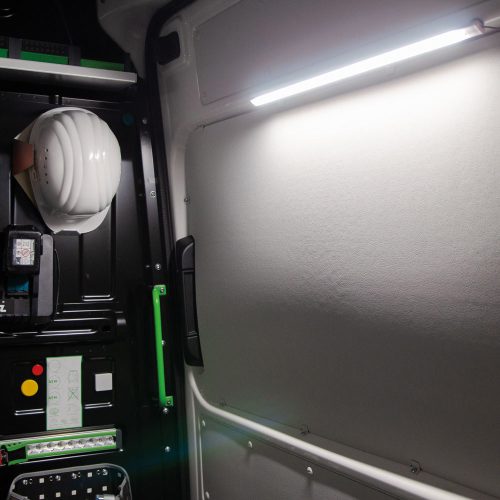

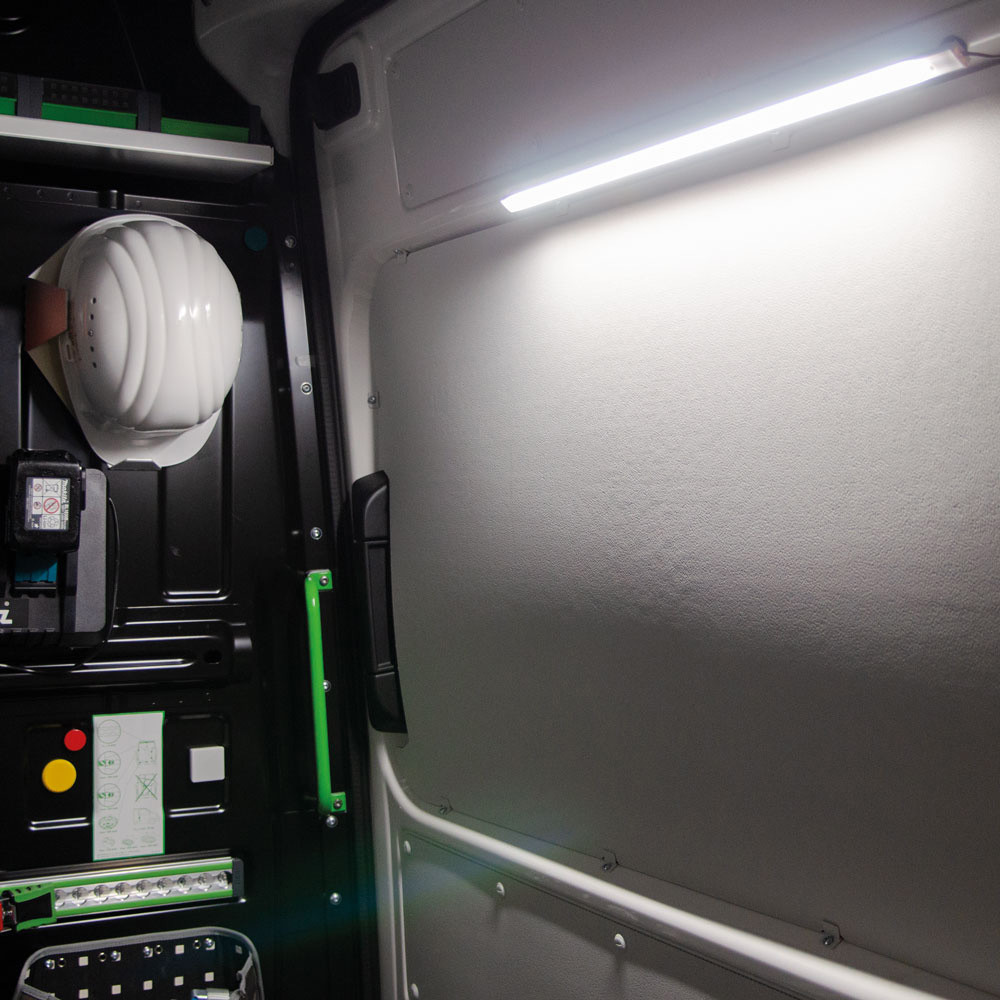

The Staudte Hirsch interior lights function reliably even with significant temperature fluctuations. They are particularly suitable for installation in vehicles of all kinds and for operation as part of a 12 V solar island system.
OEM Service – White Label Solutions on request
Do you wish our products in another configuration? Please call us or send us an e-mail. We will be happy to customize our products according to your specifications or develop individual solutions for you. To the contact form >
3 year manufacturer warranty
Products of IVT and Staudte Hirsch are manufactured to a high quality and following strict quality guidelines. We are certain about the longevity so that we add another year to the statutory manufacturer warranty free of charge (rechargeable batteries excluded).
Delivery content
LED Interior Light SH-5.653, magnetic version, 6.6 W, 605 mm
Technical Data
| Parameter | Value |
|---|
| Operation voltage | 12 V DC |
| Light source | 66 OSRAM LED |
| Power consumption (max.) | 6.6 W |
| Luminous flux (max.) | 550 lm |
| Efficiency | 86 lm/W |
| Color temperature | 4500 Kneutral white |
| Color rendering index | CRI 80 |
| Working life LED | 35,000 h |
| Protection class | lll |
| Protection type | IP 20 |
| Temperature range | -20 °C to +70 °C |
| Mounting | 2 magnets |
| Switch type | On/off push-button switch |
| Connection cable | 1 m twin wire, open ends |
| Material | Housing: AluminiumCover: Plastic |
| Color | Silver, milky white |
| Dimensions (L x W x H) | 605 x 17 x 16 mm(with magnet) |
| Weight | 120 g(without connection cable) |
