Super bright LED strip – Absolutely waterproof, insensitive and self-adhesive
Features & Functions

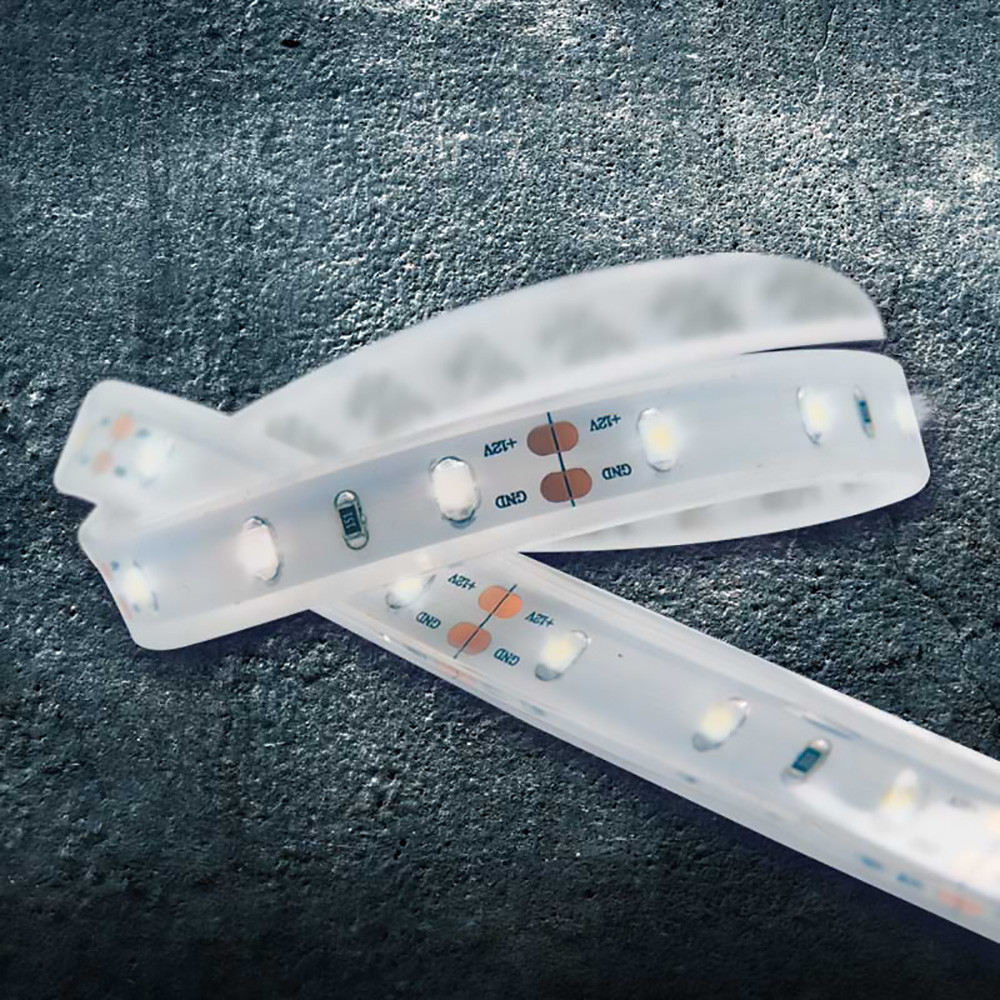

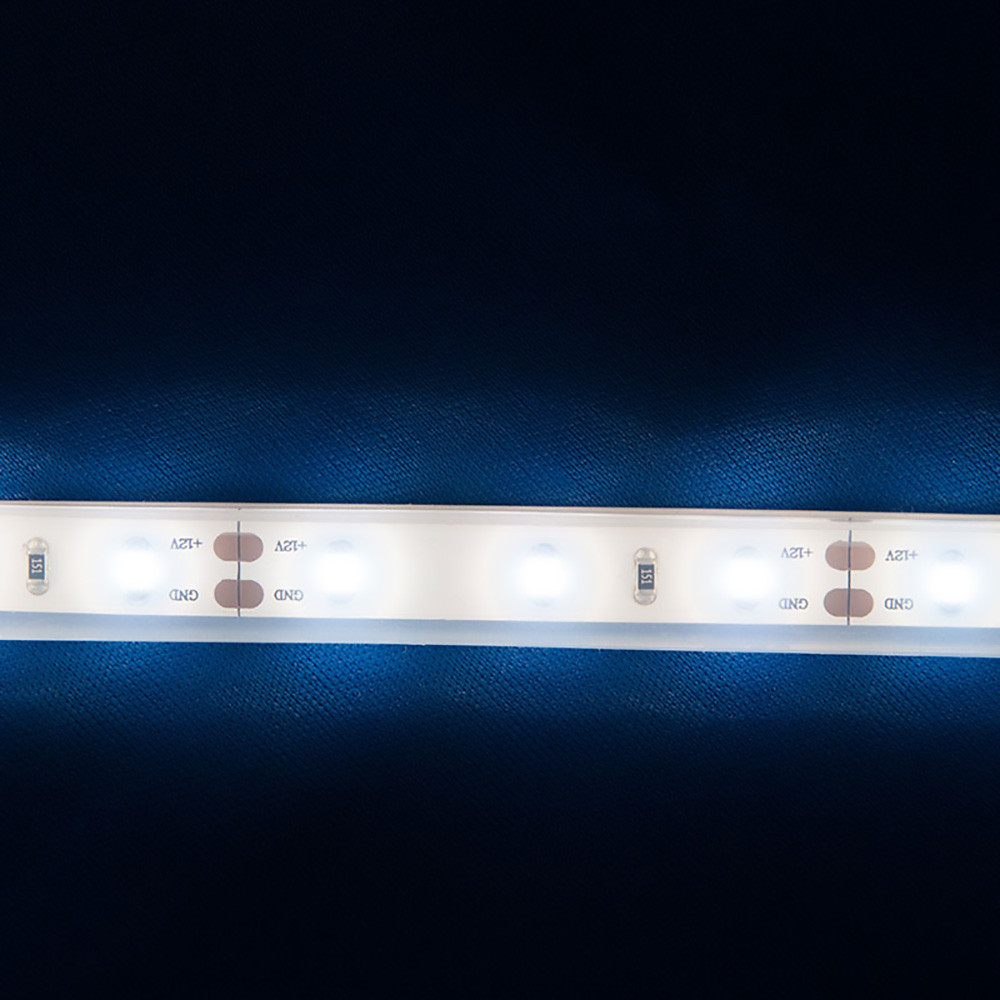

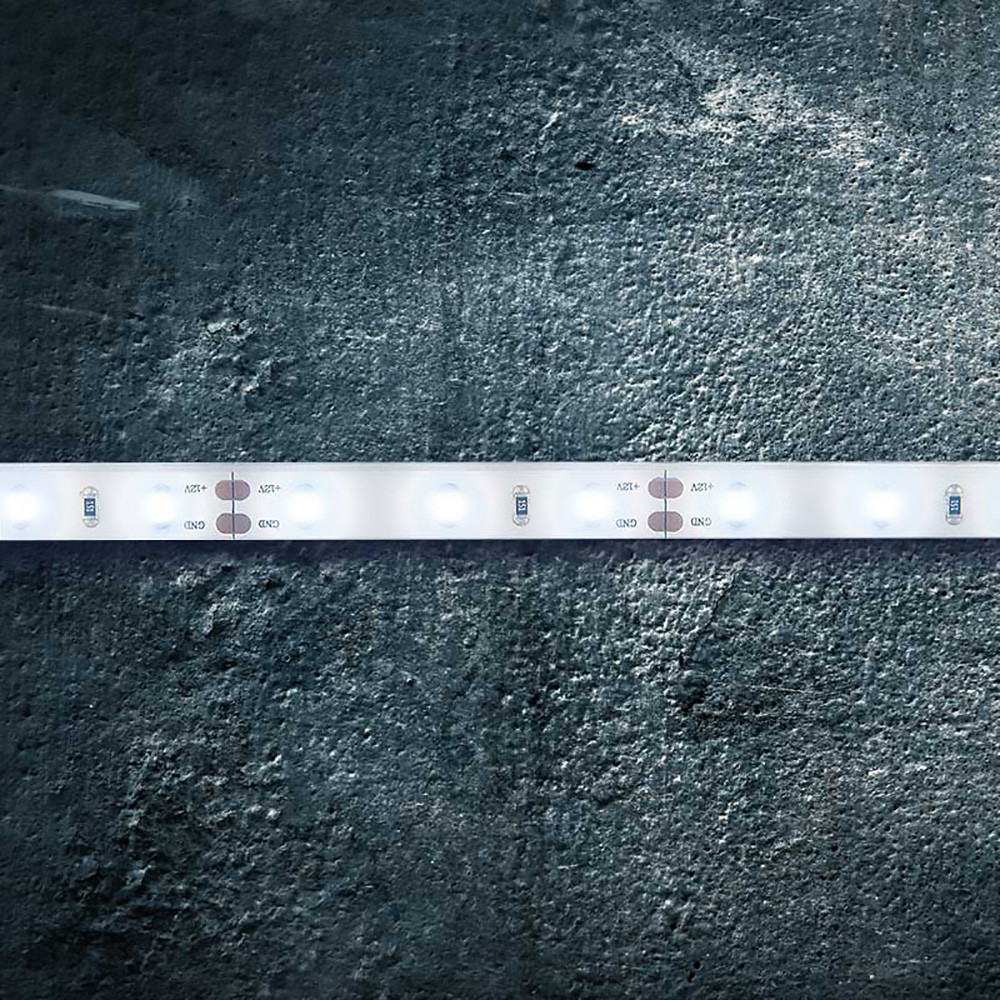

120 SMD LEDs – Super-bright, energy and space saving
120 SMD LEDs guarantee a large-area and bright lighting in the smallest space indoors and outdoors. Despite low power consumption of max. only 9.6 W/m, a luminous flux of 826 lm is achieved. The color temperature is 4500 K (neutral white). The service life of the LEDs is at least 36,000 h.
Sticks permanently - 3MTMadhesive tape
The high-quality light strip is self-adhesive due to the 3MTM adhesive tape attached to the back. Even with strong temperature fluctuations or in humid environments, these resistant LED strips adhere permanently to the desired location.

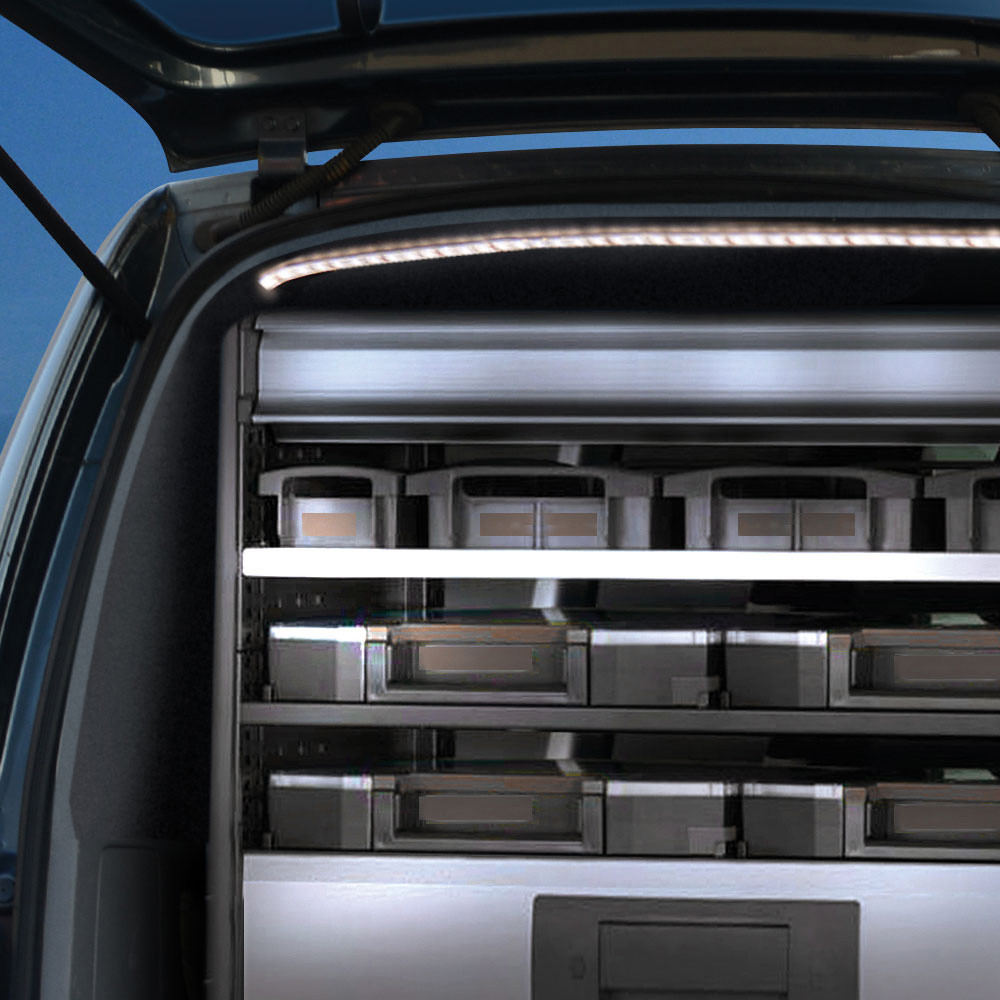

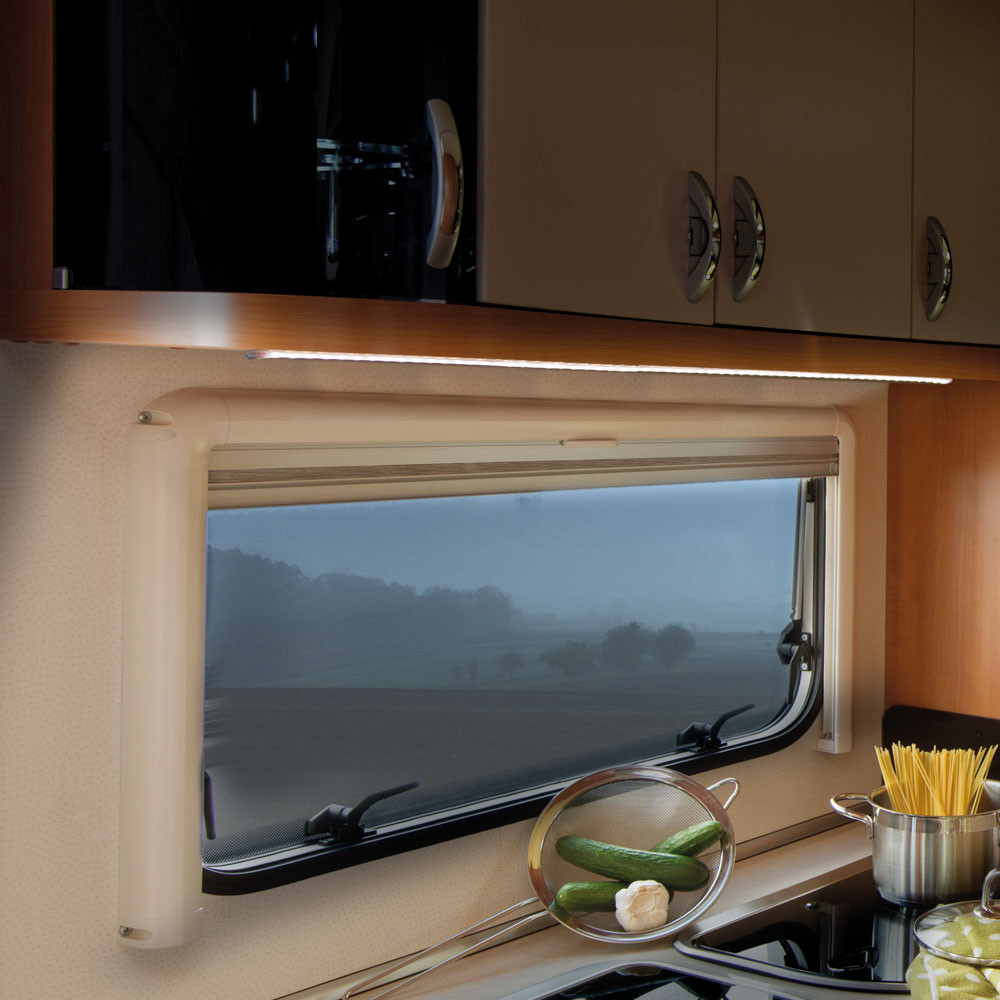

Ideal for vaulted surfaces and low installation heights

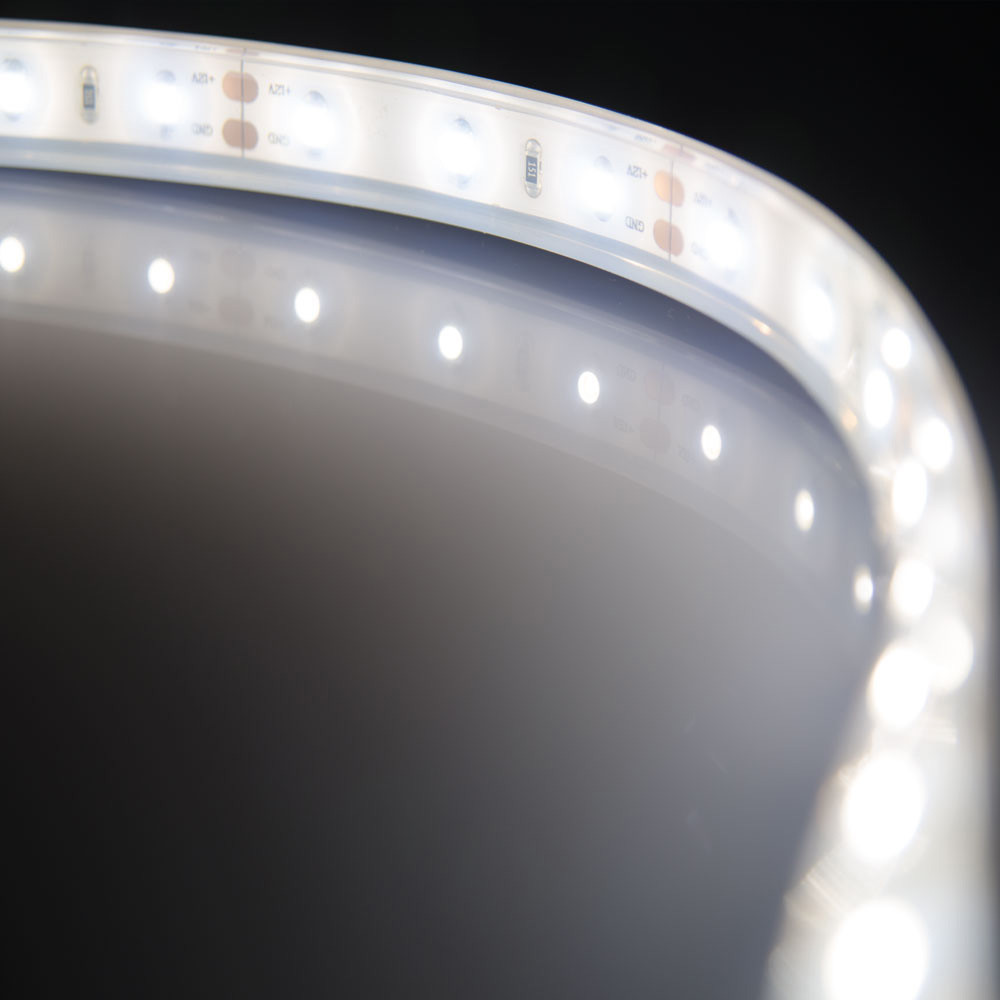

The extremely flexible LED strip is ideal for vaulted surfaces and low installation heights. The length of the LED strip can be adapted flexibly. It can be shortened individually every 50 mm. Yet please consider that the cut LED strip will not meet the specified IP grade after being shortened.
Withstands high mechanical stresses

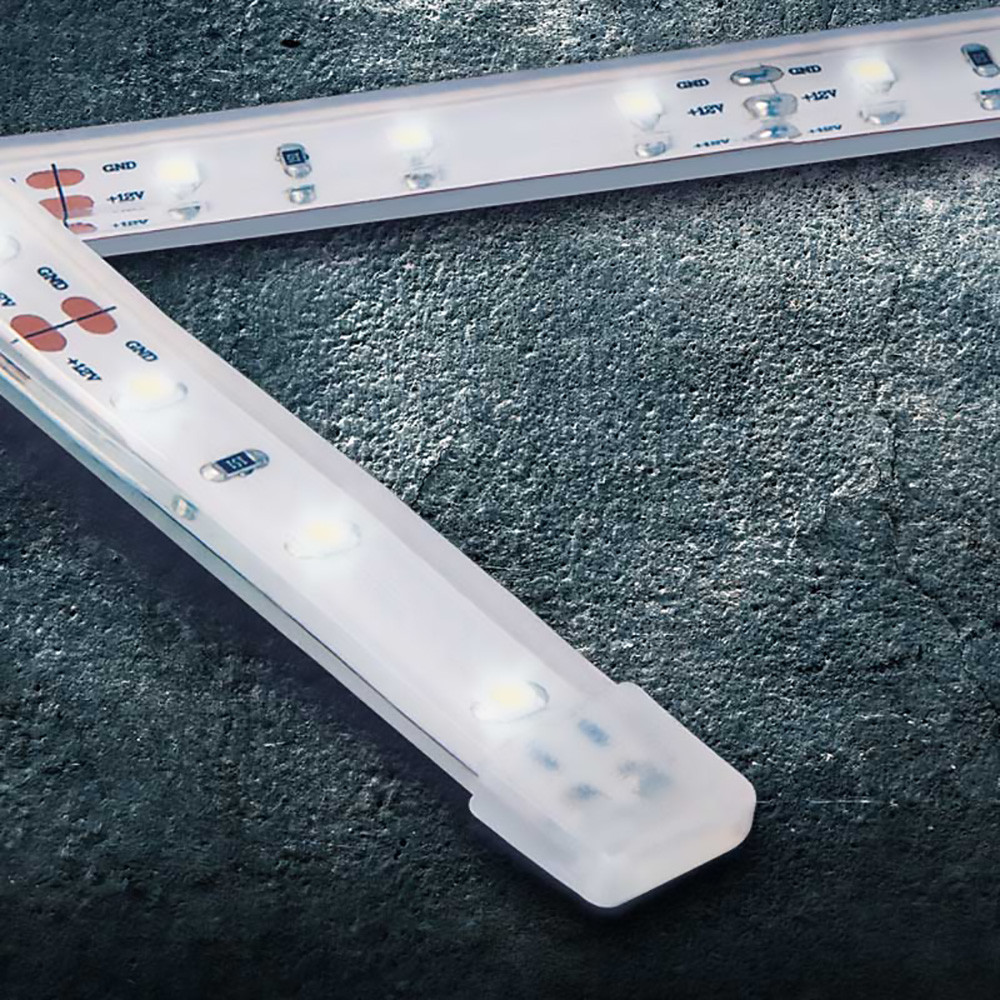

The bright SMD LEDs are protected from possible damage by a 5 mm thick silicone coating. Even high mechanical loads, caused by shocks or the like survive the Staudte Hirsch LED strips undamaged.
Individually shortenable
The length of the LED strip can be flexibly adjusted. It can be shortened individually every 100 mm. However, you should note that the cut LED strip no longer has the specified IP degree after shortening.

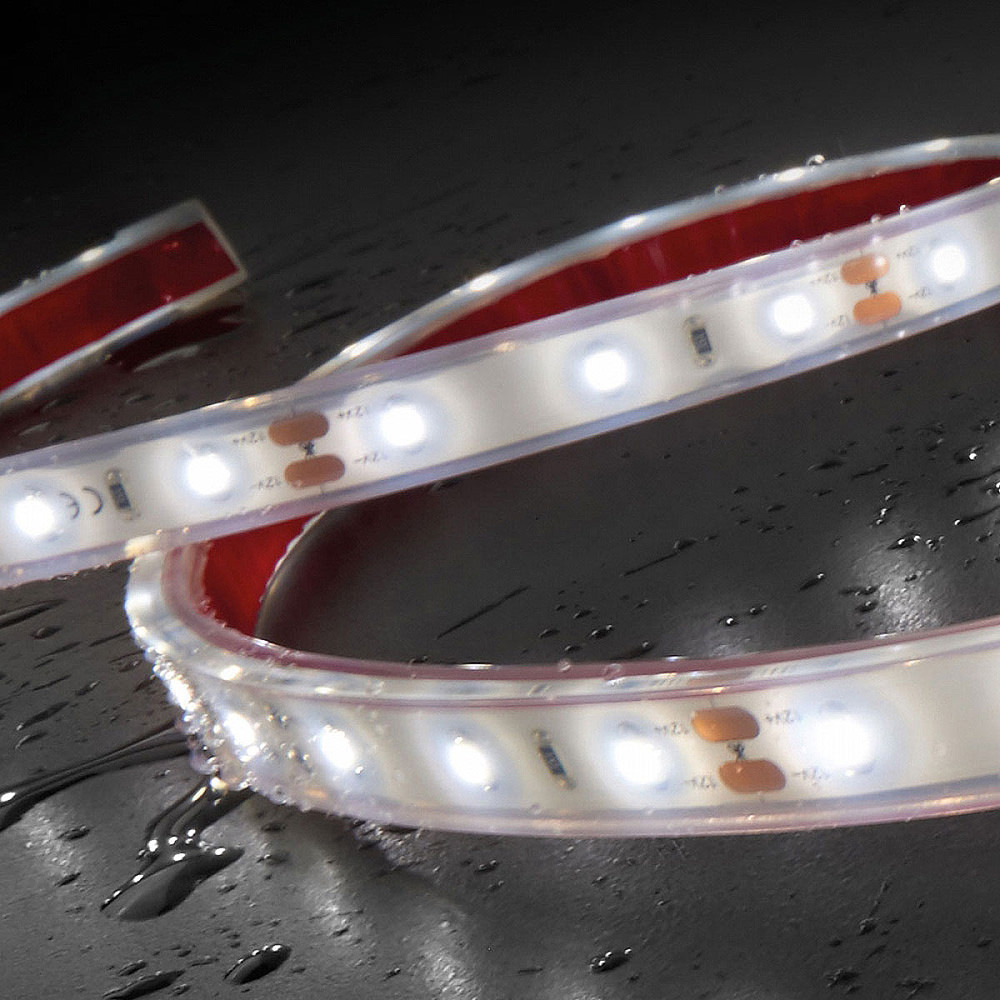

Water resistant according to IP 65 due to potting
The LED strip is suitable for both indoor and outdoor use. Due to the potting, the LED strip is protected against dust and water according to IP 65.

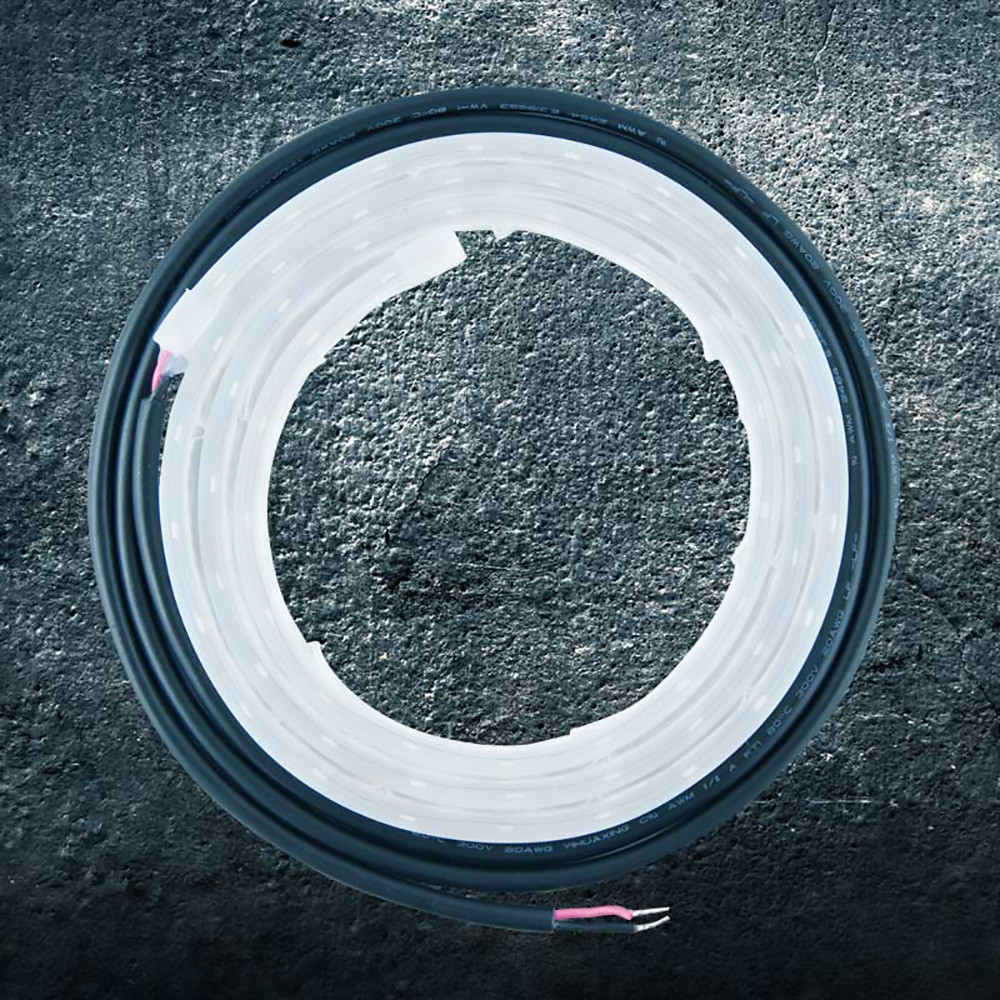

Easy connection - Pre-assembled with 1 m connection cable
Pre-assembled with a 1 m twin cable, which is already stripped and pre-tinned at the end, uncomplicated connection is possible.
OEM Service – White Label Solutions on request
Do you wish our products in another configuration? Please call us or send us an e-mail. We will be happy to customize our products according to your specifications or develop individual solutions for you. To the contact form >
3 year manufacturer warranty
Products of IVT and Staudte Hirsch are manufactured to a high quality and following strict quality guidelines. We are certain about the longevity so that we add another year to the statutory manufacturer warranty free of charge (rechargeable batteries excluded).
Delivery content
LED Strip SH-5.622, 24 V DC, 2 m, with connection cable
Technical Data
| Parameter | Value |
|---|
| Operation voltage | 24 V DC |
| Light source | 120 SMD LED 3528 |
| LED distance | 16 mm |
| Power consumption (max.) | 9.6 W/m |
| Luminous flux (max.) | 826 lm |
| Efficiency | 86 lm/W |
| Color temperature | 4500 Kneutral white |
| Color rendering index | CRI 80 |
| Working life LED | > 36,000 h |
| Dimable | By reducing thesupply voltage |
| Protection class | lll |
| Protection type | IP 65 |
| Temperature range | -25 °C to +70 °C |
| Mounting | 3MTMadhesive tape |
| Connection cable | 1 m twin wire, open ends |
| Dimensions (L x W x H) | 2000 x 12 x 5 mm |
| Weight | 150 g(without connection cable) |
