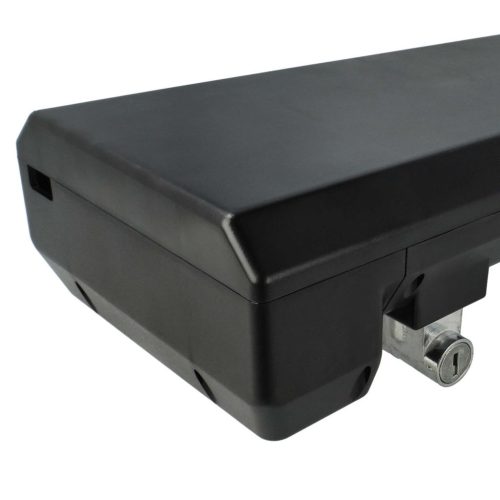

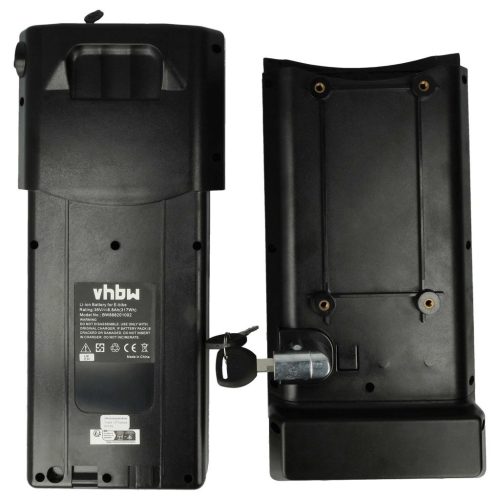

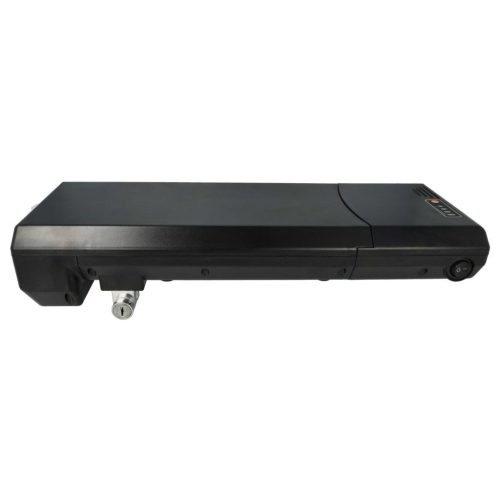

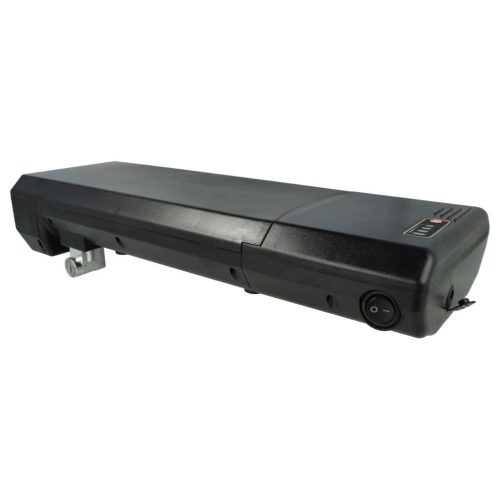

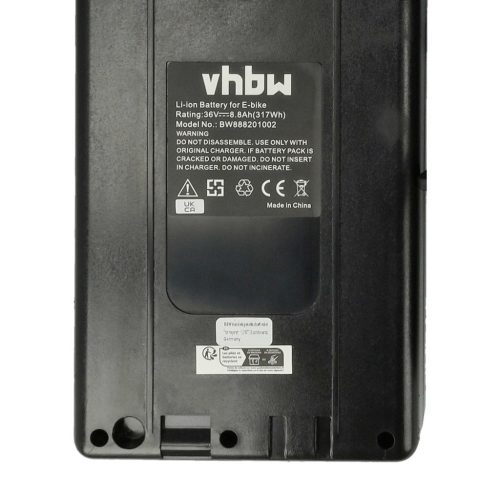

VHBW Rack-Mounted Battery with Installation System, Li-Ion, 36V, 8.8Ah, Black.

<!HTML CODE>

Product Description:

• New product, in original packaging
• Non-original product - high-quality accessory from vhbw
• The battery can be used in various E-Bikes, electric bicycles, and pedelecs

;

Technical Specifications:

• Battery:

  • Technology: Li-Ion
  • Voltage: 36V
  • Capacity: 8.8Ah / 316.8Wh
  • Number of cells: 40 (Samsung cells)
  • Color: black
  • Battery weight: 2270g
  • Total weight: 2730g
  • Battery dimensions (H x W x D): 32.5 x 14.6 x 6 cm
  • Battery holder dimensions (H x W x D): 5 x 14.6 x 7.35 cm
  • External dimensions for the insertion system (H x W x D): 24.3 x 14.6 x 8.3 cm
  • Total dimensions (H x W x D): 39.4 x 14.6 x 8.3 cm
  • Mounting unit at the bottom of the insertion system with 4x M4 threads
    • Thread distance from the front of the insertion system: 67.5mm or 213.5mm
    • Thread distance from the side edge of the insertion system: 37.5mm
  • Battery holder cutout for cable and 2Pin connector towards the saddle
    • Cutout size (H x D): 17.5 x 8.6 mm
  • Up to 1000 charging cycles possible
  • No memory effect
  • Battery Management System
  • Temperature and overcharge protection
  • On and off button on the battery

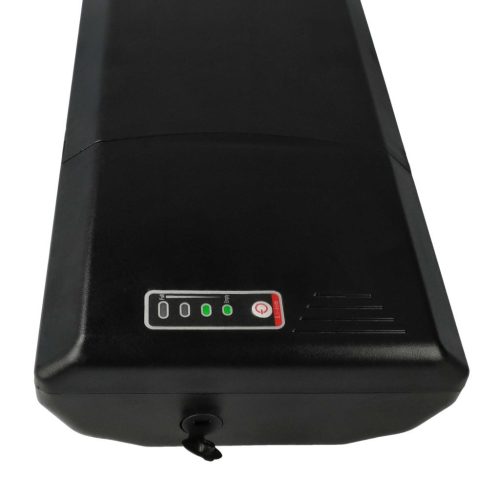

  • LED charge indicator
  • Lockable to prevent theft and ensure it stays securely in the insertion system
  • 1Pin charger connector
  • Rubber cover for the charger connector

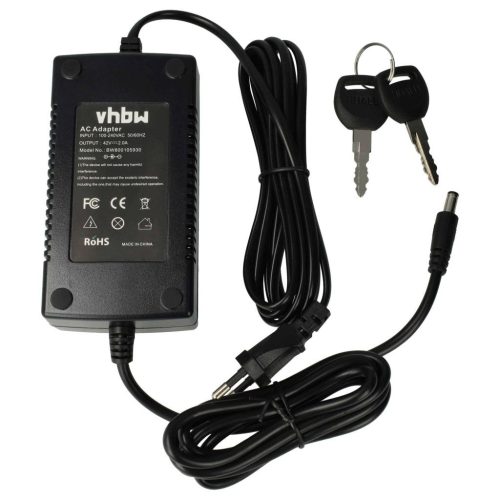

• Charger:

  • Material: Plastic
  • Color: Black
  • Dimensions (H x W x D): 12.2 x 6.5 x 3.9 cm
  • Weight: 354g
  • Input voltage: AC 100 - 240V
  • Output voltage: DC 42V / 2A
  • Frequency: 50-60Hz
  • Cable length (from charger to battery): 143 cm
  • Cable length (from charger to outlet): 184 cm
  • Connector A: Euro plug
  • Connector B: 1Pin connector
  • Connector polarity: outer negative; inner positive
  • Connector type: straight
  • LED operating indicator
  • 4 small rubber feet for secure placement

Compatible:

• All E-Bikes, electric bicycles, Pedelecs with rack battery systems that meet the specifications provided here.

Attention:

• Before purchasing, check the specified dimensions to ensure the battery fits properly in the rack system.

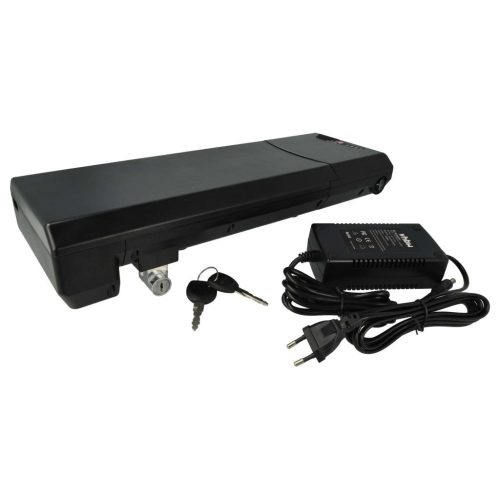

Delivery package contents:

• 1x Rack battery with holder and insertion system
• 1x Charger
• 2x Key
