Technical specifications:

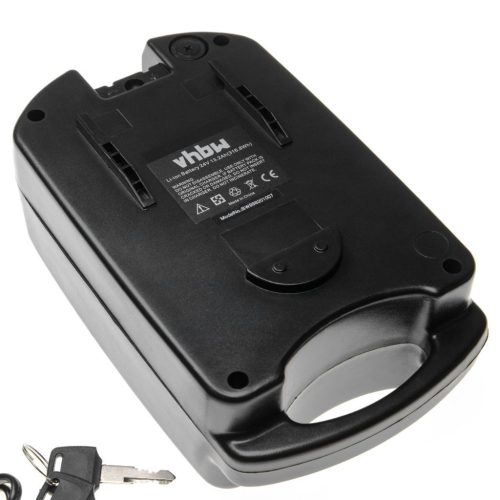

Battery:
- Technology: Li-Ion
- Voltage: 24V
- Capacity: 13.2Ah / 316.8Wh
- Number of cells: 42 (Samsung cells)
- Color: Black
- Battery weight: 2440g
- Total weight: 3180g
- Dimensions (L x W x H): 26 x 14.8 x 9cm
- Holder dimensions (L x W x H): 24.5 x 9.5 x 10.4cm
- Total dimensions (L x W x H): 31 x 14.8 x 15.5cm
- Placement: The battery can be mounted on the seat post.

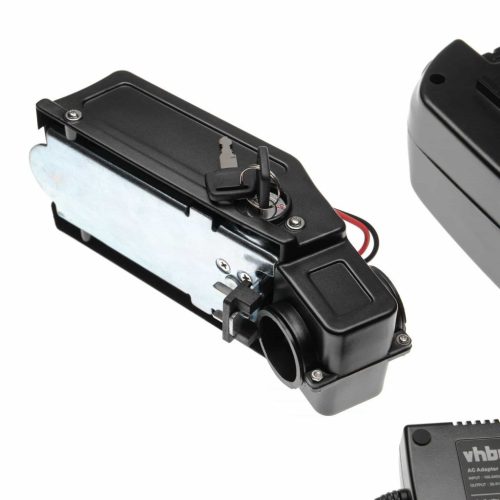

- Holder:
- Opening for securing to the seat post
- Diameter: 35.2mm

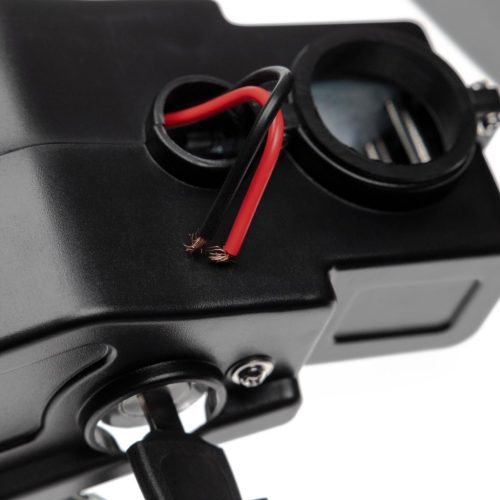

- Cable outlet (negative and positive) at the bottom
- Rainwater drainage at the bottom
- Visible charge: LED charge indicator
- Functions:
- Up to 1000 charge cycles
- No memory effect
- Battery management system
- Temperature and overcharge protection
- On/off button on the battery
- Lockable to prevent battery removal by strangers and securely fasten in the holder
- Carrying handle

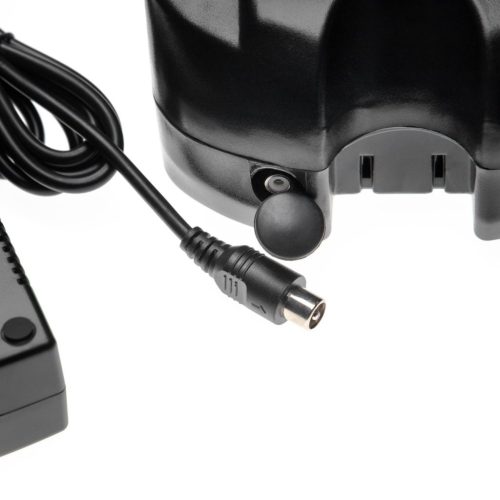

- 1-pin connector socket for the charger
- Rubber protective cap for the charging connector
Charger:
- Material: Plastic
- Color: Black
- Dimensions (L x W x H): 12.2 x 6.5 x 3.9cm
- Weight: 352g
- Input voltage: AC 100 - 240V / 1.5A
- Output voltage: DC 29.4V / 2A
- Frequency: 50-60Hz
- Cable length (from charger to battery): 143cm
- Cable length (from charger to outlet): 184cm
- Connector A: Euro plug
- Connector B: 1-pin connector
- Polarization at the connector: Outside negative; inside positive
- Connector type: Straight
- Charge indicator: LED
Suitable for:
All E-Bikes, electric bicycles, pedelecs that have a seat post battery system and meet the above specifications.
Attention:
Before purchasing, please ensure that all dimensions are suitable for the battery to fit properly in the bicycle frame.

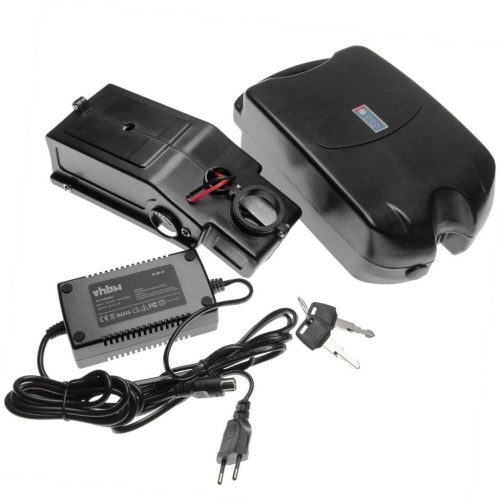

Package contents:
- 1x Seat post battery (Frog type)
- 1x Holder
- 1x Charger
- 2x Key
