VHBW Down Tube Battery + Charger for E-Bike, Li-Ion, 48V, 10.4Ah, Black

<!HTML CODE>

Product Description

• New product, in original packaging
• Non-original product - high-quality accessory from vhbw
• The battery can be used in various E-Bikes, electric bicycles, and pedelecs that have a Hailong type down tube battery

;

Technical Specifications:

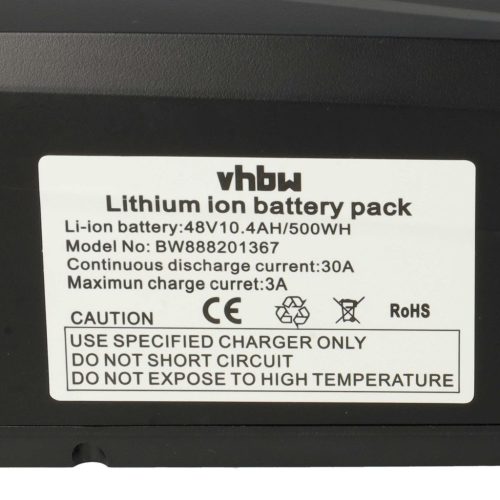

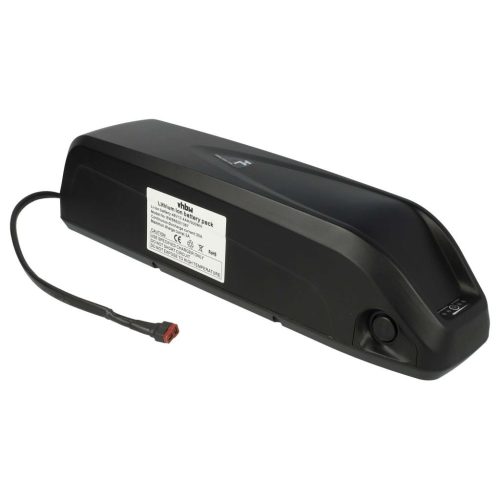

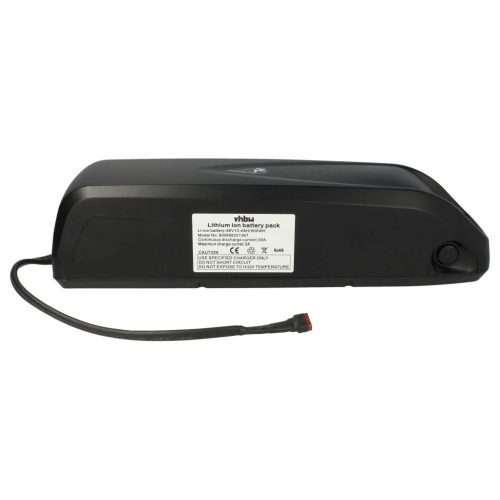

Battery

• Technology: Li-Ion
• Voltage: 48V
• Capacity: 10.4Ah / 499.2Wh
• Number of cells: 65
• Color: black
• Battery weight: 2620g
• Total weight (including guide rail and cable connecting to the motor): 2870g
• Battery dimensions (H x W x D): 36 x 8.7 x 8.5 cm
• *Guide rail dimensions: (H x W) 34 x 6.4 cm
• Total size (H x W x D): 36.5 x 8.7 x 8.5 cm
• The battery is mounted on the down tube.
• Guide rail with two long and one round hole The length of the long holes: 21.35 mm
• Distance from the end of the guide rail to the first long hole: 146 mm
• Distance measured from the side edge of the battery: 42 mm
• Distance between the holes: 48.55 mm
• For M5 threaded screws
• Includes two spacer rubbers for the long holes
• Guide rail cable (minus and plus) towards the motor Cutout size (H x W): 8 x 17 mm
• Distance of the cutout from the side edge of the guide rail: 35 mm
• XT90 connector from the battery to the motor Length: 27 cm

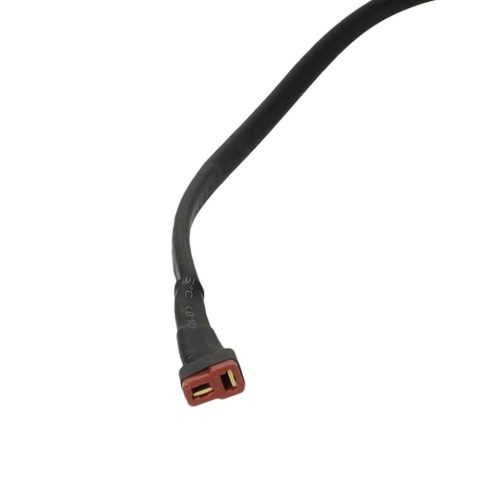

• Includes connector cable from the motor to the battery (2-pole) Length: 13.5 cm
• Up to 1000 charging cycles possible
• No memory effect
• Battery management system
• Temperature and overcharge protection
• On and off button on the battery
• LED charge indicator

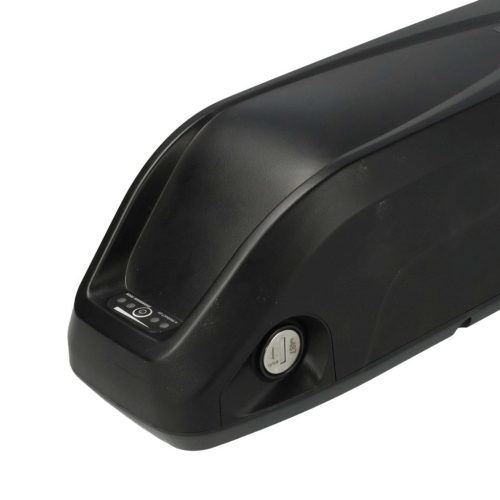

• Lockable to prevent theft and ensure it stays securely in the guide rail
• 1Pin connector socket for the charger
• Rubber protective cover for the charger connector

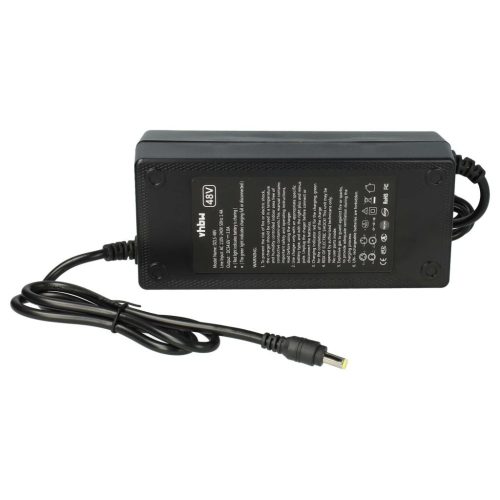

Charger

• Material: plastic
• Color: black
• Dimensions (H x W x D): 16.3 x 7.2 x 4.7 cm
• Weight: 386 g
• Input voltage: AC 100 - 240V
• Output voltage: DC 54.6V / 2A
• Frequency: 50-60Hz
• Cable length (from charger to battery): 79.5 cm
• Cable length (from charger to outlet): 89 cm
• Connector A: Euro plug
• Connector B: 1Pin connector
• Connector polarity: outer negative; inner positive
• Straight connector design
• LED operating indicator
• 4 plastic feet for secure placement

Compatible:

• Bafang BBS01 and all E-Bike and Pedelec systems that have a Hailong type down tube battery system and whose original battery meets the specifications mentioned above.

Attention:

• Before purchasing, check all specified dimensions to ensure the battery fits properly in your bike frame.

Notes:

• The guide rail extends 0.5 cm beyond the end of the battery.
• The end of the guide rail is defined towards the motor.

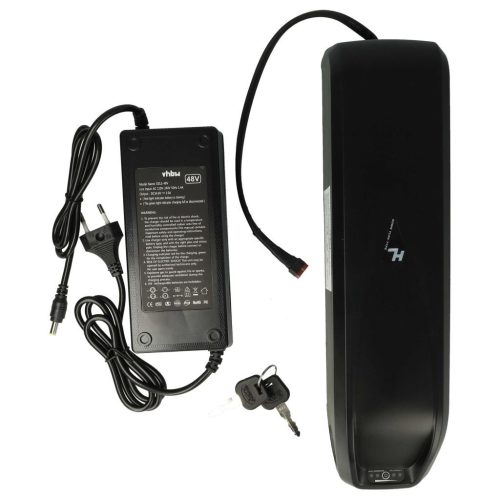

Package Contents:

• 1x Down tube battery with guide rail
• 1x Connector cable from the motor to the battery
• 1x Charger

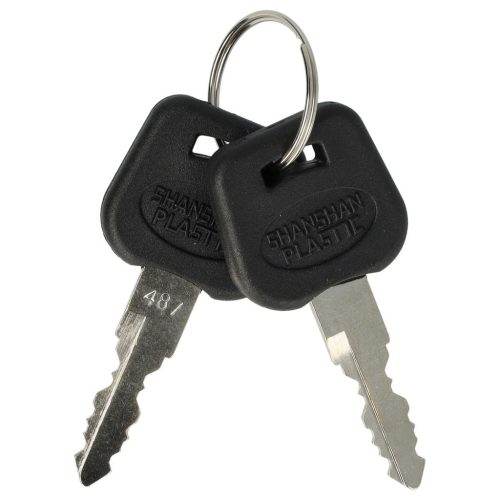

• 2x Key
