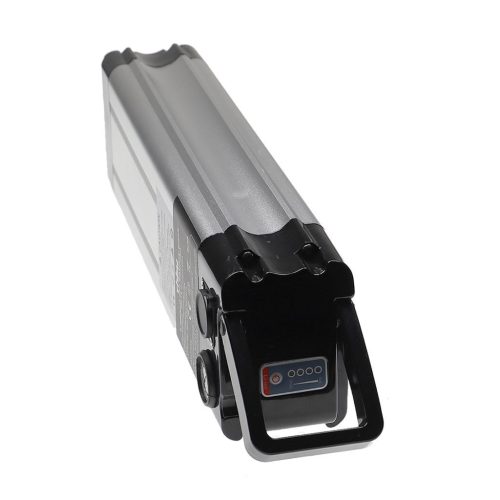

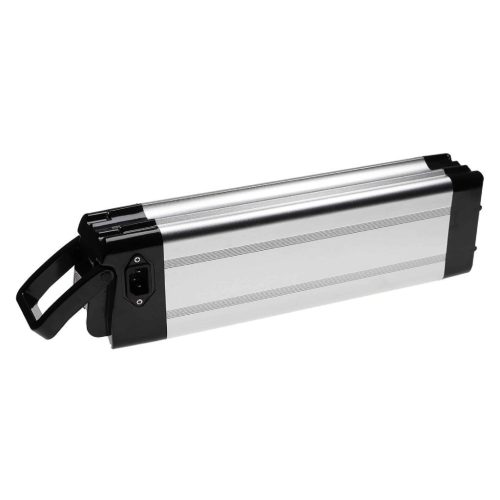

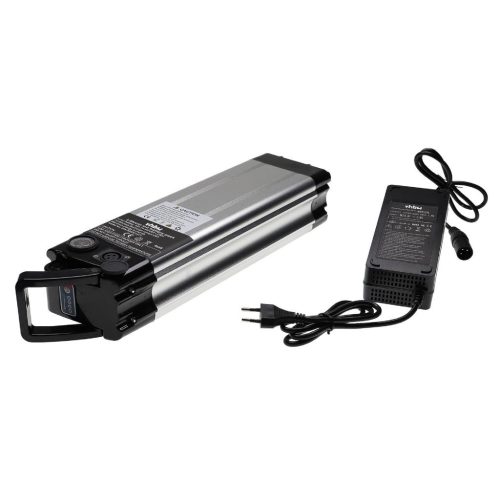

VHBW Seat Post Battery + Charger for E-Bike, Li-Ion, 48V, 14.4Ah, silver

Product Description

• New product, in original packaging.
• Non-original product - high-quality accessory from vhbw.
• The battery can be used in various E-Bikes, electric bicycles, pedelecs.

Technical specifications:

Battery

• Technology: Li-Ion
• Voltage: 48V
• Capacity: 14.4Ah / 691.2Wh
• Number of cells: 78
• Color: silver-black
• Battery weight: 4110g
• Total weight (including mounting rail, lower cover, connecting cable from battery to motor): 4250g
• Battery dimensions (L x W x H): 38.4 x 11.6 x 8 cm
• Mounting rail dimensions (L x H): 36.4 x 2.8 cm and 1.6 cm
• *Total size (L x W x H): 39.3 x 11.6 x 8 cm
• The battery is mounted between the seat post and the rear wheel.
• Mounting rail without long holes
• Includes lower cover for securing the battery to the motor Dimensions (W x H): 10.7 x 7.5 cm
• 4 holes for M5 screws
• Distance between holes: 60 x 56.5 mm
• Distance from the outer edge of the lower cover to the holes: 20.5 mm and 27 mm
• Distance from the side edge of the lower cover to the holes: 9.5 mm
• Cutout for the connecting cable leading to the motor
• Includes connecting cable from battery to motor (2-pole connector) Length: 32.3 cm
• Up to 1000 charge cycles possible
• No memory effect
• Battery management system
• Temperature and overcharge protection
• On and off button on the battery
• LED charge indicator
• Lockable to prevent theft and keep the battery securely in place
• Carrying handle
• 3Pin connector socket for the charger
• Plastic cover for the charger connector

Charger

• Material: plastic
• Color: black
• Dimensions (H x W x D): 17.1 x 7.1 x 3.4 cm
• Weight: 606 g
• Input voltage: AC 100 - 240V
• Output voltage: DC 54.6V / 2A
• Frequency: 50-60Hz
• Cable length (from charger to battery): 100 cm
• Cable length (from charger to socket): 100 cm
• Connector A: Schutzkontakt plug
• Connector B: 3Pin connector plug
• One side has a rectangular connector design
• LED operating indicator
• 4 rubber feet for stable placement

Compatible:

• All E-Bikes, electric bicycles, pedelecs that have a seat post battery system of the SilverFish type, and whose original battery meets the specifications mentioned above.

Attention:

• Before purchasing, check all specified dimensions to ensure the battery fits properly in the bike frame.

Note:

• The mounting rail extends 5.3 mm below the battery.

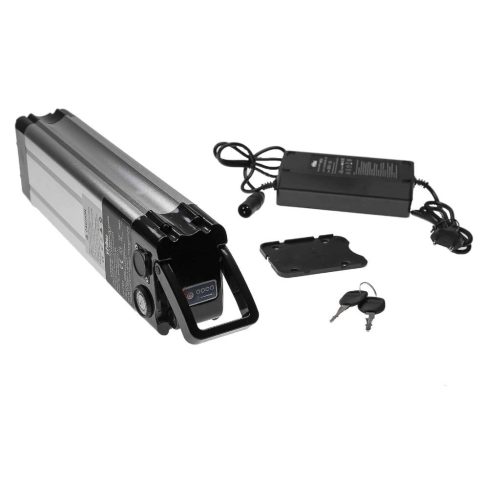

Package contents:

• 1x Seat post battery with mounting rail and lower cover
• 1x Connecting cable from battery to motor
• 1x Charger
• 2x Key
