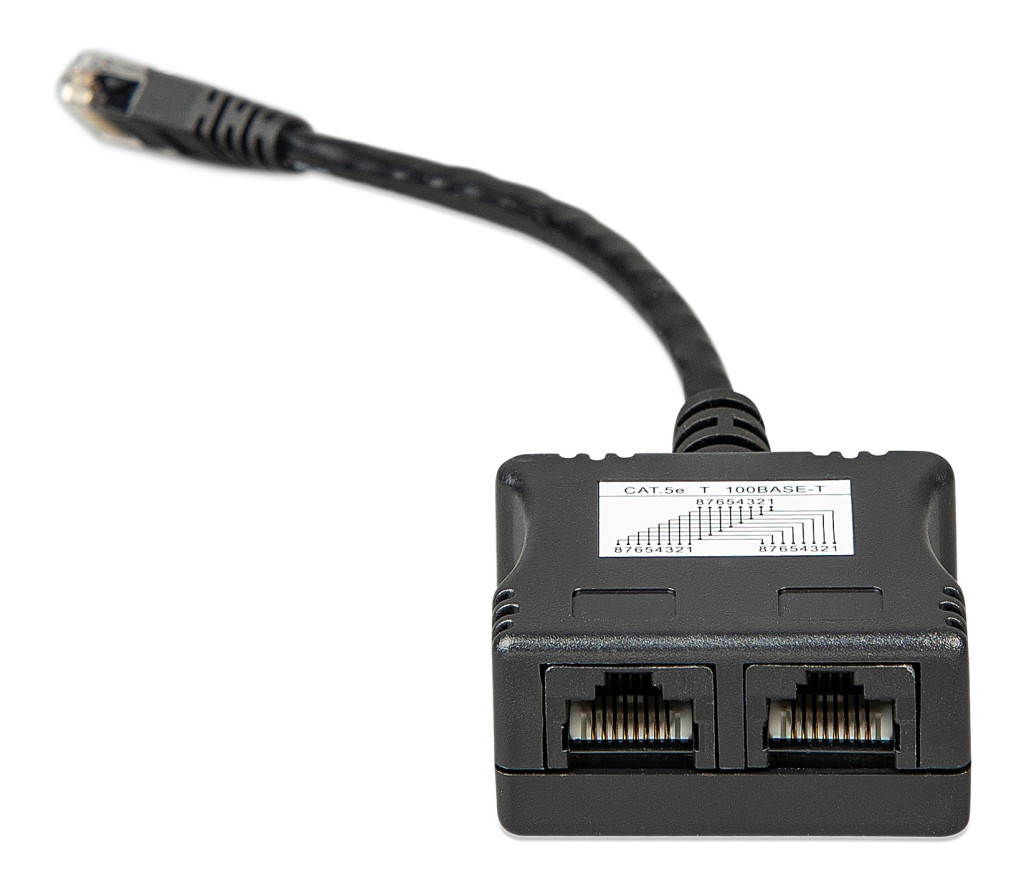

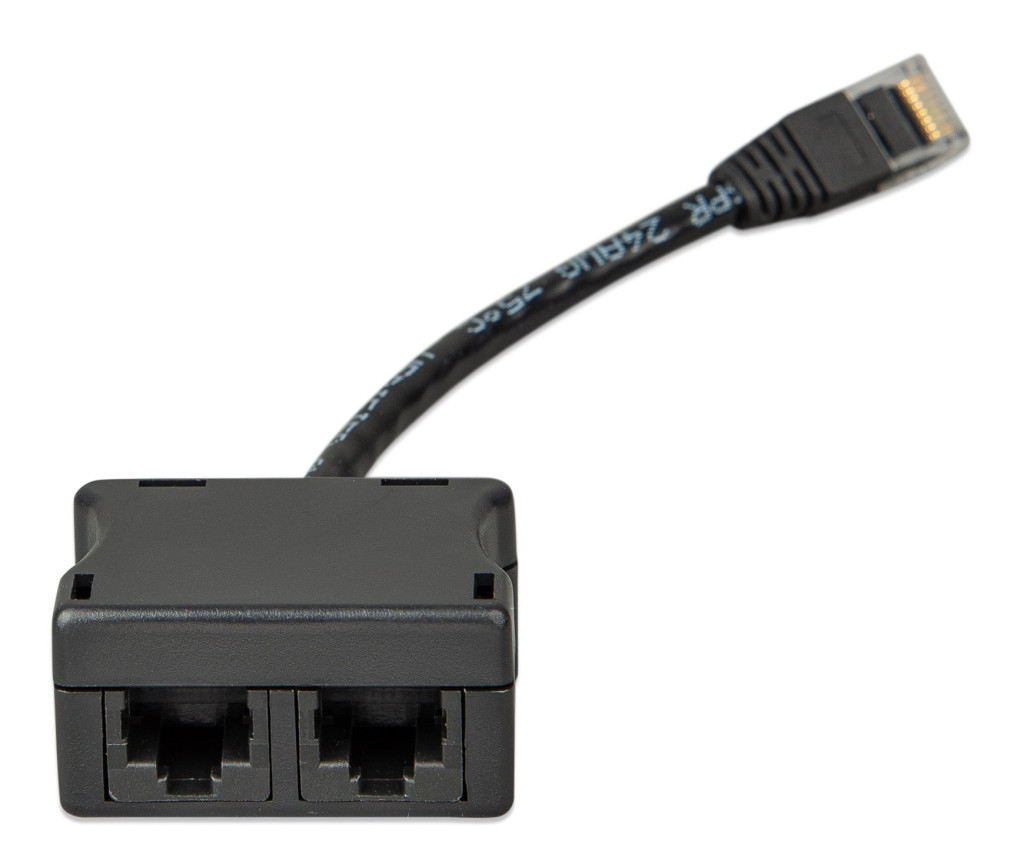

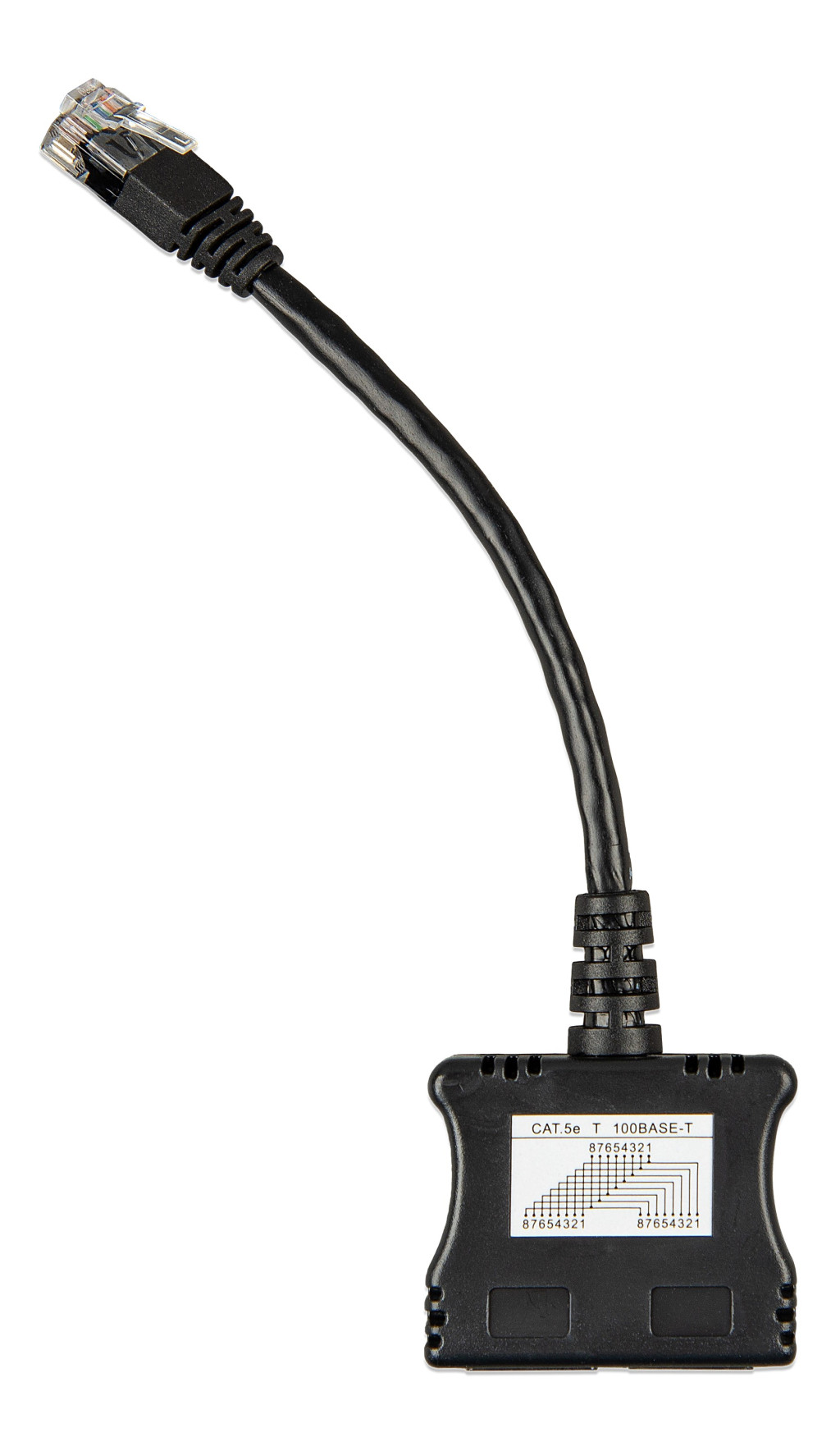

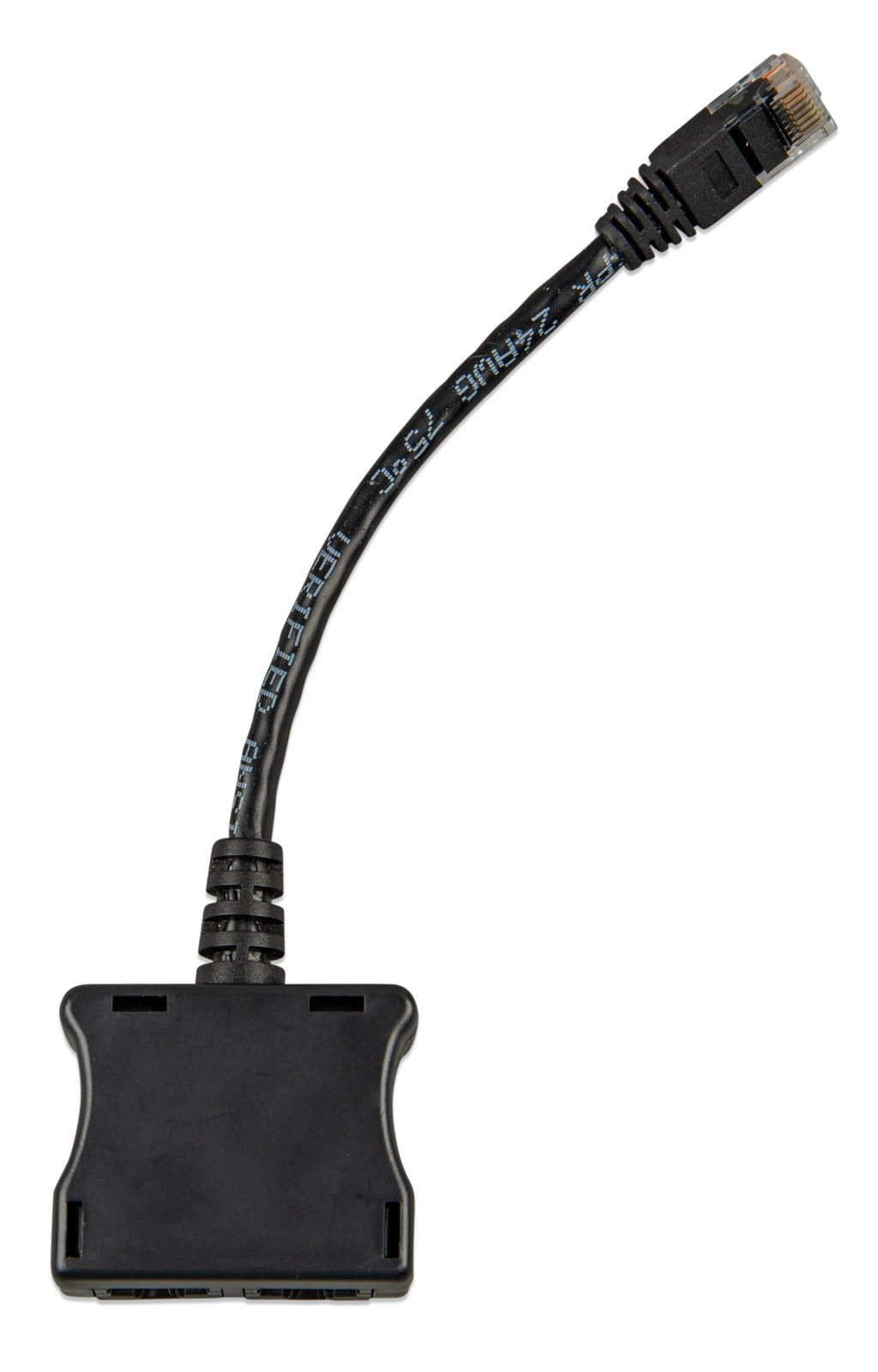

RJ45 splitter for Victron systems – reliable network connection
This practical RJ45 splitter is specifically designed for Victron Energy systems to easily and securely distribute communication and control signals between multiple devices. It is an ideal solution when simultaneous connection of an inverter, charge controller, battery monitor, GX monitor, or other Victron devices is needed through a single RJ45 port.
The product provides stable data transmission and a reliable connection, making it an essential accessory for solar, off-grid, or hybrid energy systems where accurate status reporting, efficient remote monitoring, and error-free communication are important.
Main benefits and applications
- Simple RJ45 connection for multiple Victron devices
- Reliable data communication in energy monitoring systems
- Organized, clear cabling in solar installations
- Stable connection for remote monitoring and monitoring applications
- Compact design, small footprint even in tight enclosures
Typical applications in Victron Energy systems
The RJ45 splitter provides a solution in situations where multiple devices need to be connected to each other or to a central unit through a single communication port. This could be, for example, a complex solar system or the onboard electrical network of a boat, where monitoring and control come from multiple modules.
- Parallel connection of inverter and battery monitor
- Connecting charge controller and GX controller
- Transmitting data from multiple measurement modules to a central display
- Simultaneous use of energy management system and remote monitoring module
Important features
The design of the splitter allows for a stable data connection between connected devices, with minimal signal loss and interference. When used with appropriate, shielded RJ45 cables, it contributes to uninterrupted communication even in electrically noisy environments.
- Multiple RJ45 ports for signal distribution
- Compatible with Victron communication connectors
- Strong, reliable mechanical design
- Easy plug-and-play installation, no soldering required
- Can be used for system expansion and retrofitting
Installation and use – step by step
Using the RJ45 splitter does not require special tools or programming knowledge. The connection is made similarly to standard network cable sockets. However, the correct sequence and clarity of cabling are crucial for error-free operation.
- Disconnect the affected units of the Victron system for safety.
- Select the RJ45 port from which you want to distribute communication in multiple directions.
- Connect the splitter to the selected RJ45 socket with the appropriate network cable.
- Connect the other Victron devices to the free ports of the splitter.
- Check the cable connections and ensure mechanical strain relief.
- Reconnect the system and check for communication on the display or monitoring interface.
SEO important features and keywords
This RJ45 splitter is an ideal accessory for any Victron Energy configuration where multiple devices communicate on the same network. The product helps in the effective implementation of system monitoring, remote monitoring, data communication, and solar energy management. By using it, a clear communication network can be built where the inverter, charge controller, battery, and other measuring units reliably share information.
When should you choose this splitter?
The product is particularly recommended if:
- you want to expand your existing Victron Energy system with additional modules,
- you need to distribute a single communication port in multiple directions,
- organized, clear RJ45 cabling is important,
- you need a stable data connection in a solar or off-grid system,
- you are looking for a reliable, long-term solution for communication connections.
Summary
The RJ45 splitter is a practical, compact yet crucial element of modern Victron Energy-based energy systems. It allows for the simultaneous connection of multiple devices, improves the clarity of the communication network, and contributes to precise system monitoring. If you want to build or expand your solar, boat, or RV energy system professionally, this RJ45 accessory is a reliable choice for communication connections.
