Victron Energy RJ12 UTP 10-meter cable detailed description
The 10-meter long RJ12 connector UTP cable is an ideal choice for establishing a reliable data connection between Victron Energy devices. The cable primarily handles communication and control tasks, making it perfect for connecting battery monitors, charge controllers, inverters, and other solar system components.
The RJ12 connector communication cable is specifically suitable for systems requiring stable data transmission, low signal distortion, and seamless communication. The 10 m length is sufficient for larger systems where devices are not placed directly next to each other.
Application areas and compatibility
This network data cable is primarily used in Victron control and monitoring systems where devices communicate with each other via RJ12 ports. It is an ideal solution for:
- solar energy supply systems
- RV and boat energy monitoring solutions
- off-grid, standalone systems
- control of battery energy storage systems
The RJ12 UTP cable can be used to connect various Victron measuring and control devices, such as:
- connecting battery monitors to central displays
- communication between inverters and charger-inverters with other system elements
- data connection of charge controllers to control panels or monitoring units
Technical specifications and design

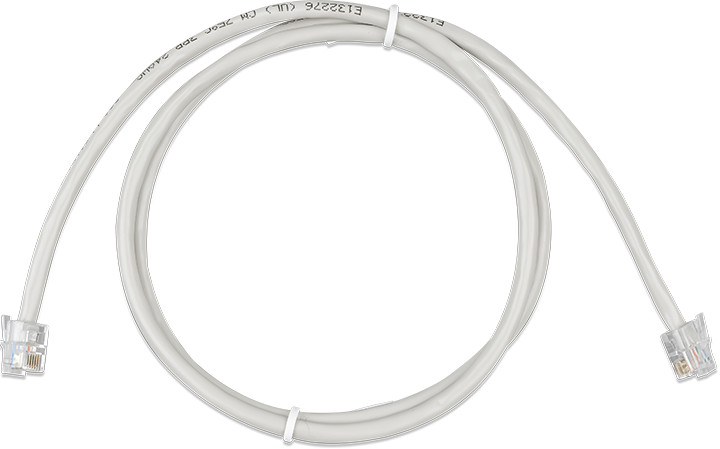

The cable is a standard UTP (Unshielded Twisted Pair) wire with RJ12 connectors on both ends. The twisted pair design helps improve interference protection, reduces electromagnetic interference, and ensures reliable data communication throughout the entire 10-meter length.
- Connectors: RJ12 (6-pole, multi-contact telephone/data connector)
- Cable type: UTP – twisted pair data cable
- Length: 10 meters
- Use: communication and control cable for Victron systems
The factory connectors fit precisely into Victron connector ports, eliminating the need for subsequent crimping, soldering, or other assembly work. The pre-assembled design guarantees proper contact and stability of the data connection.
Benefits in solar and battery systems
Proper communication cabling is a prerequisite for the stable operation of a modern solar or battery energy system. This 10 m data cable offers the following advantages:
- reliable data communication between the elements of the system
- easy installation due to factory-installed RJ12 connectors
- sufficient cable length for larger systems and devices placed further apart
- predictable, stable connection between inverter, battery monitor, and control units
The role of the communication cable is crucial in monitoring and controlling the system. A poor-quality or too short cable can lead to data loss, communication errors, or unstable operation, which can degrade the efficiency of the energy system in the long run.
Typical application examples
The following steps illustrate how such an RJ12 data cable can be integrated into a solar or battery system:
- Connect one end of the cable to the RJ12 port of the battery monitor or charge controller.
- Plug the other end into the RJ12 connector of the central controller or display unit.
- Ensure that the cable is not under tension, excessively bent, or running parallel to high-voltage wires for long stretches.
- After turning on the system, check that the communication connection is error-free and all data is displayed correctly on the screen.
The 10-meter length allows the control unit, inverter, or measuring device to be placed in a separate room, technical cabinet, or other protected location while maintaining uninterrupted communication.
Installation and usage recommendations
When cabling for communication, it is advisable to follow some basic guidelines to ensure the system operates stably in the long term:
- Avoid sharp bends in the cable, and do not bend it too tightly.
- Where possible, run the data cable separately from 230 V or other high-voltage, high-current wires.
- If it needs to run parallel to high-current cables over longer distances, maintain physical distance to minimize electromagnetic interference.
- Secure the cable with cable ties or in cable channels to avoid accidental disconnection or damage.
By following these basic steps, the lifespan of the UTP data cable can be maximized, ensuring uninterrupted data transmission between Victron devices.
Why choose a factory communication cable?
Using the RJ12 UTP cable recommended by the manufacturer guarantees compatibility and reliable operation. In the case of cables installed manually, there is a risk of incorrect wiring, poor crimping, or improper pinout, which can lead to communication problems.
- factory pinout – ensures compatibility with Victron devices
- time-saving – no need to assemble connectors
- reliable contact – fewer error possibilities in the system
If you are looking for a stable, long-term reliable communication solution for your solar or battery energy supply systems, the factory RJ12 UTP cable in 10-meter version is an ideal choice for connecting various Victron modules and control units.
