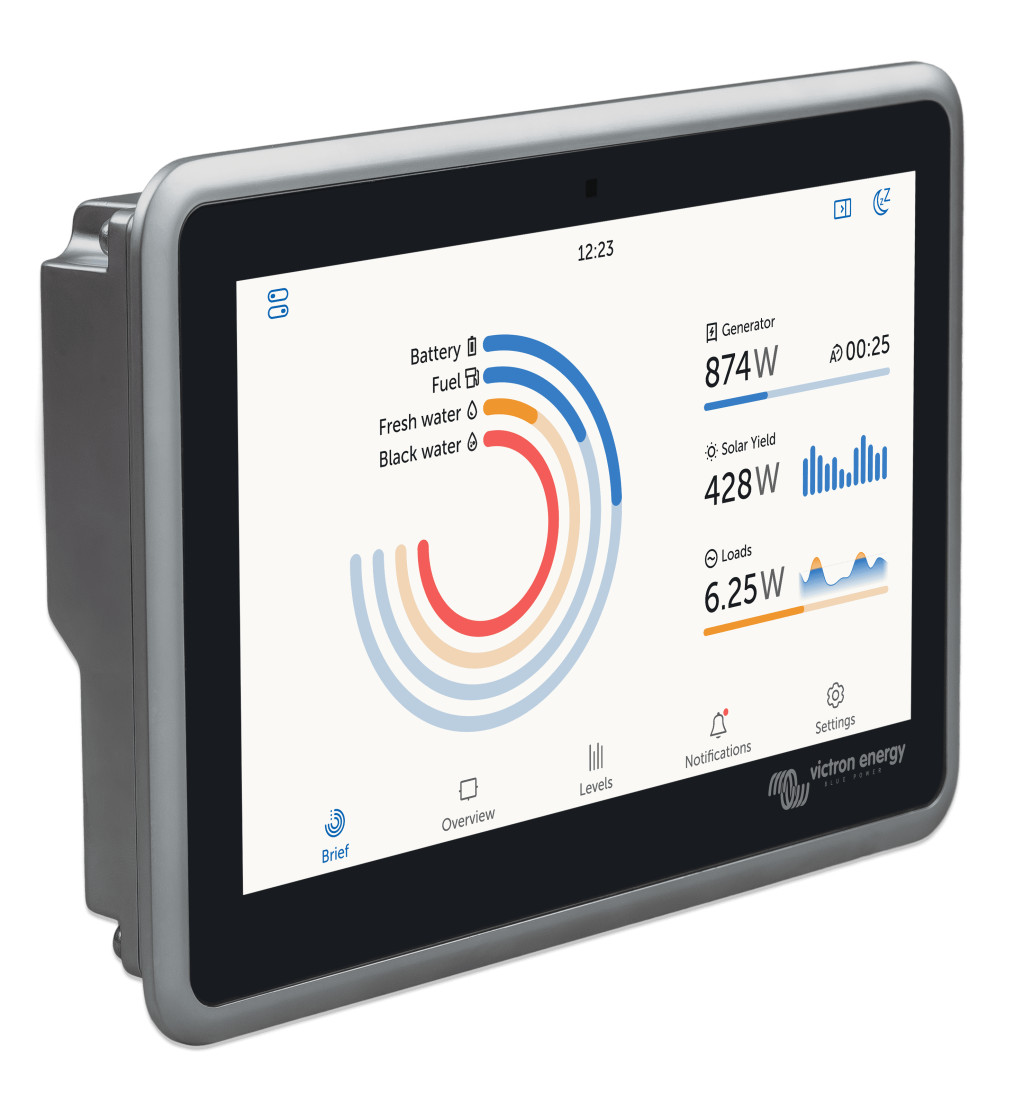

Victron Energy Ekrano GX Communication Hub and Touchscreen System Monitoring

• Details
• Data
• Reviews

Details

• Item number: BPP900480100

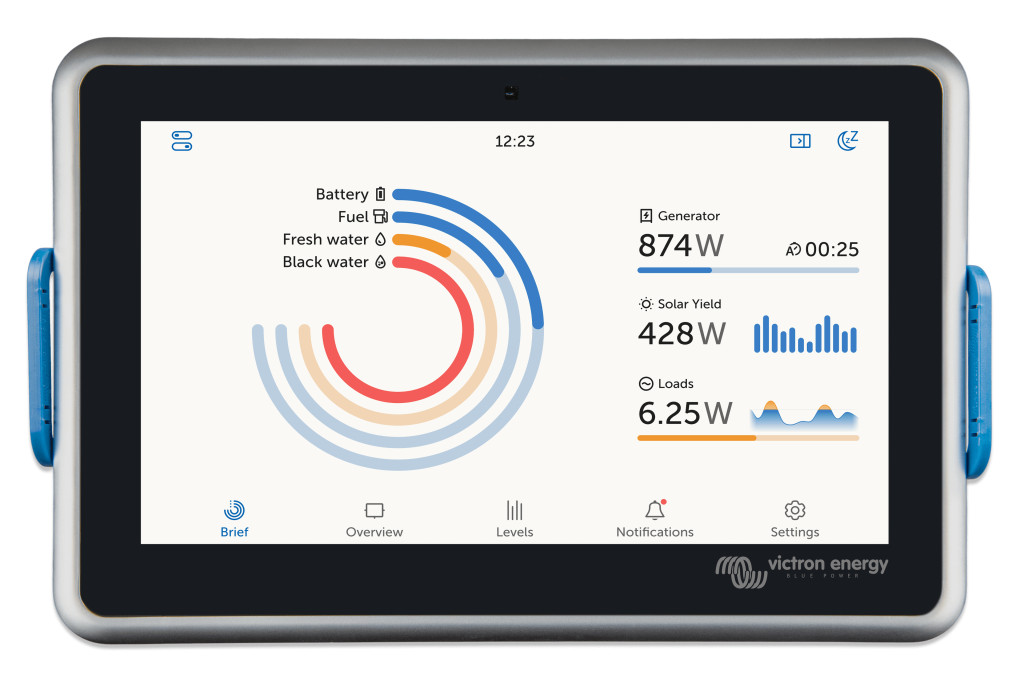

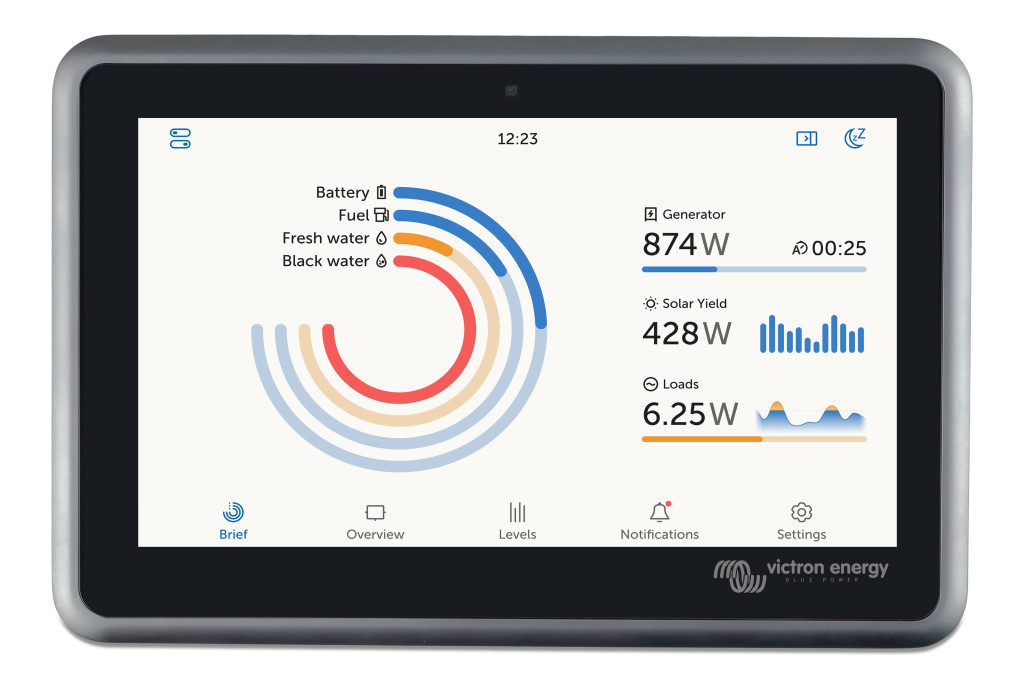

• Display: 7" touchscreen, 1024×600 px resolution
• Power supply: 8–70 V DC
• Consumption: ~6.2 W (12 V), ~6.6 W (24 V), ~7.4 W (48 V)
• Network connections: Wi-Fi (2.4 GHz), Ethernet, Bluetooth Smart

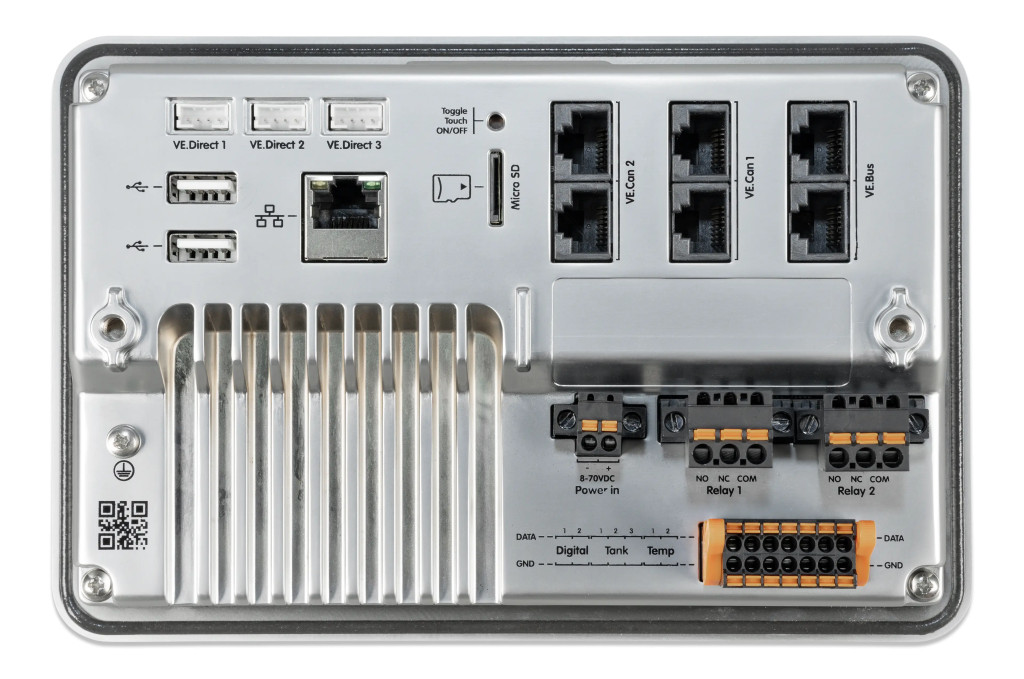

• Ports:
• 3 × VE.Direct (max. 25 devices)
• 1 × VE.Bus (dual RJ45)
• 2 × VE.Can (isolated + non-isolated)
• 2 × USB-A, Micro-SD slot
• 3 × tank level input
• 2 × temperature input
• 2 × digital input
• Relays: 2 pcs, NO/NC, max. 30 V DC / 3 A
• Built-in sound alarm
• Dimensions: 124 × 187 × 29.8 mm

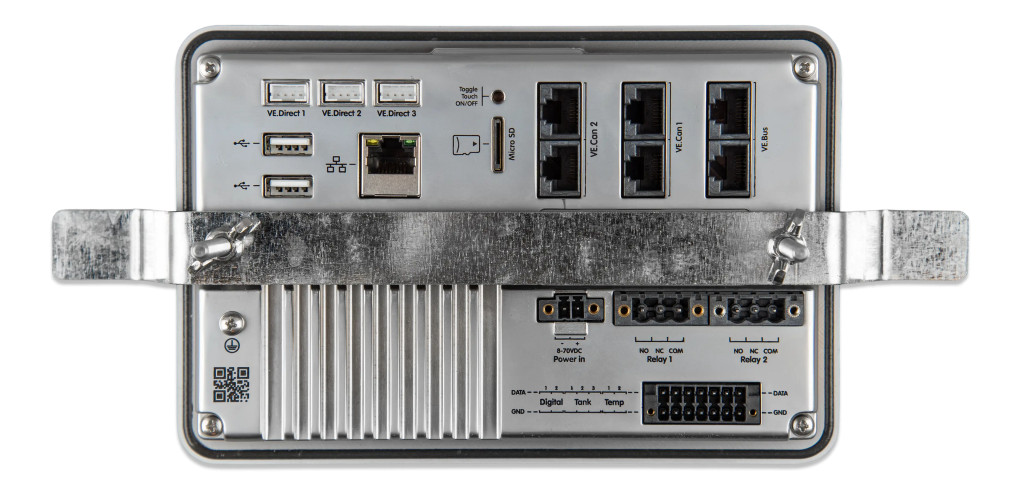

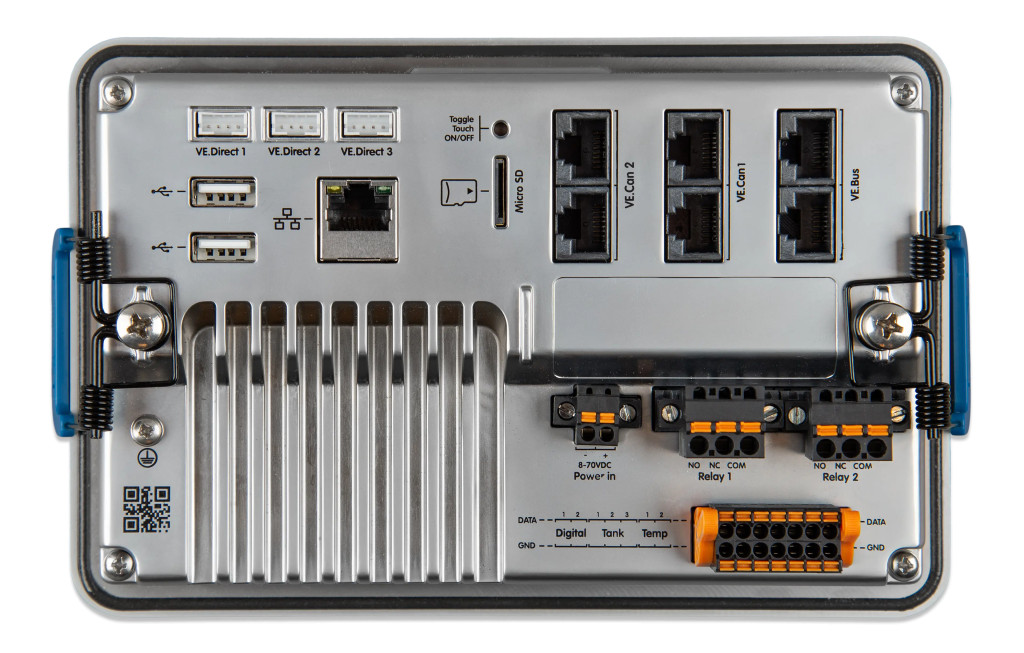

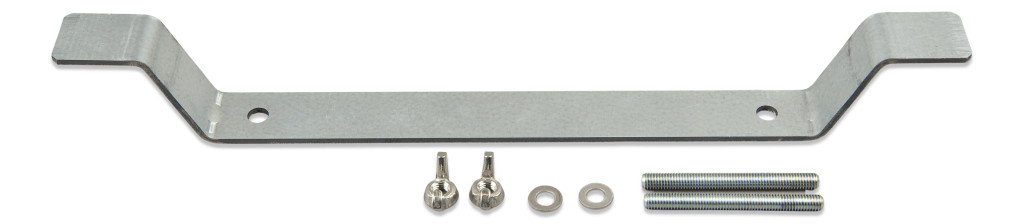

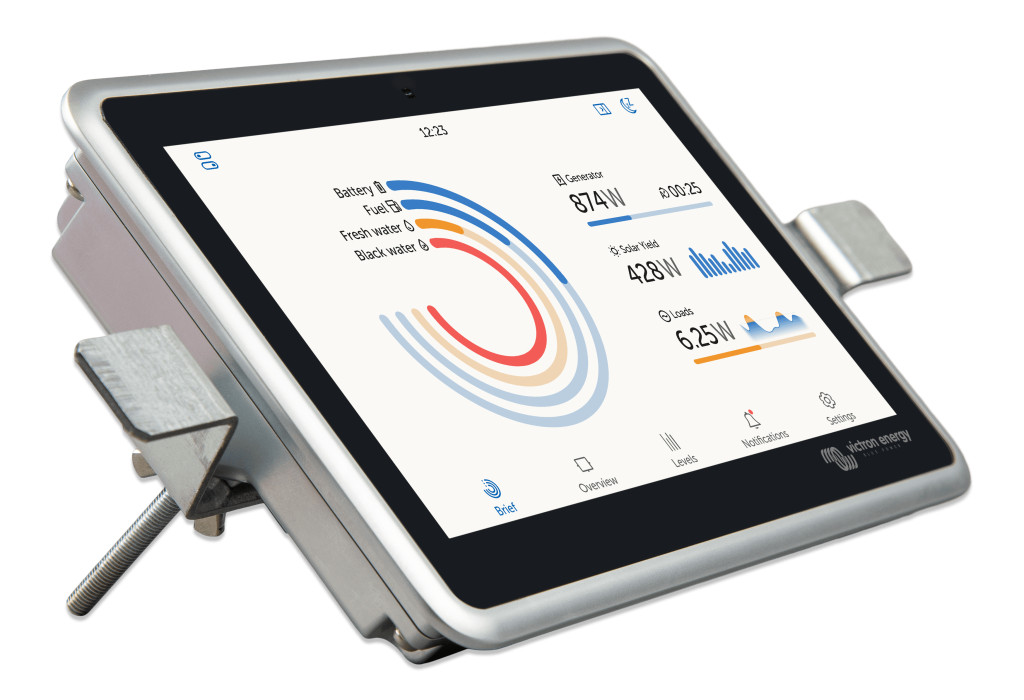

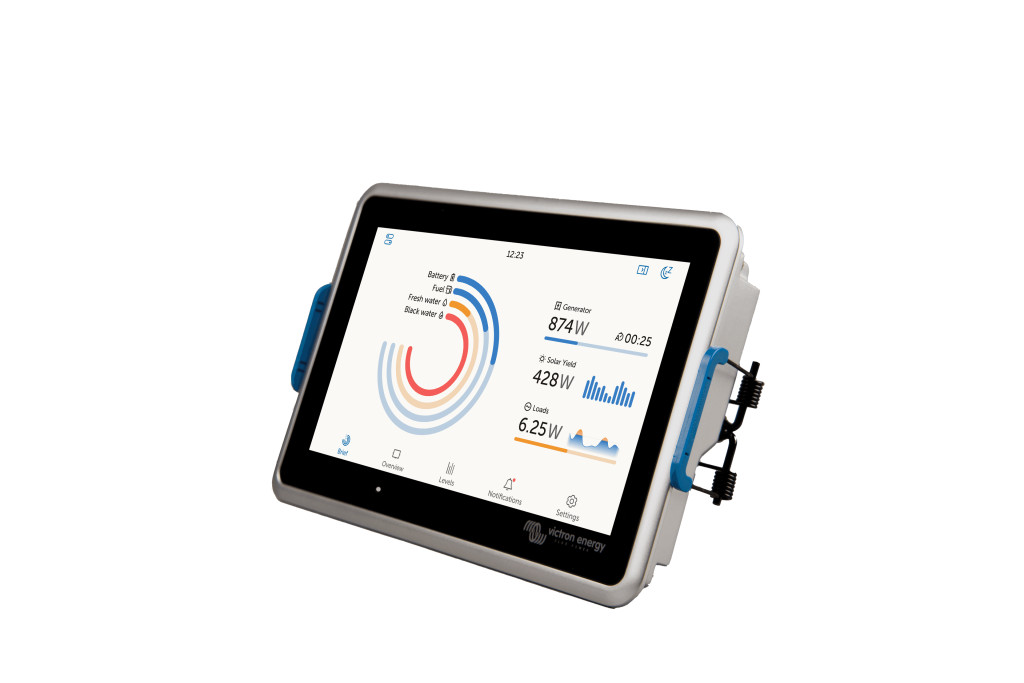

• Protection: front IP54 (with steel bracket), IP31 (with springs), back IP21
• Operating temperature: –20 °C…+50 °C
• Processor: Quad-core, Venus OS system
• Integration: VRM portal, VictronConnect app, NMEA 2000 / MFD compatibility
• Application area: central monitoring and control of the entire Victron system

Data

Brand:

Victron Energy

Weight:

0,56 kg

EAN:

8719076058038

Length:

187

Width:

124

Height:

29.8

Warranty:

Minimum 3 years (statutory warranty), individual warranty as per product description

Website:

https://www.victronenergy.hu/communication-centres...

Weight:

560 g/db
