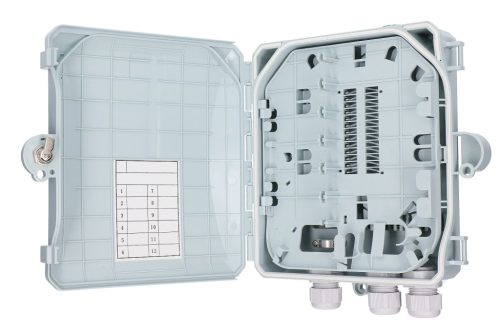

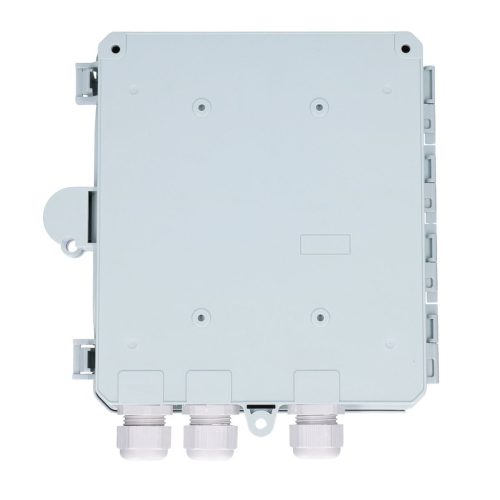

Extralink Diana, fiber optic distribution box, 12 fibers
Material: Polycarbonate (PC)
International Protection (IP) code: IP65
Mountable on a rack: No
Maximum supported number of fibers: 12 pcs
Maximum supported splice trays: 1
Product color: Gray
Suitable for indoor use: Yes
Suitable for outdoor use: Yes
Wall mountable: Yes
Extralink DIANA 12 CORE optical splice box
The Extralink DIANA 12 CORE serves as the endpoint of the power cable, connecting with the drop cable in the FTTx communication network system. The optical splice box can be used for fiber splicing, splitting, and distribution. It provides robust protection and allows for the effective implementation of FTTx network construction and management.
Features:
Features:
- Completely sealed design
- Material: PC+ABS, waterproof, dustproof, aging resistant, up to IP65 protection class
- Power cable and drop cable fixation, fiber splicing, installation, storage, and distribution in one unit
- Cables, pigtails, and patch cables can be routed separately
- Possibility to install SC type adapter
- Easy maintenance
- The control panel is reversible, and the power cable has a hinged design
Technical specifications related to lightning protection
The grounding unit is insulated with the housing, with an insulation resistance of at least 2 × 10⁴ MΩ/500V (DC); IR ≥ 2 × 10⁴ MΩ/500V. The static voltage between the grounding unit and the housing is at least 3000V (DC)/minute, without breakdown; U ≥ 3000V.
