Extralink AI-8c welding unit, 7800mAh, LED lamp, 5.1" LCD screen

High-Quality AI-8C Fiber Optic Fusion Splicer

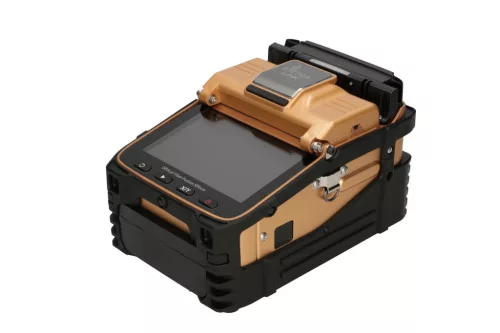

The Extralink AI-8C is a newcomer in the fiber optic splicer market. The device is available at an attractive price, offering advanced technology for fiber positioning and splicing. Both beginner users and advanced, experienced installers will appreciate the comfort of working with this device. The quality and reliability of the splicer have been confirmed by numerous tests conducted under various environmental conditions and on different types of fibers. A characteristic feature of the manufacturer's splicers is the use of smartphones for configuration, archiving the data of completed splices, and diagnostics. Extralink products have gained recognition worldwide in the markets, and the high quality of the offered products is evidenced by the warranty policy, which considers the replacement of the device after 50,000 splices.

Precise Core Positioning and Fast Workflow

The Extralink AI-8C uses core alignment technology (with the option to position the sheath), ensuring the best attenuation parameters for completed splices. Up to 6 high-end (Siemens) motors position the fibers, which is absolutely unparalleled in devices in this price range. The application range is wide, as the splicer can be used for a 100-kilometer fiber optic bus, FTTH installations, as well as short point-to-point connections, LAN installations, or video surveillance based on optical cabling. The AI-8C model is built on a quad-core processor, providing fast response time (the device is ready for operation in 3 seconds), as well as short splicing and shielding times. The AI-8C splicer is currently one of the fastest devices of its kind on the market and the fastest in this price category.

Optimal Conditions for Splicing

The 5.1-inch, 800 x 480 px resolution display, with adjustable brightness, ensures comfortable operation even in difficult lighting conditions. The optical system offers 300x magnification, which is reflected directly in the quality and accuracy of the splicing process, as well as in the visual analysis of completed splices (viewing in two planes). The minimum splicing time is 6 seconds and the splicing time for 40 mm sheaths is only 15 seconds. The built-in LED light allows for splicing and working with fibers even in complete darkness.

Universal Fiber Holders

The universal fiber holders provide comfort and fast work. These holders can accommodate 250 μm, 900 μm, tight and loose tubes, as well as patchcord or DROP type cables. The splicer offers various splicing programs and an automatic mode that works well in most jobs.

Robust and Practical Splicing Kit

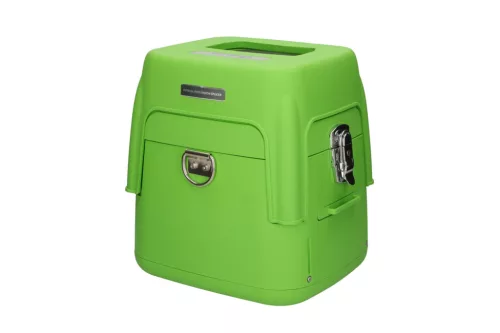

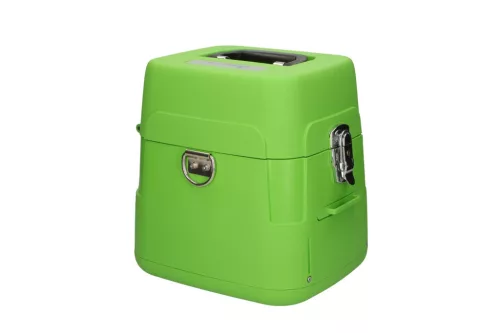

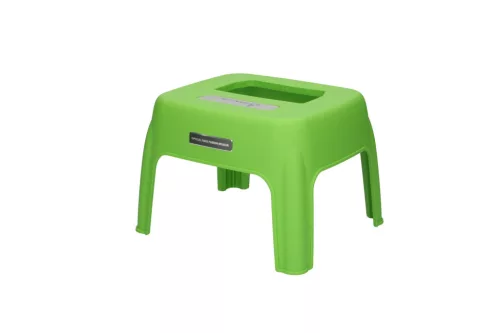

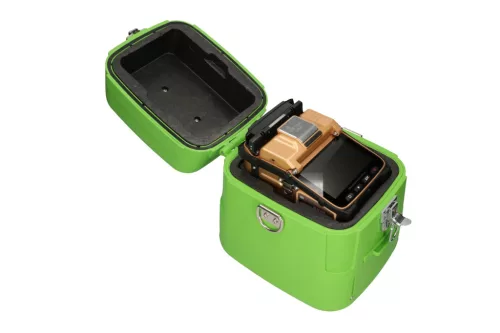

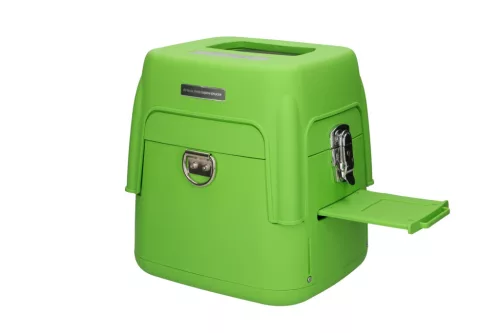

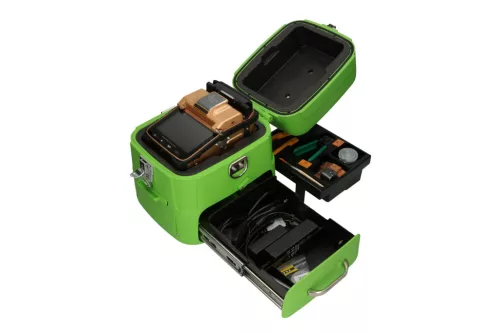

The splicing machine is made of metal, with the bottom covered in protective rubber, while the splicing chamber and furnace cover are made of high-quality plastic. The offered kit includes the AI-8C splicer and a practical case, which contains all necessary tools and a power supply. The accessories are placed in a two-tier drawer equipped with durable metal guides. The splicer does not need to be removed from the case during splicing, serving as a solid and stable support, as it is made of durable plastic. The case also has a removable element that can be used as a stool or small table.

The device is powered by a 7800 mAh capacity battery. It provides approximately 200 splices and shielding splicing cycles. The battery charging time is only 3.5 hours. The design of the splicer allows for very quick battery replacement, as it slides out by pressing a button on the casing. There is an option to purchase a spare battery.
