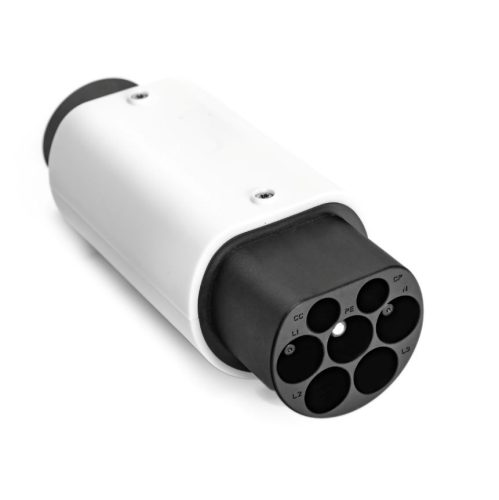

Unlimited Charging – Extralink EV Charging Adapter
The Extralink EV charging adapter is a solution that provides wide compatibility and allows the use of public and home charging stations across Europe. Thanks to its robust design, high-quality materials, and certified safety, this product is a long-term investment.
Full Compatibility – From Type 2 to Type 1
Do you have an electric car with a Type 1 connector while the Type 2 charging stations are the most common in your area? The Extralink adapter enables seamless charging, eliminating the problem of having only incompatible charging points available for your vehicle. As a result, you can use multiple charging points, whether they are public or private AC charging stations.
Safe Operation with Certified Components
The manufacturer used high-quality materials for the production of the adapter that meet safety and durability requirements. The self-extinguishing UL94 V-0 rated plastic housing provides resistance to high temperatures, while the silver-plated copper contacts guarantee stable and reliable energy transfer. Additionally, the adapter complies with IP protection standards, ensuring weather resistance and a long lifespan.
Easy to Use – Quick and Convenient Connection
No special tools are needed – just connect the adapter to the charger and then to the car. The lightweight design makes it easy to transport the charging adapter and store it in the trunk. This way, you can always be sure that charging your vehicle can be resolved in unexpected situations.
Temperature Monitoring and Stable Charging
Thanks to the advanced chip, the adapter automatically detects temperature changes and adjusts its operation to the current conditions. This helps avoid the risk of overheating or unstable energy transfer, contributing to a longer lifespan for both the adapter and the vehicle. Continuous monitoring of charging parameters means that you can charge your electric car safely and without worry.
Technical Specifications
| Connector Type (Input) | Type 2 (IEC 62196-2, socket – female) |
| Connector Type (Output) | Type 1 (SAE J1772, plug – male) |
| Maximum Charging Current | 32 A |
| Voltage Range | 110–250 V AC |
| Charging Power | up to 7.4 kW (1 phase) |
| Electrical Strength | 2000 V |
| Insulation Resistance | >1000 MΩ (DC 500 V) |
| Operating Temperature | -30 °C – +50 °C |
| Housing Material | thermoplastic plastic UL94 V-0 |
| Contact Material | copper alloy, silver-plated surface |
| Mechanical Lifespan | >10,000 connection cycles |
| Connection Force | <100 N |
| Heat Resistance | contact temperature rise <50 K |
| Protection Rating | dust and moisture resistant |
