Details

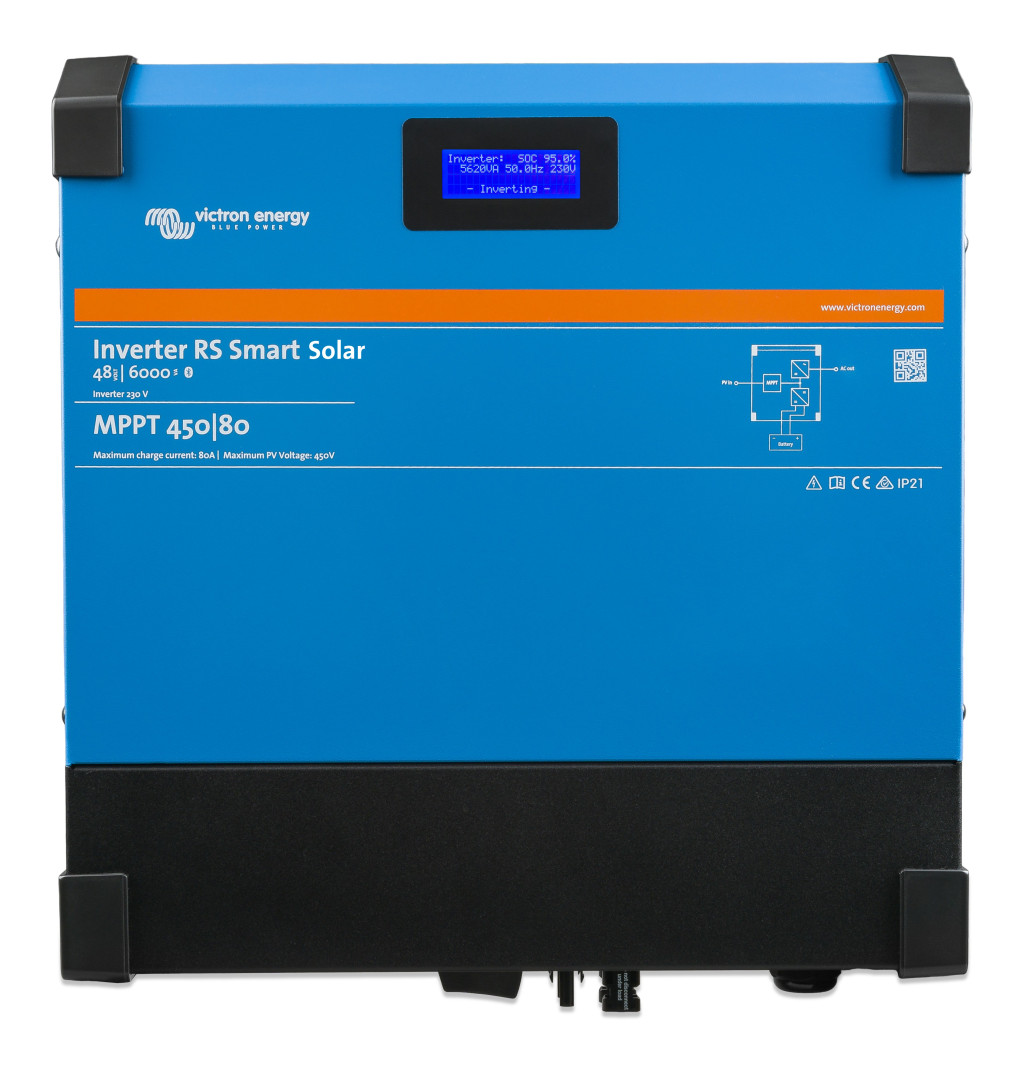

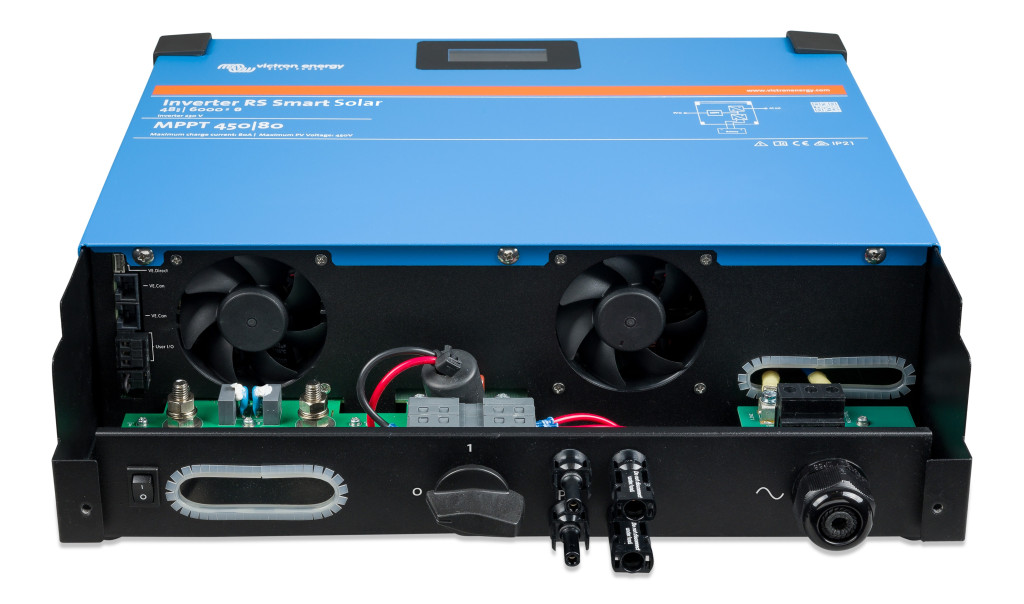

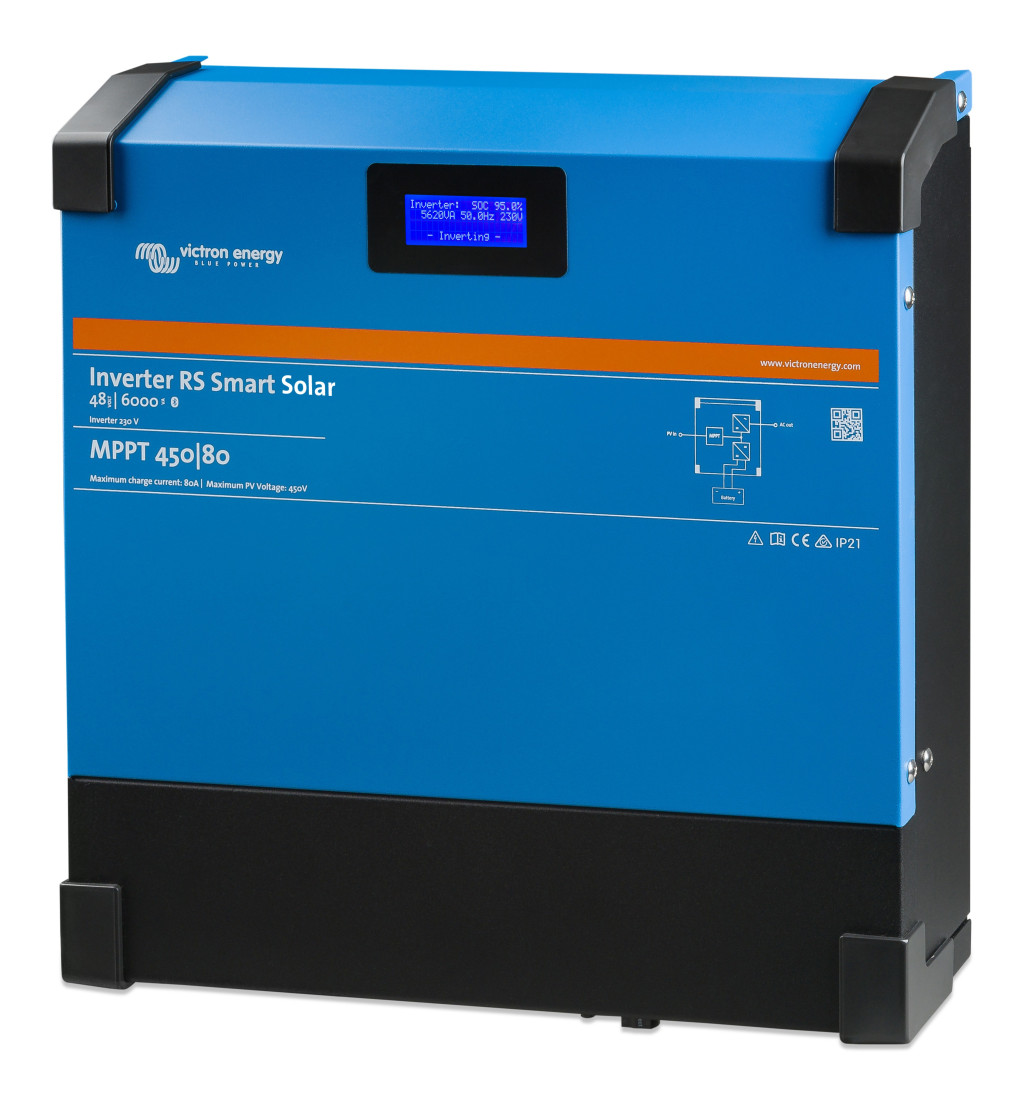

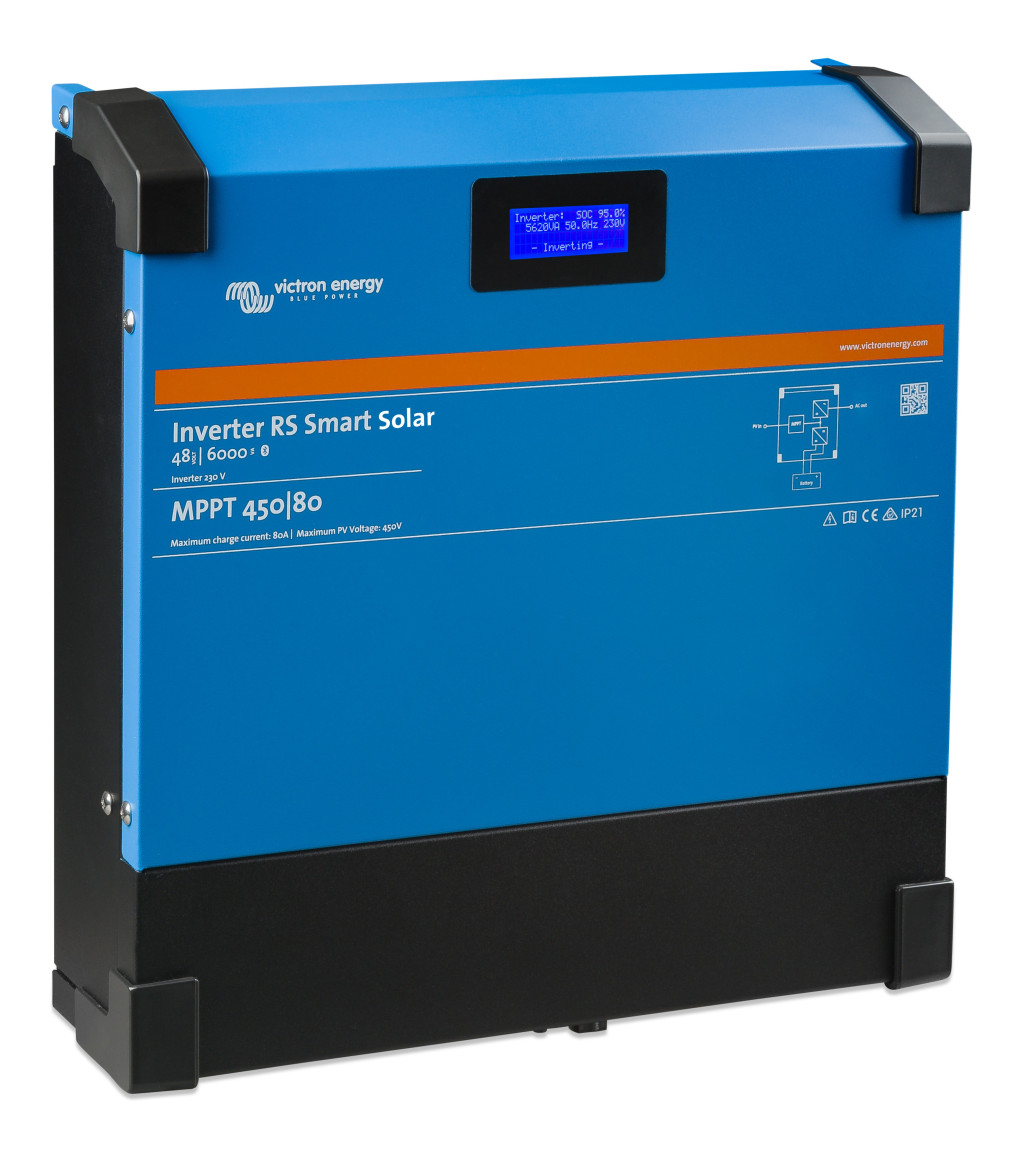

The RS 48/6000 230V Smart Solar inverter consists of an efficient 48VDC, 6000 VA 230VAC inverter and a high-voltage 80–450VDC, 4kW MPPT solar charger. Thanks to its modern design and high-frequency technology, the inverter weighs only 11 kg while being characterized by excellent efficiency, low standby power consumption, and extremely quiet operation.

The inverter is equipped with a display capable of reading the data of the battery, inverter, and solar charger. These parameters can also be reviewed via Bluetooth using the VictronConnect app. Additionally, the inverter has a VE.Can port for connection to a GX device for system monitoring; and a VE.Direct port for connection to GlobalLink 520.

Warranty: 5 years manufacturer warranty

Technical specifications – RS 48/6000 230V Smart Solar inverter

Rated power	6000 VA
Battery voltage	48 VDC
Input voltage (PV)	80-450 VDC
AC output voltage	230 VAC
Internal voltage	480 VDC

Data

Brand:

Victron Energy

Weight:

11 kg

EAN:

8719076048176

Voltage:

48 V DC

User Manual:

https://www.victronenergy.com/upload/documents/Inverter_RS_Smart_Solar/11676-Inverter_RS_Smart_Solar-pdf-en.pdf

Technical Specifications:

Névleges teljesítmény: 6000 VA Akkumulátor feszültség: 48 VDC Bemeneti feszültség (PV): 80-450 VDC AC kimeneti feszültség: 230 VAC Belső feszültség: 480 VDC

Input Voltage Range:

38–62 V DC

Number of Outputs:

1 AC-kimenet

Output Power:

6000 VA / max. 5300 W

Output Voltage:

230 V AC ±2%

Warranty:

Minimum 3 years (statutory warranty), individual warranty as per product description

Website:

https://www.victronenergy.com/upload/documents/Dat...
