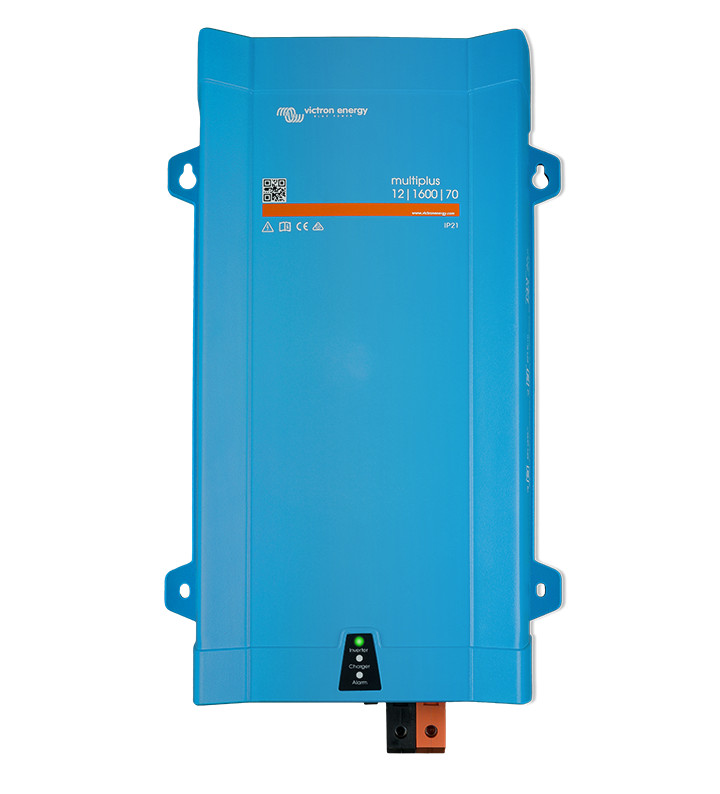

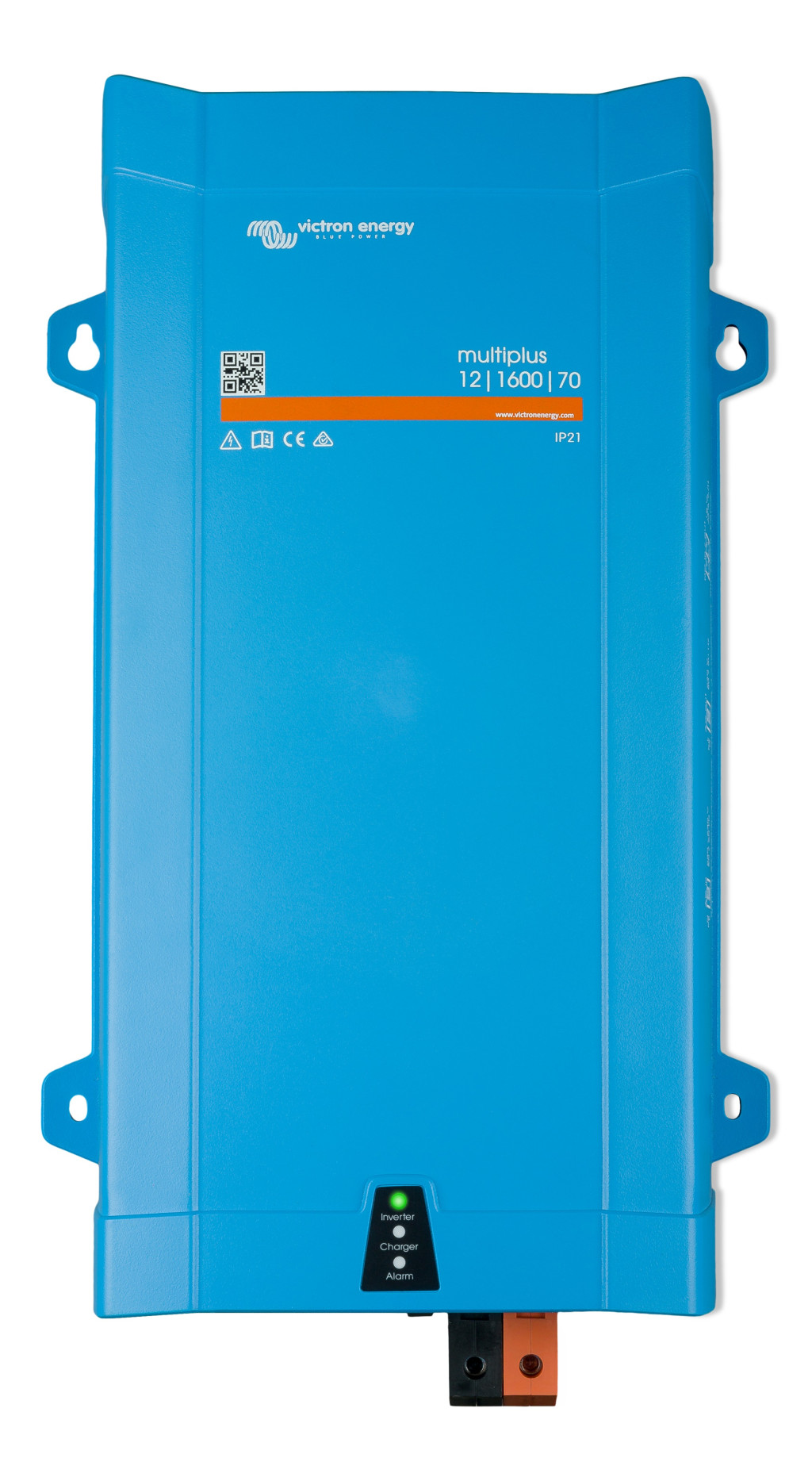

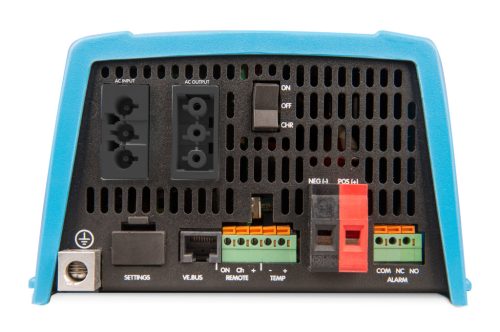

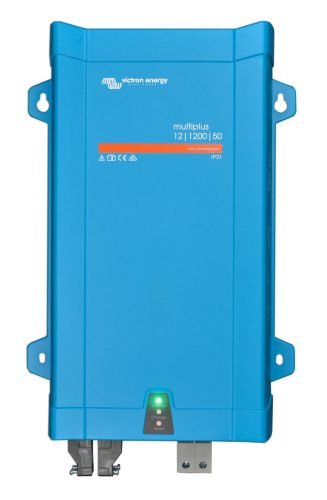

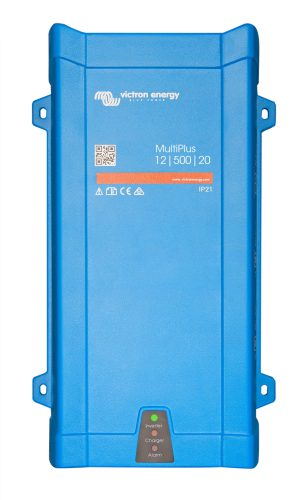

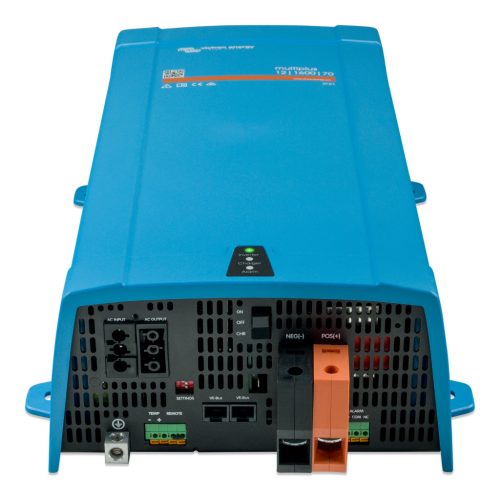

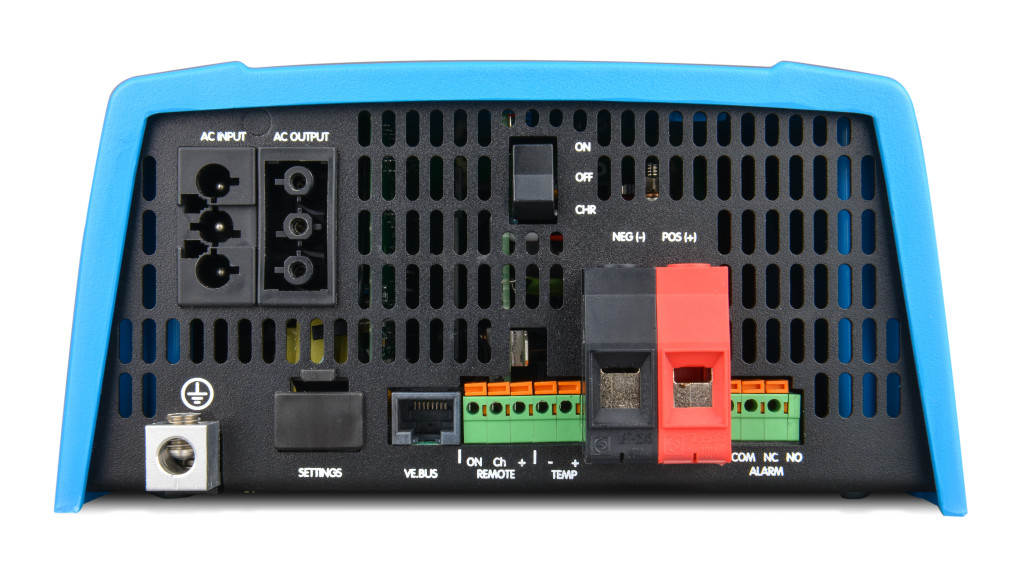

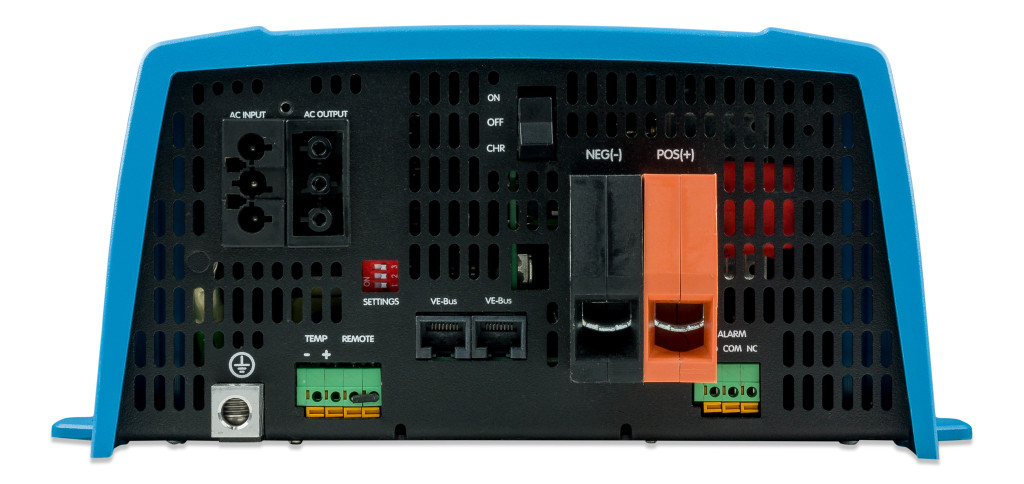

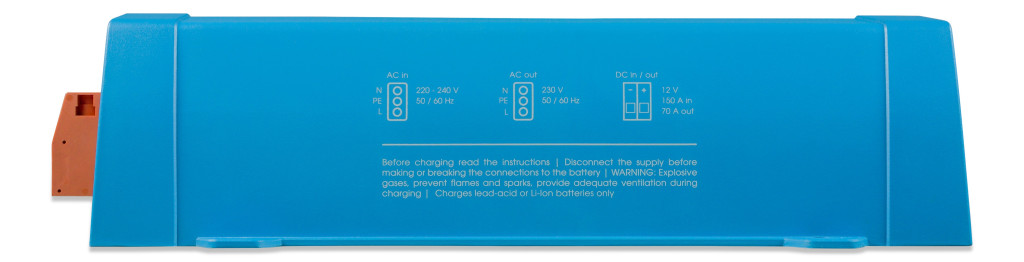

The newly designed MultiPlus 12V 500VA/20A replaces the previous MultiPlus Compact product line. The device is an efficient, true sine wave inverter, an advanced battery charger operating with adaptive charging technology, and a high-speed AC transfer switch all within a single compact enclosure.
Warranty: 5 years manufacturer warranty
Technical specifications – MultiPlus 12V 500VA/20A
| Rated power | 500 VA |
| Battery voltage | 12 V |
| Output voltage | 120 V ±2 % |
| Output frequency | 60 Hz ±0.1 % |
| Continuous output power at 25 °C | 430 W |
| Continuous output power at 40 °C | 400 W |
| Continuous output power at 65 °C | 300 W |
| Peak power | 900 W |
| Maximum efficiency | 90 % |
| Zero load power | 6 W |
| Zero load power in search mode | 2 W |
| Charging voltage 'absorption' | 14.4 V |
| Charging voltage 'float' | 13.8 V |
| Charging current for house battery | 20 A |
| Charging current for starter battery | 1 A |
| Maximum humidity | 95 % |
| Weight | 4.4 kg |
