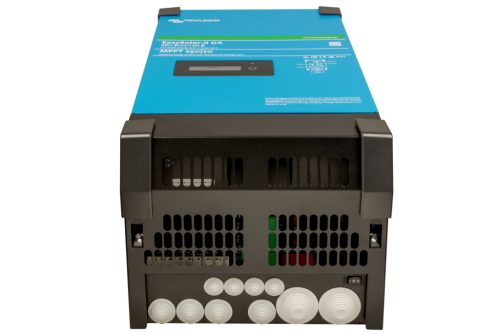

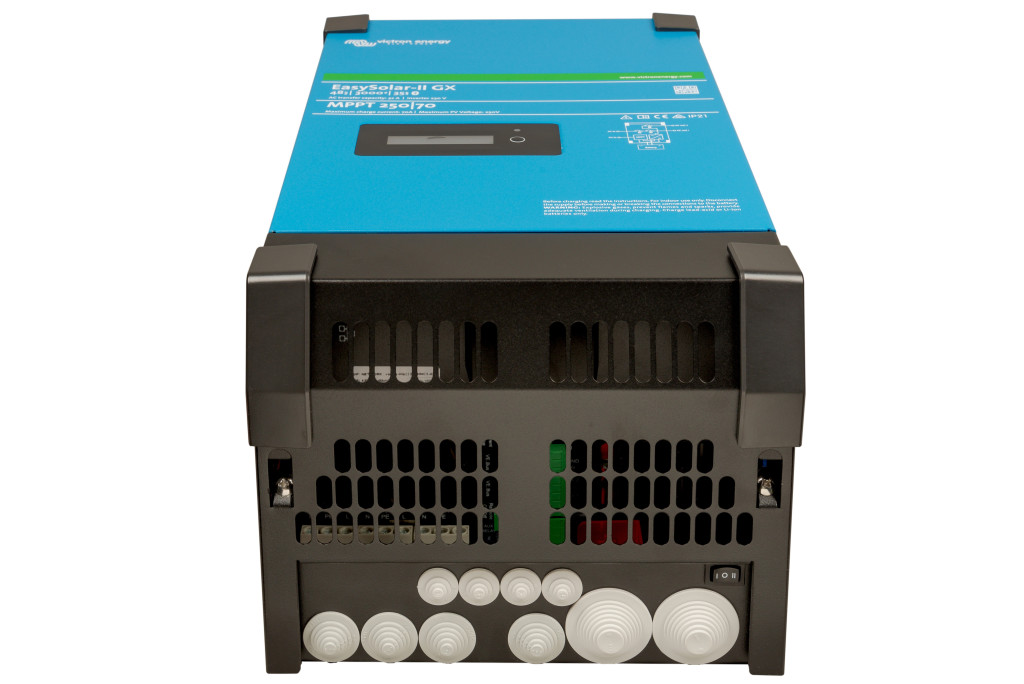

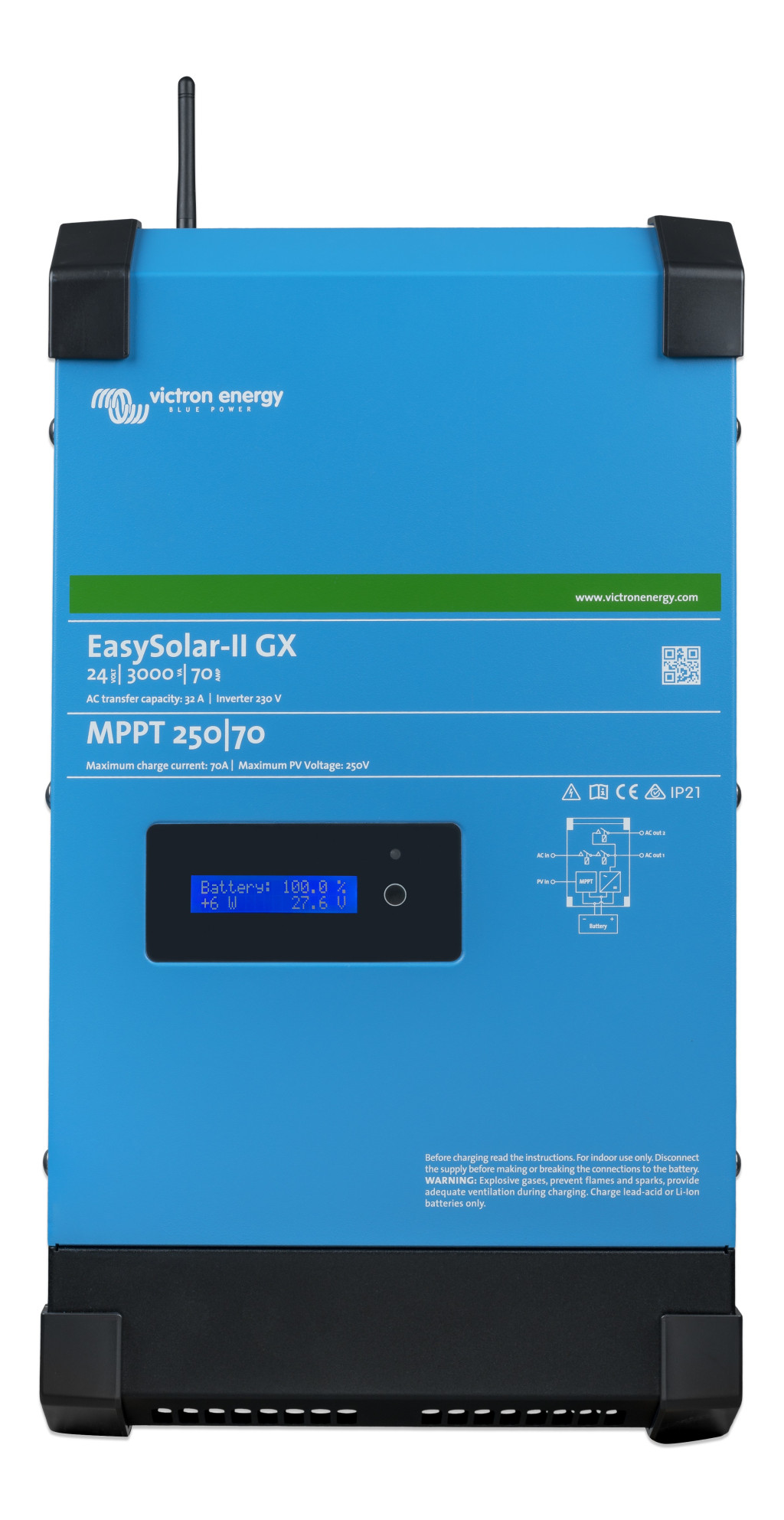

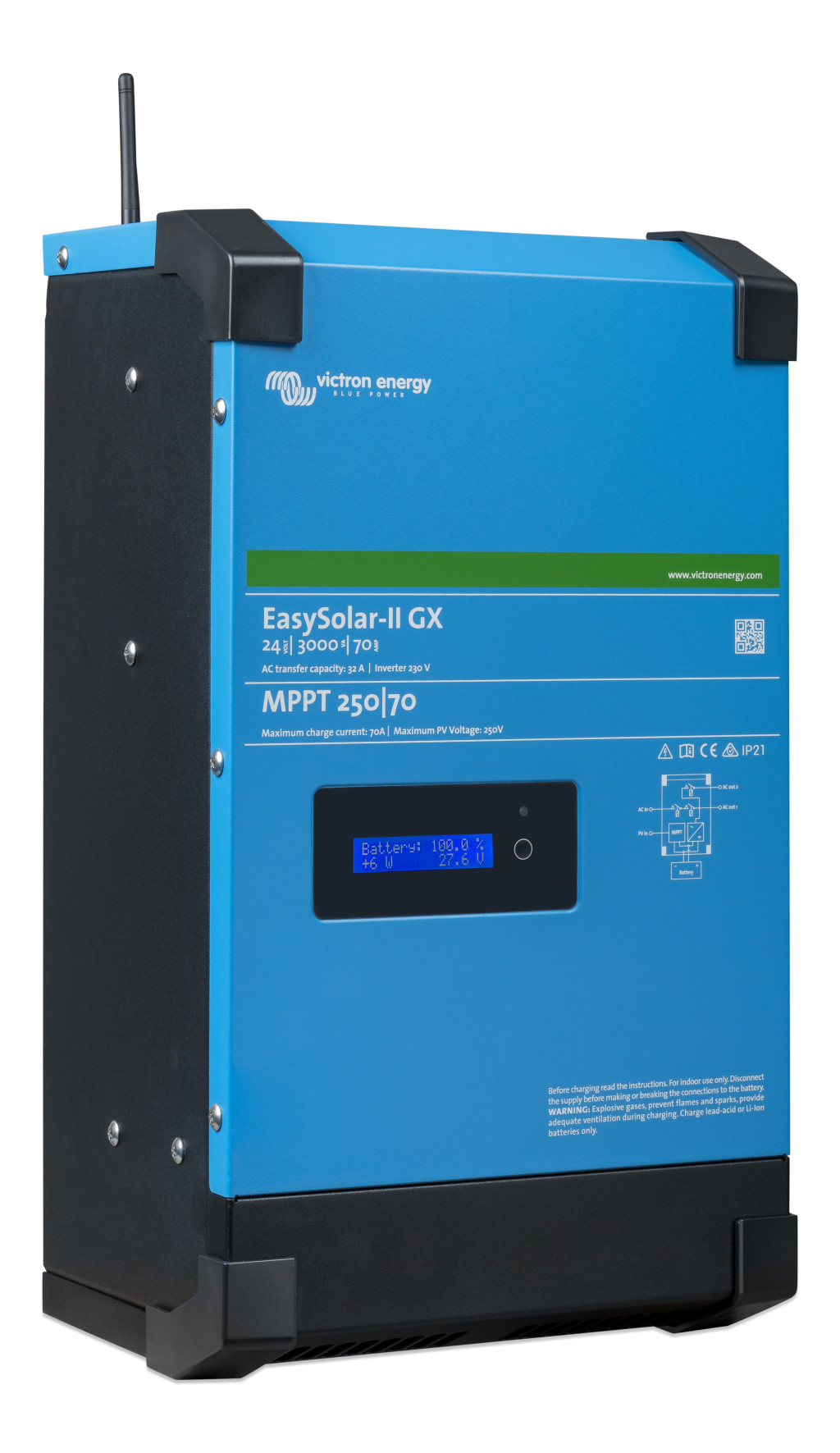

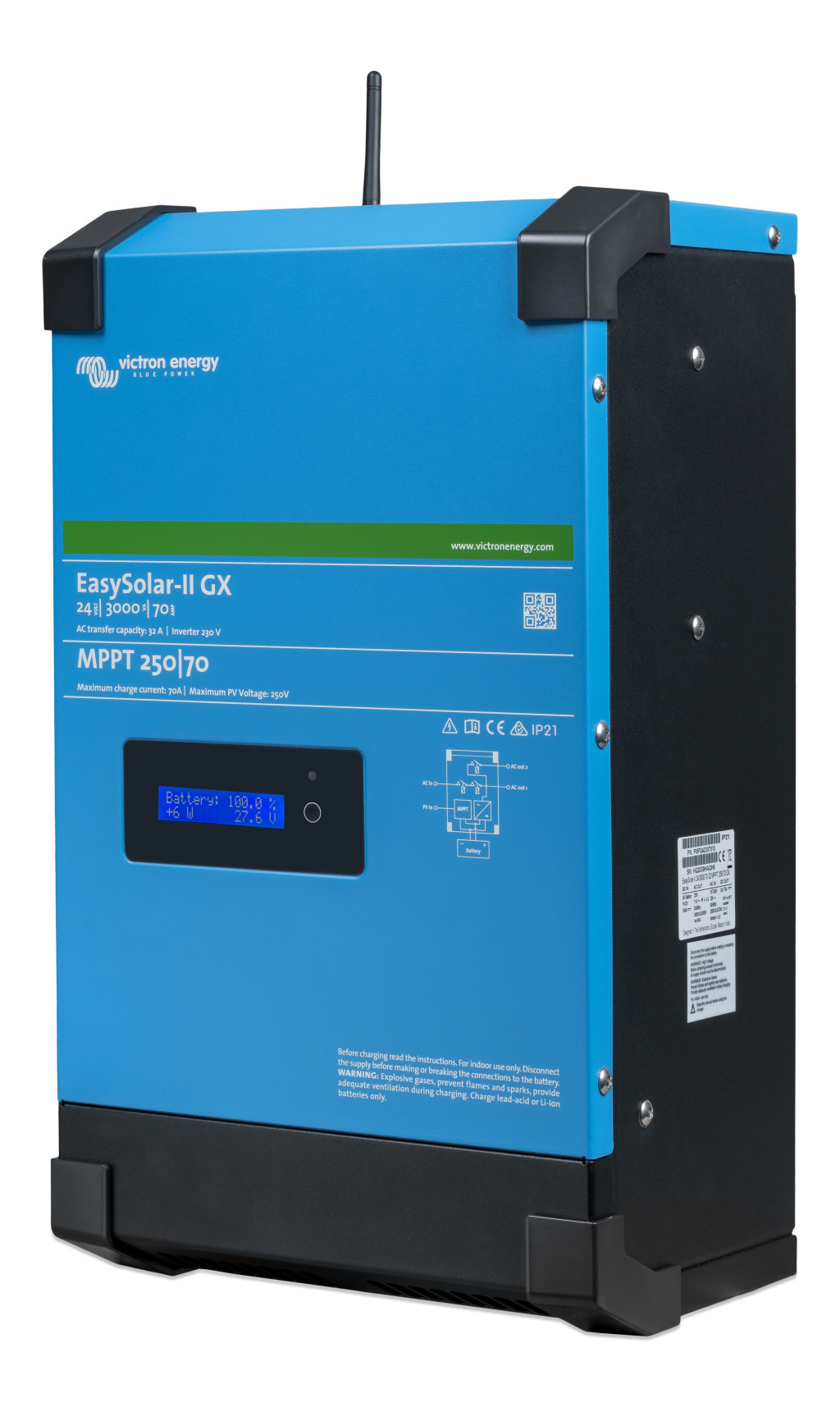

The Victron Energy EasySolar-II GX 24V 3000VA combines the functions of an MPPT solar charge controller, an inverter/charger, and a control center within a single enclosure. The installation of the product is simple, requiring minimal wiring. With this model, a maximum input current of 32 A can be achieved along with 2400 W continuous output power at 25 °C, making it an ideal choice for various energy needs.
Warranty: 5 years manufacturer warranty
Technical specifications – Victron Energy EasySolar-II GX 24V 3000VA
| Rated power | 3000 VA |
| Battery voltage | 24 V |
| Maximum AC input current | 32 A |
| Continuous output power at 25 °C | 2400 W |
| Continuous output power at 40 °C | 2200 W |
| Maximum apparent input power | 3000 VA |
| Peak power | 5500 W |
| Maximum efficiency | 94 % |
| Zero load power | 13 W |
| Zero load power in AES mode | 9 W |
| Zero load power in Search mode | 3 W |
| AC input voltage range | 187-265 VAC |
| AC input frequency | 45 – 65 Hz |
| Charging voltage 'absorption' | 28.8 V |
| Charging voltage 'float' | 27.6 V |
| Maximum battery charging current | 70 A |
| BMS-Can interface | Yes |
| Operating temperature range | -20 to +45 °C |
| Maximum altitude | 2000 m |
| Humidity (non-condensing) | max 95 % |
| Material and color | aluminum (blue RAL 5012) |
| Protection category | IP21 |
| Weight | 26 kg |
| Dimensions (h x w x d) | 499 x 268 x 237 mm |
