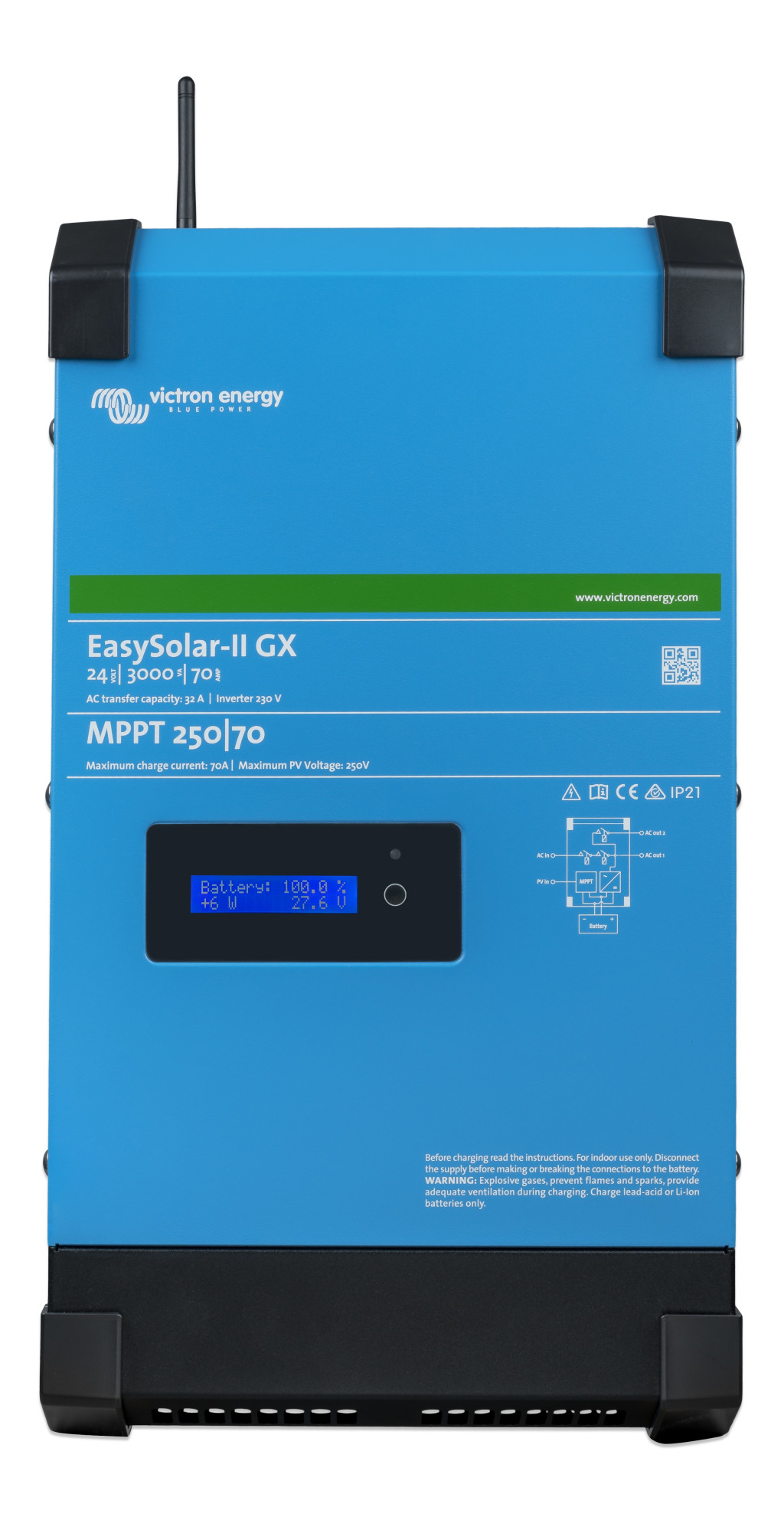

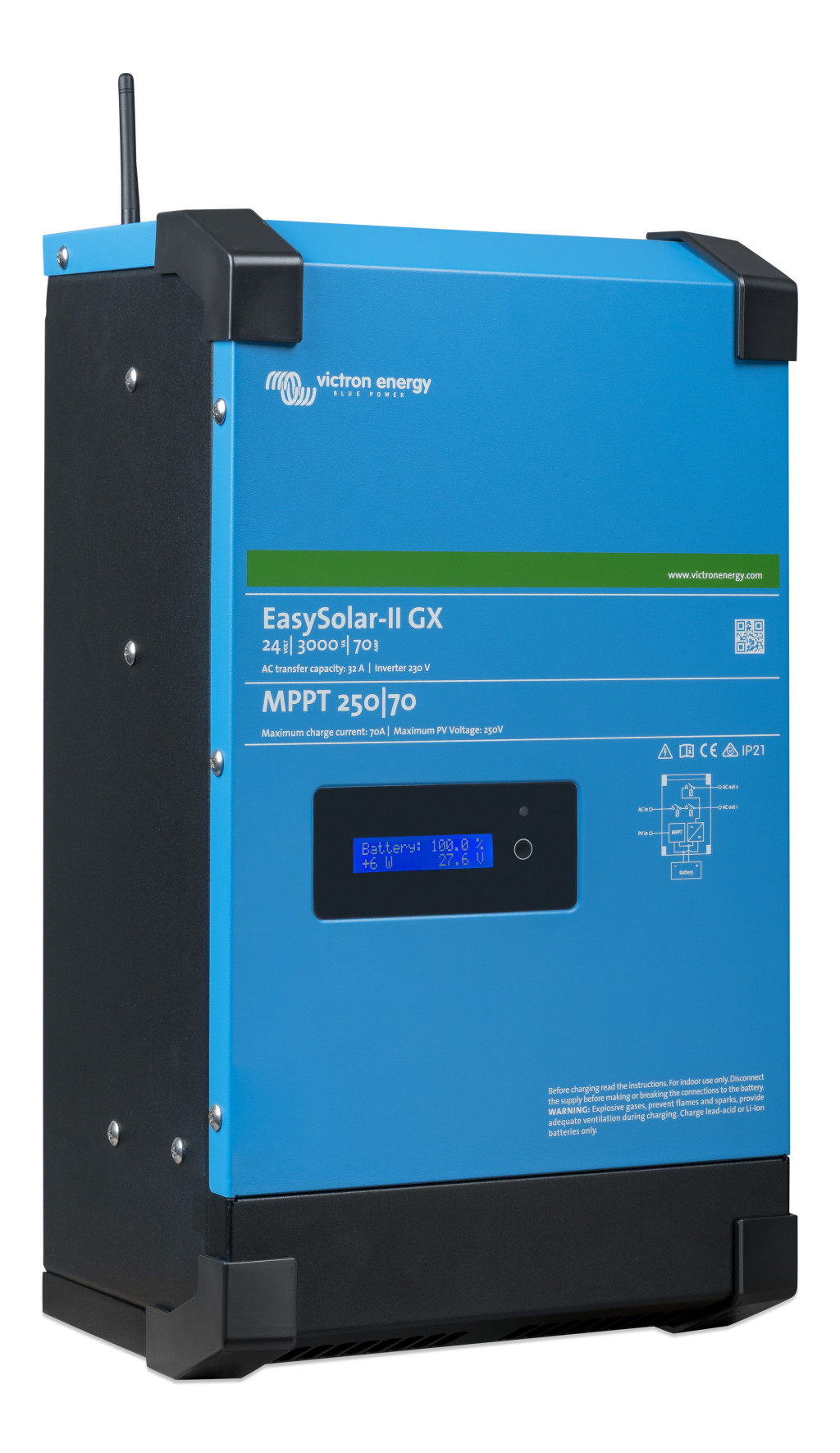

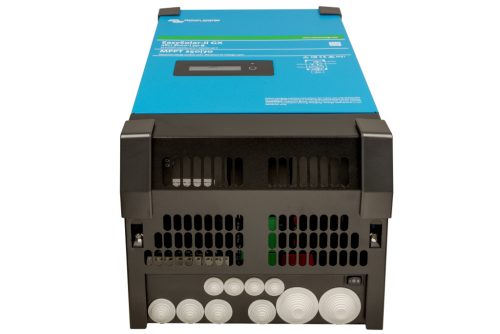

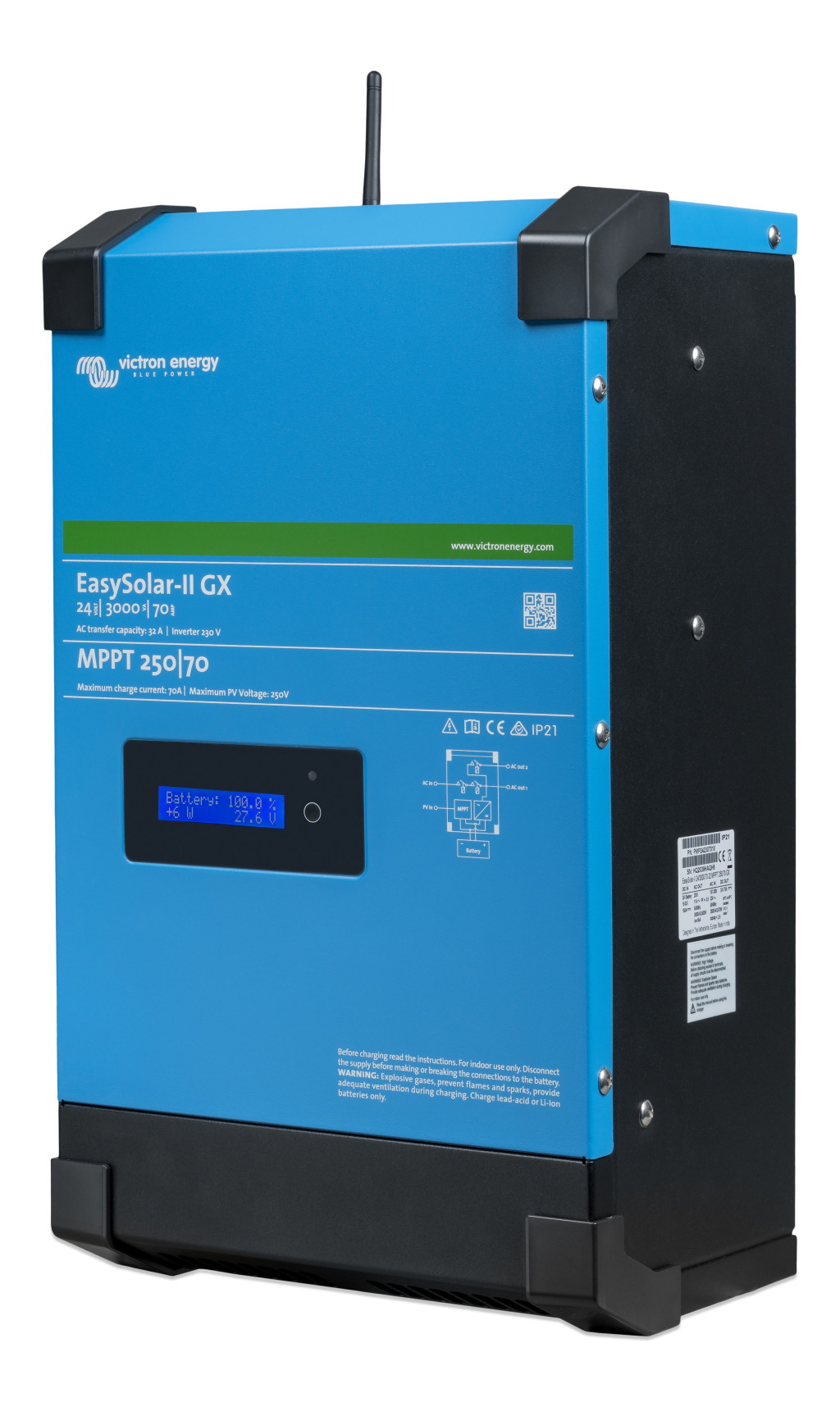

The Victron Energy EasySolar-II GX 24V 3000VA combines the functions of an MPPT solar charge controller, an inverter/charger, and a control center within a single enclosure. The product is easy to install, requiring minimal wiring, making it an ideal choice for solar systems.
Warranty: 5 years manufacturer warranty
Technical Specifications – Victron Energy EasySolar-II GX 24V 3000VA
| Rated Power | 3000 VA |
| Battery Voltage | 24 V |
| Maximum AC Input Current | 32 A |
| Continuous Output Power at 25 °C | 2400 W |
| Maximum Visible Feed-in Power | 3000 VA |
| Peak Power | 5500 W |
| Maximum Efficiency | 94 % |
| Zero Load Power | 13 W |
| Zero Load Power in AES Mode | 9 W |
| Zero Load Power in Search Mode | 3 W |
| AC Input Voltage Range | 187-265 VAC |
| AC Input Frequency | 45 – 65 Hz |
| Charging Voltage 'Absorption' | 28.8 V |
| Charging Voltage 'Float' | 27.6 V |
| Maximum Battery Charging Current | 70 A |
| Maximum PV Power | 2000 W |
| Maximum PV Open Circuit Voltage | 250 V |
| Maximum Efficiency (SmartSolar) | 99 % |
| Operating Temperature Range | -20 to +45 °C |
| Maximum Altitude | 2000 m |
| Humidity (non-condensing): max | 95 % |
| Weight | 26 kg |
| Dimensions (h x w x d) | 499 x 268 x 237 mm |
| Protection Category | IP21 |
