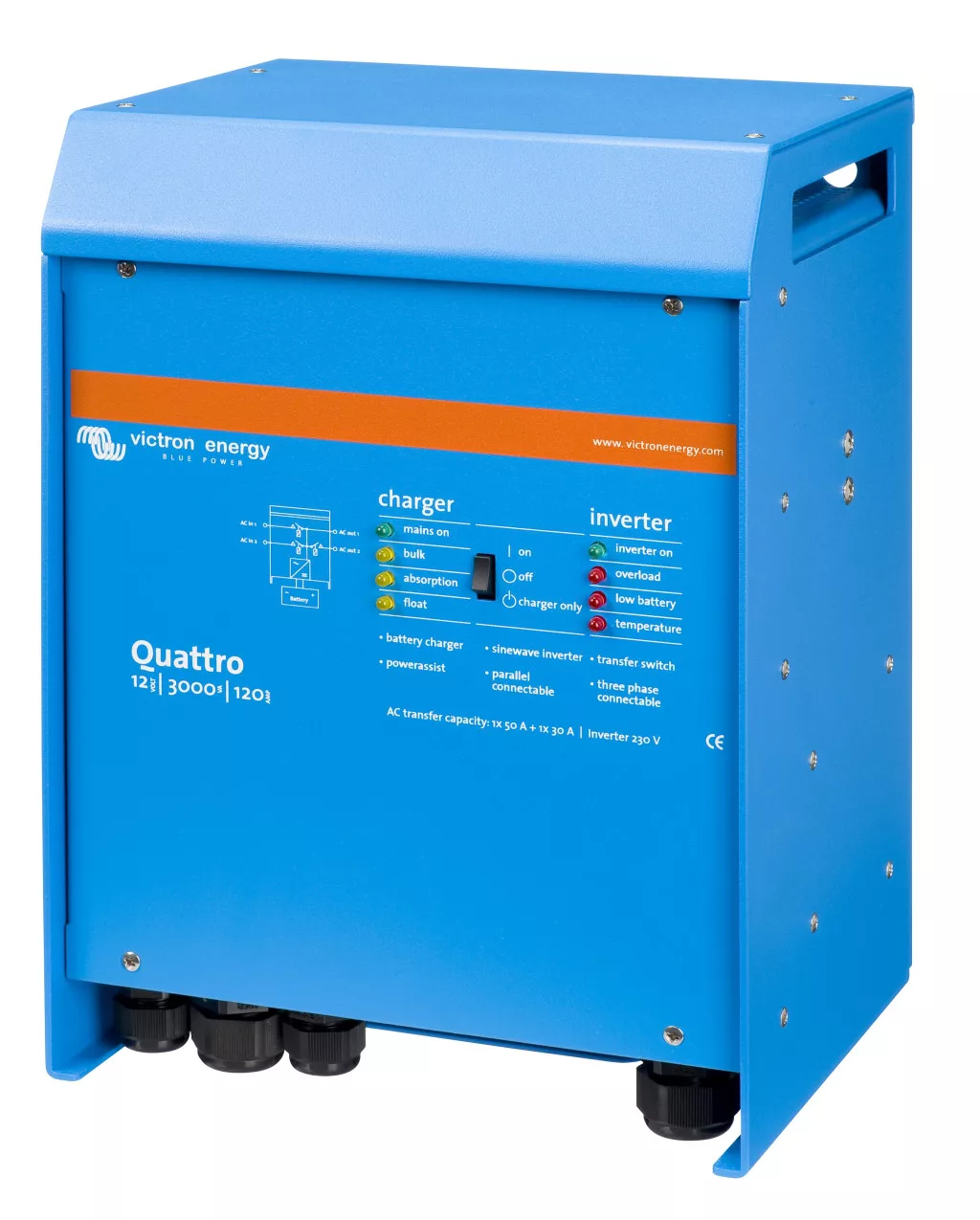

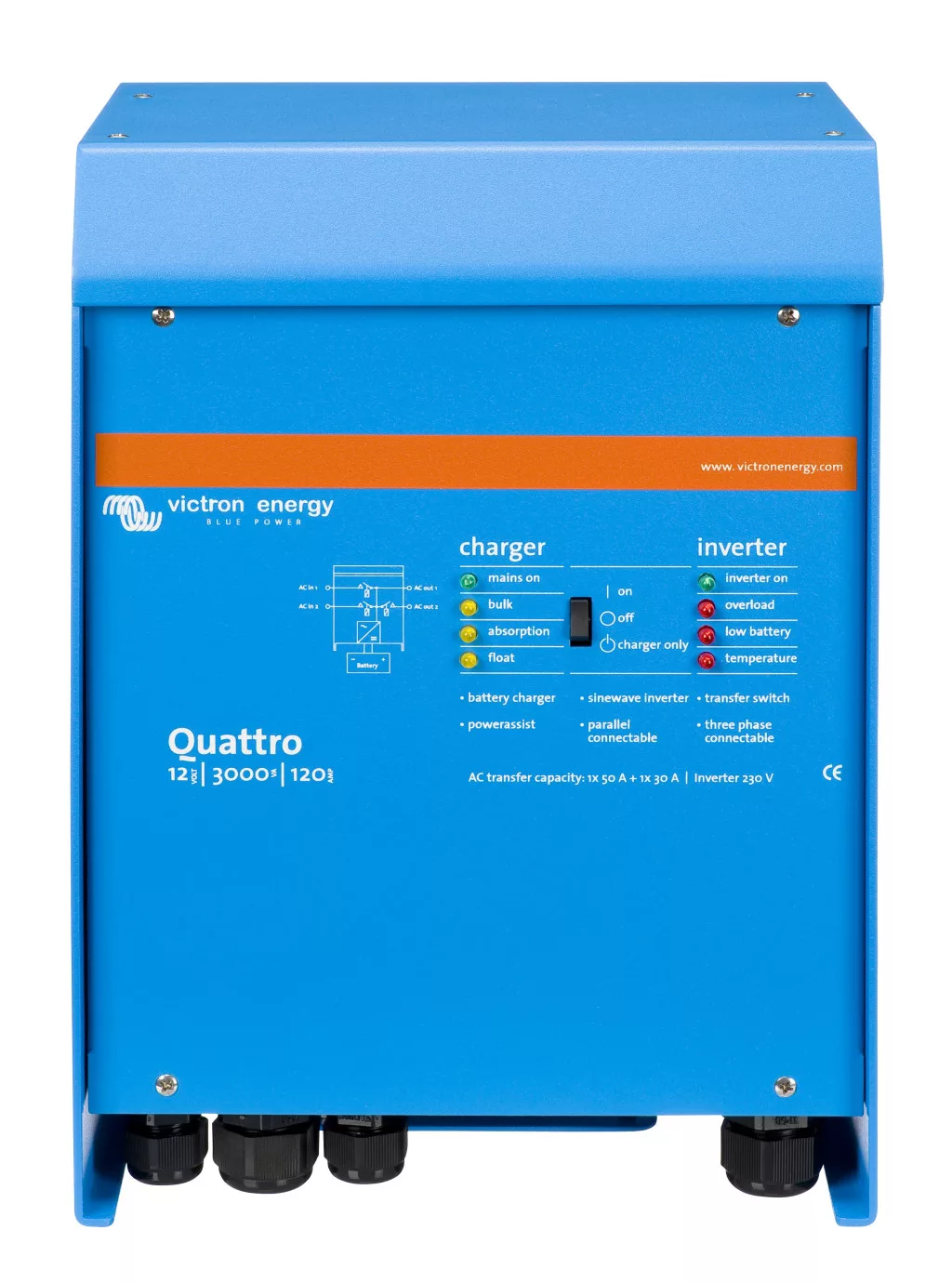

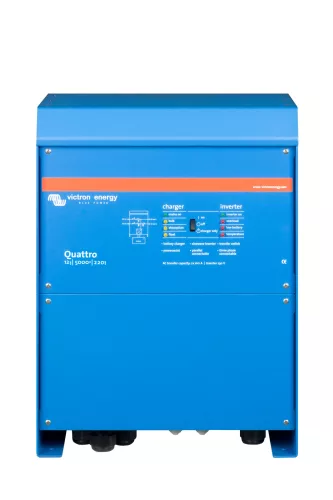

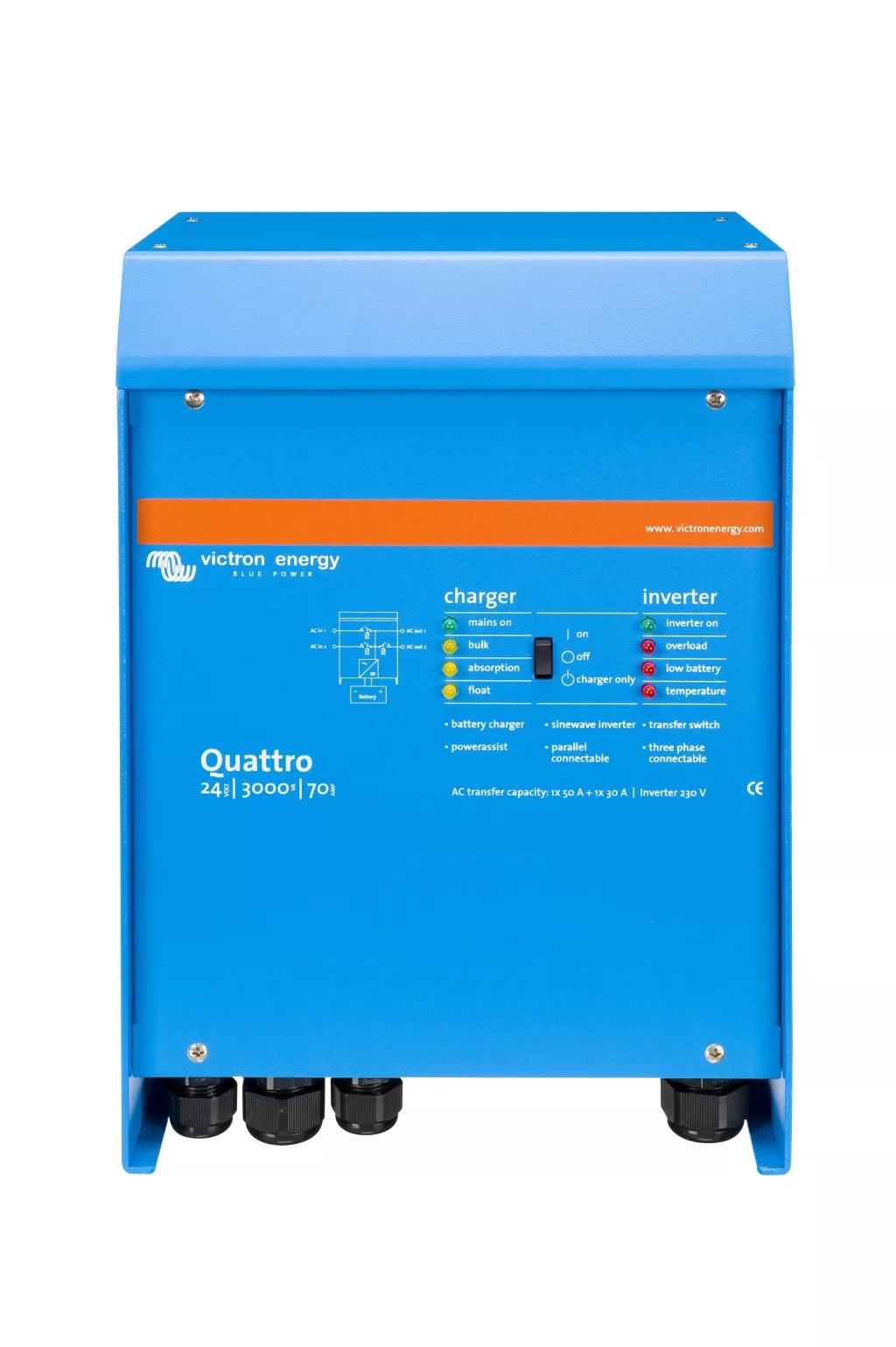

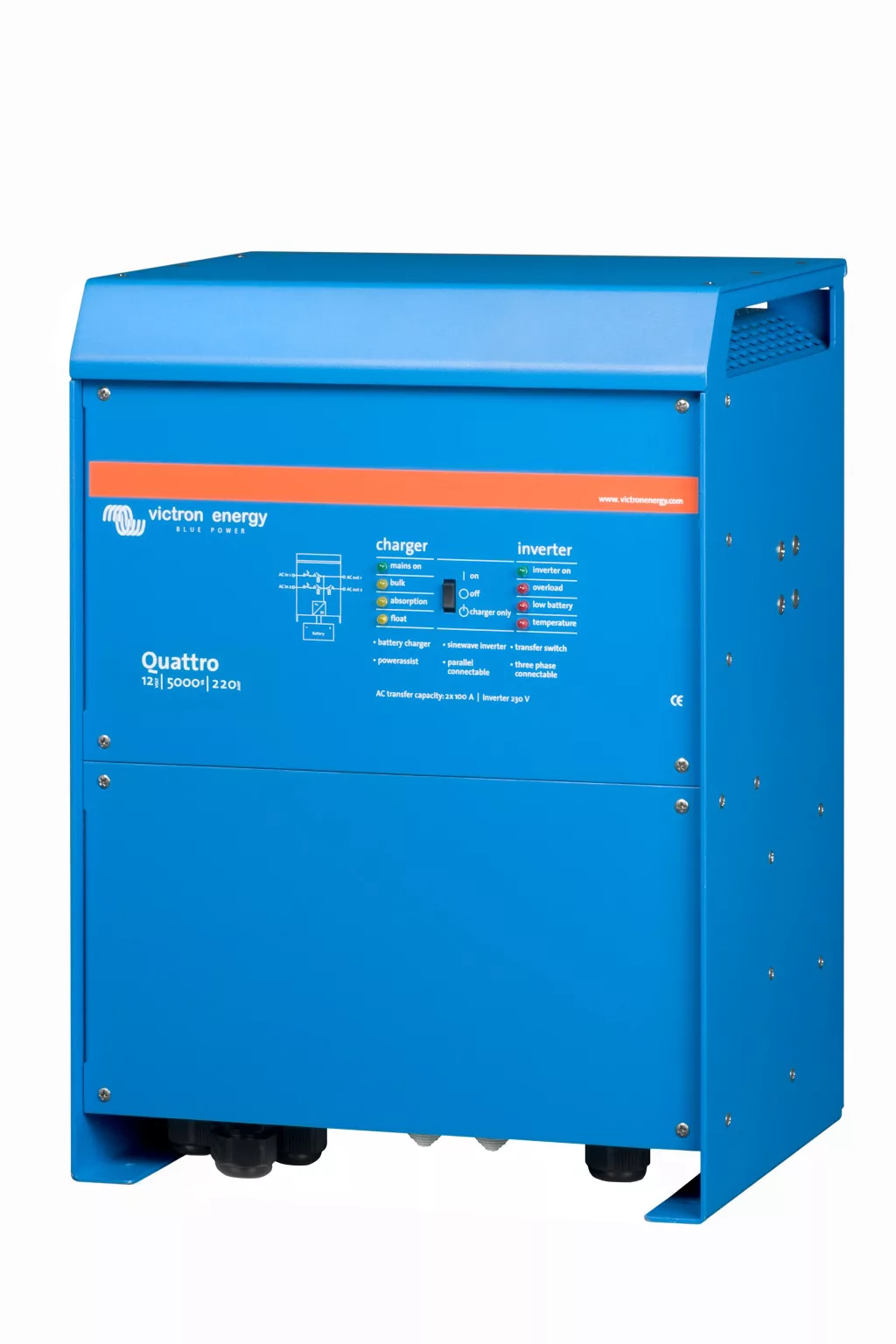

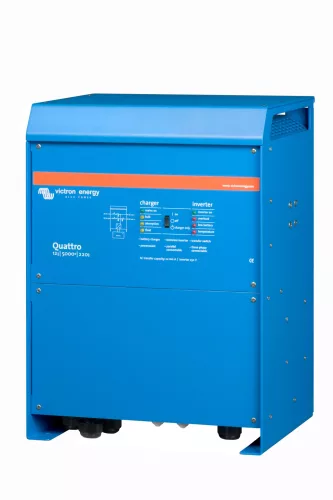

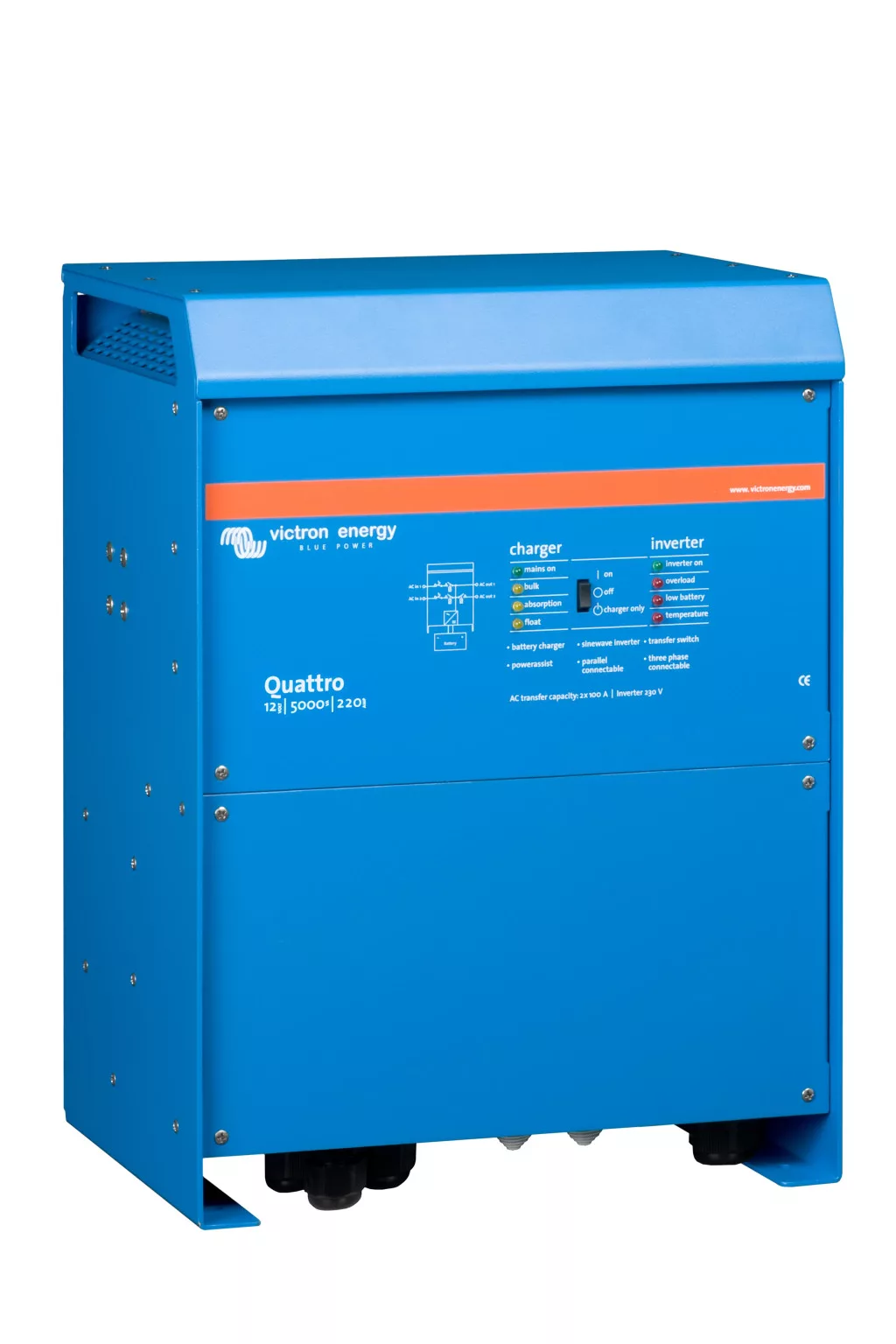

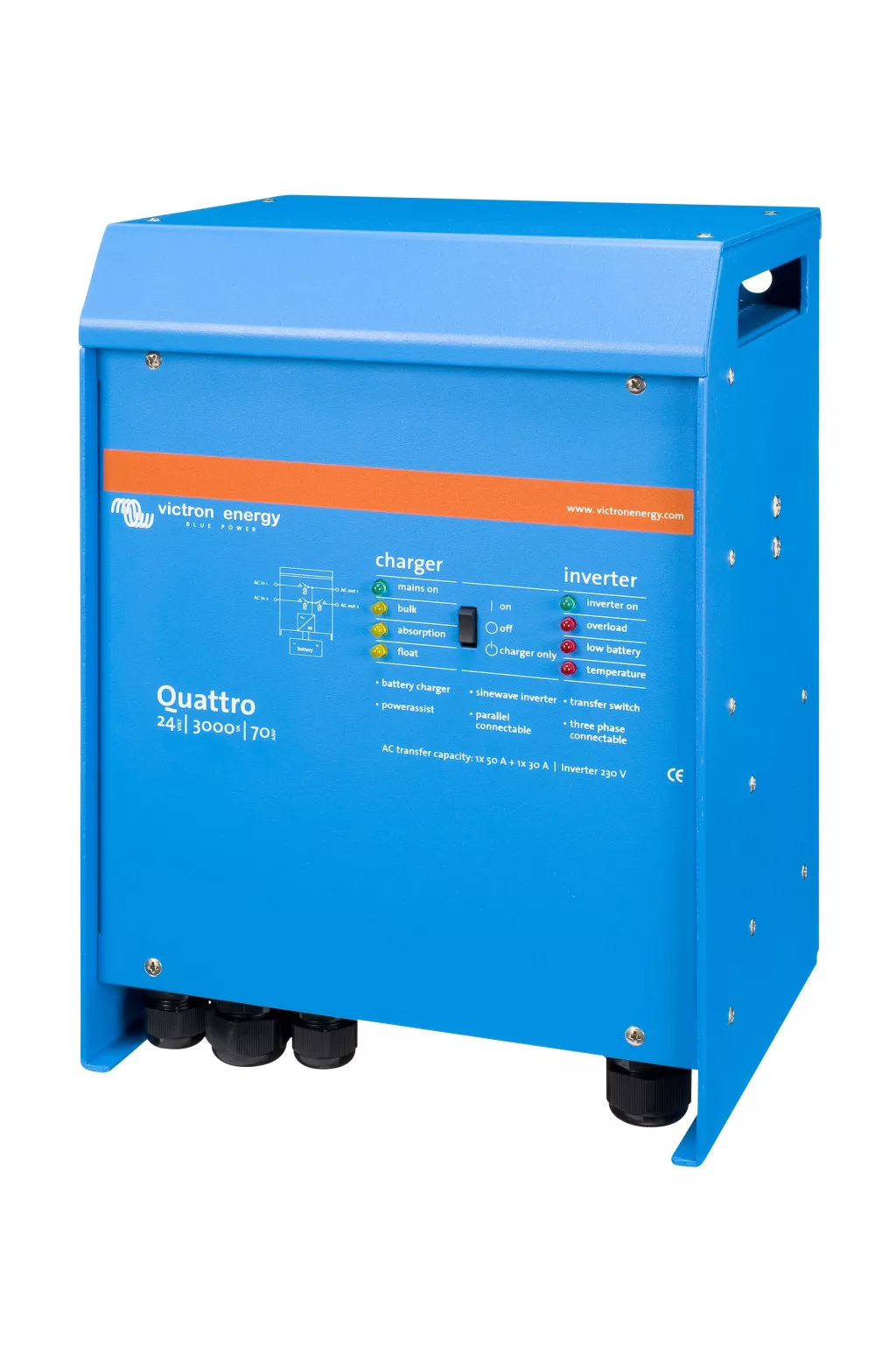

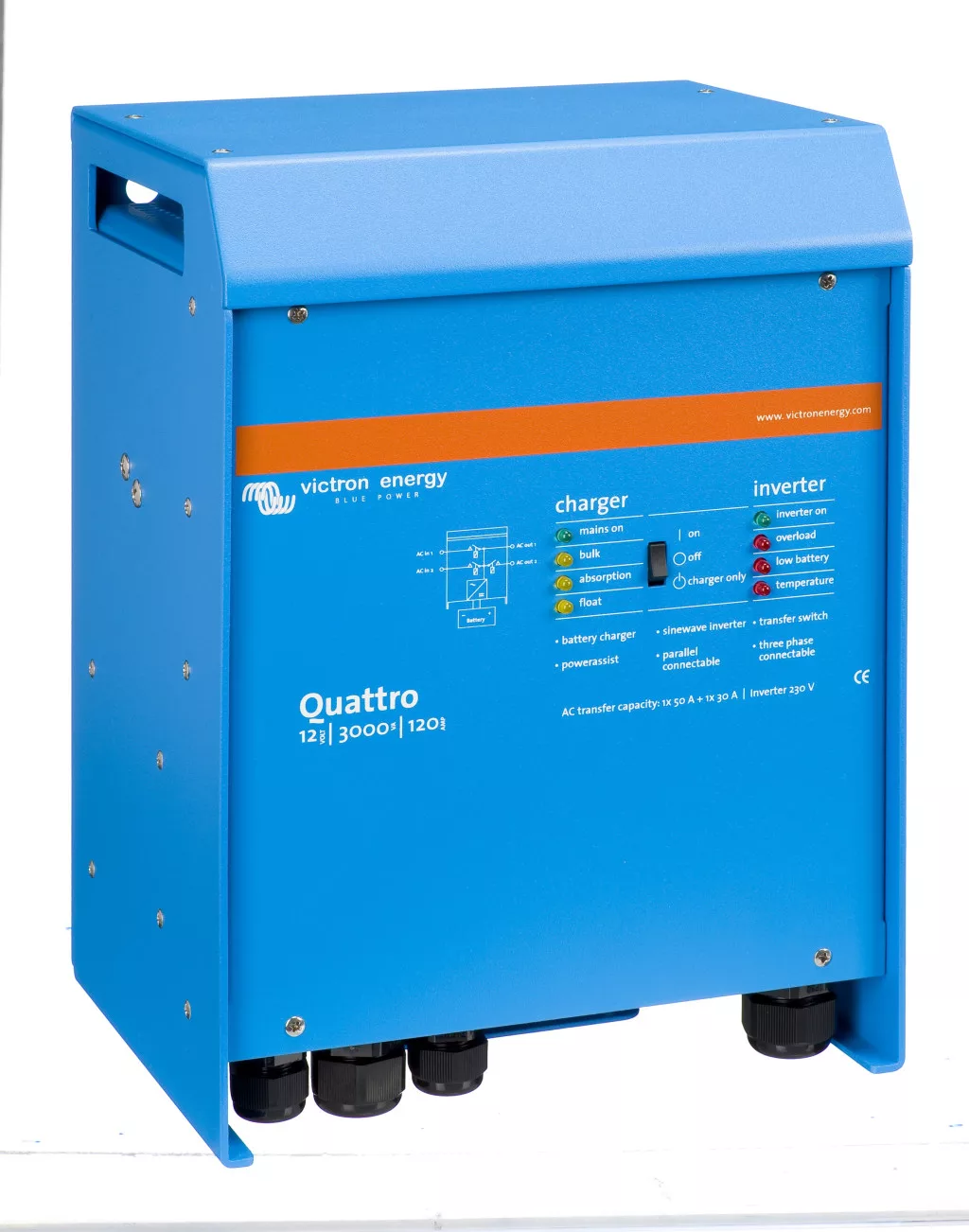

Victron Energy Quattro 48/15000/200-100/100 230V VE.Bus

The Quattro is an advanced combined inverter and battery charger with two AC inputs. It automatically switches between mains and generator power.

Two AC inputs

The first input connects to the grid, the second to a generator. The Quattro automatically switches between the two sources.

PowerControl and PowerAssist

PowerControl optimises energy usage; PowerAssist draws additional power from the battery during peak loads.

Key technical specifications

• Battery voltage: 48V
• Apparent power: 15000 VA
• Active power: 12000 W
• Peak power: 25000 W
• Charging current: 200A
• Efficiency: up to 96%
• Weight: 72 kg
• Dimensions: 572 x 488 x 344 mm

Warranty: 5-year manufacturer warranty

Data

Brand:

Victron Energy

Weight:

72 kg

EAN:

8719076037347

Voltage:

48 V DC

User Manual:

https://www.victronenergy.com/upload/documents/Manual-Quattro-5k-8k-10k-15K-100-100A-230V-(firmware-xxxx4xx)-EN-NL-FR-DE-ES-SE-IT.pdf

Output Signal Shape:

Pure sine wave

Technical Specifications:

Névleges teljesítmény: 8000 VA / 7000 W - Akkumulátor feszültség: 48V - Csúcsteljesítmény: 14000 W - Hatásfok: 96% - Töltőáram: 110A - Tömeg: 60 kg - Méretek: 572 x 488 x 344 mm

Input Voltage Range:

38–60 V DC

Output Power:

15000 VA / 12000 W

Output Voltage:

230 V AC ±2%

Warranty:

Minimum 3 years (statutory warranty), individual warranty as per product description

Website:

https://www.victronenergy.com/upload/documents/Dat...
