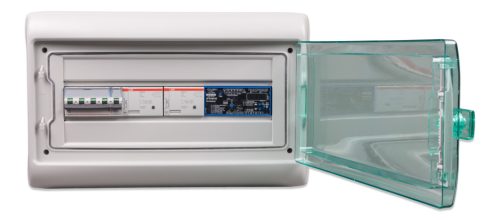

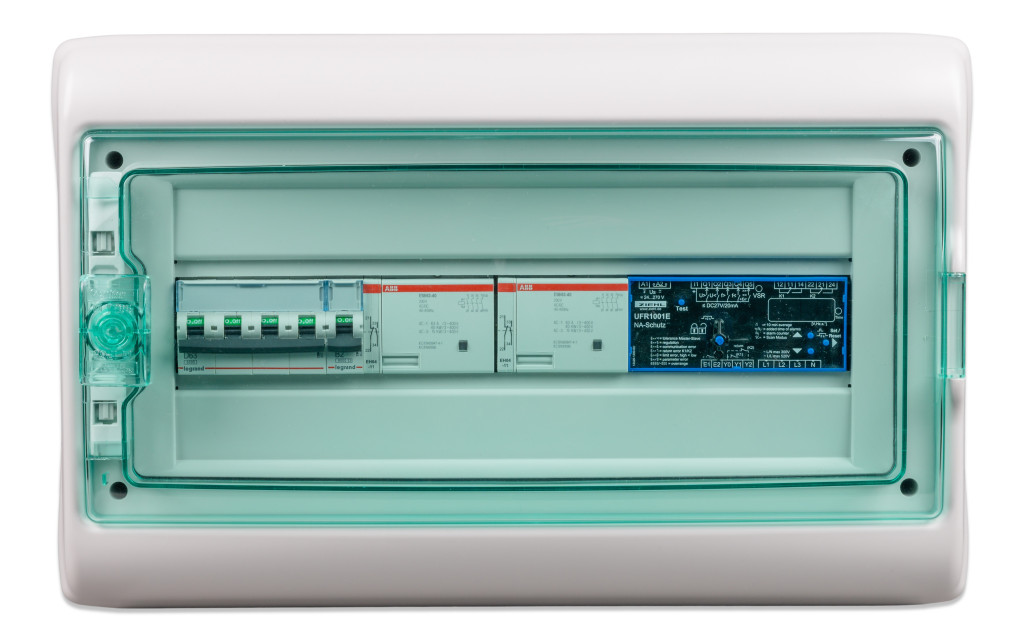

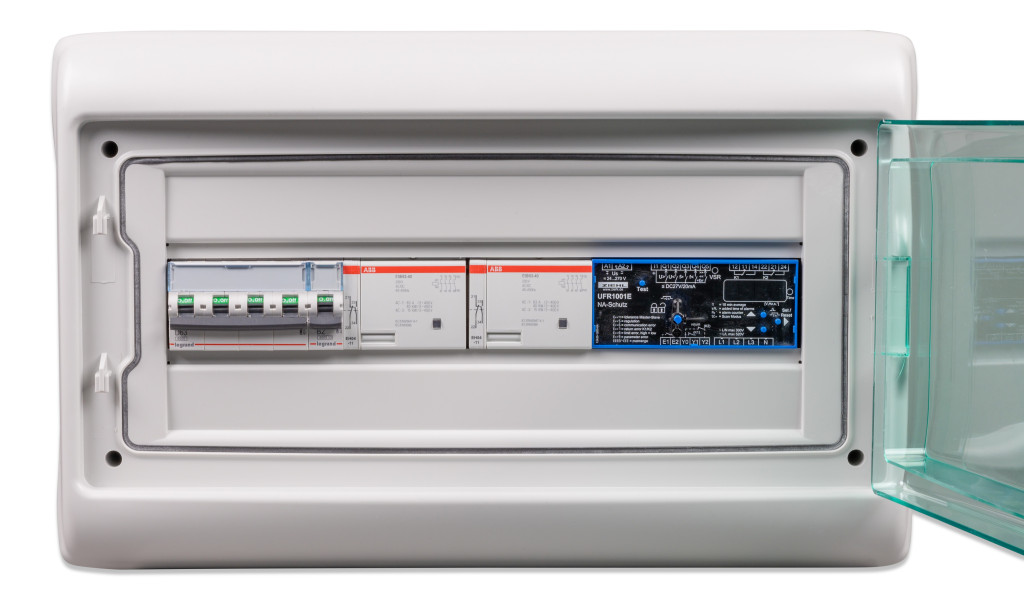

65A, 1 and 3 phase Victron Energy distribution box in insulated design
This professional insulated distribution box is specifically designed for Victron Energy systems, up to 65A current, with 1 and 3 phase connection options. Ideal choice for safe distribution in solar systems, off-grid and hybrid inverters, as well as residential and industrial power supply solutions.
Main features and benefits
- Maximum load capacity: 65A rated current
- Usable for both single-phase and three-phase networks
- Electrically insulated, safe housing
- Compatible design with Victron Energy inverters and chargers
- Transparent layout for quick installation and maintenance
- Reliable protection for residential and smaller industrial use
Applications
The insulated distribution box is widely applicable in home and professional energy systems, especially where safe power distribution and integration of Victron Energy components is important.
- Household solar systems (PV systems)
- Off-grid systems in holiday homes, RVs, boats
- Hybrid inverter systems with grid feed-in
- Smaller industrial, commercial, and agricultural facilities
- Energy storage systems with batteries and inverters
Safety and insulation
The insulated housing provides enhanced protection from electrical contact hazards and contributes to the safe operation of the system. The distribution box is designed to meet modern electrical safety requirements and support the proper application of overcurrent protection, miniature circuit breakers, and RCDs.
- Touch protection for users
- Proper insulation between wires and connection points
- Safe installation for qualified electricians
- Stable connection surfaces for cables and protective devices
Compatibility with Victron Energy systems
The product is specifically optimized for Victron Energy components, making it easy to integrate with existing or new inverters, chargers, and energy management systems. The design facilitates structured and transparent distribution of PV inverters, battery chargers, AC consumer circuits, and grid feed-in.
- Easy connection to Victron inverter/charger devices
- Transparent connection points for AC inputs and outputs
- Possibility to separate different consumer circuits, priority circuits
- System-level expandability – additional circuits can be added later
65A capacity – how much is enough?
The 65A current provides sufficient power for average family homes, smaller industrial workshops, or offices, especially in solar and energy storage solutions. The properly sized distribution plays a central role in the efficient and safe operation of the system.
- Safe supply for higher power electrical consumers
- Serving household, office, and light industrial loads
- Future expansions, integration of additional consumers possible
1 and 3 phase connection flexibility
The box design allows for both single-phase and three-phase systems to be connected. This is particularly advantageous in projects where future expansion or network modifications are expected, or where both single-phase and three-phase consumers are present simultaneously.
- Single-phase operation for smaller systems, holiday homes, mobile systems
- Three-phase operation for larger household or industrial loads
- Flexible wiring options for different circuits
Convenient installation and maintenance

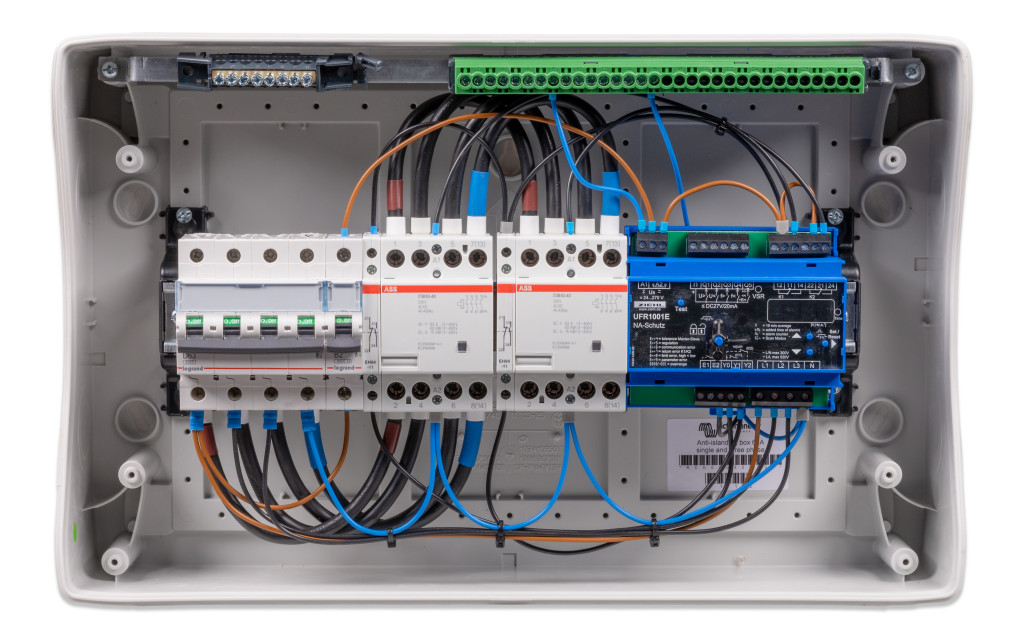

The internal layout and connection points are designed for electricians to perform the installation quickly and transparently. Organized cable routing, easily accessible screw connections, and clear structure also facilitate later modifications and troubleshooting.
- Transparent modular structure
- Good accessibility during maintenance
- Organized cable management inside
- Quick installation by qualified installers
Why is a Victron compatible insulated distribution box a good choice?
A reliable AC distribution is a central element of any modern power supply system, whether it is a solar solution, off-grid system, or grid-connected energy storage configuration. The proper insulation, adequate current carrying capacity, and compatibility with Victron Energy devices guarantee stable, safe, and efficient operation in the long term.
- Safe power distribution in home and industrial environments
- Easy integration with existing Victron systems
- Future-proof solution for expandable solar and energy storage systems
- Proper foundation for building a professional electrical network
Summary
The 65A, 1 and 3 phase, insulated Victron Energy distribution box is an ideal central element in any power supply system where safe power distribution, flexible connection, and reliable operation are important. Recommended for solar systems, off-grid solutions, and hybrid inverter configurations, easily installable, transparent, and expandable solution by professionals.
