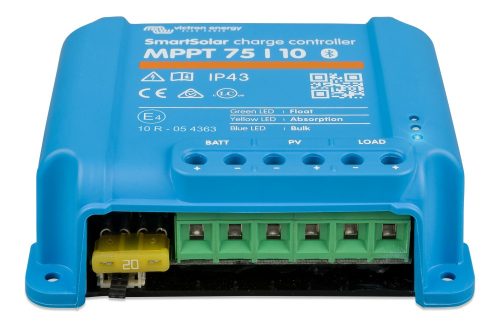

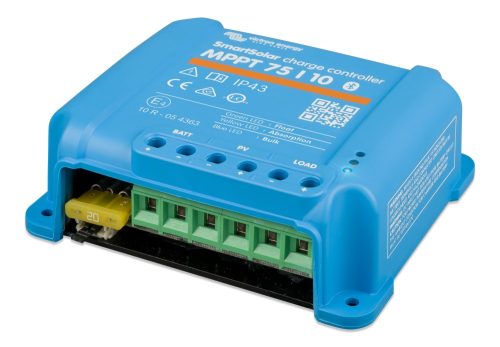

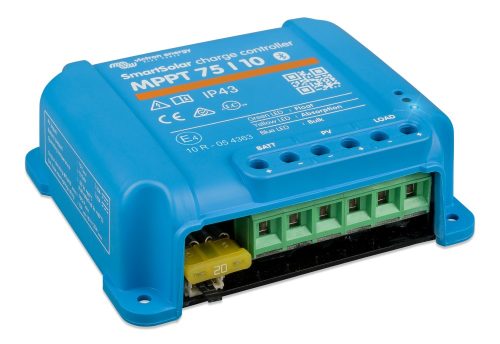

Victron Energy SmartSolar MPPT 75/10 12V / 24V 10A Solar Charge Controller

• Details
• Data
• Reviews

Details

MPPT: Ultra-fast, maximum power point tracking

By continuously monitoring the voltage and current output of the solar panels (photovoltaic panels), MPPT technology ensures the collection and storage of every bit of available energy in the panels. The advantage of this is most evident when the sky is partly cloudy, and the light intensity is constantly changing.

Remote monitoring and control

The SmartSolar MPPT charger has widely available features that can be controlled and monitored remotely with built-in Bluetooth service when paired with your smartphone or other device via VictronConnect. If your device is connected to the Internet via a GX device, the Victron remote management portal (VRM) provides access to all MPPT features anytime and anywhere; both VictronConnect and VRM are free to use. For remote devices, it is also possible to monitor the MPPT with a GlobalLink 520 connection, even if there is no Internet connection nearby.

Power output to the consumer

The intelligent Power output to the consumer feature prevents damage caused by completely discharged batteries. The voltage value at which the SmartSolar disconnects from the given consumer can be programmed – thus preventing the battery from being completely discharged. And here lies the smart twist: The SmartSolar attempts to recharge to 100% every day. If this is not possible due to unfavorable weather conditions, it continues to raise the disconnection voltage value every day until the operation is successful. The feature is called BatteryLife, because it helps maintain the proper condition of the battery, increasing its lifespan.

Data

Brand:

Victron Energy

Weight:

0,5 kg

EAN:

8719076040798

Voltage:

12/24 V

User Manual:

https://www.victronenergy.com/upload/documents/Manual_SmartSolar_MPPT_75-10_up_to_100-20/29694-MPPT_solar_charger_manual-pdf-en.pdf

Input Voltage Range:

PV max. 75 V

Number of Outputs:

1 akkumulátor- és 1 terheléskimenet

Output Power:

10 A

Output Voltage:

12/24 V

Warranty:

Minimum 2 years (statutory warranty), individual warranty as per product description

Website:

https://www.victronenergy.com/upload/documents/Dat...
