Professional shunt for high current DC systems

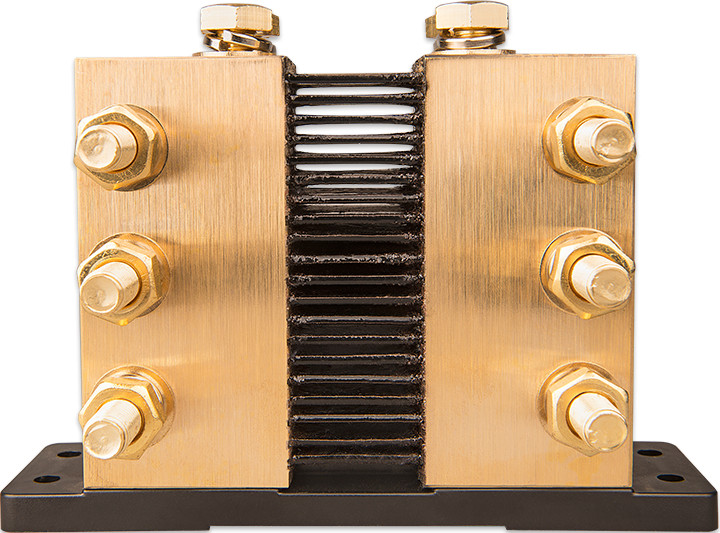

The Victron Energy 2000A/50mV shunt is a high-precision, industrial-grade current sensing resistor designed specifically for high current 12 V, 24 V, and 48 V DC systems. Ideal for battery monitoring, solar systems, inverters, boat and RV power supplies, and any application where accurate current and consumption measurement is needed.
What is a shunt, and why is it important?
A shunt is a very low-resistance measuring resistor through which the entire circuit's current flows. The voltage drop across it (in this case, 50 mV at nominal load) allows for precise calculation of the system's current. With this solution:
- high-precision current measurement can be achieved
- the charging and discharging data of batteries can be easily monitored
- energy consumption and recharging can be tracked
- overloads and oversized cables, fuses can be avoided
Main technical specifications
The 2000 A / 50 mV nominal value means that the shunt can measure a maximum of 2000 amperes of direct current while the voltage drop across it is only 50 millivolts. This ensures low loss and high efficiency even under extreme load.
- Nominal current: 2000 A DC
- Voltage drop at nominal current: 50 mV
- High measurement accuracy and stability
- Robust, industrial design, long lifespan
- Compatible with Victron battery monitors and energy management systems
Application areas
The shunt can be widely used in any DC system where accurate consumption measurement, battery state monitoring, and energy management are important. Typical uses include:
- solar systems and off-grid energy supply
- RVs, caravans, camping systems
- onboard networks of sailing and motor boats
- industrial power supplies and uninterruptible systems (UPS)
- telecommunications and security power supplies
Benefits of accurate current measurement
Accurate current and voltage measurement is one of the most important elements of monitoring modern battery energy supply. With a well-chosen shunt:
- The battery's state of charge (State of Charge) can be reliably determined.
- Charging and discharging cycles can be tracked, helping to optimize battery life.
- Based on detailed analysis of energy consumption, unnecessary loads can be reduced.
- Damage from deep discharge, overload, and overheating can be avoided.
Compatibility with battery monitors
The 50 mV nominal voltage drop is considered an industrial standard, allowing the shunt to be easily integrated with many battery monitors, data collectors, and energy monitoring systems. It is highly recommended for systems where a Victron battery monitor, BMV, SmartShunt, or other professional measuring device is used.
The shunt connects to the high current DC circuit (e.g., battery negative terminal and consumer bus) at both ends, while the small signal outputs connect to the monitoring device using measuring cables.
Safe and reliable design
In high current situations, reliability and safety are crucial. This shunt:
- has a robust, well-sized metal body
- offers stable contact surfaces for large cross-section cables
- provides stable measurement accuracy over the long term
- can conduct high currents with less heating
Installation recommendations
Proper installation is essential for accurate measurement and long-term reliability. Consider the following points:
- The shunt should preferably be connected in the negative branch of the battery so that the current of all consumers flows through it.
- Ensure good ventilation so that heat can easily dissipate under high load.
- Use appropriately sized and quality terminals, cables.
- Route the measuring wires (for the 50 mV signal) as short and shielded as possible.
- Ensure tight but not over-tightened screw connections to maintain stable contact.
Ideal choice for high-performance systems
Due to its 2000 A nominal current, this shunt is particularly suitable for measuring current in high-performance inverters, drives, large capacity battery banks, and hybrid energy systems. This solution is recommended when:
- high peak loads occur in the system
- multiple inverters, chargers, and consumers are connected in parallel
- precise energy management and logging are important
- long-term, reliable operation is the goal
Summary
The Victron Energy 2000A/50mV shunt is an essential accessory for any DC power supply system where accurate current measurement, battery protection, and energy consumption optimization matter. Its robust construction, compliance with industrial standards, and wide compatibility make it an ideal choice for solar systems, boats, RVs, and professional industrial applications alike.
