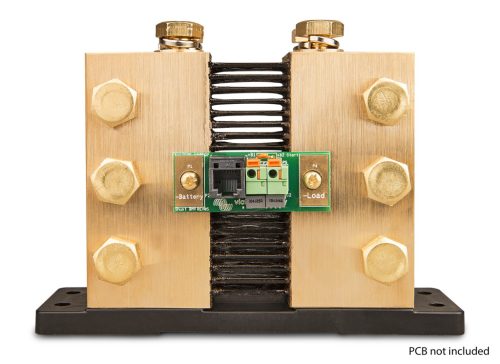

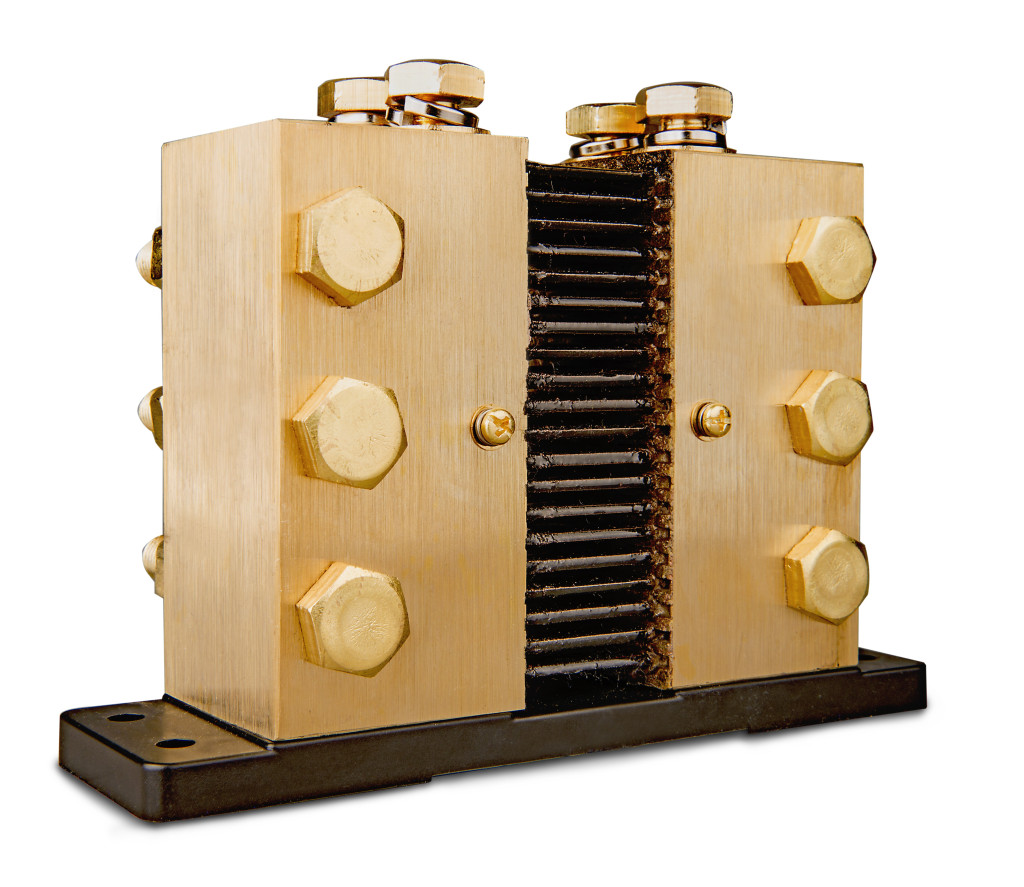

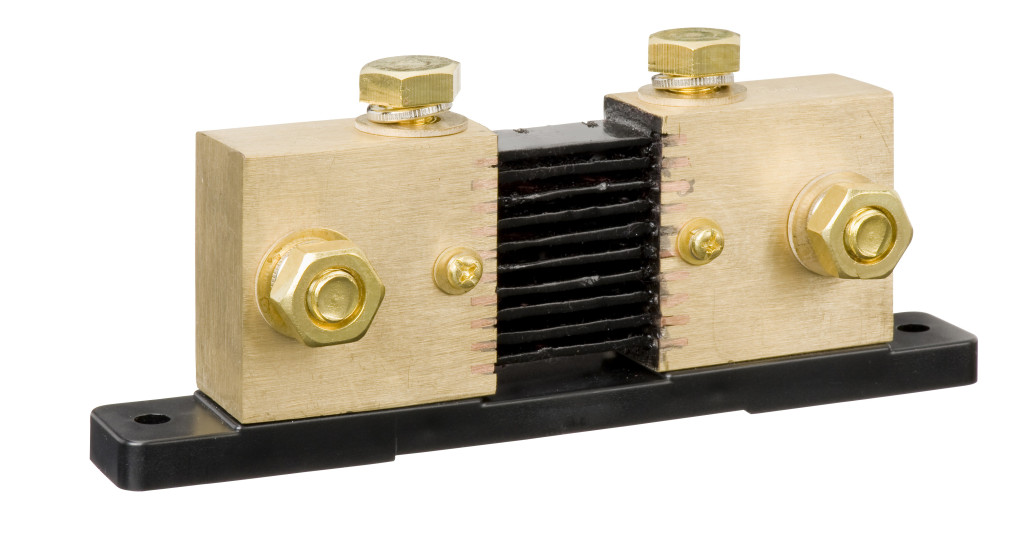

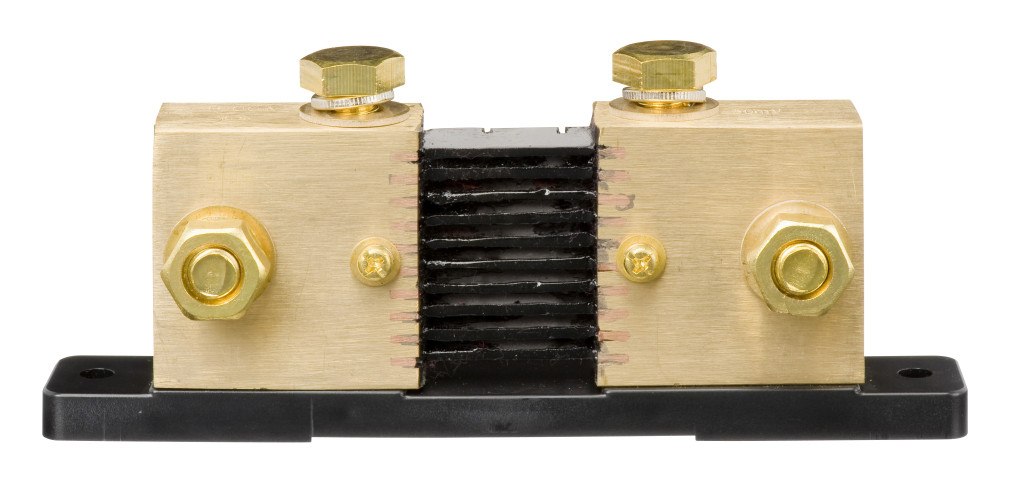

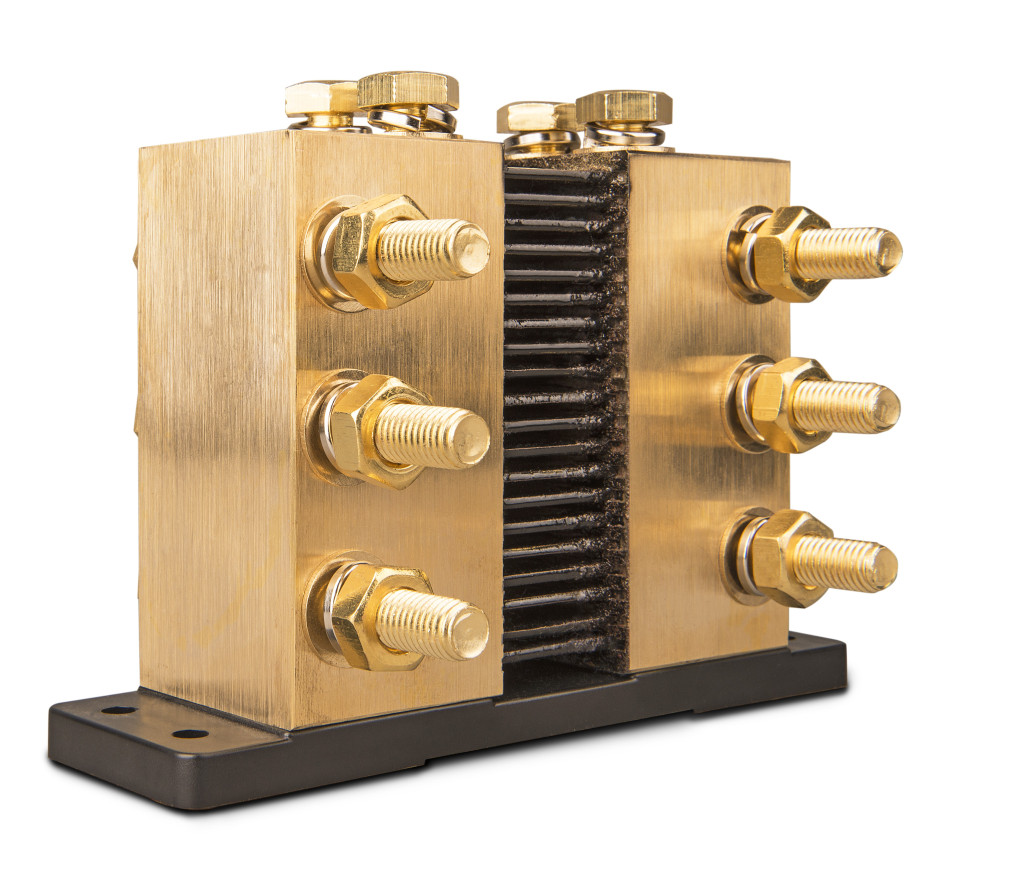

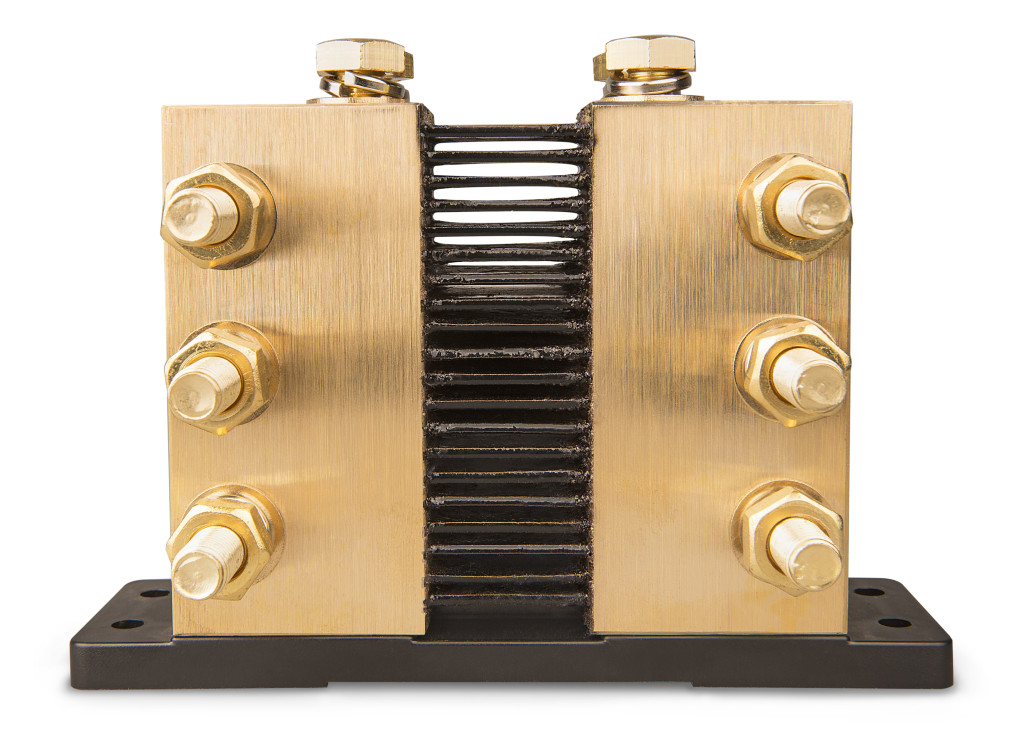

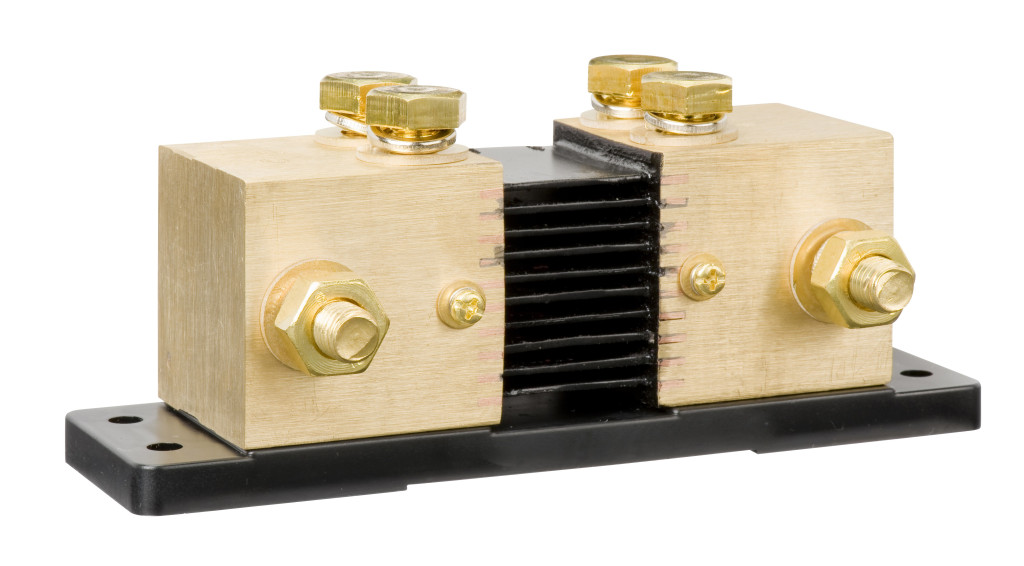

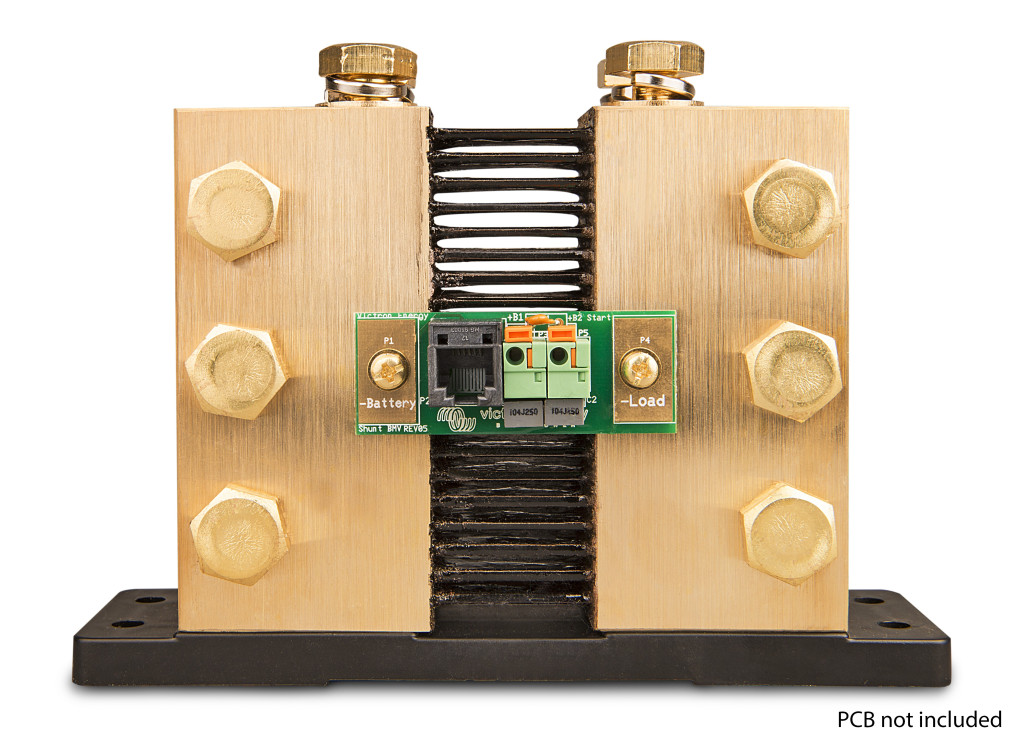

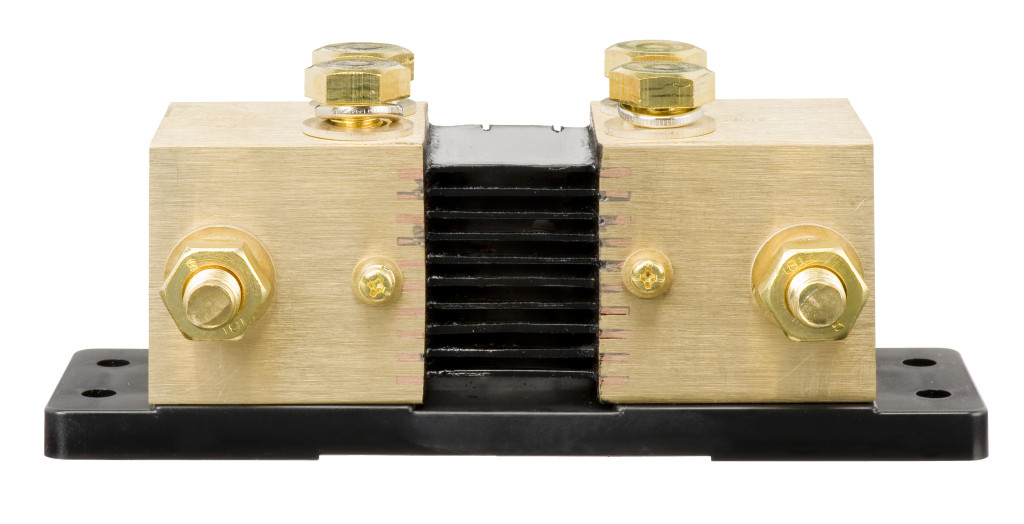

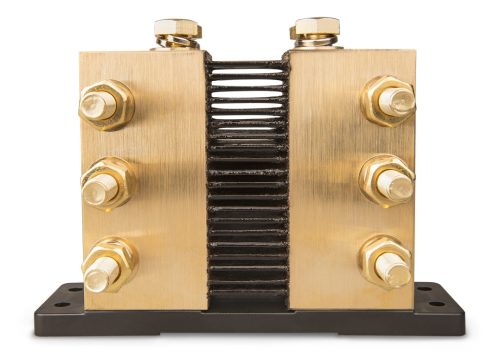

Professional shunt for accurate measurement in high current DC systems
This high current, 6000 amp shunt is an ideal choice for 12 V, 24 V, or 48 V DC systems where accurate current and consumption measurement is essential. With a voltage drop calibrated to 50 mV, measuring resistors can be safely connected to measuring instruments, battery monitors, or energy management systems, galvanically isolated.
Main application areas
The shunt is primarily used in high-performance, professional DC systems where precise monitoring of the current of the battery and consumers is critical. Typical applications include:
- industrial and commercial uninterruptible power supplies (UPS) and energy storage systems
- monitoring of boat and RV battery banks
- high-capacity batteries in RV and off-grid solar systems
- telecommunications and data center DC power supplies
- measuring current consumption of high current inverters and chargers
What is a shunt, and how does it work?
A shunt is a precision measuring resistor that is connected in series with the main battery negative or positive wire. When current flows through it, a very small but precisely defined voltage drop occurs between its two endpoints. This voltage:
- is proportional to the current flowing through it
- can be easily measured with standard measuring instruments
- causes minimal loss in the system
The 50 mV nominal voltage drop means that at nominal load, only 0.05 V drops across the shunt, keeping power loss low while achieving extremely accurate current measurement.
Benefits and main features
- Designed for measuring up to 6000 A continuous direct current
- 50 mV nominal voltage drop under heavy load
- high accuracy and stability for long-term use
- robust, vibration-resistant design for industrial and marine environments
- multiple screw connections for high-performance terminals
- compatible with modern battery monitors and DC measuring instruments
- suitable for lead-acid, AGM, gel, lithium, and other battery types
Why is accurate current measurement important in battery systems?
Monitoring large capacity battery banks can only be reliable if the current consumption and charging current are measured precisely. A quality shunt:
- helps calculate the battery's state of charge (SoC)
- reveals hidden consumers and unexpected loads
- enables optimization of energy consumption
- contributes to extending battery life
If lithium or other sensitive battery technologies are operating in the system, accurate current measurement and energy management are particularly important for safety and compliance with warranty conditions.
Installation and connection principles
Proper installation of the shunt is crucial for reliable measurement. General recommendations include:
- install the measuring resistor as close to the battery as possible
- the main battery cable should pass through it in series
- all consumers and charging sources should be connected to the other side of the shunt
- the measuring wires (for the 50 mV signal) should be connected with thin but reliable cables, ensuring correct polarity
- good ventilation and mechanical protection against direct physical impacts are recommended
During installation, always follow the manufacturer's wiring diagrams and relevant standards. For high current systems, it is advisable to involve a qualified electrician or marine electrical specialist.
Compatibility and integration with the system
The 0–50 mV signal generated by the shunt is widely accepted as an industrial standard. This allows:
- direct connection of battery monitors
- integration of data collection and remote monitoring systems
- use of DC consumption measuring instruments
- connection of energy management systems (e.g., solar inverters, hybrid system controllers)
Thus, it is not just a simple current measuring resistor, but a fundamental component on which a complete energy monitoring and control solution can be built.
Who is this high current shunt recommended for?
This category of shunt is ideal for you if:
- you have a high-performance solar or off-grid system
- you operate a high-capacity battery bank of hundreds or thousands of amp-hours
- you supply critical consumers (marine, industrial machines, telecommunications)
- accurate energy consumption measurement and documentation are important
- you are looking for a reliable, long-term solution for battery monitoring
Summary
This precision high current measuring resistor is a key player in any DC system where reliable current measurement, continuous monitoring of battery status, and maximizing energy efficiency are top priorities. Its robust construction, industrial load capacity, and wide compatibility ensure stable, accurate measurement for solar systems, marine applications, RVs, and professional energy storage solutions over the long term.
