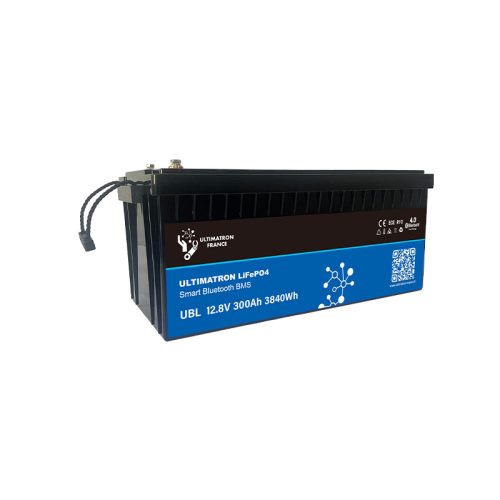

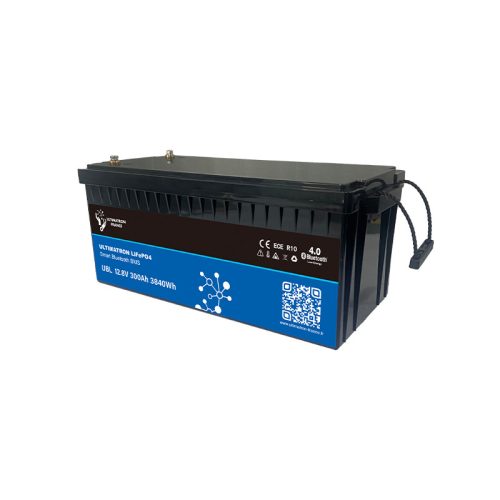

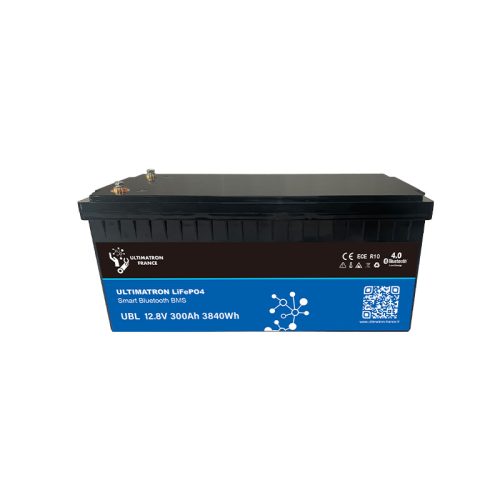

Voltage: 12.8V | Capacity: 300Ah | Warranty: 5 years | Manufacturer: Ultimatron France | Type: LiFePO4 | Connection: M8 screw | Weight: 28.25 kg | Dimensions: 522x240x221 mm | Operating temperature: -20–75 °C | Total energy: 3840Wh | Peak discharge current: 600A (200–500ms) | Maximum discharge current: 200A | Recommended charging current: 90A | Maximum charging current: 150A | Number of cycles: ≥6000 at 80% DoD
Integrated Battery Management System (BMS)
The installation of Ultimatron France PF batteries is extremely simple, requiring no additional components.
The internal switch disconnects the battery in case of excessive discharge, overcharging, or high temperature.
Batteries can be connected in parallel and in series.
The BMS monitors and controls each cell and protects them from damage, such as overload and overvoltage.
LITHIUM BATTERY
- UL standard
- 5 years warranty
- Directly replaces lead-acid batteries
- Lighter weight and easier handling
- Lithium iron phosphate is more stable
- Maximum lifespan of over 6000 cycles
- Long-lasting modular construction
Built-in Bluetooth 4.0 Monitoring
- The most accurate state of charge indication
- Switch function for controlling charging and load
- Compatible with connecting multiple batteries simultaneously
- Real-time monitoring of all batteries, presenting summary data of each battery
