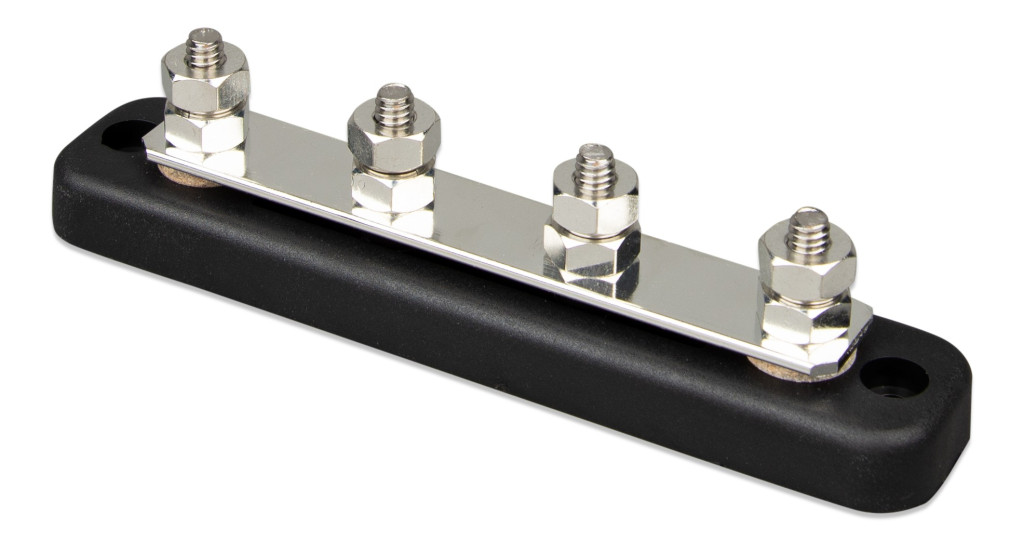

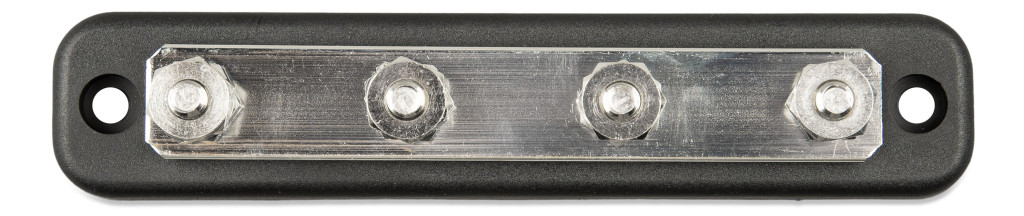

Professional DC busbar with 4 connection points, rated for 600A
This robust DC busbar, rated for 600 amperes, is an ideal solution for central distribution in battery power supply systems, solar off-grid or hybrid systems, and electrical networks on boats and RVs. With 4 high-performance connection points, it allows for safe and organized connections of batteries, inverters, chargers, fuse boxes, and other high-current consumers.
Applications and Benefits
Using a DC busbar significantly increases the transparency, safety, and reliability of the system. The massive busbar and high cross-section connection points ensure minimal transition resistance and heat generation even at high currents.
- For 12V, 24V, and 48V DC systems
- For DC distribution in solar energy storage systems
- For connecting batteries in boats, RVs, and off-grid systems
- For organized connections of inverters, battery chargers, and DC consumers
- For creating a safe, well-organized DC distribution point

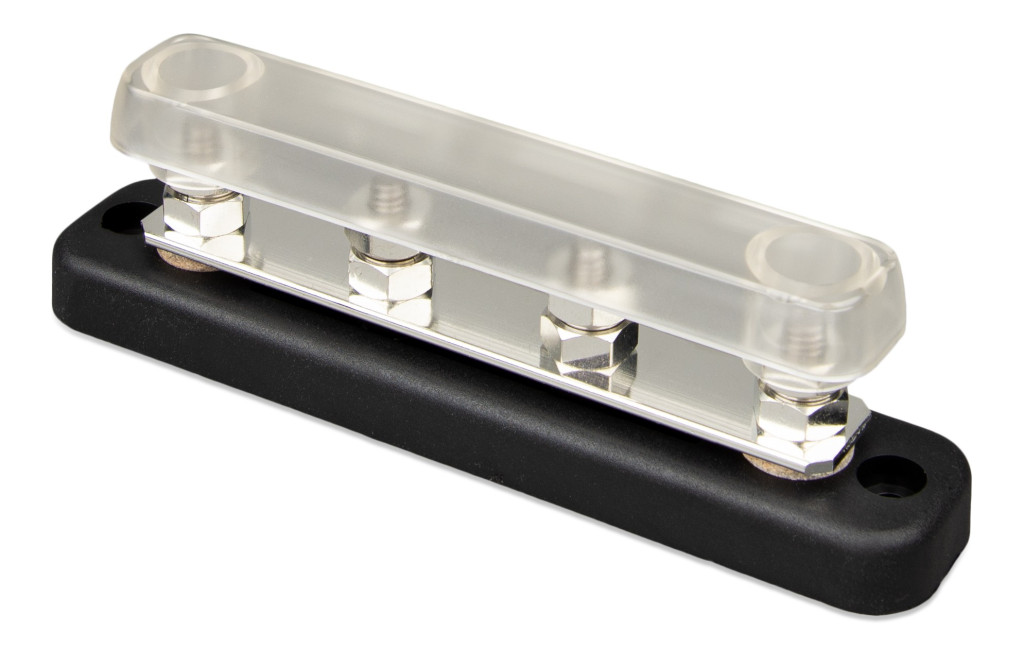

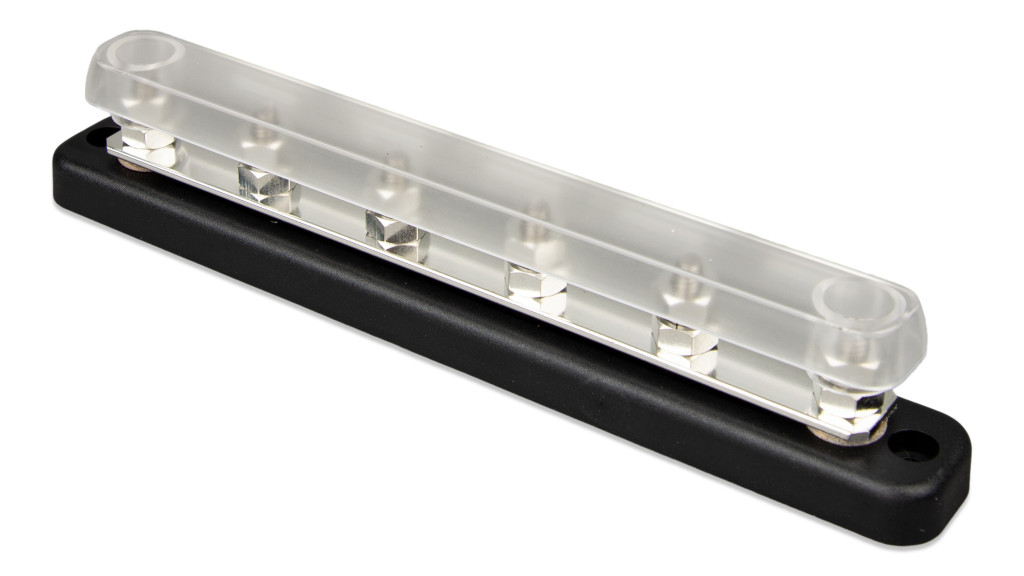

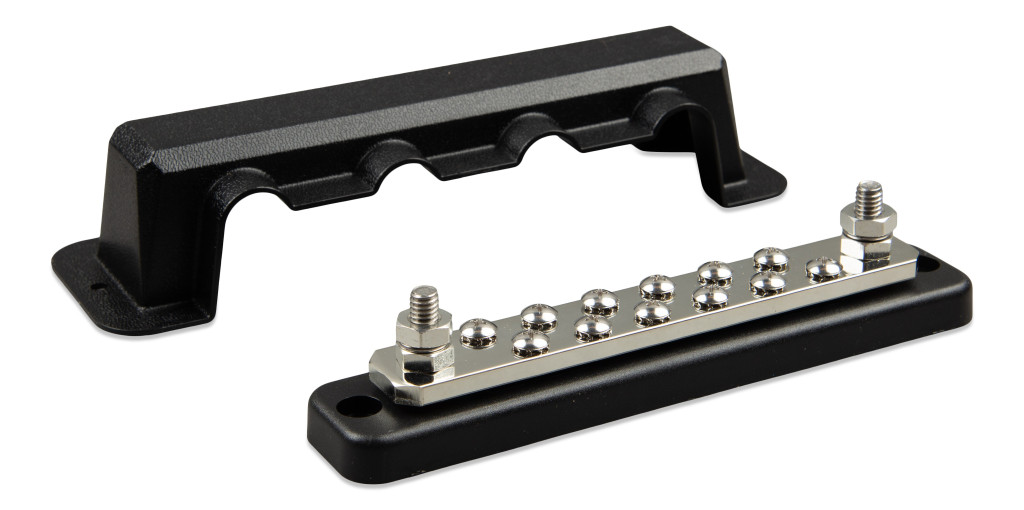

Safe Design with Protective Cover
The included cover protects the connection points from accidental contact, reducing the risk of short circuits and complying with modern electrical safety standards. The transparent design of the cover – depending on the type – aids visual inspection, allowing for quick assessment of connection status without disassembly.
- Touch protection for high-current connections
- Reduced risk of short circuits during installation and operation
- Aesthetic, organized design in the DC distribution cabinet
- Quick visual inspection during system maintenance
Main Technical Features
The busbar design is specifically made for the needs of high-performance, continuous load power supply systems. The quality of materials used and the carefully sized cross-section ensure long-term, reliable operation.
- Rated current: 600 A DC
- 4 high-current connection points (with screw connectors)
- Massive busbar for minimal voltage drop and heat generation
- Stable mounting points for secure installation
- Protective cover for covering connections
Why Use a DC Busbar?
In high-performance battery systems, safe and transparent DC distribution is essential. Separate cables, improvised branches, and overloaded connections not only complicate system transparency but also pose serious safety risks.
- Organized cabling: All high-current consumers and power sources can be connected at a central point.
- Better troubleshooting: It is clearly visible which cable connects where, making maintenance easier.
- Lower transition resistance: The massive busbar provides stable, large-surface contact.
- Safety: The protective cover reduces the chances of accidental short circuits and contacts.
- Professional setup: The design of the DC distribution point meets modern industrial and maritime practices.
Who is this busbar recommended for?
The 600A, 4-point busbar is recommended for any user who wants reliable and safe DC distribution in high-current systems. It is particularly useful for:
- Solar system installers
- Boat and RV builders, converters
- Designers of off-grid and island systems
- Installers of inverter energy storage systems
- Anyone who wants to safely distribute a high-current battery system
Installation Considerations and Practical Tips
When installing the busbar, it is important to consider the total load capacity of the system and the cross-section of the cables. Using appropriately sized DC cables and quality terminals is essential for maximum safety and longevity.
- Always choose a cable cross-section that matches the expected maximum operating current.
- Use properly crimped terminals for the connections.
- Pay attention to the proper tightening torque of the screws to ensure stable and durable contact.
- Place the busbar in a well-ventilated, easily accessible, but mechanically protected location.
- Always install the protective cover after completing the connections.
Reliable Power Distribution for High-Performance Systems
The 4 connection point, 600A rated busbar provides a stable foundation for any serious DC power supply system. It allows for safe, transparent, and professional connections for high-current connections, whether for solar systems, onboard networks, or RV energy systems.
