Safe disconnection and battery protection for high current systems

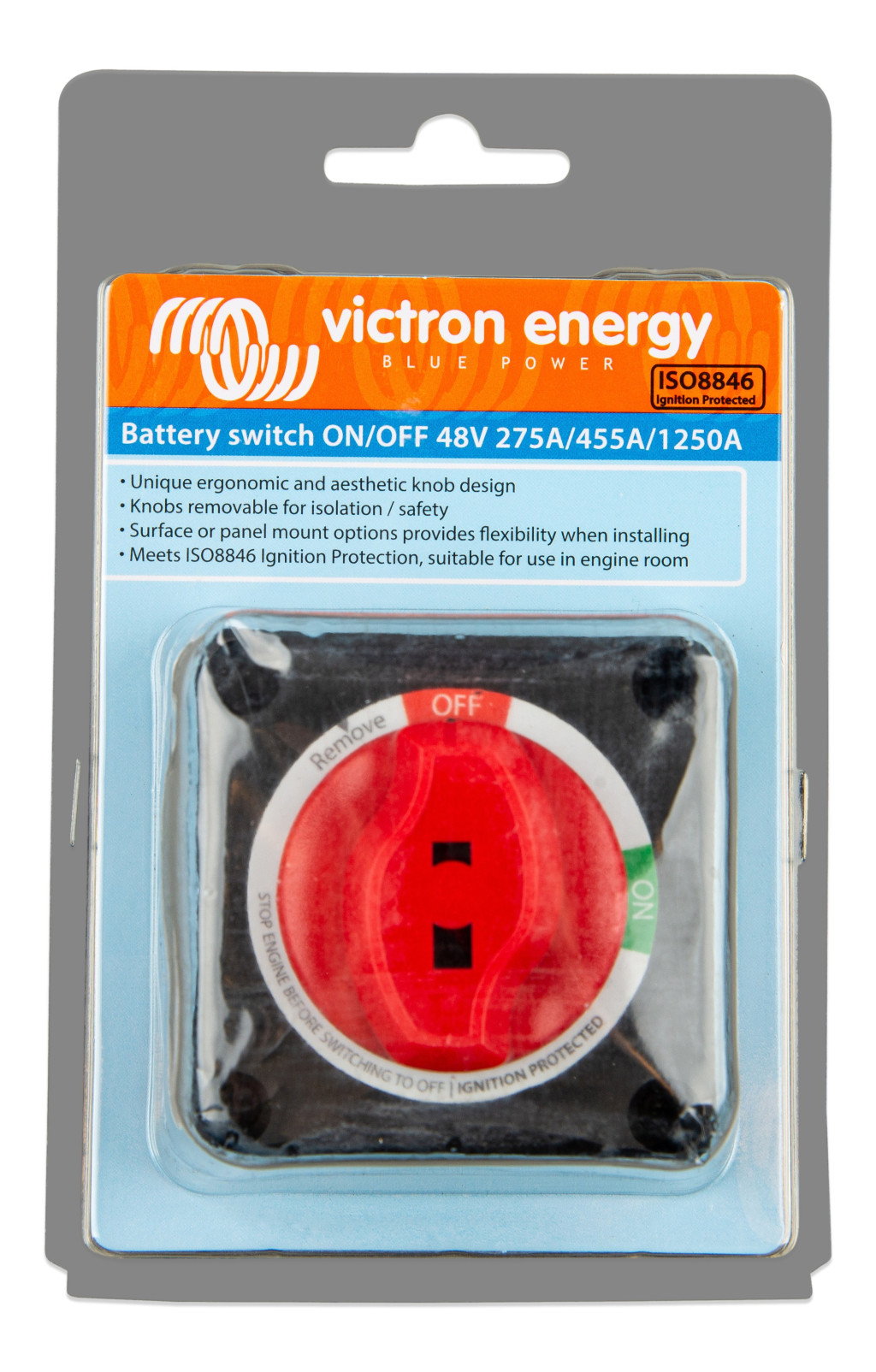

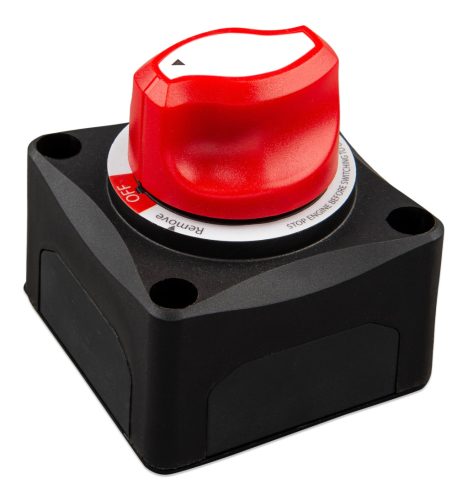

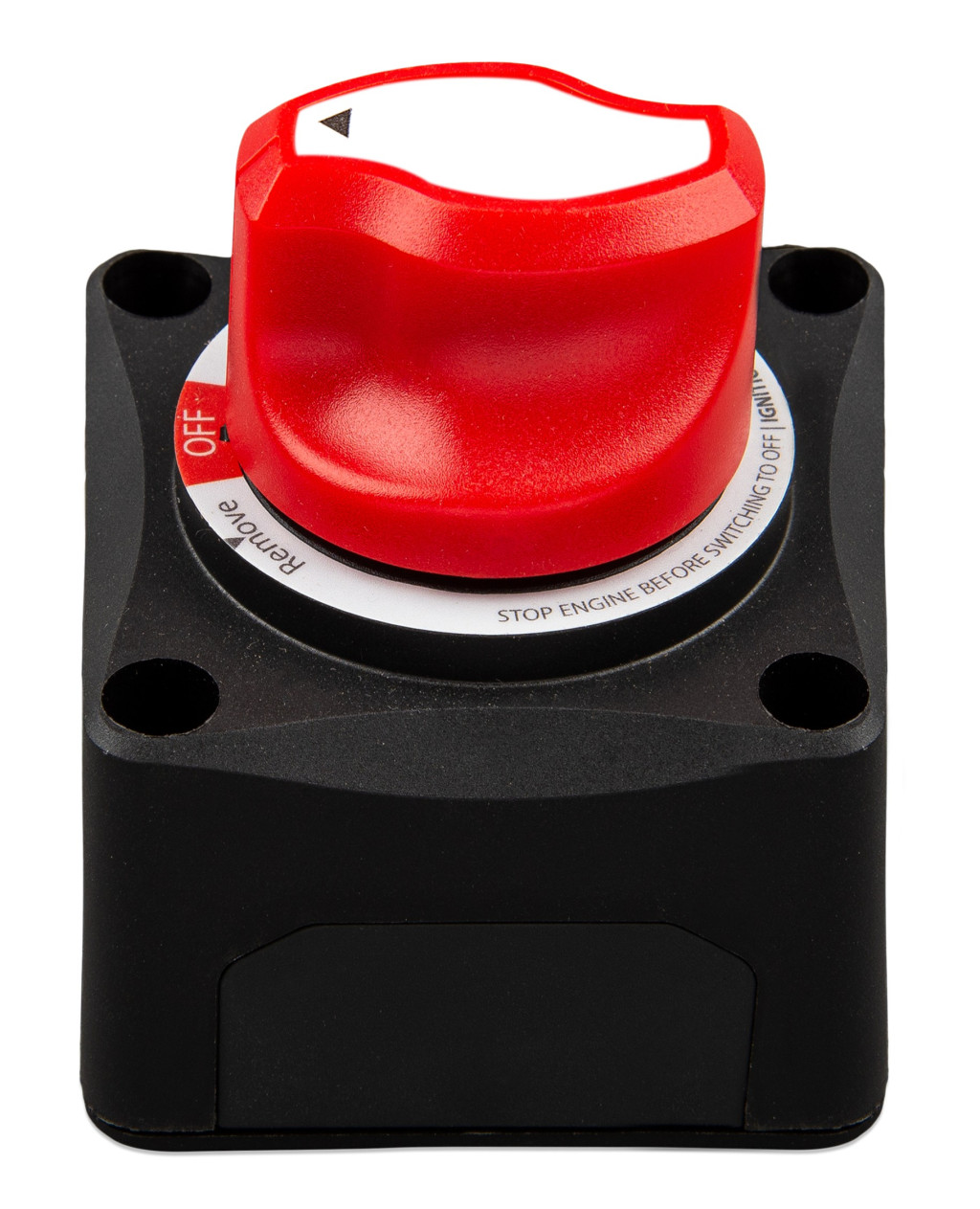

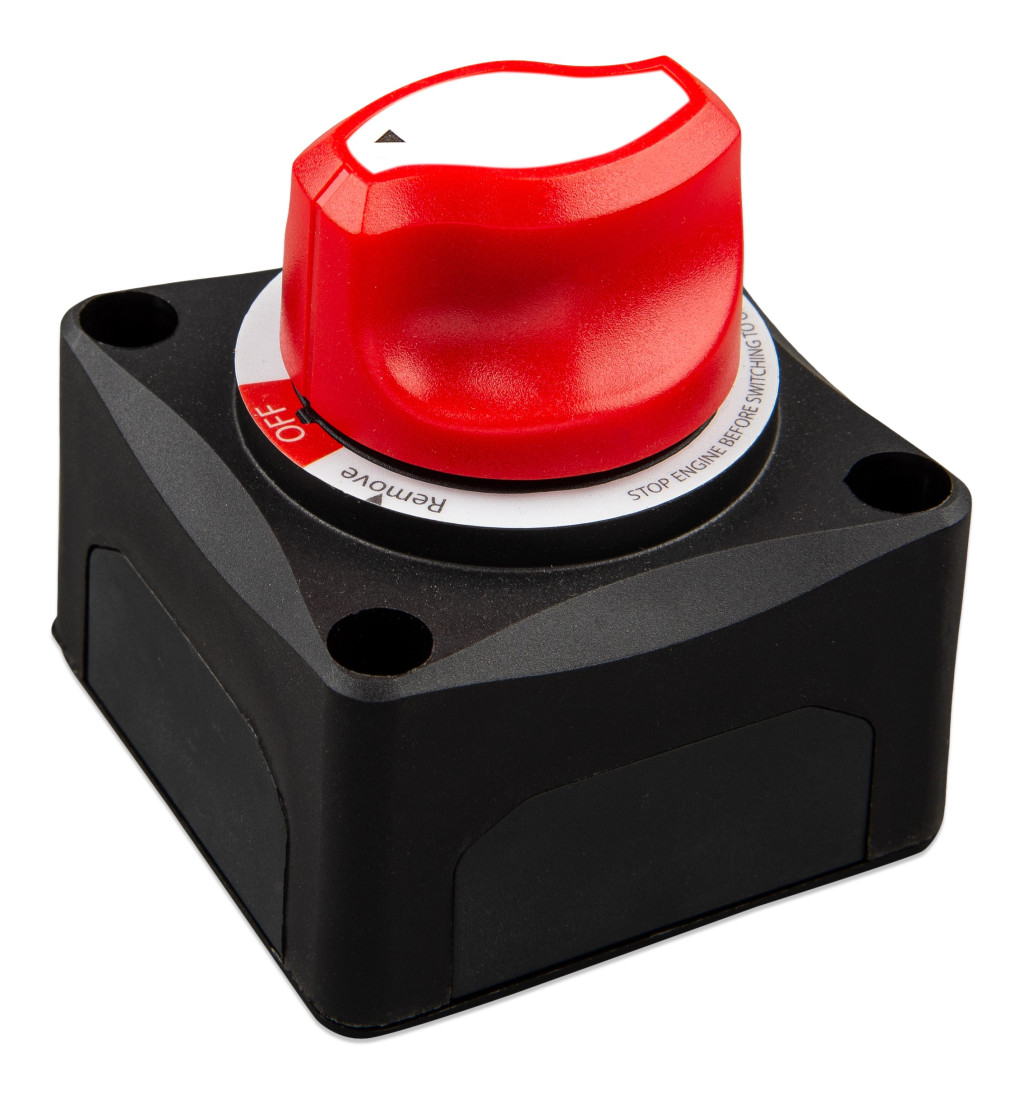

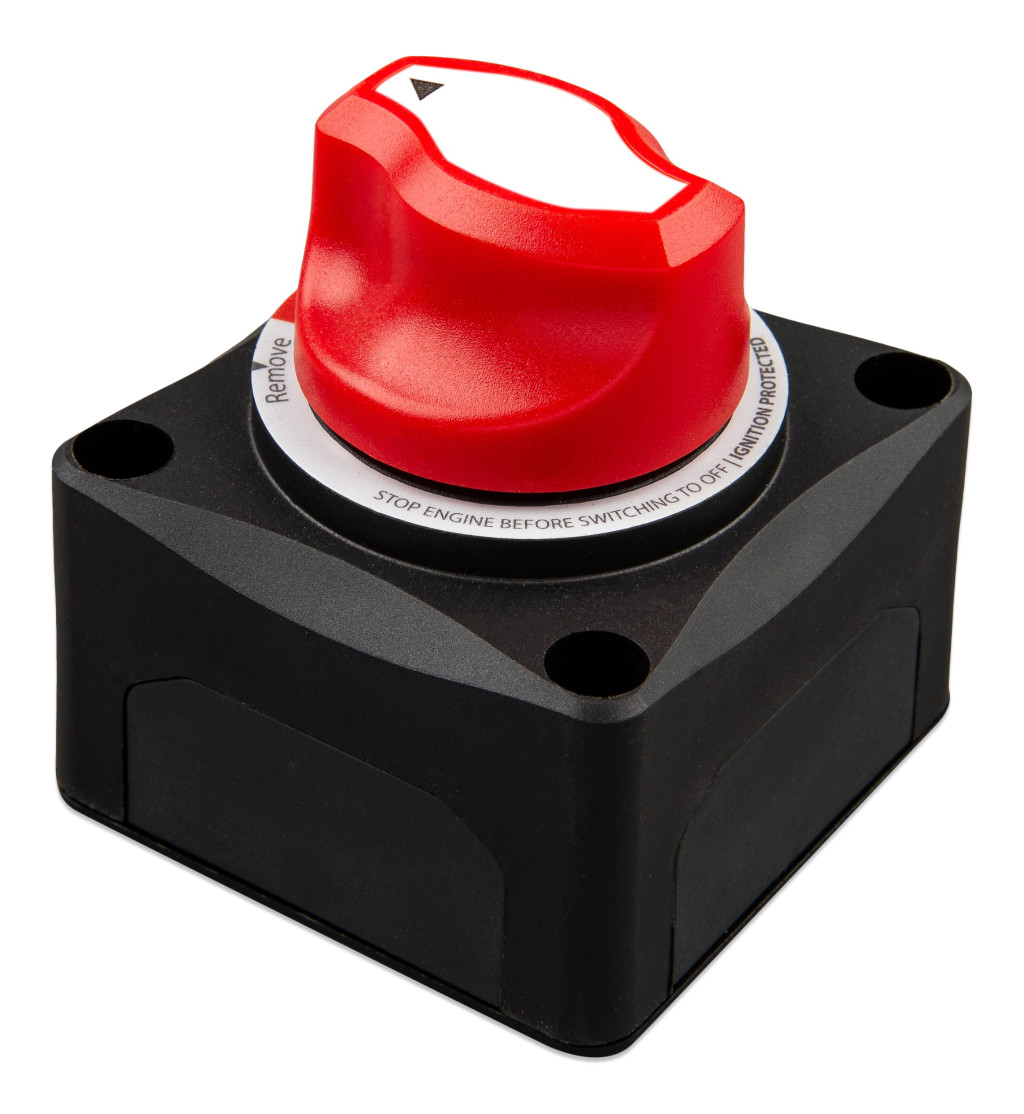

This battery disconnect switch, designed for a nominal current of 275 amps, is an ideal choice for boats, motorhomes, solar systems, onboard networks, and other 12/24 V DC applications. It allows for the battery to be disconnected from onboard consumers with a single motion, preventing accidental discharge, electric shock, and overheating of wires.
The robust, high-load design ensures safe operation for starter and service batteries, inverters, chargers, and other DC consumers. The switch is a fundamental component of modern power supply systems when reliable battery management and quick disconnection are needed.
Main features and benefits
- Max. load capacity: 275 A continuous current in DC systems
- Suitable for 12 V and 24 V battery systems

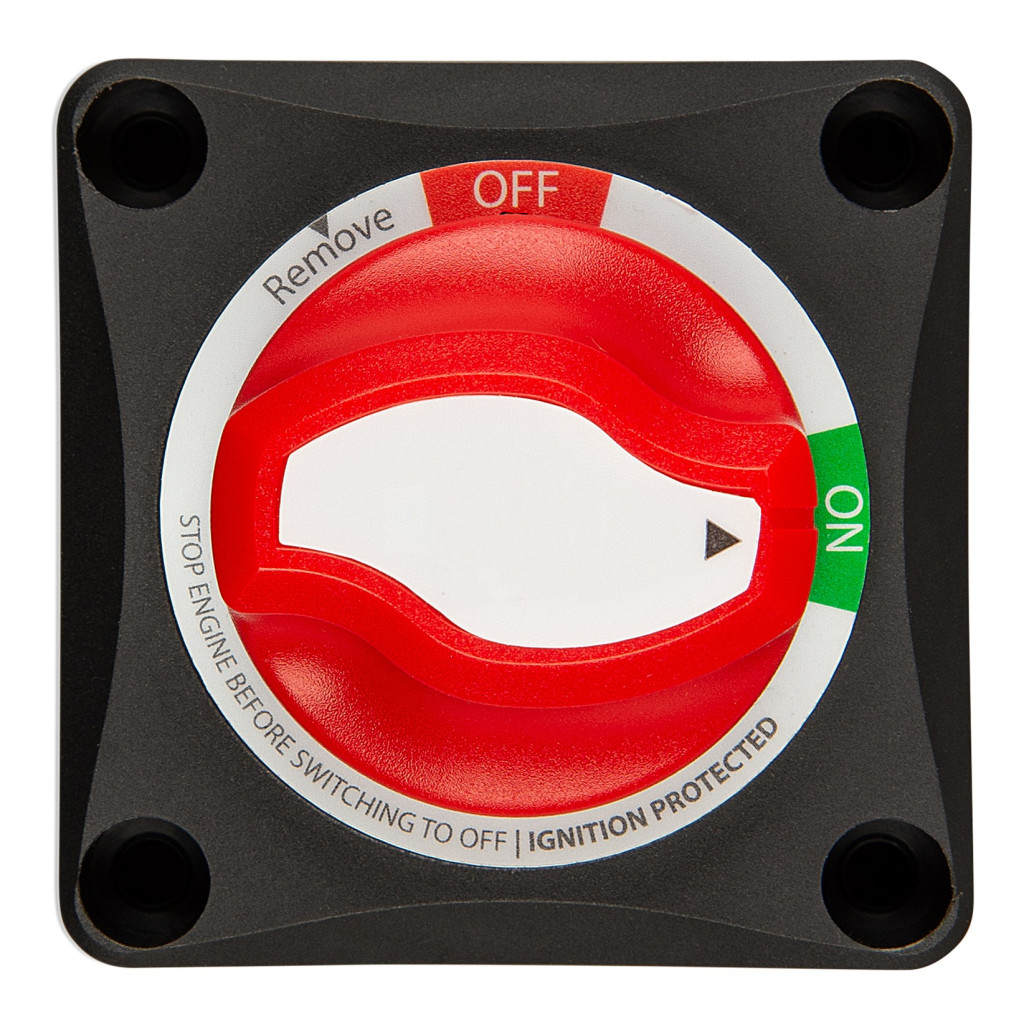

- Quick and clearly visible manual on/off operation
- Safe battery disconnection during maintenance, installation, or winter storage
- Reduces the risk of accidental battery discharge
- Reliable protection against short circuits and overloads
- Robust housing with high mechanical load capacity
- Easy installation in boats, motorhomes, or fixed DC distribution panels
Applications
The high current-rated disconnect switch can be flexibly used in any system where quick separation of the battery and consumers is required. Particularly recommended for:
- boat onboard electrical systems
- 12/24 V networks of motorhomes and caravans
- solar (off-grid) system battery banks
- separation of starter and service batteries
- disconnecting inverters, charge controllers, onboard consumer circuits
- industrial and mobile power supply systems
Why is battery disconnection important?
Using a battery disconnect switch is crucial for safe and reliable operation for several reasons:
-
Safe maintenance: the entire system can be de-energized before any installation, wire replacement, or consumer expansion.
-
Fire protection: in case of a short circuit or damaged wiring, quick disconnection significantly reduces the risk of damage and fire.
-
Increased battery lifespan: prevents slow discharge due to hidden consumers, which can damage the cells.
-
Protection during longer downtime: during winter storage, off-season periods, or when a vehicle is parked in a garage, the entire circuit can be interrupted.
Technical advantages and construction
The switch circuit design is specifically optimized for high-load DC applications. The internal contacts provide low transitional resistance, allowing the nominal current to be transmitted with minimal voltage drop. This is particularly important in starter systems and high-performance inverters, where every tenth of a volt counts.

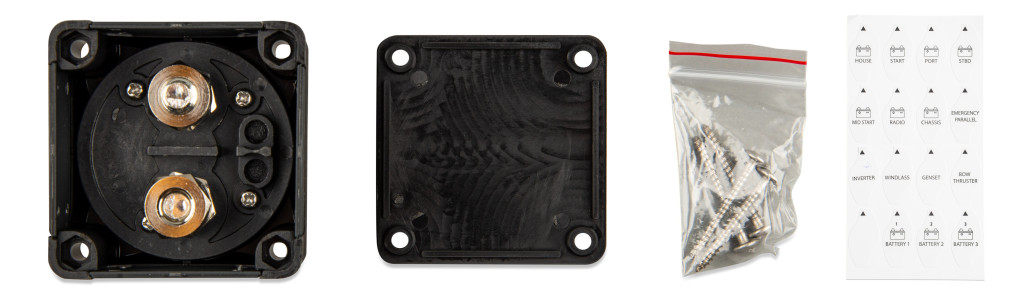

The screw terminals provide a stable connection for thick, high-cross-section battery cables. The durable housing withstands vibration well, making it suitable for mobile applications such as boats, motorhomes, and machinery.
Installation and wiring
The installation steps generally include:
- Selecting the appropriate location near the DC distribution, in an easily accessible position.
- Safely disconnecting the negative terminal from the battery before starting the installation.
- Connecting the high-cross-section positive cable to one of the main terminals of the switch.
- Connecting the positive wire going to the consumers to the other main terminal.
- Tightening the connections according to the manufacturer's recommended torque values.
- Restoring power to the system and checking the correct operation of the switch.
During installation, it is advisable to consider good ventilation, easy accessibility, and ensuring that the switch position is clearly visible. For safety, it is recommended to install DC main fuses at appropriate points in the system.
Who is this disconnect switch recommended for?
- Boat owners who want safe onboard power supply
- Motorhome builders and caravan owners using solar, inverter, and battery systems
- Installers, electrical professionals creating professional DC distribution
- Operators of off-grid solar systems where quick disconnection is important
- Operators of machinery and utility vehicle fleets for reliable battery management
Summary
The high current battery disconnect switch is a fundamental safety and control element in all modern 12/24 V DC systems. It reliably handles the 275 A load, enhances battery safety, simplifies maintenance, and protects the onboard electrical network from overload, short circuits, or issues arising from hidden consumers. If you want a stable, safe, and easily disconnectable power supply in the long term, this switch is an essential part of your system.
