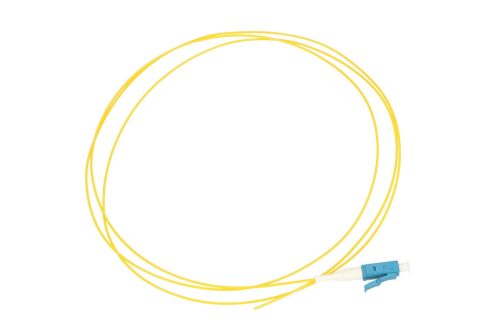

Extralink LC/UPC pigtail, single-mode, 900um G.657A, 1 meter
Optical fiber standard: G.657.A1
Length: 1m
Pigtail / splitter connector: LC/PC
Cable diameter: 0.9 mm
Cable length: 1 m
Cable type: FTTH
Connector 1: LC/UPC
Connector 1 gender: Male
Connector 2: None
Connector 2 gender: None
Optical fiber mode structure: Single-mode
Optical fiber type: G.657.A1
Insertion loss: 0.15
Jacket material: Polyvinyl chloride (PVC)
Operating temperature (T-T): -40 - 85 °C
Product color: Yellow
Quantity per package: 1 pc
Return loss: 60
Pigtail LC/UPC SM 900UM G.657A 1M
Pigtail Extralink LC/UPC connector is made for single-mode G.657. It is made from fiber specifically designed for FTTx technology. This fiber is characterized by a reduced bending radius without an increase in attenuation. This is a very important property during the deployment of FTTx networks due to the numerous changes in the direction of optical lines, as well as the small size of cabinets and distribution frames. The Pigtail is mainly used at customer cable termination points in customer sockets and distribution boxes.
