Extralink 32U 600x1000 black, standing rack cabinet, rack mountable
| Cabinet height | 32U |
| Back door design | metal |
| Batteries included | No |
| Built-in UPS | No |
| Color | black |
| Cooling type | passive |
| Depth | 1000mm |
| Depth | 1000 |
| Frame type | closed |
| Front door design | glass/steel |
| Height | 1640 |
| Material | glass, metal |
| Maximum load capacity | 1065 |
| Mounting kit | Yes |
| Stabilizing foot screws count | 4 |
| Nuts included | Yes |
| Package depth | 1560 |
| Package height | 380 |
| Package volume | 0.729652 |
| Package weight | 86 |
| Package width | 640 |
| Product color | black |
| Quick installation guide | No |
| Rack capacity | 32U |
| Removable back door | Yes |
| Removable front door | Yes |
| Removable side panels | Yes |
| Screws included | Yes |
| Side panel design | metal |
| Side panels included | Yes |
| Size (imperial) | 48.3 |
| Stabilizing foot screw | Yes |
| Temperature sensor | No |
| Type | standing rack cabinet |
| Door type | glazed |
| Wall mount kit | No |
| Width | 600mm |
| Width | 600 |

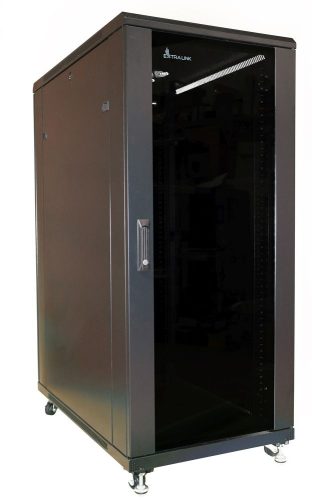

EXTRALINK rack, 32U, 600x1000, standing

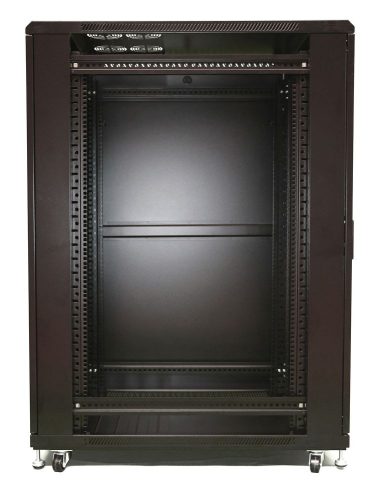

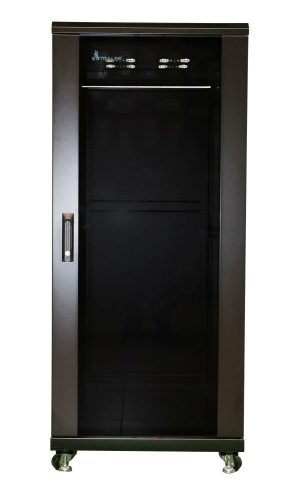

The Extralink rack cabinet is designed for offices, network server rooms, and CCTV control rooms. The outer walls are made of cold-rolled steel sheet, while the front door features a tempered glass insert that can be opened to the left or right.

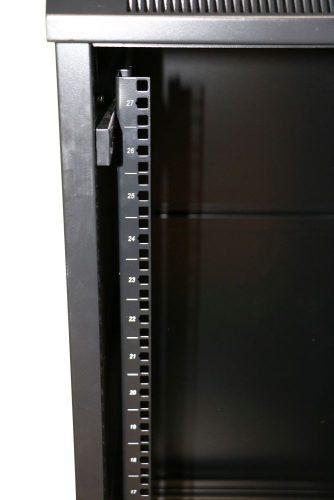

Well-marked cabinet height
The vertical rails are equipped with appropriate height markings, which can be up to 32U (units), providing ample space for installing various equipment in our infrastructure. The total height of the cabinet is 154 cm.
Easy removal of side panels
The snap locks on the side panels allow for their disassembly. The locks and keys are part of the package.

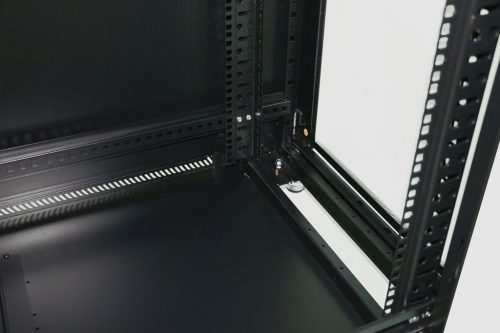

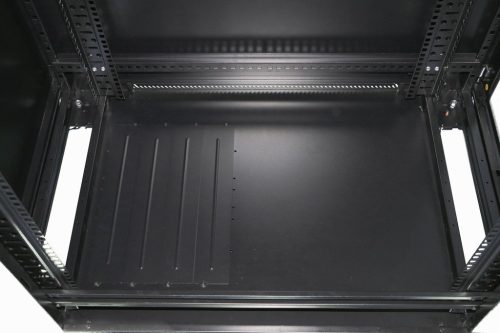

Easy cabling
The bottom panel features up to 4 cable entry openings that allow for cable routing, thereby reducing the risk of pinching or tangling.
Ceiling for fan installation
The cabinet ceiling has 4 spaces available for fan installation to ensure more effective cooling of the devices, as well as an additional cable entry opening.
Features
Features
- Front and rear doors
- Tempered glass front door with a small lock
- Reversible door for right or left opening
- Excellent design, precise dimensions, careful workmanship
- Adjustable feet and heavy-duty wheels available
- Cable entry on the top cover and bottom plate with adjustable sizes
- Reliable frame connection with baying kit
- Removable side panels for easy maintenance
