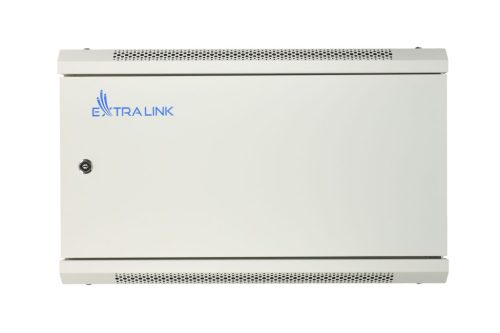

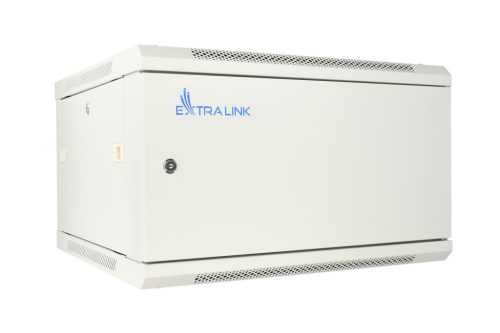

EXTRALINK 6U rack cabinet, 600×600, with metal doors The Extralink rack cabinet is designed for wall-mounted installation in offices, network server rooms, and CCTV control rooms. The outer side panels are made of cold-rolled steel sheet. The cabinet doors are made of solid steel sheet and can be opened to the left or right.

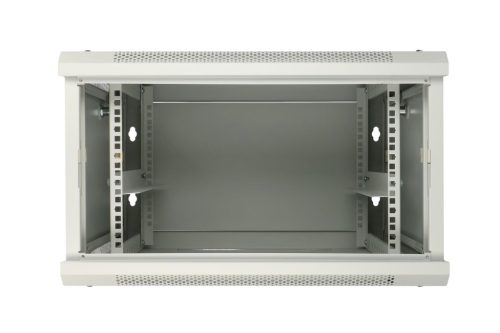

Clearly marked cabinet height The vertical rails have the appropriate height marking, which is 6U (units) . The total height of the cabinet is 37 cm .

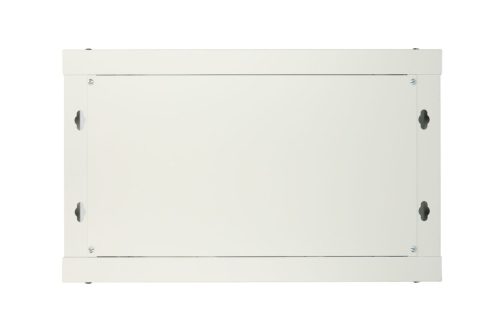

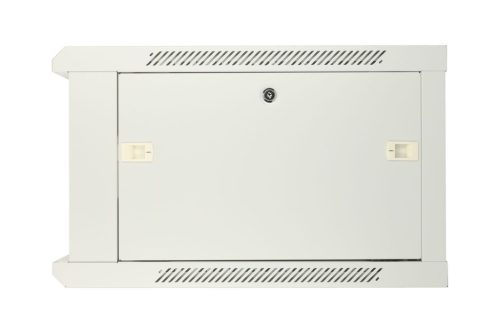

Easy removal of side panels The snap locks on the side panels allow for quick disassembly. The locks and keys are part of the package .

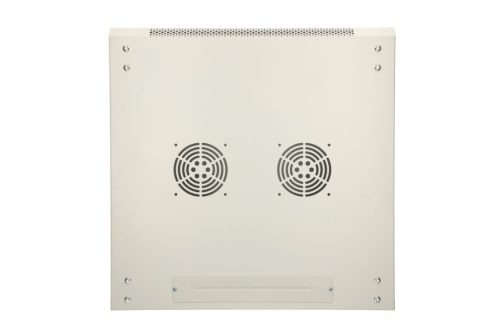

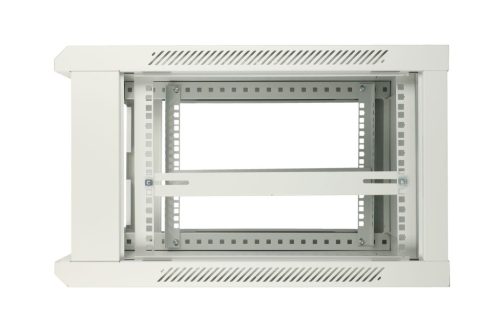

Ceiling prepared for fan installation The ceiling of the cabinet has 2 spaces available for fan installation to ensure more efficient cooling of the equipment, as well as an additional cable entry hole for cable routing.
Cabinet construction – technical drawing
Features
Features Standard 19'' mounting, welded frame, reliable design The self-assembly prepared frame structure facilitates transport and reduces shipping costs Standing / wall-mounted design Easy installation (patented solution) Removable side panels Cable entry holes on the top cover and bottom panel The door opening angle exceeds 180 degrees
