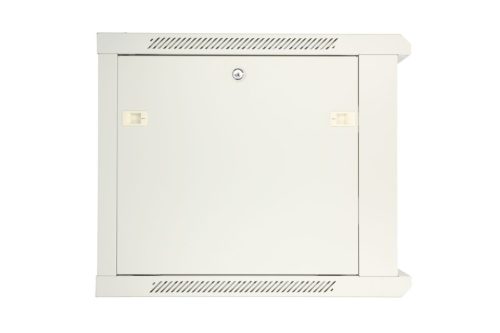

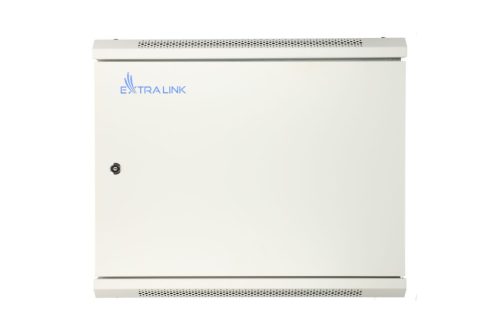

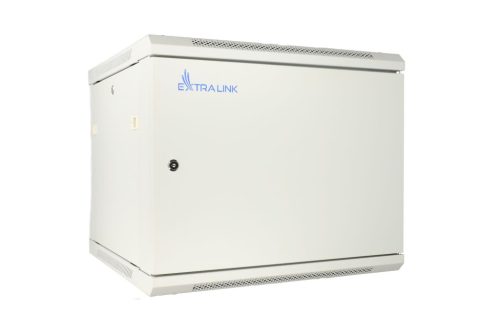

EXTRALINK 9U 600x600 rack cabinet with metal door The Extralink rack cabinet is designed for wall mounting, suitable for offices, network server rooms, and CCTV control rooms. The outer side panels are made of cold-rolled steel sheet. This cabinet version features solid metal doors that can be opened to the left or right.

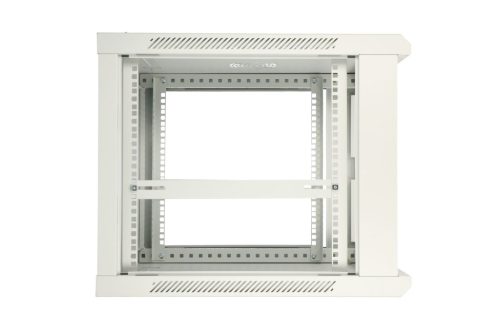

Clearly marked cabinet height The vertical rails are marked with a height indication of 9U (units) . The total height of the cabinet is 50.5 cm .

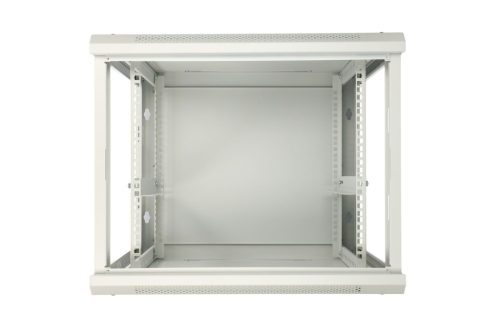

Easy removal of side panels The snap fasteners on the side panels allow for quick removal. Locks and keys included .

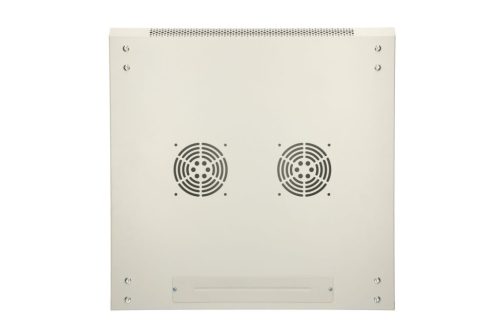

Ceiling suitable for fans The top of the cabinet has space for installing 2 fans for better cooling of the equipment, as well as an additional cable entry hole .
Cabinet construction – technical drawing
Features
Features Standard 19'' mounting, welded frame, reliable design Frame prepared for assembly, easy transport to reduce shipping costs Vertical / wall-mounted design Easy installation (patented solution) Removable side panels Cable entry holes on the top cover and bottom panel The door opening angle exceeds 180 degrees
