Extralink 37U 800x800 black, standing rack cabinet, rack mount
| Cabinet height | 37U |
| Adjustable feet | Yes |
| Back door design | steel |
| Back door key lock | Yes |
| Cable management | Yes |
| Wheels | Yes |
| Color | black |
| Cooling type | passive |
| Depth | 800mm |
| Depth | 800 |
| Frame type | closed |
| Front door design | glass/steel |
| Front door key lock | Yes |
| Height | 1765 |
| Key lock | Yes |
| Material | glass, metal |
| Maximum load capacity | 800 |
| Product color | black |
| Rack capacity | 37U |
| Removable back door | Yes |
| Removable front door | Yes |
| Removable side panels | Yes |
| Side panel design | steel |
| Side panel key lock | Yes |
| Side panels included | Yes |
| Size | 48.3 |
| Stabilizing foot screw | Yes |
| Type | standing rack cabinet |
| Door type | glazed |
| Width | 800mm |
| Width | 800 |

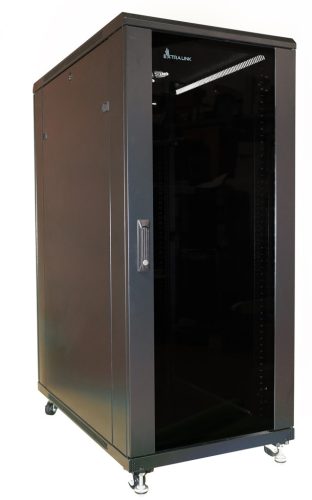

EXTRALINK rack, 37U, 800x800, standing
The Extralink rack cabinet is designed for offices, network server rooms, and CCTV control rooms. The outer walls are made of cold-rolled steel sheet, while the front door features a tempered glass insert that can be opened to the left or right.

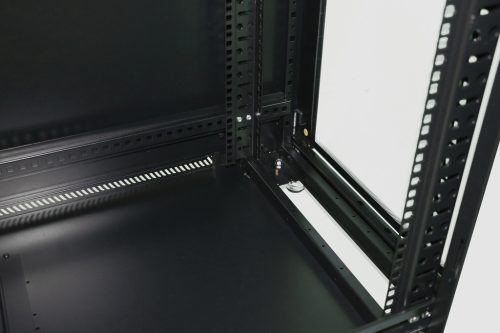

Well-marked cabinet height
The vertical rails are equipped with appropriate height markings, which can be up to 37U (units), providing ample space for installing various devices in our infrastructure. The total height of the cabinet is 176.5 cm.
Easy removal of side panels
The snap locks on the side panels allow for their disassembly. The locks and keys are part of the package.

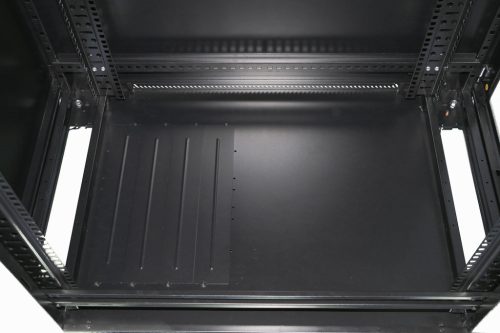

Easy cabling
The bottom panel features up to 4 cable entry holes that allow for cable routing, thereby reducing the risk of pinching or tangling.

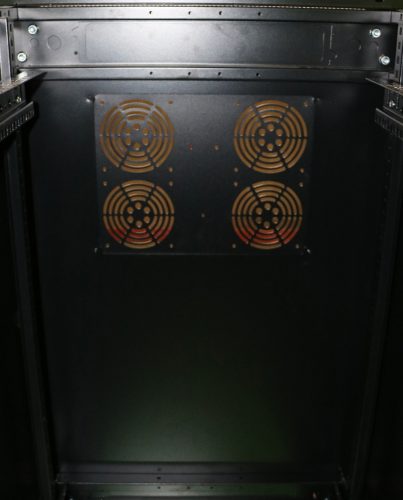

Ceiling for fan installation
The cabinet ceiling has 4 spaces available for fan installation to ensure more efficient cooling of the devices, as well as an additional cable entry hole.
Features
Features
- Front and rear doors
- Tempered glass front door with a small lock
- Reversible door for right or left opening
- Excellent design, precise dimensions, careful workmanship
- Adjustable feet and heavy-duty wheels are available
- Cable entry on the top cover and bottom plate, with adjustable sizes
- Reliable frame connection with baying kit
- Removable side panels for easy maintenance
