Extralink 42U 800x800 black, standing rack cabinet, rackmount
| Cabinet height | 42U |
| Assembly required | Yes |
| Back door design | Metal, steel |
| Back door key lock | Yes |
| Built-in UPS | No |
| Wheels | Yes |
| Color | black |
| Cooling type | Passive |
| Depth | 800mm |
| Depth | 1990 |
| Frame type | Open |
| Front door design | Glass/steel |
| Front door key lock | Yes |
| Height | 800 |
| Key lock | Yes |
| Material | Glass, metal |
| Maximum load capacity | 1400 |
| Number of leveling feet screws | 4 |
| Pre-assembled | No |
| Product color | black |
| Rack capacity | 42U |
| Rack rails | Yes |
| Removable back door | Yes |
| Removable front door | Yes |
| Removable side panels | Yes |
| Side panel design | Metal |
| Side panel key lock | Yes |
| Side panels included | Yes |
| Size (imperial) | 48.3 |
| Leveling foot screw | Yes |
| Type | Standing rack |
| Door type | Glazed |
| Width | 800mm |
| Width | 800 |

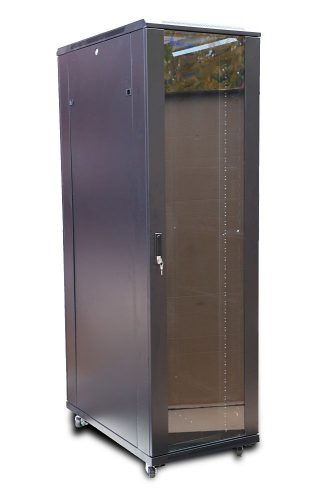

EXTRALINK rack, 42U, 800x800, standing
The Extralink rack cabinet is designed for offices, network server rooms, and CCTV control rooms. The outer walls are made of cold-rolled steel sheet, while the front door features a tempered glass insert that can be opened to the left or right.

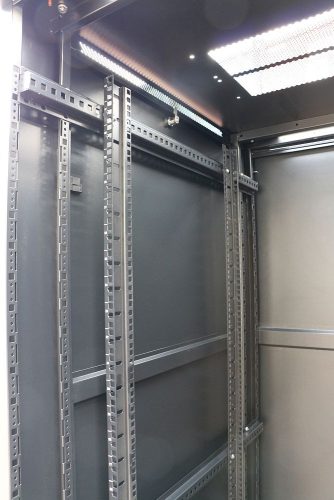

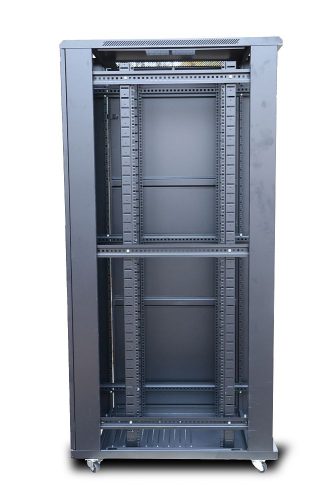

Well-marked cabinet height
The vertical rails are equipped with appropriate height markings, which can be up to 42U (units), providing ample space for the installation of various devices in our infrastructure. The total height of the cabinet is 199 cm.
Easy removal of side panels
The snap locks on the side panels allow for their removal. The locks and keys are part of the package.

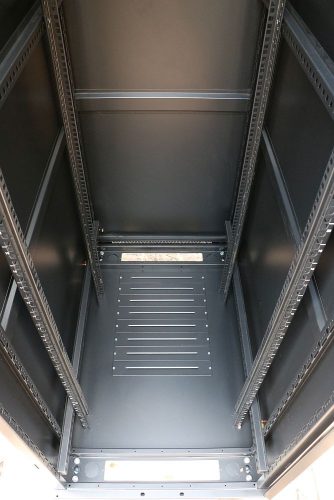

Easy cabling
The bottom panel features up to 8 cable entry holes, allowing for cable routing and reducing the risk of pinching or tangling.

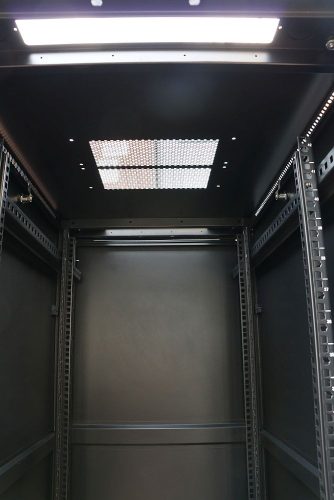

Ceiling with ventilation opening and additional cable entries
In addition to the ventilation opening on the ceiling of the cabinet, there are 2 additional cable entry holes for cable routing.
Features
Features
- Front and rear doors
- Tempered glass front door with a small lock
- Reversible door for right or left opening
- Excellent design, precise dimensions, careful workmanship
- Adjustable feet and high-capacity rollers are available
- Cable entry on the top cover and bottom plate, with adjustable sizes
- Efficient and reliable frame connection with baying kit
- Removable side panels for easy maintenance
