Extralink 27U 600x600 black, standing rack cabinet, rackmount
Cabinet height: 27U mm
Adjustable feet: Yes
Rear door key lock: No
Color: Black
Depth: 600 mm
Depth: 600 mm
Frame type: Closed
Front design: Tempered glass
Front lock with key: Yes
Height: 1320 mm
Key lock: Yes
Manual: Yes
Material: Steel
Maximum load capacity: 600 kg
Product color: Black
Rack capacity: 27U mAh
Mounting rails: Yes
Removable rear door: No
Removable front panel: Yes
Removable side panels: Yes
Size (inches): 48.3 inches
Type: Freestanding rack
Door type: Glazed
Width: 600 mm
Width: 600 mm

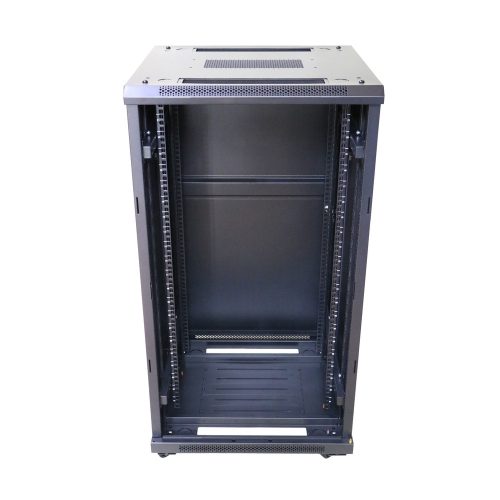

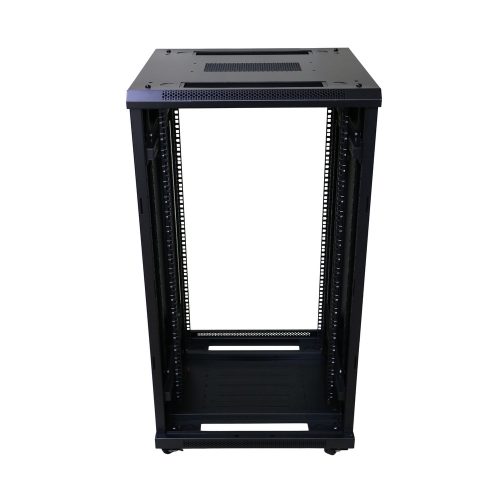

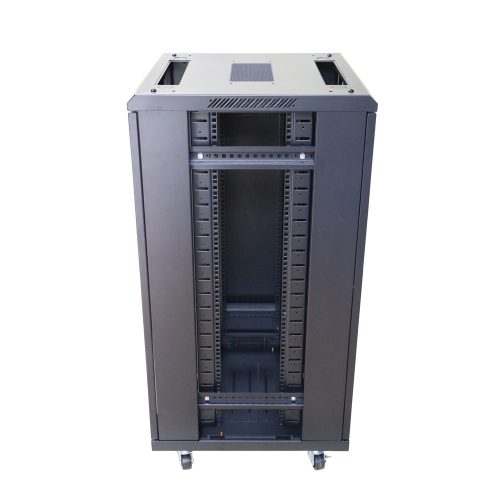

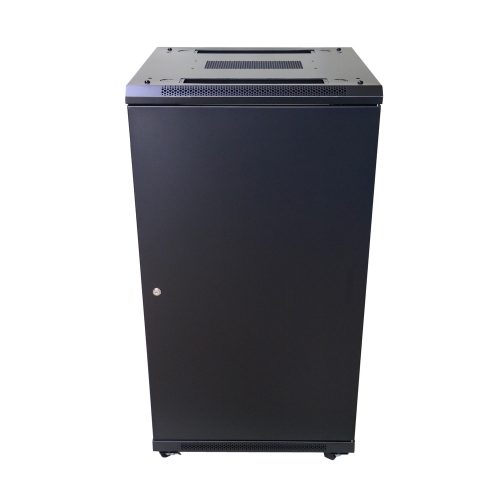

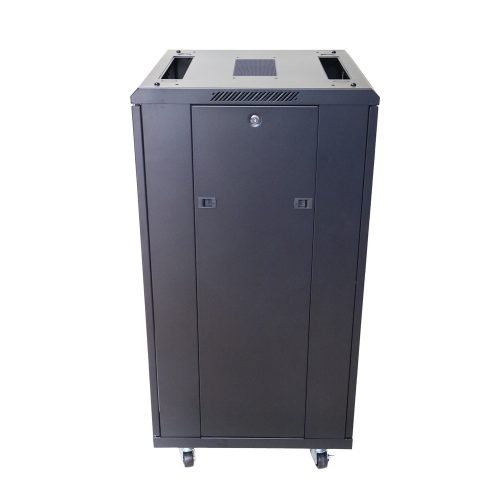

EXTRALINK 27U rack cabinet, 600×600, upright design

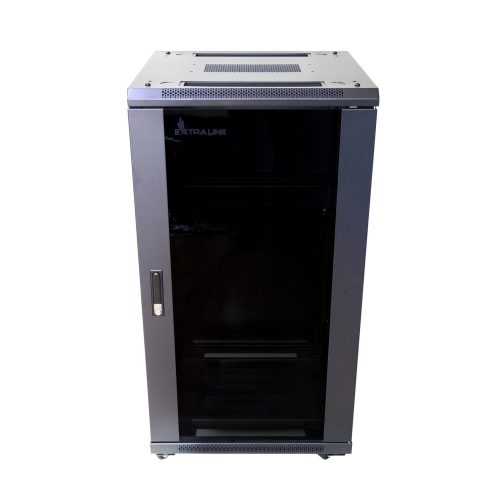

The Extralink rack cabinet is designed for offices, network server rooms, and CCTV control rooms. The outer side panels are made of cold-rolled steel sheet, while the front door features tempered glass insert that can be opened left or right.
Clearly visible cabinet height marking
The vertical mounting rails are equipped with appropriate height markings, which can be up to 27U (units), providing ample space for installing numerous devices for the infrastructure. The total height of the cabinet is 132 cm.
Easy removal of side panels
The snap-lock fasteners on the side panels allow for quick removal. Locks and keys are included in the package.
Convenient cable management
The bottom panel features a total of 5 cable entry openings for cable routing, thereby reducing the risk of cable compression or tangling.

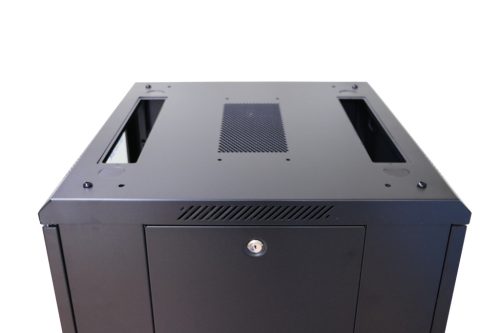

Top panel with ventilation opening and additional cable entries
On the top of the cabinet, in addition to the ventilation opening, there are 2 additional cable entry openings for cable routing.
Features
Features
- Front and rear doors
- Tempered glass front door with a small lock
- Reversible door (right or left opening)
- Excellent design, precise dimensions, careful workmanship
- Adjustable feet and heavy-duty wheels available simultaneously
- Cable entry openings on the top cover and bottom panel, with adjustable sizes
- Reliable cabinet interconnection with an expansion kit
- Removable side panels for easy maintenance
