Extralink 32U 600x600 black, rack cabinet, standing
Cabinet height: 32U mm
Adjustable feet: Yes

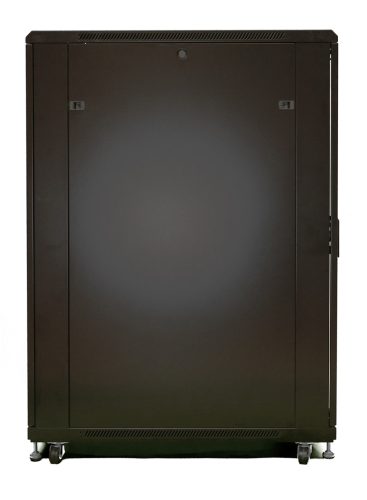

Back door design: Steel/Perforated
Back door key lock: Yes
Color: Black
Cooling type: Passive
Depth: 600 mm
Depth: 600 mm
Frame type: Closed
Front panel design: Tempered glass
Front panel lock with key: Yes
Height: 1640 mm
Key lock: Yes
Manual: Yes
Material: Steel
Maximum load capacity: 600 kg
Number of fans: 4
Product color: Black
Rack capacity: 32U mAh
Removable back door: Yes
Removable front panel: Yes
Removable side panels: Yes
Size (inches): 48.3 inches
Soundproofed: No
Type: Freestanding rack
Door type: Glazed
Width: 600 mm
Width: 600 mm

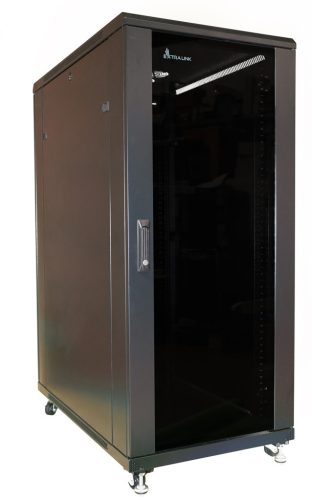

EXTRALINK rack cabinet, 32U, 600×600, upright design

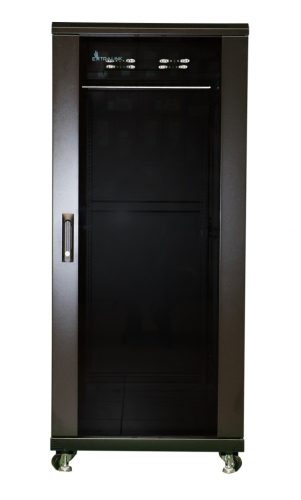

The Extralink rack cabinet is designed for offices, network server rooms, and CCTV control rooms. The outer casing is made of cold-rolled steel sheet, while the front door features a tempered glass insert that can be opened left or right.

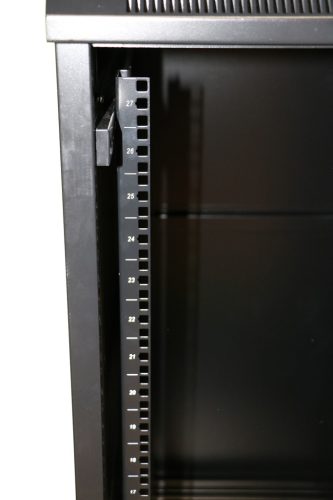

Clearly visible cabinet height marking

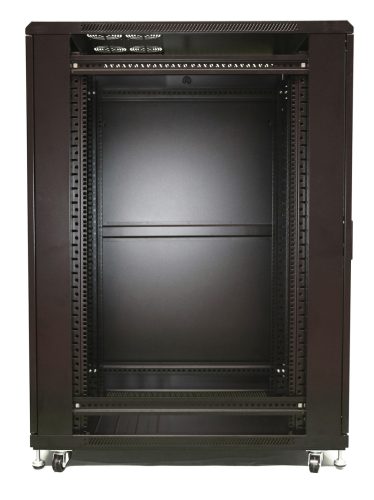

The vertical mounting rails are equipped with appropriate height markings, which can be up to 32U (units), providing ample space for installing numerous devices in our infrastructure. The total height of the cabinet is 154 cm.
Easy removal of side panels
The snap-lock fasteners on the side panels allow for quick removal. Locks and keys are also included.
Convenient cable management

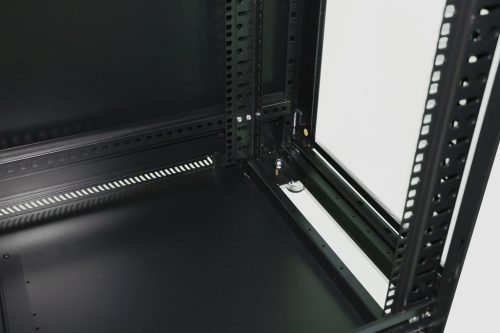

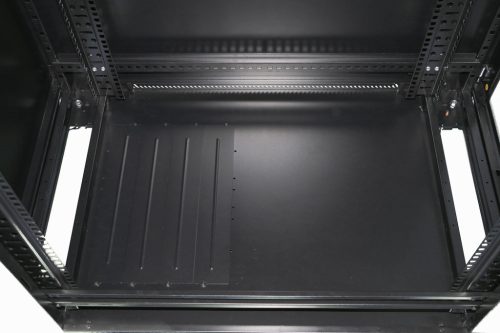

The bottom panel features a total of 4 cable entry openings for cable management, reducing the risk of cable compression or tangling.
Top panel with fan mounts
The top of the cabinet has space for 4 fan installations for more efficient cooling of devices, as well as additional cable entry openings for cable management.
Features
Features
- Front and rear doors
- Tempered glass front door with small lock
- Reversible door (right or left opening)
- Excellent design, precise dimensions, careful workmanship
- Adjustable feet and heavy-duty casters available simultaneously
- Cable entry openings on the top cover and bottom panel, with adjustable sizes
- Reliable cabinet interconnection with expansion kit
- Removable side panels for easy maintenance
