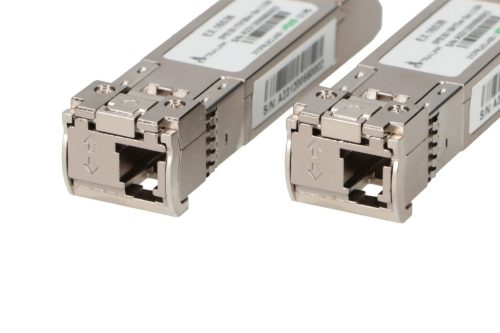

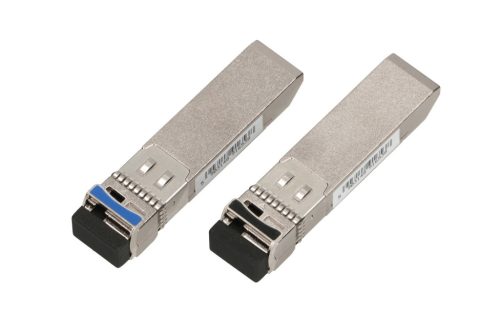

Extralink SFP28 25g, SFP28 WDM module, 25 Gbps, 1270/1330 nm

Name: Extralink SFP28 25g, SFP28 WDM module, 25 Gbps, 1270/1330 nm, single-mode, 10 km, LC connector, DOM, pair
Brand: EXTRALINK
SKU: EX-16538
Price: 136.57 EUR
Availability: InStock

Extralink SFP28 25g, SFP28 WDM module, 25 Gbps, 1270/1330 nm, single-mode, 10 km, LC connector, DOM, pair

Item number:

EX-16538

Extralink SFP28 25g, SFP28 WDM module, 25 Gbps, 1270/1330 nm, single-mode, 10 km, LC connector, DOM, pair

Extralink SFP28 25g, SFP28 WDM module, 25 Gbps, 1270/1330 nm, single-mode, 10 km, LC connector, DOM, pair

Item number:

EX-16538

Output connector: LC

SFP module - port speed: 25 Gbps

Transmission distance: 4-20 km

Ethernet LAN: No

Optical connector: LC

Optical type: SM (Single-mode)

Input voltage: 3.3 V

Interface type: SFP28

Maximum data transfer speed: 25780

Maximum transmission distance: 10000 m

Network standards: IEEE 802.3cc

Average power consumption: 1.5 W

Power over Ethernet (PoE): No

SFP module type: CWDM

SFP module type: Optical

Single-mode fiber (SMF) support: Yes

Maximum transmission wavelength: 1330 nm

Tx wavelength (min): 1270 mm

SFP module type: Wavelength (WDM)

Wavelength: 1270/1330 nm

Wavelength: 1310 nm

Delivery Time:

In stock 3 db

Online price: 136.57 €

Details

Cost-effective SFP28 25G module

The Extralink SFP28 25G is a cost-effective module that complies with Gigabit Ethernet and 1000-BASE-T standards according to IEEE 802.3cc specifications, and supports data transfer speeds of up to 25.78 Gbps. It is designed for use with Category 5 Ethernet cables, up to a distance of 10 km. The transceiver design is optimized for high performance and cost-effectiveness to provide users with the best solution for single-channel 25 Gbps optical connections. The SFP28 module operates with extremely low power consumption of up to 1.5 W and can be used in an operating temperature range of 0°C to 70°C.

sfp28
