Efficient Organization of IT Equipment with Extralink Premium Racks

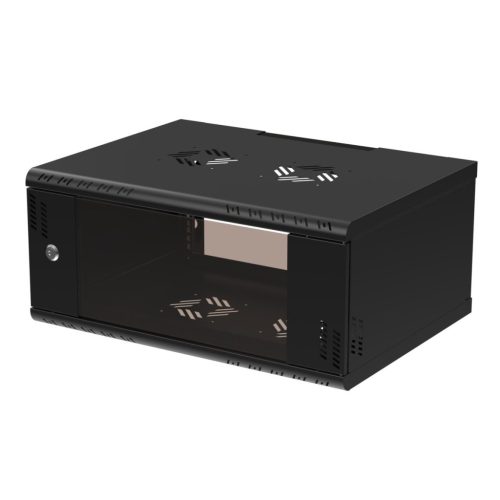

The Extralink Premium wall-mounted rack is the ideal solution for simplifying the organization of IT equipment, especially for those seeking a reliable and flexible solution for their projects. It easily adapts to a variety of needs thanks to the adjustable RACK rails, tool-free assembly, and ventilation configuration options. Its robust DC01 powder-coated steel structure guarantees durability and security for the stored equipment. Additionally, the elegant glass door with high-quality lock not only facilitates access but also lends a professional appearance to any installation. Choosing the Extralink Premium rack is an investment in efficiency, security, and aesthetics that meets the demands of modern network installations.
Thoughtful Design
The Extralink Premium rack has been designed according to the 19" RACK standard. The structure is made of DC01 steel sheet, which has been further strengthened with powder coating, ensuring durability and resistance to damage.
Tool-Free Installation
This cabinet features tool-free assembly thanks to the use of removable latches. This simplifies the assembly and disassembly of the structure. During equipment installation, full access to the interior is provided by the removable cover, significantly easing the work.
Brush Cable Pass-Throughs and Ventilation
The cabinet is equipped with brush cable pass-throughs that allow for easy cable entry directly along the wall. The cabinet can accommodate up to four 120 mm fans (2 on top and 2 on the bottom), which, along with other ventilation elements, provide effective heat dissipation.

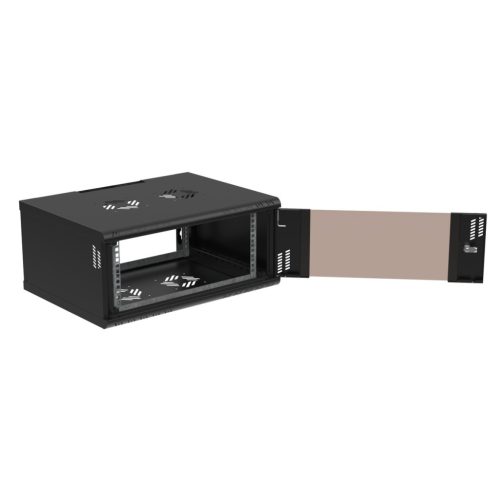

Glazed Door and Enhanced Lock
The Extralink Premium cabinet's front door is glazed, allowing for easy inspection of the contents. Thanks to the use of a spring hinge, the door can be mounted on either the left or right side. The proprietary premium lock provides additional security.

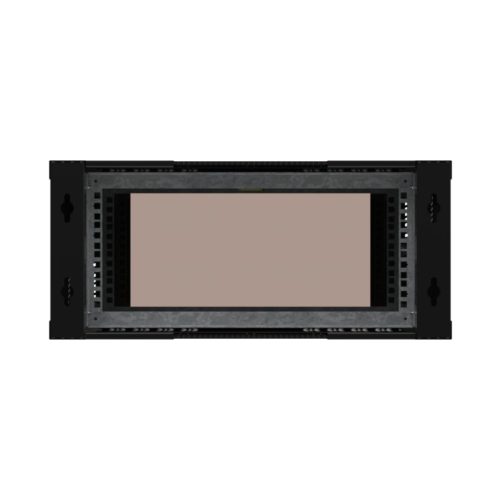

Easy Installation and Adjustment of Rack Rails
The cabinet allows for both RACK rails to be adjustable in 30 mm increments along the full depth, increasing its versatility. The notches designed on the frame facilitate ergonomic rail mounting, which is particularly important for configurations with different types of equipment.
Wall Mounting and Available Variants
The cabinet is designed for wall mounting, with holes to assist in the simple hanging and securing of the frame. Available in black or gray colors, in various heights: 4U, 6U, 9U, or 12U, as well as 450 or 600 mm depths. The cabinet's maximum load capacity is 70 kg, making it suitable for storing various network and server equipment.
