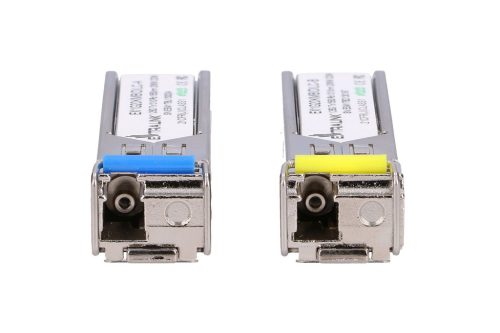

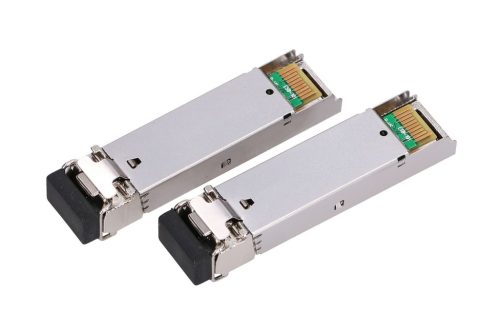

Extralink SFP WDM 1.25 G 1310/1550 nm, SFP module, single-mode, 20 km, LC, DDM, pair
Output connector: LC
SFP module - port speed: 1.25 Gbps
Transmission distance: 4-20 km
Certification: FCC
Fiber optic connector: LC
Fiber type: SM (Single-mode)
Interface type: SFP
Maximum data transfer speed: 1250 Mbps
Maximum transmission distance: 20000 m
Number of products in the package: 2
Rx wavelength (min): 1550 mm
SFP module type: Fiber optic
Single-mode fiber (SMF) support: Yes
Sustainability certifications: CE, RoHS
SFP module type: Wavelength (WDM)
Wavelength: 1310/1550 nm
Efficient SFP 1.25G BIDI 1310/1550NM 20KM LC DDM module pair
The Extralink SFP 1.25G optical transceivers are high-performance, cost-effective single-mode optical SFP modules that support 1.25 Gbps/1.0625 Gbps data transfer speeds and up to 20 km transmission distance over SMF fiber. Single-mode optical fiber is used for data transmission. The Extralink SFP 1.25 G operates on a wavelength division (Tx=1310 nm, Rx=1550 nm). The SFP 1.25 G optical module consists of three main parts: FP laser transmitter, PIN photodiode with integrated transimpedance amplifier (TIA), and an MCU control unit. Each single-mode SFP module meets Class I laser safety requirements.
Single-mode SFP modules for a wide range of applications
The SFP 1.25G optical modules can be used in fiber channel systems, Gigabit Ethernet networks, switch to switch interfaces, switched backplane applications, router and server interfaces, as well as other optical data transmission systems.
Special features
